2CH Smart switch Wiring Diagram

【Ultra Mini Size DIY Light Switch Module】40X40X24mm ultra mini size body,compatible with most of installation box on market.

【APP Remote Control】Download smart life /Tuya smart APP on your phone&Tablet to control the light switch anywhere/anytime.

【Hand Free Voice Control】Compatible with alexa echo ,google home ect ,a simply command to voice control the light switch.

【Timer,Schedule&Count Down Function】You can create schedule according to your personal requirement ,as well as timing and count down,smart and DIY your daily life to the maximum extend.

【easily.(Notice: please turn off electricity during installation).

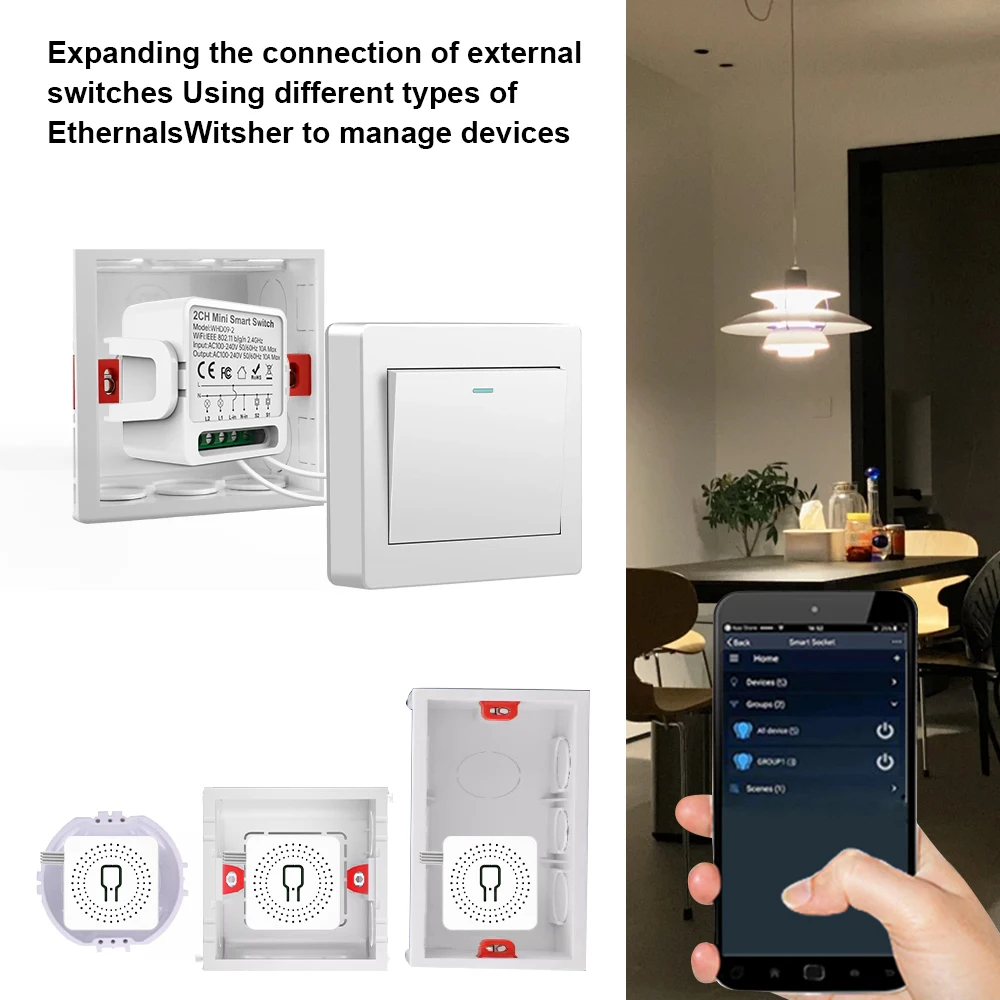

【Dual Way Control】Can fully upgrade 2 way control switch without change wiring design of house.

【Status Memory Function】switch status when power off and recovery can be set to on,off and keep the same as before power off.

【Interlock Function】Enable only one channel on,and other channel off at the same time.

【Group-Control Function】Multi switch in different room can set in a group ,realize group control function.

【 Family Share Function】You can share the switch to your family with the limited right,create a smart home together with your family member.

【Linkage Function】It can linkage with other switch module ,sensor and appliance in your home ,make create different scene possible,such as sleeping mode,working mode,dinner mode ,back home mode ect.

【WiFi Smart Switch】Turn on Bluetooth and 2.4G WIFI , the phone will quickly find the device, speed up the connection, and stabilize the connection,.WiFi connection, no gateway required.DIY, the connection method is simple, everyone can DIY the device and turn the non-smart device into a smart device.

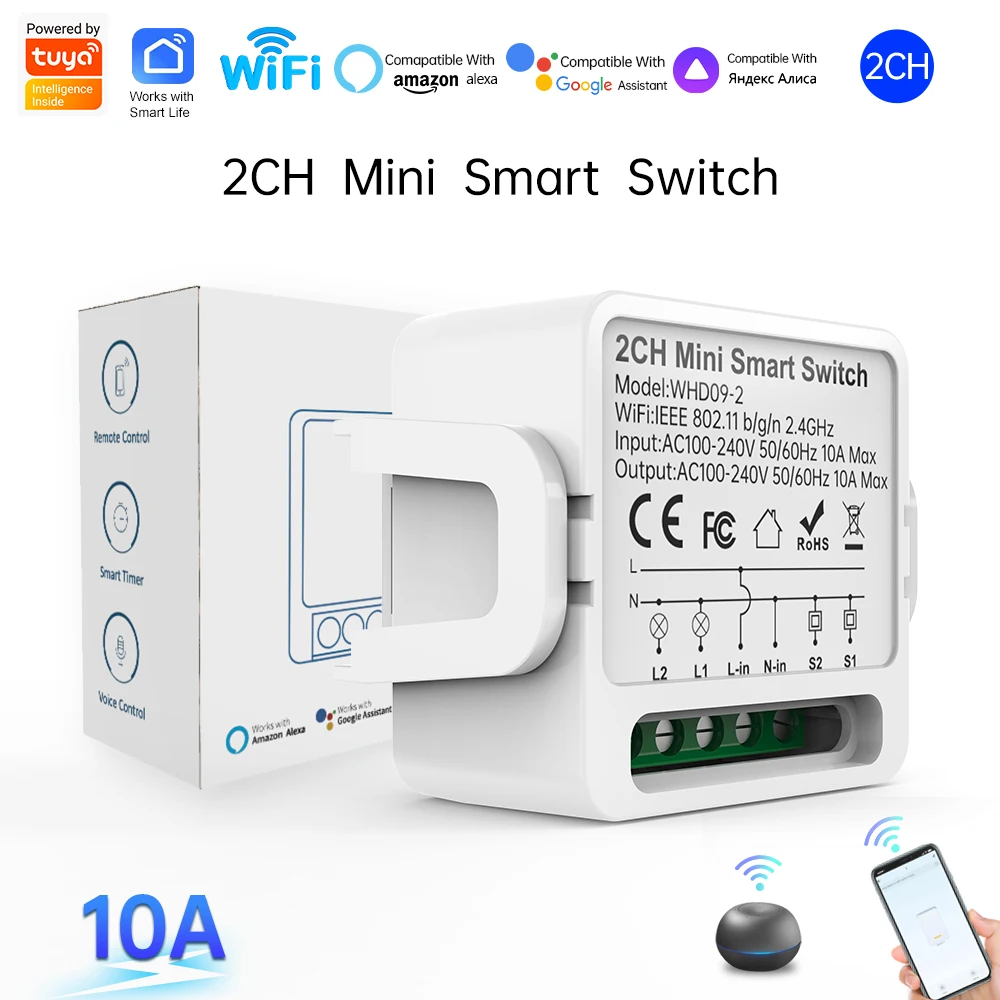

SPECIFICATION

— Product type :2Gang Switch Module

— Voltage:AC100-240V 50/60Hz

— 2Gang switch Max. load :LED 200W 10A

— Operation Frequency: 2.412GHz-2.484GHz

— WiFi Smart Switch Protocol :WIFI IEEE 802.11b/g/n
