5pcs/1pc HX710 HX710A HX710B HX710C 24 Bit ADC Analog-to-digital Converter Dual-wire Sampling Electronic Scale Weighing Module
القسم: غير مصنف
Price range: 19 ر.ق through 38 ر.ق
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
Product sharing
- Brand Name: Your Cee
- Origin: Mainland China
- High-concerned chemical: None
- Condition: New
- Type: Module
- Supply Voltage: 2.6-5.5v
- Dissipation Power: low
- is_customized: Yes
- Operating Temperature: normal
- Application: Computer
- Package: TQFP

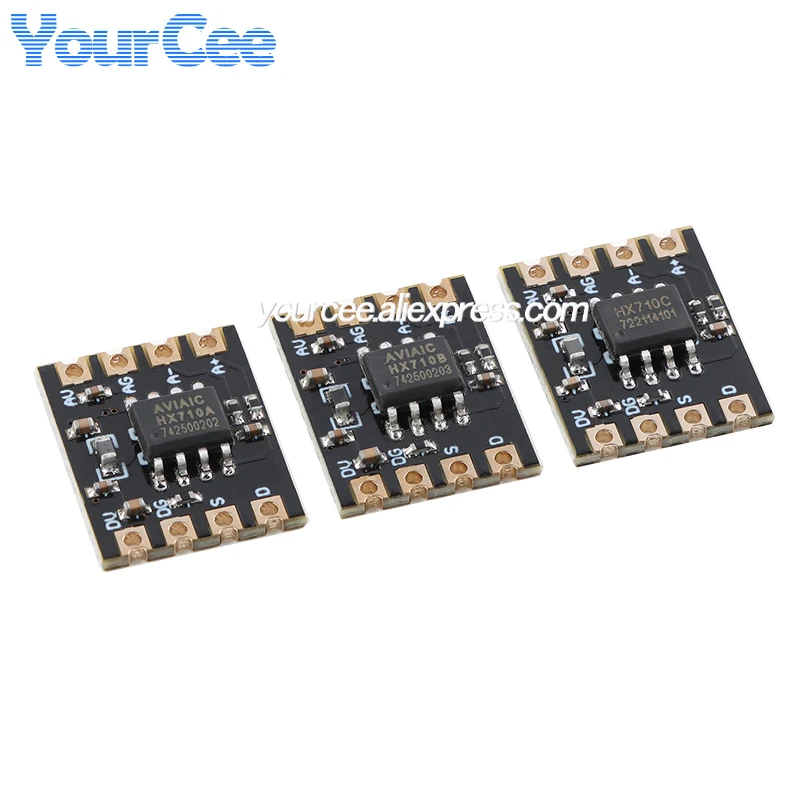

HX710 24-Bit ADC Module

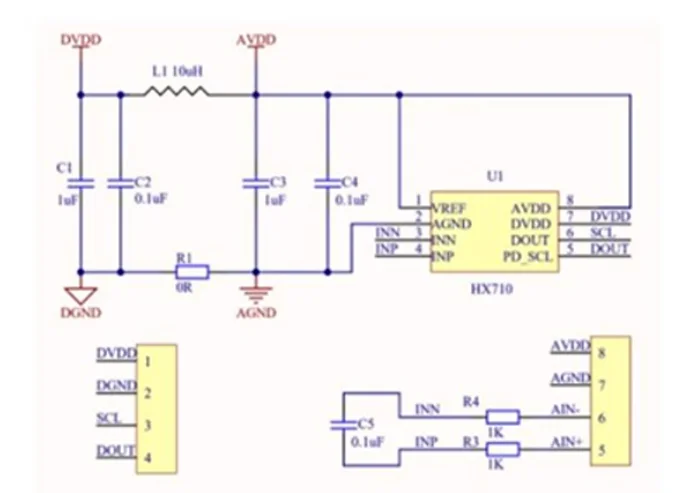

The HX710 24-bit ADC module is a module based on the HX710 chip that integrates peripheral filter circuits, resistors, capacitors and all printed interfaces. It expands double rows of gold-plated pinholes and stamp holes with a spacing of 2.54mm, which is convenient for users to weld and expand, and can also be directly pasted into users' products. The module adopts two-wire communication and supports wide working voltage. Tape packaging.
Main parameters
1. Working voltage: 2.6V ~ 5.5V
2. On-chip low noise amplifier with gain of 128
3. On-chip clock oscillator without any external devices
4. Power-on automatic reset circuit
5. Simple digital control and serial communication
6. Select 10Hz and 40Hz output data rate
7. Typical working current: 1.2mA, power-off current: <1uA
| Color | HX710A Chip, HX710B Chip, ZY-HX710A Module, ZY-HX710B Module, ZY-HX710C Module |
|---|---|
| Brand Name | Your Cee |
| Origin | Mainland China |
| High-concerned chemical | None |
| Condition | New |
| Type | Module |
| Supply Voltage | 2.6-5.5v |
| Dissipation Power | low |
| is_customized | Yes |
| Operating Temperature | normal |
| Application | Computer |
| Package | TQFP |
| Model Number | 1PC, 5PCS, 2pcs |
