High Quality 1-10PCS ESP32 WROOM-32 Development Board TYPE-C CP2102 WiFi+Bluetooth Module For Arduino ESP32 WROOM-32 38Pin
القسم: Children's toys, روبوتات الأطفال
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
Product sharing
- High-concerned chemical: None
- is_customized: Yes
- Model Number: SP32 WROOM-32 Development Board TYPE-C
- Supply Voltage: DC 5V
- Application: For Arduino ESP32
- Type: Module
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: -40℃ ~ +85℃
- Operating Current: 80mA (average)
- Current Supply: 500mA (Minimum)
- Microcontroller: ESP-WROOM-32 module
- Feature: High quality

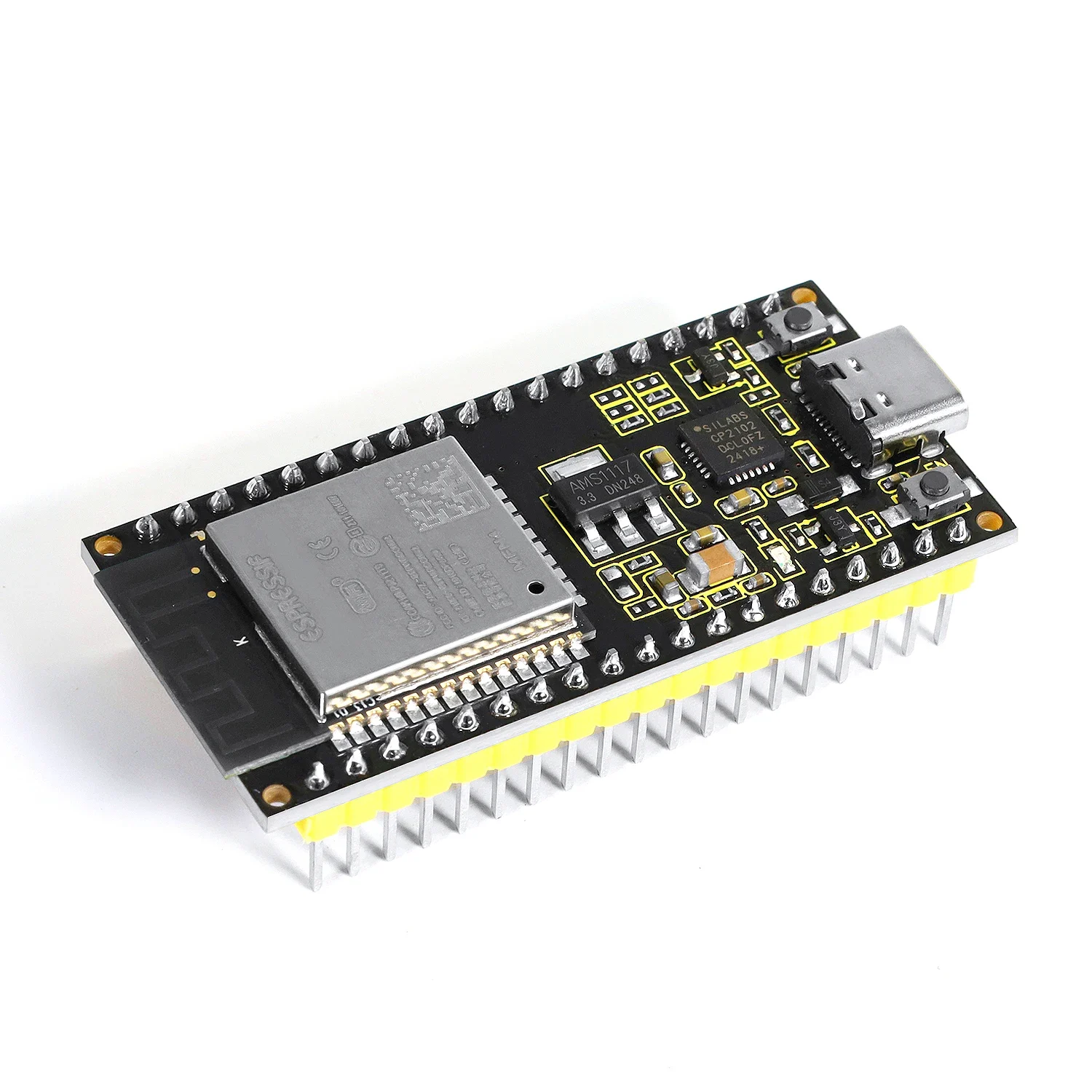

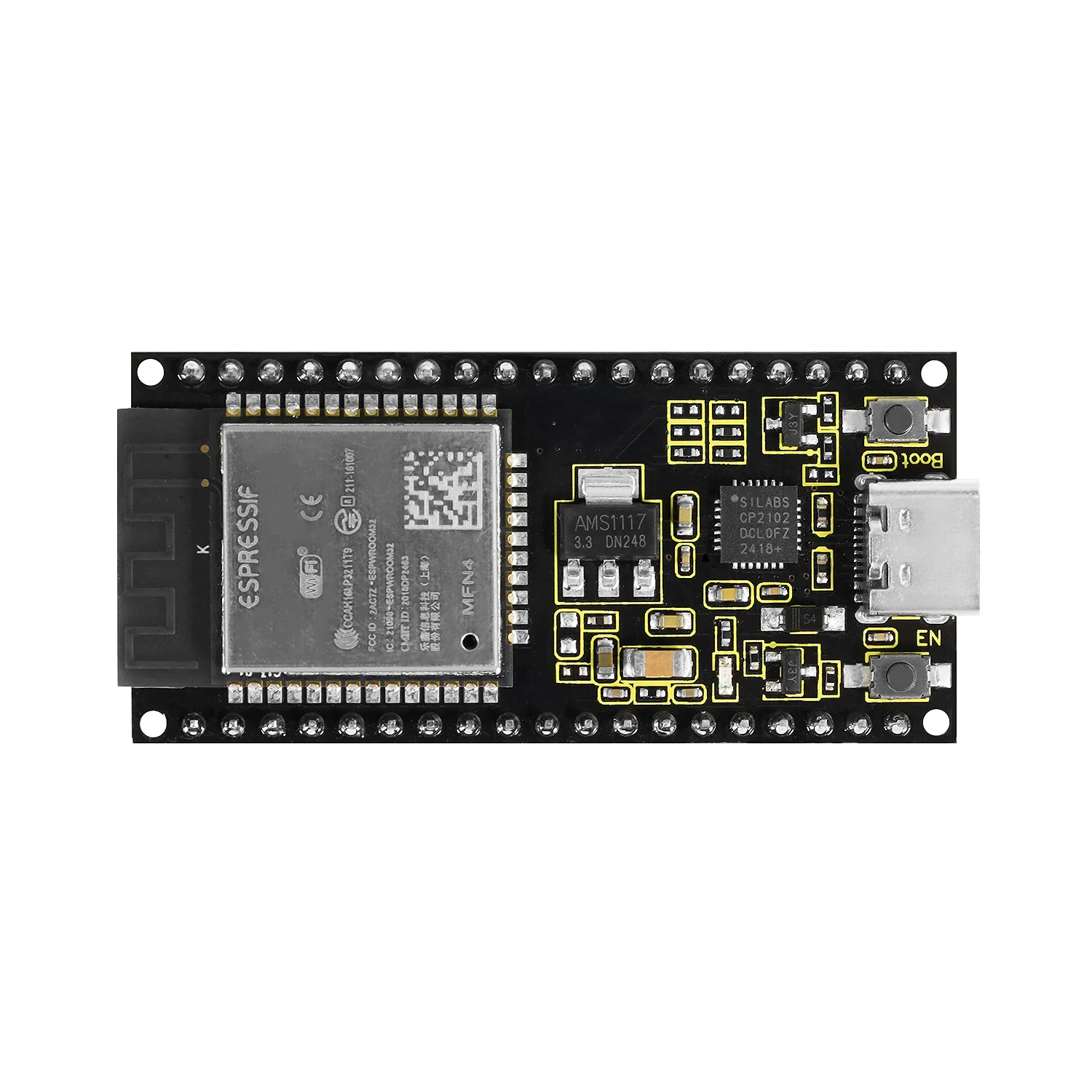

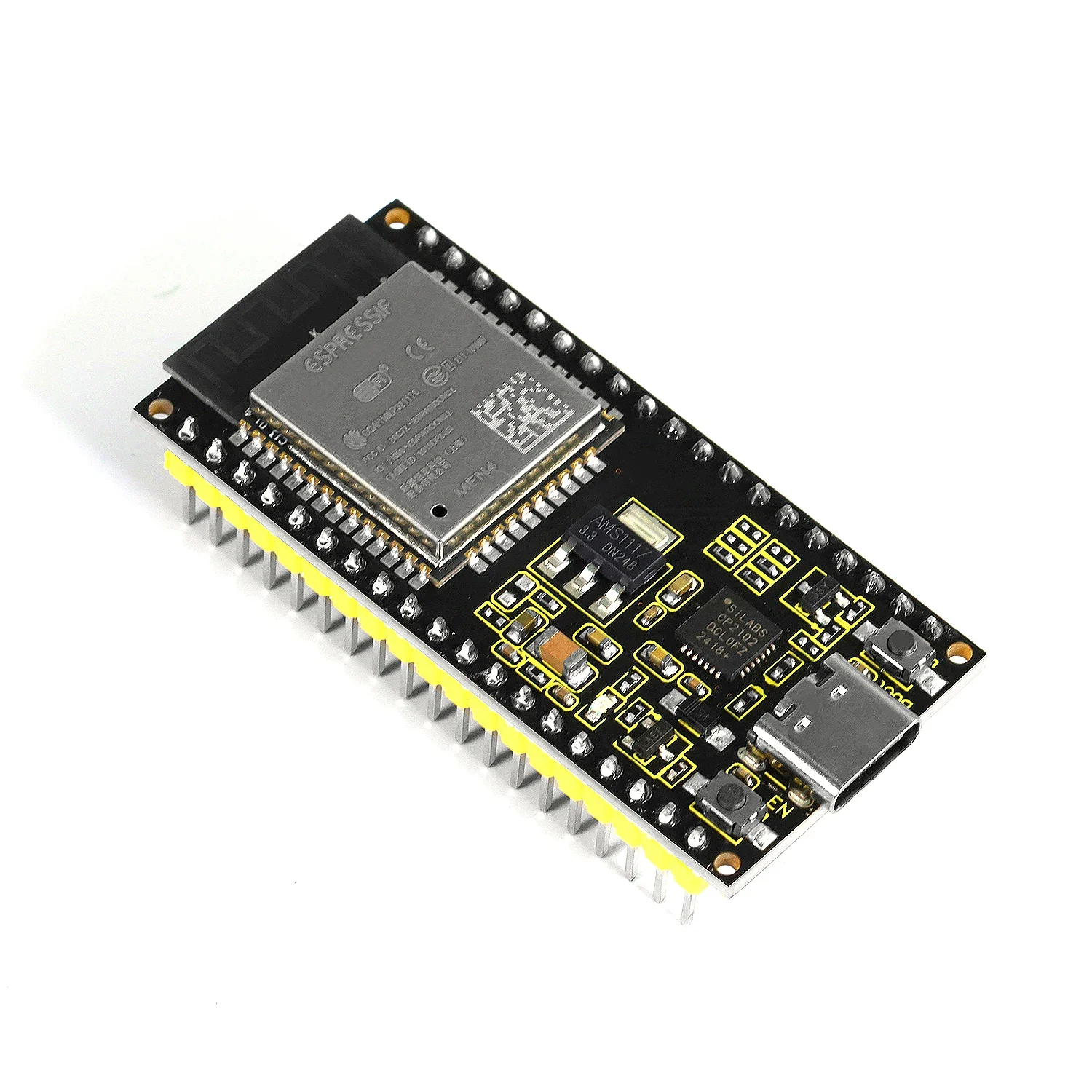

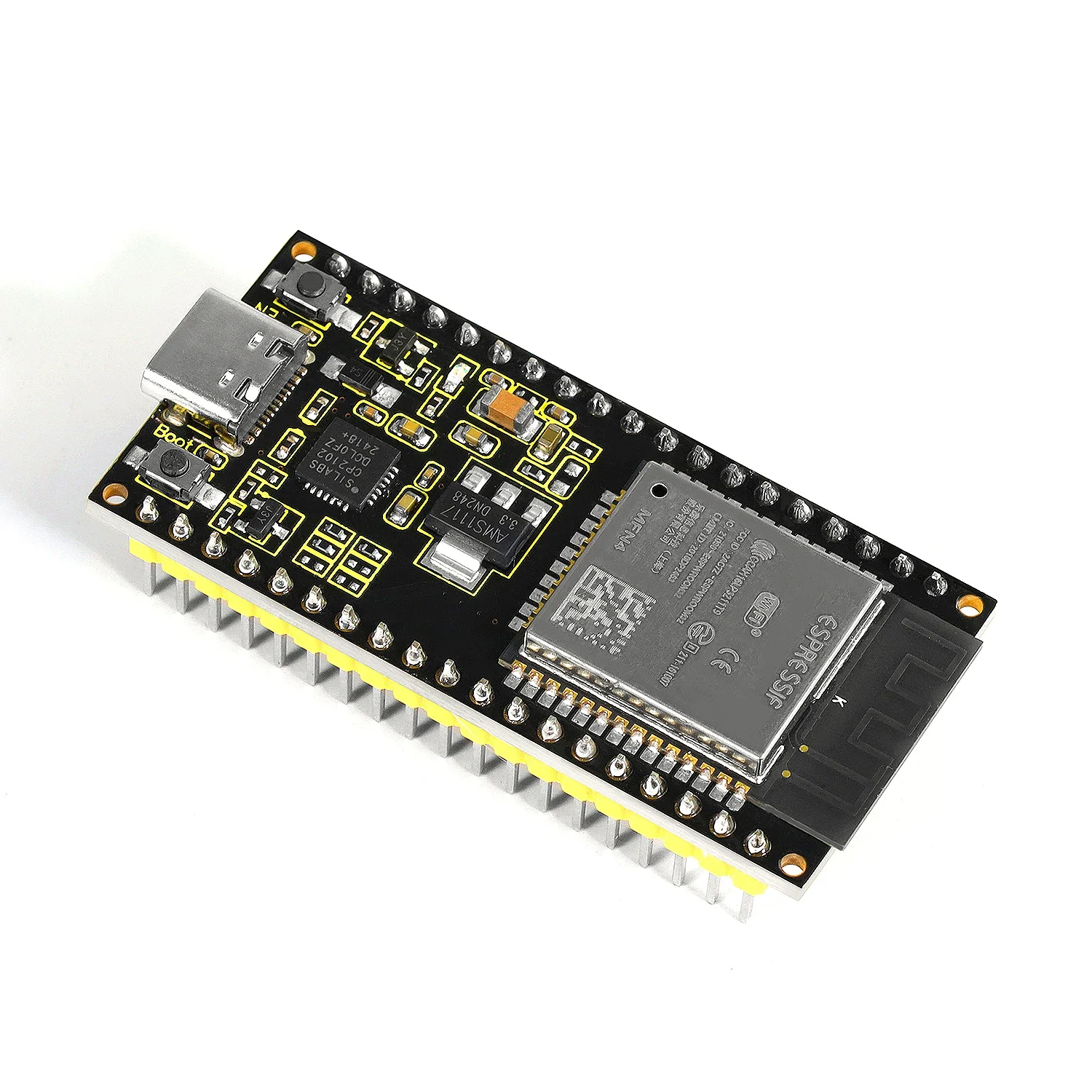

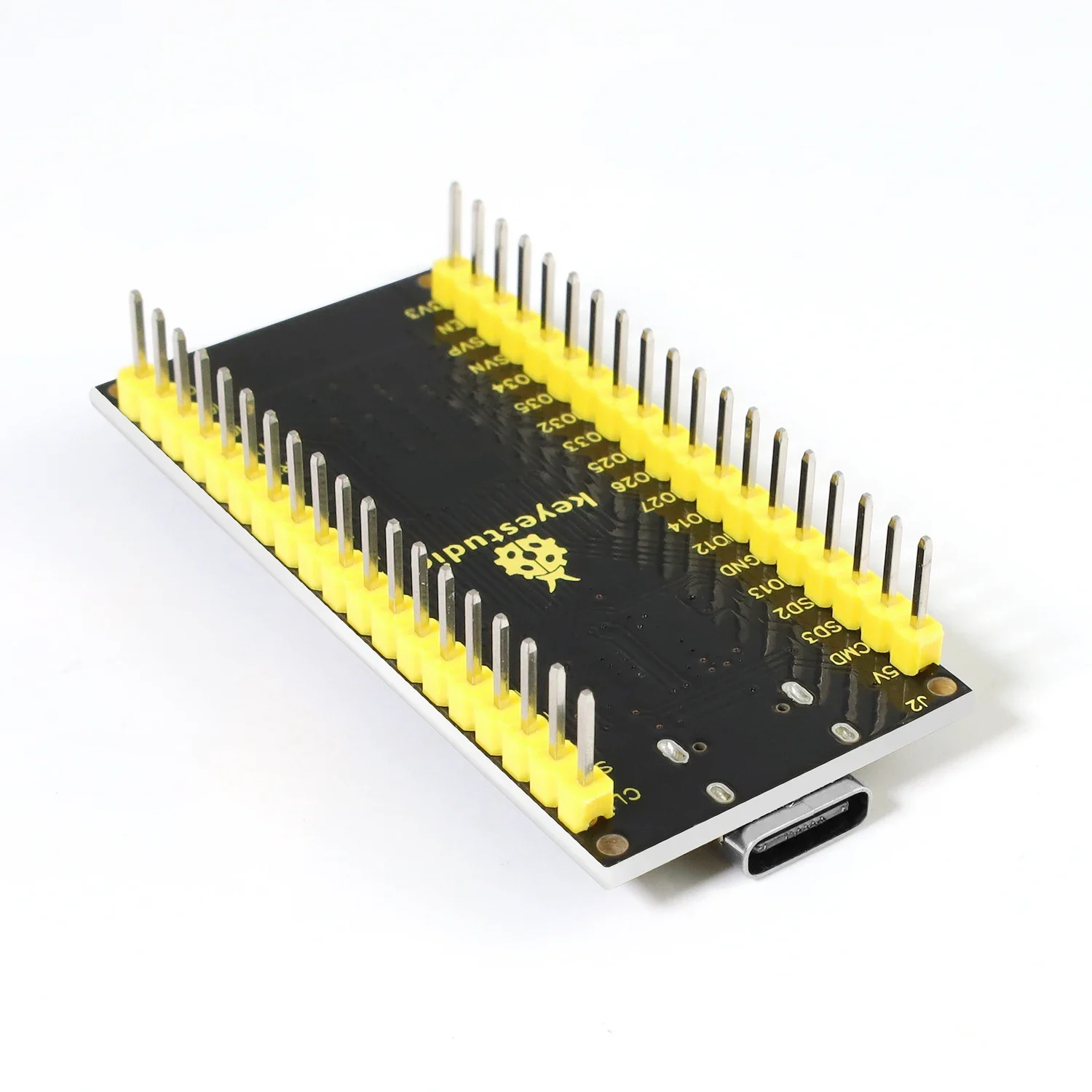

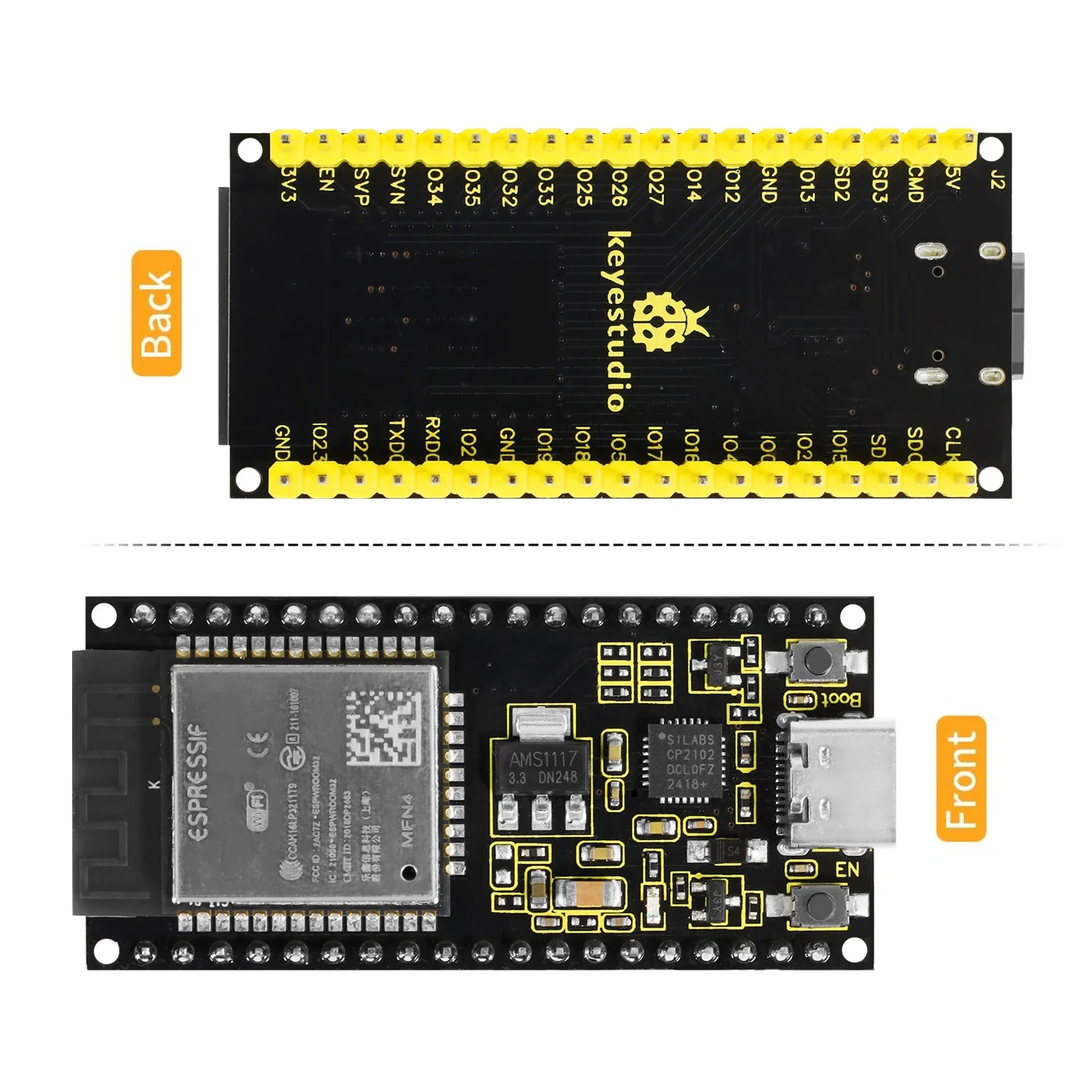

This Type-C connector keyestudio ESP32 core board is a Mini development board based on the ESP-WROOM-32 module.

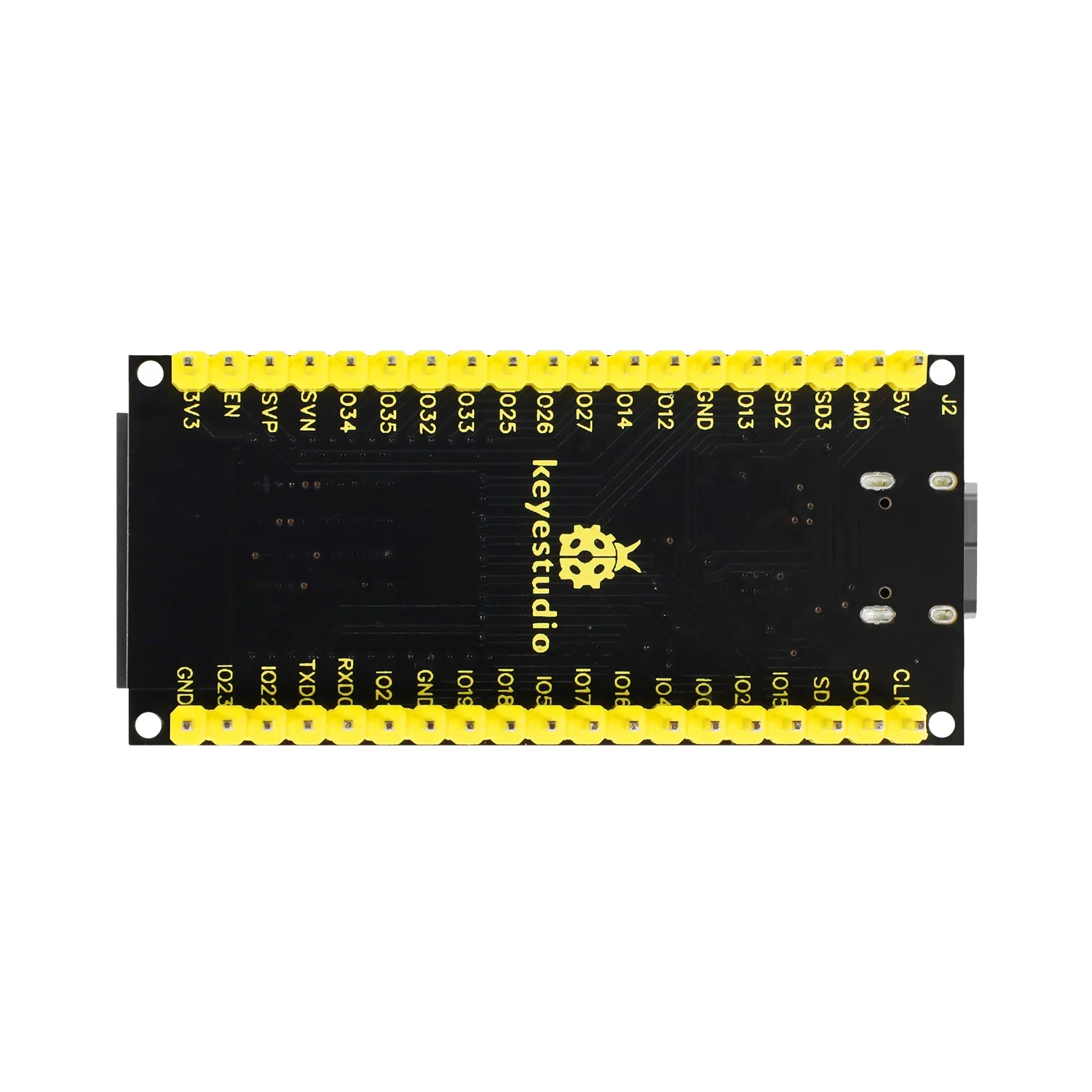

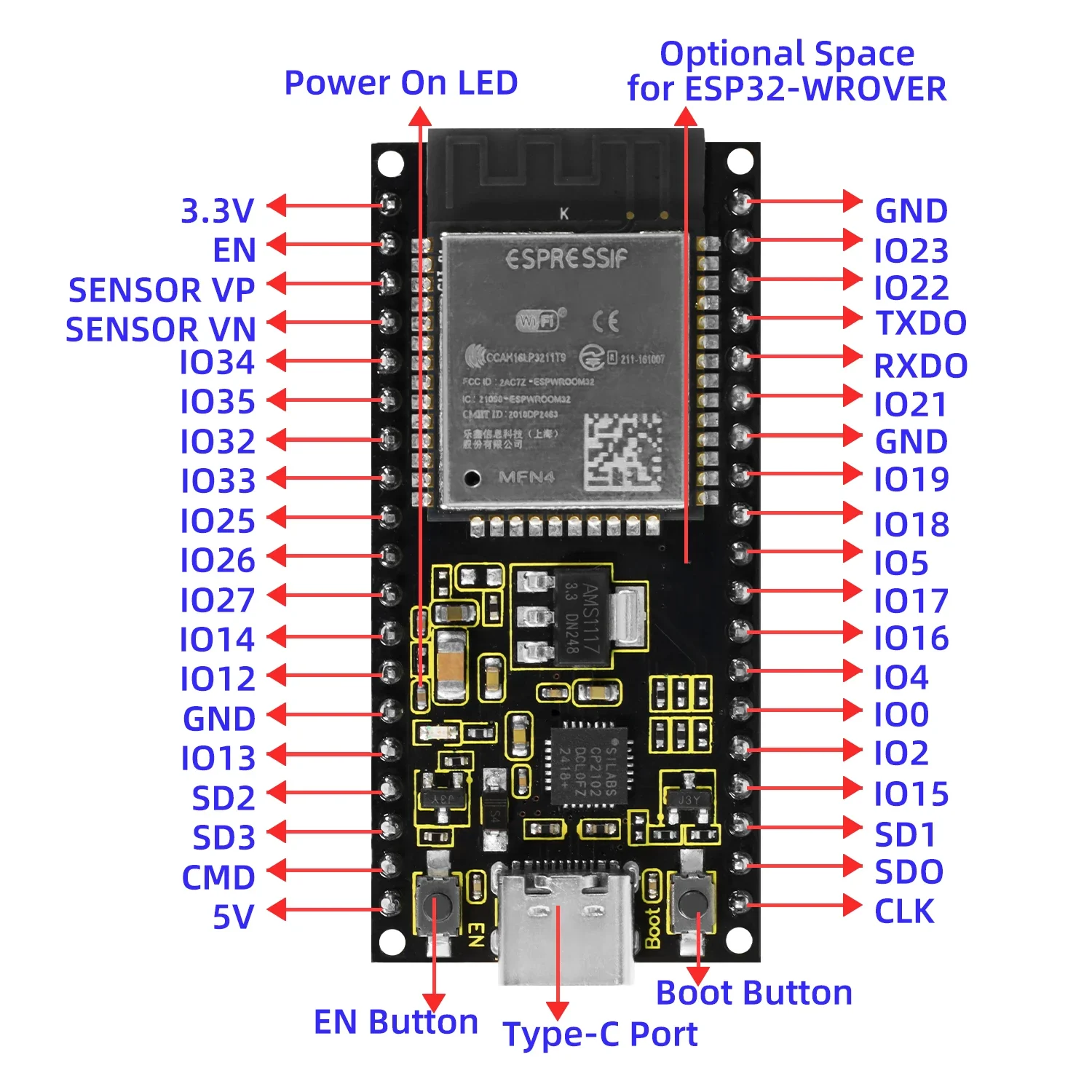

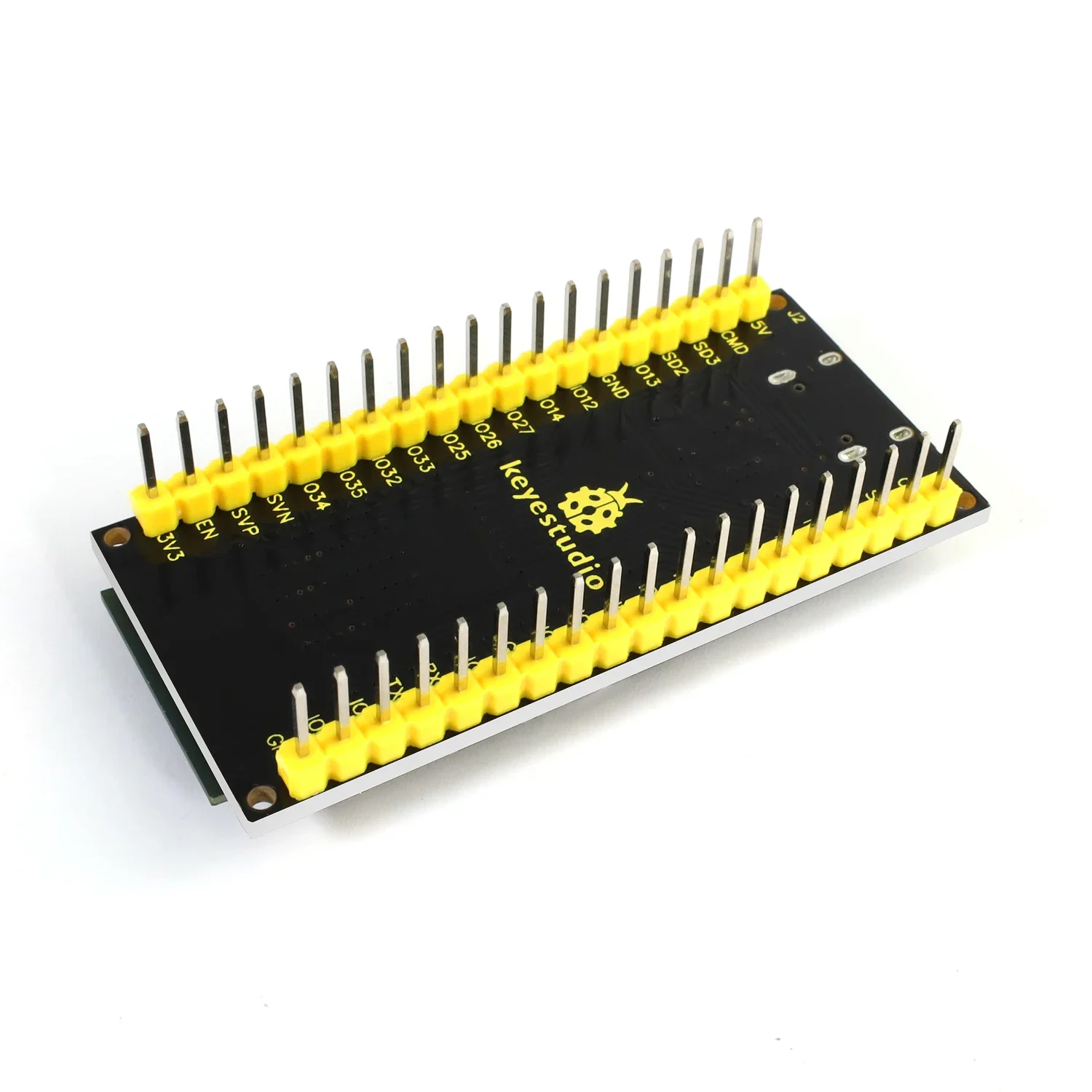

The board has brought out most I/O ports to pin headers of 2.54mm pitch. These provide an easy way of connecting peripherals according to your own needs.

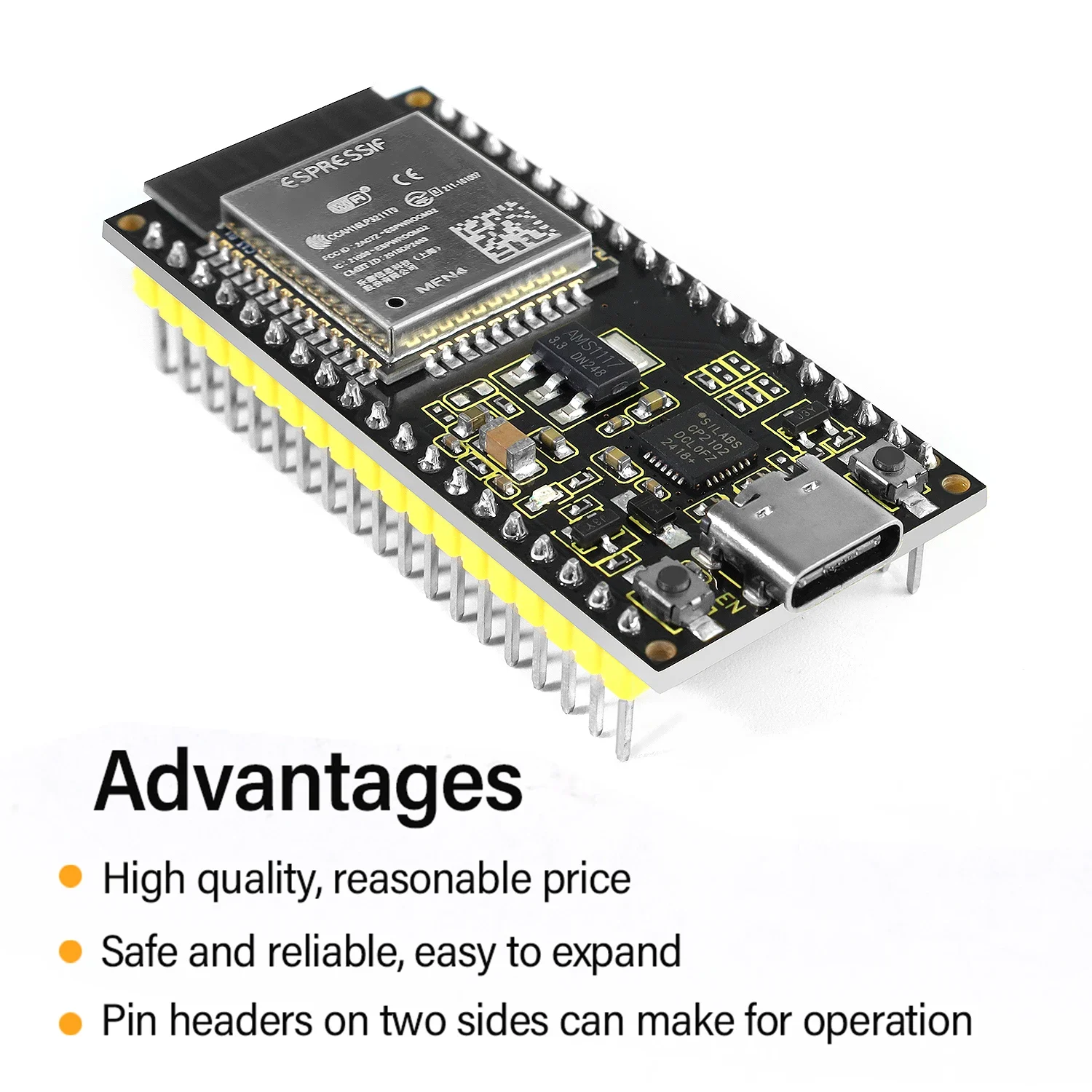

When it comes to developing and debugging with the development board, the both side standard pin headers can make your operation more simple and handy.

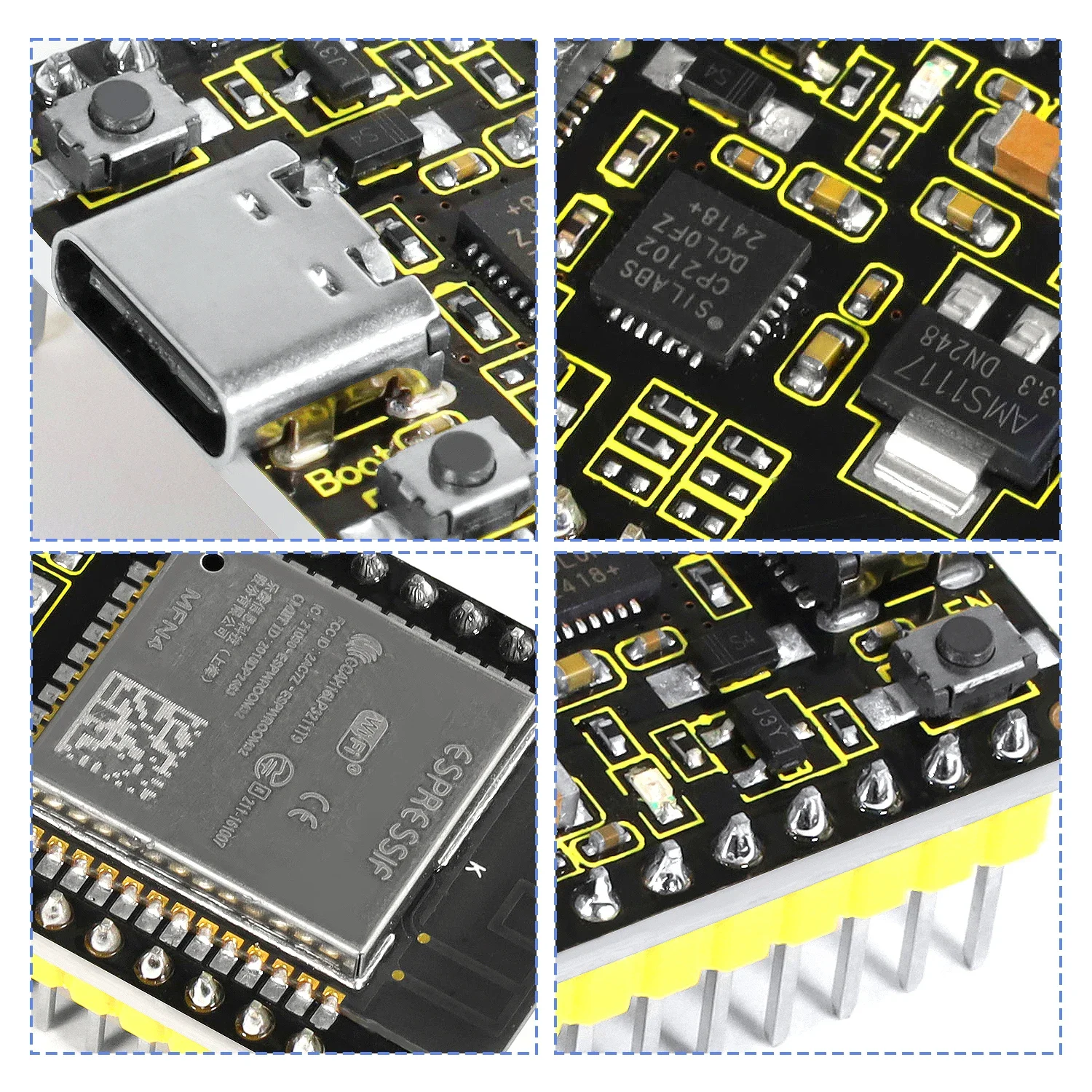

The ESP-WROOM-32 module is the industry’s leading integrated WiFi + Bluetooth solution with less than 10 external components.It integrates antenna switch, RF balun, power amplifiers, low noise amplifiers, filters and power management modules.
At the same time, it also integrates with TSMC’s low-power 40nm technology, so that power performance and RF performance are safe and reliable, easy to expand to a variety of applications.
Technical Details
Microcontroller: ESP-WROOM-32 module
USB to Serial Port Chip: CP2102-GMR
Operating Voltage: DC 3.3V
Operating Current: 80mA (average)
Current Supply: 500mA (Minimum)
Operating Temperature Range: -10℃ ~ +60℃
WiFi mode: Station/SoftAP/SoftAP+Station/P2P
WiFi protocol: 802.11 b/g/n（802.11n, speed up to 150 Mbps）
WiFi frequency range: 2.4 GHz ~ 2.5 GHz
Bluetooth protocol: conform to Bluetooth v4.2 BR/EDR and BLE standards
Weight: 10.1g

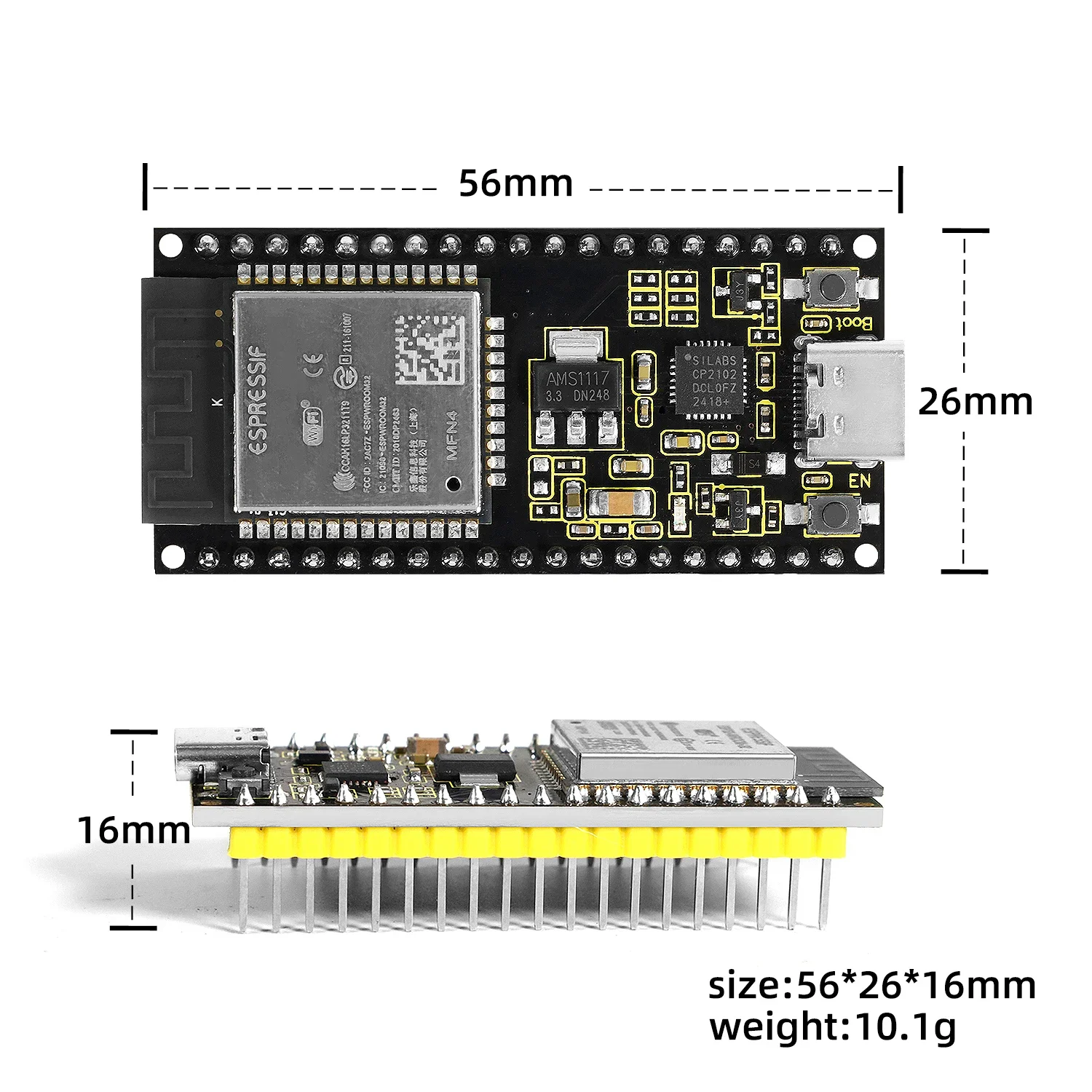

Dimensions: 56mm*26mm*16mm
Tutorial and more details link:
https://docs.keyestudio.com/projects/KS5019/en/latest/docs/KS5019.html#description
If you have any question ,please feel free contact with us
| Color | |
|---|---|
| High-concerned chemical | None |
| is_customized | Yes |
| Model Number | SP32 WROOM-32 Development Board TYPE-C |
| Supply Voltage | DC 5V |
| Application | For Arduino ESP32 |
| Type | Module |
| Brand Name | keyestudio |
| Origin | Mainland China |
| Condition | New |
| Operating Temperature | -40℃ ~ +85℃ |
| Operating Current | 80mA (average) |
| Current Supply | 500mA (Minimum) |
| Microcontroller | ESP-WROOM-32 module |
| Feature | High quality |
