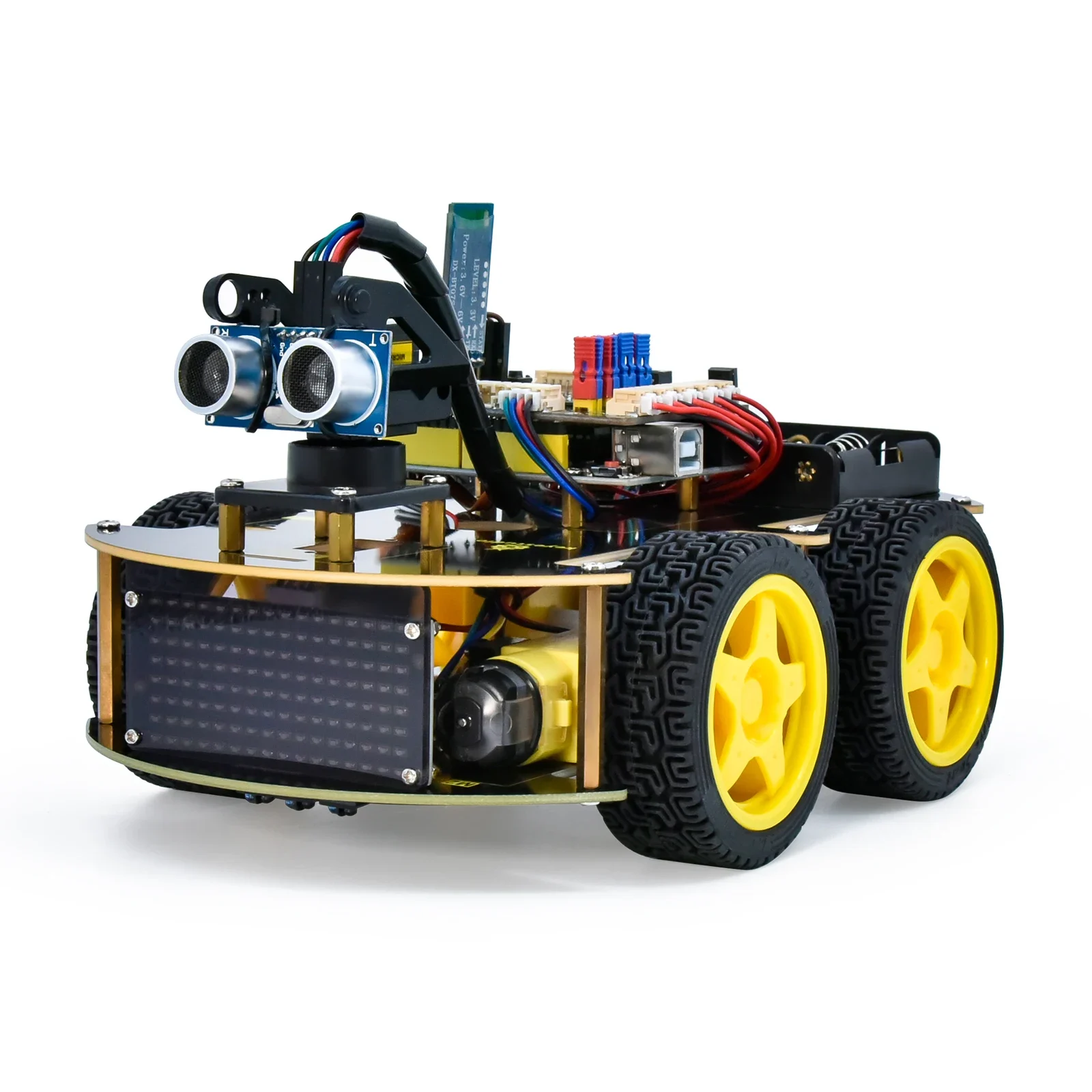

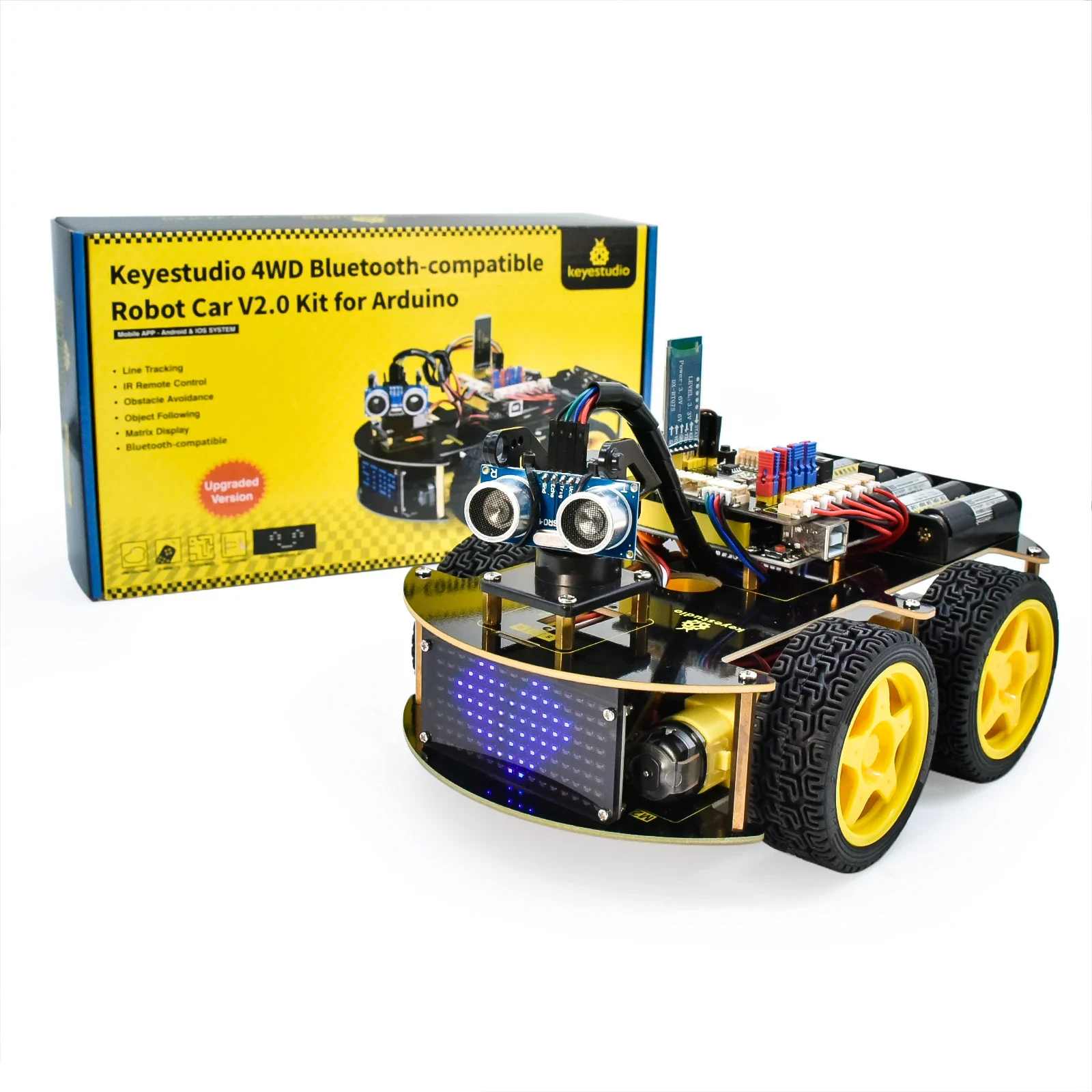

Keyestudio 4WD Multi BT Smart Car for Arduino Kit Robot Upgraded V2.0 W/LED Display Stem EDU /Scratch Programming DIY Robot Car
Availability: In stock
153 متبقي
أنت تشاهد الآن:Keyestudio 4WD Multi BT Smart Car for Arduino Kit Robot Upgraded V2.0 W/LED Display Stem EDU /Scratch Programming DIY Robot Car
84 QAR
Keyestudio-Micro:Bit V2 طقم سيارة روبوت لسيارة روبوت ذكية ميكروبت ، جذع قابل للبرمجة ، مجموعة دراسة إلكترونية ، ألعاب تعليمية للأطفال
with-microbit-v2-350850, with-microbit-v2-350850
41 QAR
Total: 3,373 QAR
Product sharing
- High-concerned chemical: None
- Package: SMD
- is_customized: Yes
- Supply Voltage: 7~12V
- Application: Programming DIY Robot
- Type: Drive IC
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: 0-40
- Battery: Excluded
- Working voltage: 5V
- Input voltage: 6-9V
- Maximum output current: 2A
- Maximum power dissipation: 25W (T=75℃)
- Motor drive model: DRV8833 motor driver
- Ultrasonic induction angle: <15 degrees
- Ultrasonic detection distance: 2cm-400cm
- Infrared remote control distance: 10M (measured)
- Bluetooth remote control distance: 50M(measured)
- Bluetooth control: support Android and iOS system
Attention:Due to shipping restrictions on Samama, we are unable to ship batteries, and all of our products come without batteries.This robot battery holder is for 18650 and AA battery (battery excluded)

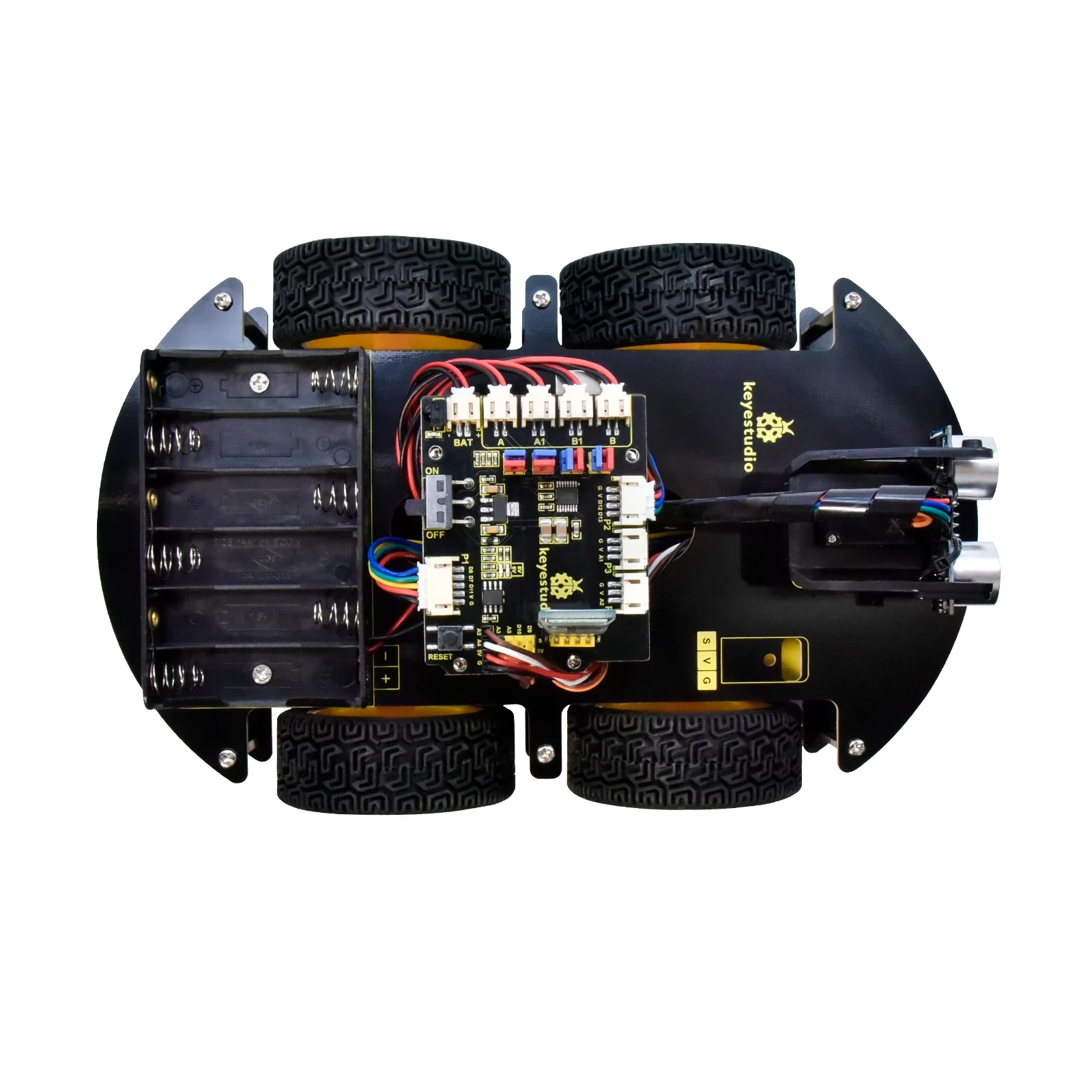

The newly upgraded 4WD Multi-purpose car is one of the most popular Arduino sets. It not only has a beautiful appearance but also powerful functions. In addition to the usual functions of line tracking, obstacle avoidance and remote control, it also uses facial expressions to make lovely expressions. Furthermore, you empower to expand your own projects, or add other sensors to complete your exploration.

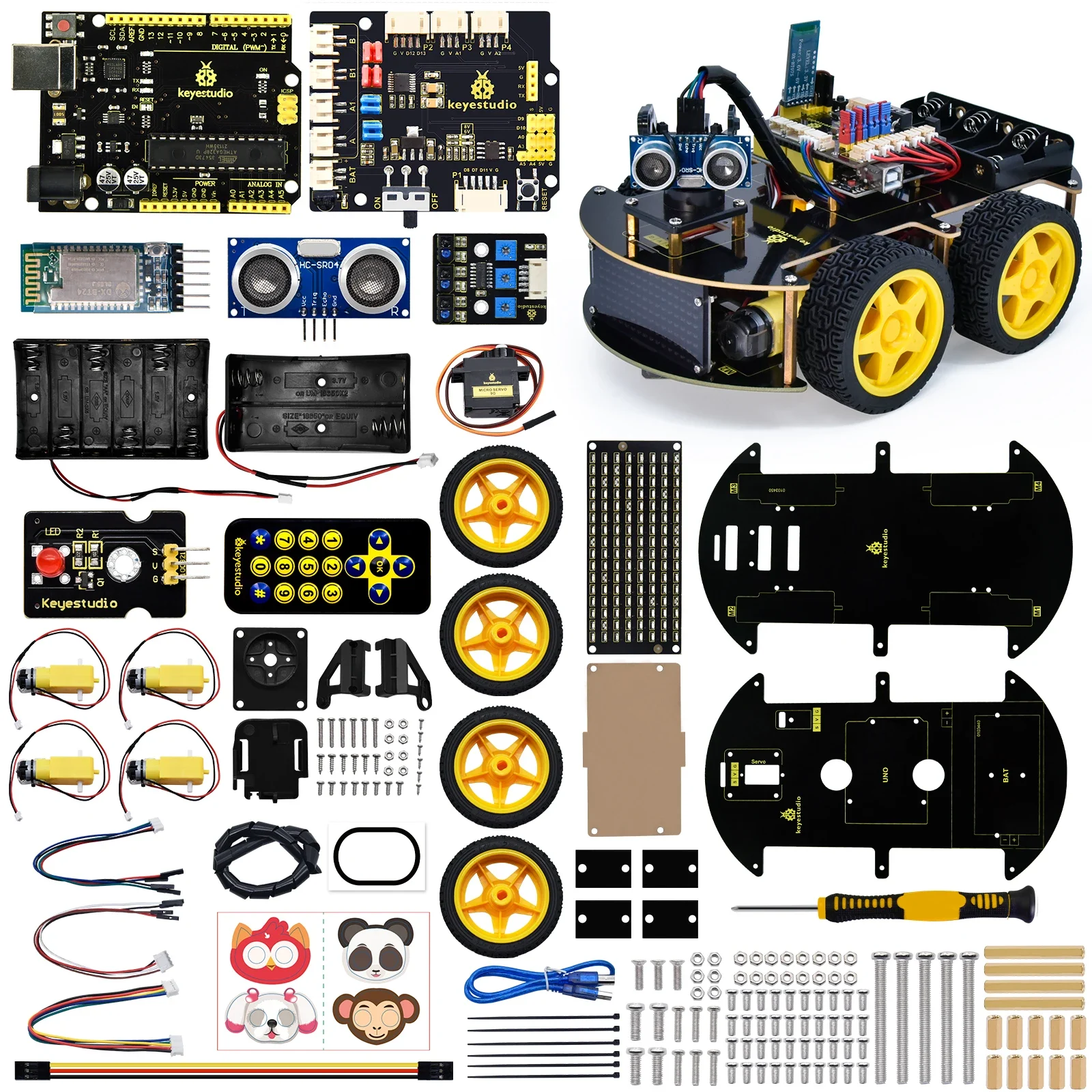

Most of the components are connected via screws and copper pillars, thereby you can build your own robot through a few simple assembly steps. What’s more, the basic knowledge such as line tracking, obstacle avoidance sensors, ultrasonic ranging, Bluetooth communication, motor drivers as well as IR remote controls are accessible for us to learn. This product boasts 17 learning projects, from simple to complex, which will guide you to make an Arduino robot.

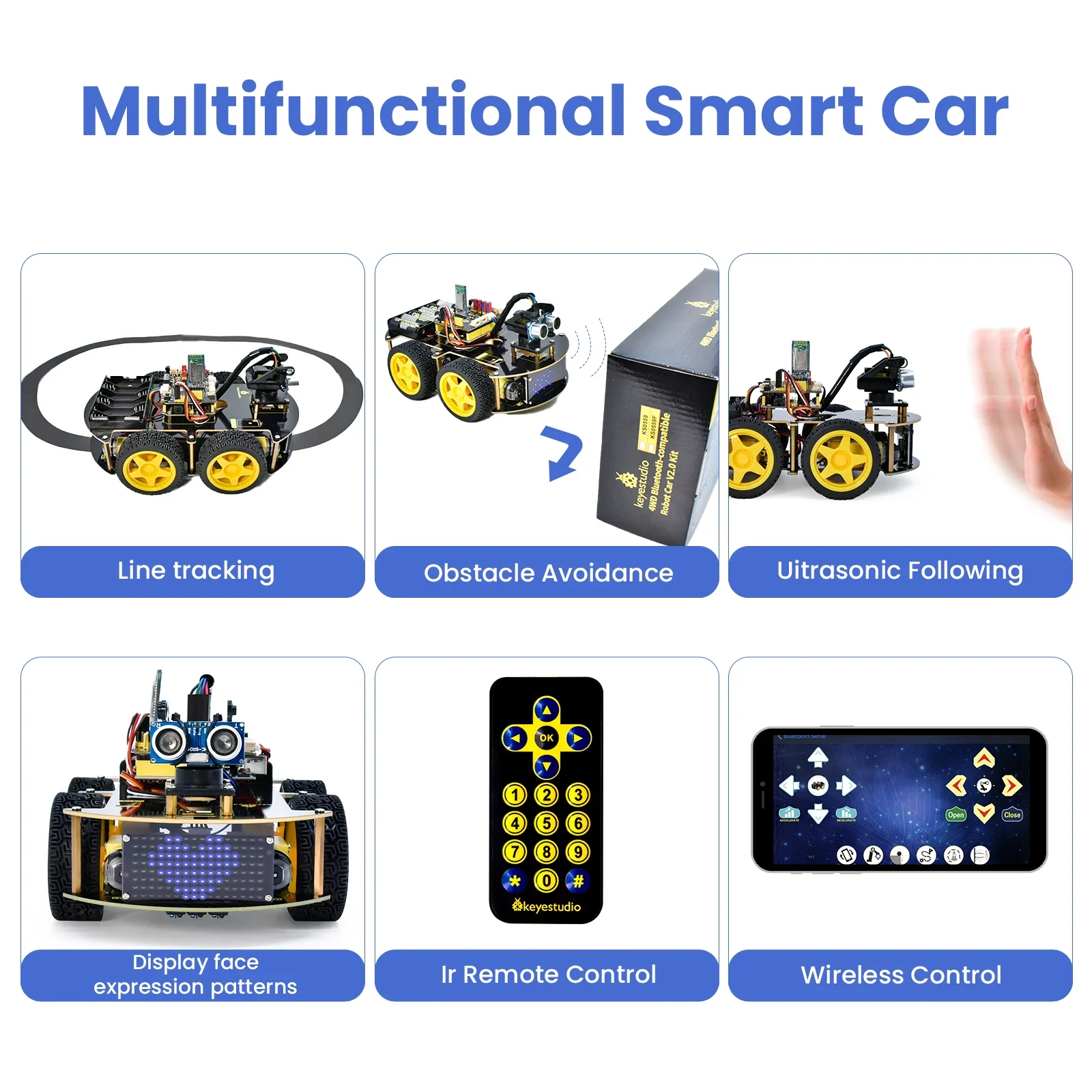

Features1.Multi-purpose function: Obstacle avoidance, following, IR remote control, Bluetooth control, confined with a circle, gravity control as well as facial emoticons display.2.Simple assembly: No soldering circuit required, simple assembly.3.Sturdy construction: 4WD construction, 4 premium motors and wheels.4.High extension: It can expand other sensors and modules via a motor driver expansion board5.Multiple controls: IR remote control, App control(iOS and Android system)6.Basic programming：C language code of Arduino IDE.
SpecificationWorking voltage: 5V
Input voltage: 6-9V
Maximum output current: 2A
Maximum power dissipation: 25W (T=75℃)
Motor speed: 5V 200 rpm
Motor drive mode: DRV8833 motor driver
Ultrasonic induction angle: <15 degrees
Ultrasonic detection distance: 2cm-400cm
Infrared remote control distance: 10M (measured)
Bluetooth remote control distance: 50M(measured)
Bluetooth control: support Android and iOS system
Download code, libraries and more details
please refer to the following link:https://fs.keyestudio.com/KS0559
