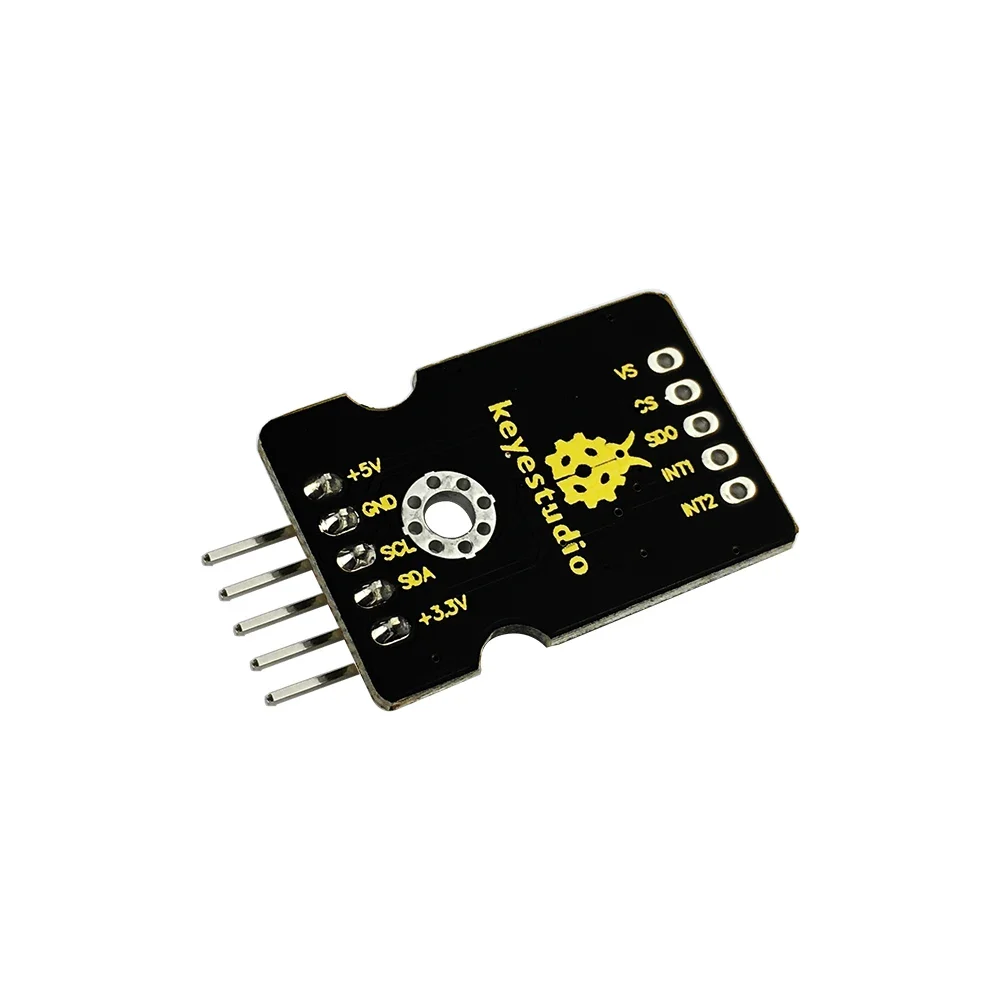

keyestudio ADXL345 Three Axis Acceleration Module for Precise Motion and Inclination Measurement For Arduino Diy Education
Availability: In stock
Product sharing
- Package: SOP
- is_customized: Yes
- Supply Voltage: 2.0-3.6VDC
- Application: Electric Toy
- Type: Drive IC
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: 0-40
- Ultra Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
- SKu: KS0012

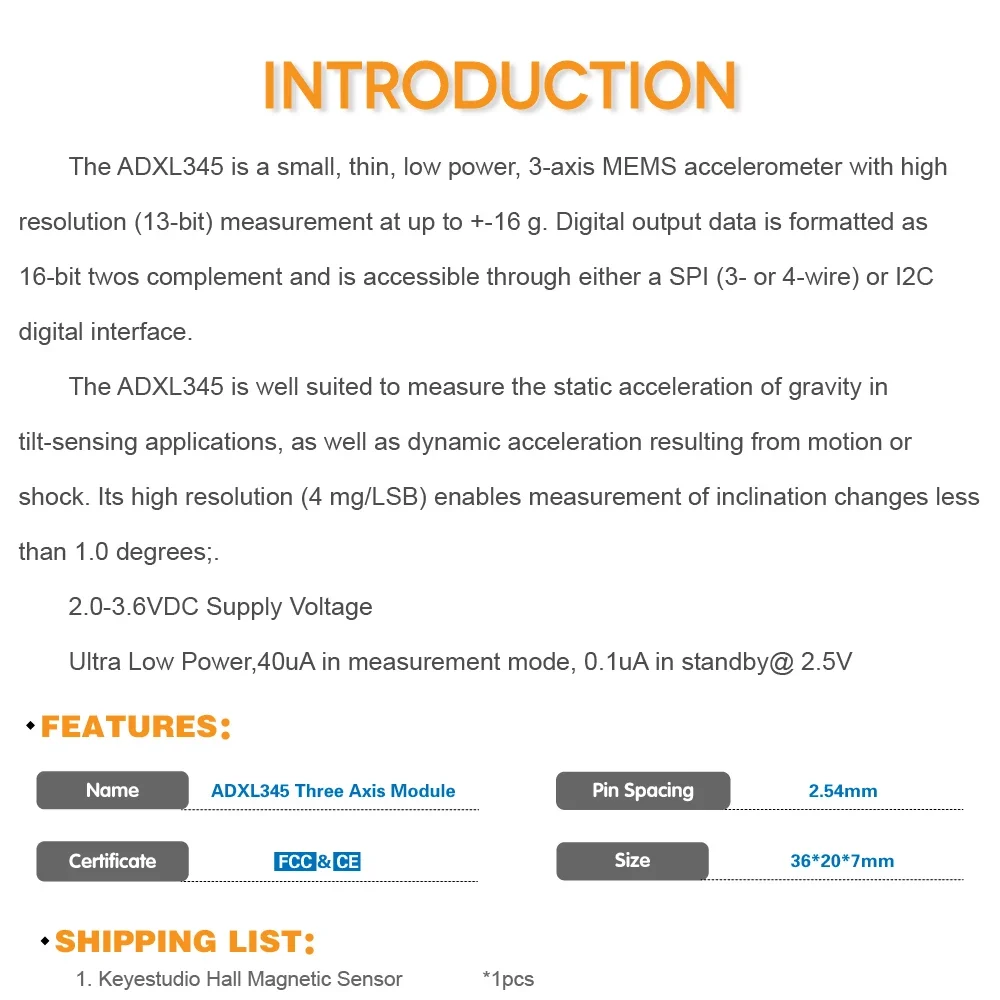

The ADXL345 is a small, thin, low power, 3-axis MEMS accelerometer with high resolution (13-bit) measurement at up to +-16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface.
The ADXL345 is well suited to measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0 degrees.
Specification
2.0-3.6VDC Supply Voltage
Ultra Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
Tap/Double Tap Detection
Free-Fall Detection
SPI and I2C Interface
