Keyestudio Micro:bit DRV8833 Motor Driver Expansion Board Shield Outputs 700mA 3-pin Interfaces 3.3V&5V Voltage For Micro:bit
Availability: In stock
Product sharing
- High-concerned chemical: None
- Package: DIP
- is_customized: Yes
- Model Number: Micro:bit DRV8833 Motor Driver Expansion Board
- Supply Voltage: 3.3V-5V
- Application: For Micro:bit
- Type: Voltage Regulator
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: 0-50
- Size: 70mm*58mm
- Frequencies: 100 kHz
- VM input voltage: DC 5-10.8V
- Feature: For Micro:bit

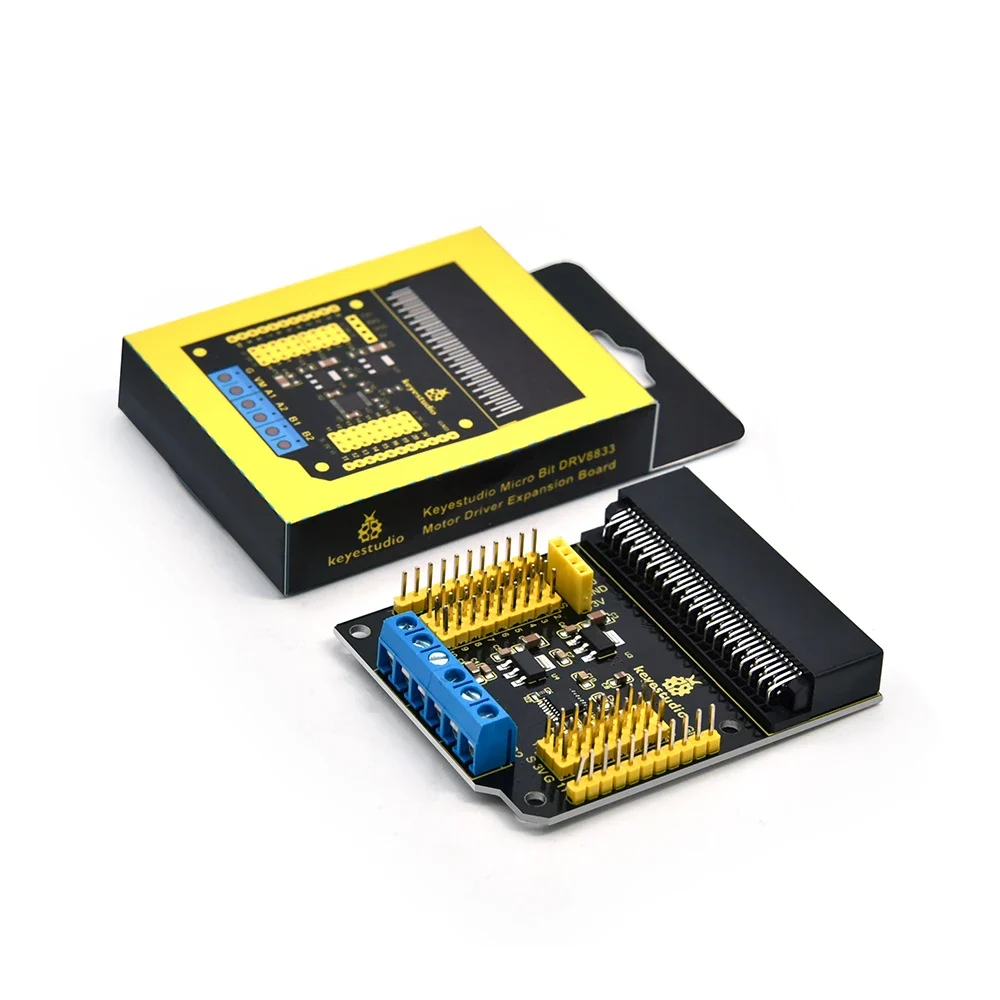

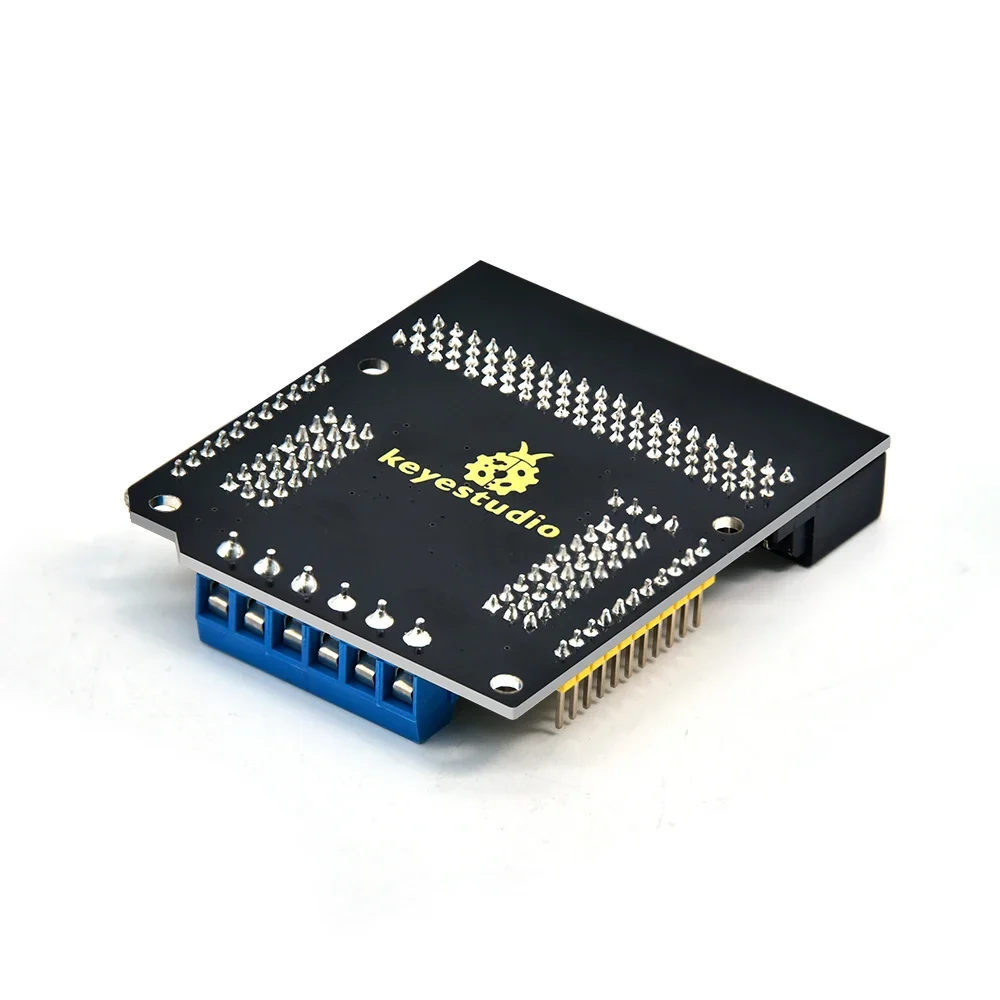

Keyestudio Micro bit DRV8833 Motor Driver Expansion Board(Excluded the Micro:bit baord):

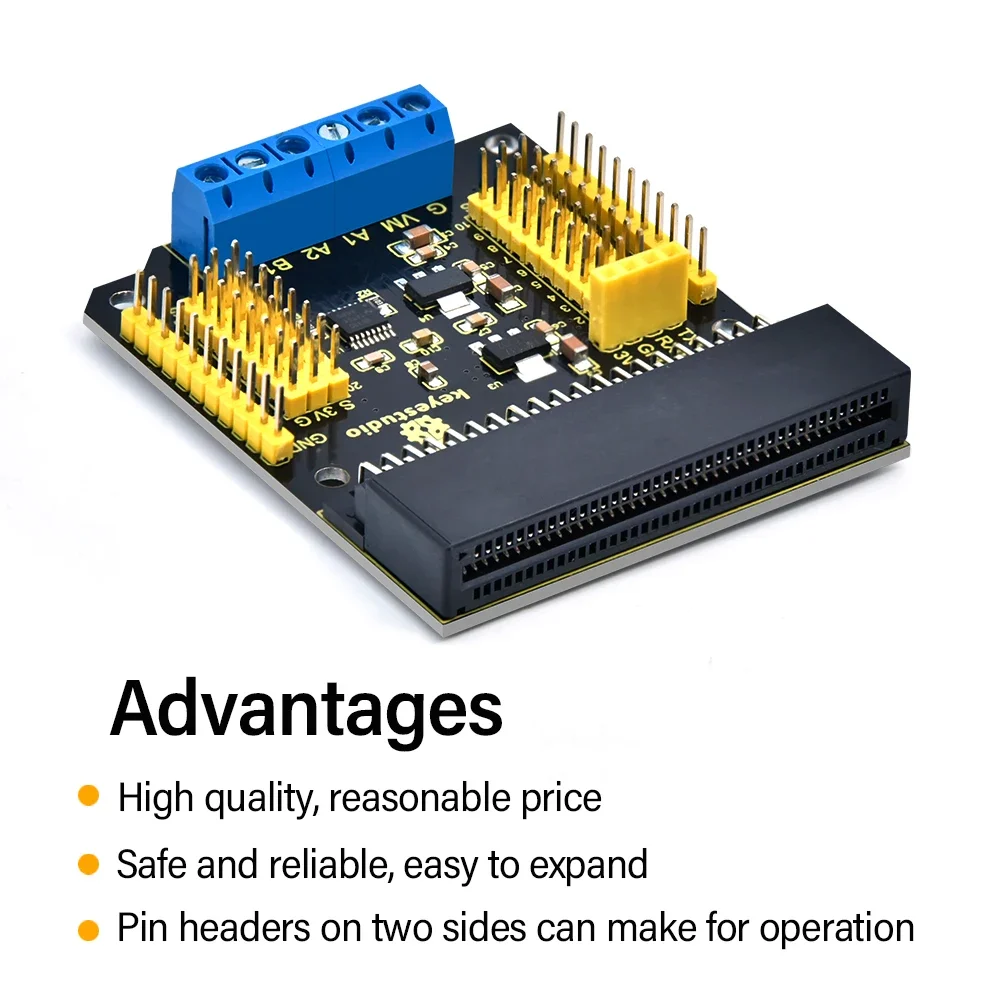

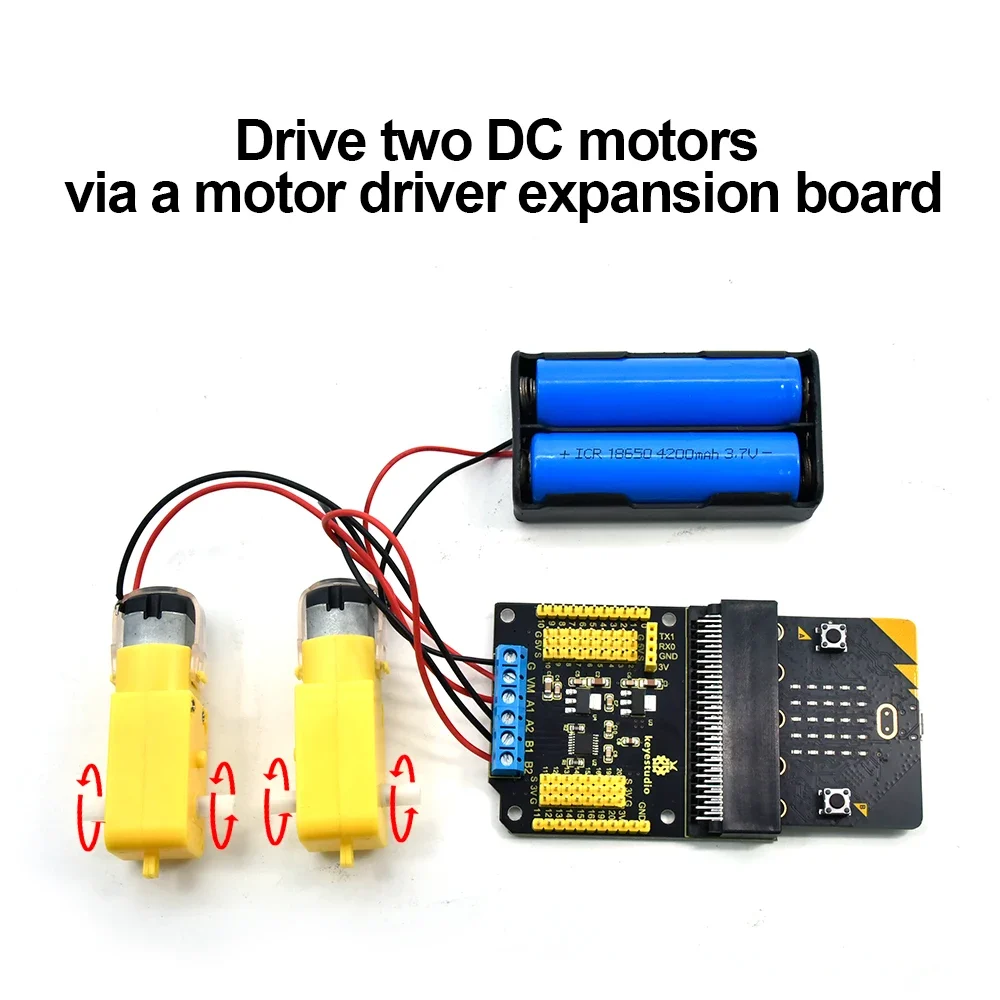

To take advantage of the driver DC motor, The board integrates 3.3V and 5V voltage regulator chips, serial communication interface for connecting BT modules and a DRV8833CPWP chip which outputs the maximum 700mA currentIt also has four motor control modes: clockwise rotation/anticlockwise rotation/boot/stop. PWM supports frequencies up to 100 kHz. This board also has 3-pin interfaces which can be connected to other sensors.The motor pin A1, A2, B2 and B1 of the expansion board are controlled by P13, P12, P15 and P16 of the micro:bit board.
Micro:bit is a microcontroller of ARM structure designed by BBC, is designed for those who love to learn programming. It supports the PXT graphical programming interface developed by Microsoft. You don’t need to download additional compilers. It can be used under Windows, macOS, IOS, Android and other systems.
The motor pin A1, A2, B2 and B1 of the expansion board are controlled by P13, P12, P15 and P16 of the micro:bit board.
Specification
VM input voltage: DC 5-10.8V
Operating current of driving part: ≤700mA
Motor output configuration: double h-bridge
Working temperature: 0~50
Size: 70mm*58mm
Test code and tutorial for you:https://fs.keyestudio.com/KS4033
If you have any question please contact with us
