Keyestudio MQ-7 Carbon Monoxide CO Gas Sensor Detection Module for Arduino Sensor Starter DIY Electronic Project

Availability: In stock

48 متبقي
مدة الوصل المتوقعة إلى Qatar:
[12 QAR] (7-12 days)
Please select a shipping method
Estimated Delivery
Cost
Carrier
Tracking
7-12 days
12 QAR
Selected virtual charging
Yes
OK
Frequently bought together:
Keyestudio MQ-7 Carbon Monoxide CO Gas Sensor Detection Module for Arduino Sensor Starter DIY Electronic Project
أنت تشاهد الآن:Keyestudio MQ-7 Carbon Monoxide CO Gas Sensor Detection Module for Arduino Sensor Starter DIY Electronic Project
39 QAR
Keyestudio Micro:bit STEM Programming DIY Stone Thrower/Excavator/Ocarina Learning Micro:bit Kit Progamming +Online tutorial<span> - </span>With Micro Bit Board
Keyestudio Micro:bit STEM Programming DIY Stone Thrower/Excavator/Ocarina Learning Micro:bit Kit Progamming +Online tutorial
with-micro-bit-board
No Micro bit Board
No Micro bit Board-496
No Micro bit Board-771
With Micro Bit Board
With Micro Bit Board-1254
With Micro Bit Board-365458
440 QAR
Keyestudio W5100 درع إيثرنت المجلس مع SD فتحة للبطاقات شريحة أصلية متوافق مع اردوينو UNOR3/ميجا 2560R3/بسبب/1280
Keyestudio W5100 درع إيثرنت المجلس مع SD فتحة للبطاقات شريحة أصلية متوافق مع اردوينو UNOR3/ميجا 2560R3/بسبب/1280
139 QAR
Keyestudio CNC Shield V4 Card GRBL Control Board Engraving Part Compatible Nano V3 For 3D Printer Laser Engraver Machine<span> - </span>CNC Shield
Keyestudio CNC Shield V4 Card GRBL Control Board Engraving Part Compatible Nano V3 For 3D Printer Laser Engraver Machine
cnc-shield
3PCS A4988
CNC Shield
32 QAR
High Sensitivity1/2/12/20Key Membrane Switch Keypad 3*4/ 4*5Matrix Array Matrix Keyboard for Arduino/Robot Car DIY accessories<span> - </span>2 Key
High Sensitivity1/2/12/20Key Membrane Switch Keypad 3*4/ 4*5Matrix Array Matrix Keyboard for Arduino/Robot Car DIY accessories
2-key
1 Key
12 Key
1Key with light
2 Key
20 Key
21 QAR
مجموعة سيارة روبوت ذكية Keyestudio 4WD لـ Raspberry Pi مع وحدة كاميرا ميجابيكسل وأدوات برمجة (لا توجد لوحة RPI 4B)
مجموعة سيارة روبوت ذكية Keyestudio 4WD لـ Raspberry Pi مع وحدة كاميرا ميجابيكسل وأدوات برمجة (لا توجد لوحة RPI 4B)
472 QAR
5V XKC-Y23A Non-contact Liquid Level Sensor Water Sensor Adjustable Sensitivity Water Level Detector Switch For DIY Electronics<span> - </span>XKC-Y23A-V
5V XKC-Y23A Non-contact Liquid Level Sensor Water Sensor Adjustable Sensitivity Water Level Detector Switch For DIY Electronics
xkc-y23a-v
XKC-Y23A-NPN
XKC-Y23A-V
58 QAR
3.3V/5VPower Supply Module Adapter For For Arduino MB102 Breadboard Project<span> - </span>10 PCS
3.3V/5VPower Supply Module Adapter For For Arduino MB102 Breadboard Project
10-pcs
10 PCS
3 PCS
5 PCS
54 QAR
Keyestudio Micro:bit 45 in 1 Sensor Starter Kit Electronic Diy Kit For BBC Micro:bit V2+57 Projects W/Gift Box
Keyestudio Micro:bit 45 in 1 Sensor Starter Kit Electronic Diy Kit For BBC Micro:bit V2+57 Projects W/Gift Box
372 QAR
Total: 1,627 QAR

Product sharing

Keyestudio MQ-7 Carbon Monoxide CO Gas Sensor Detection Module for Arduino Sensor Starter DIY Electronic Project
Keyestudio MQ-7 Carbon Monoxide CO Gas Sensor Detection Module for Arduino Sensor Starter DIY Electronic Project - Image 2
Keyestudio MQ-7 Carbon Monoxide CO Gas Sensor Detection Module for Arduino Sensor Starter DIY Electronic Project - Image 3
Keyestudio MQ-7 Carbon Monoxide CO Gas Sensor Detection Module for Arduino Sensor Starter DIY Electronic Project - Image 4
Keyestudio MQ-7 Carbon Monoxide CO Gas Sensor Detection Module for Arduino Sensor Starter DIY Electronic Project - Image 5
Keyestudio MQ-7 Carbon Monoxide CO Gas Sensor Detection Module for Arduino Sensor Starter DIY Electronic Project - Image 6
  • is_customized: Yes
  • Theory: Gas Sensor
  • Model Number: MQ-7
  • Material: Mixture
  • Type: Gas Sensor
  • Output: Analog Sensor
  • Brand Name: keyestudio
  • Origin: Mainland China
  • Use: Gas Sensor
  • Product number: KS0045

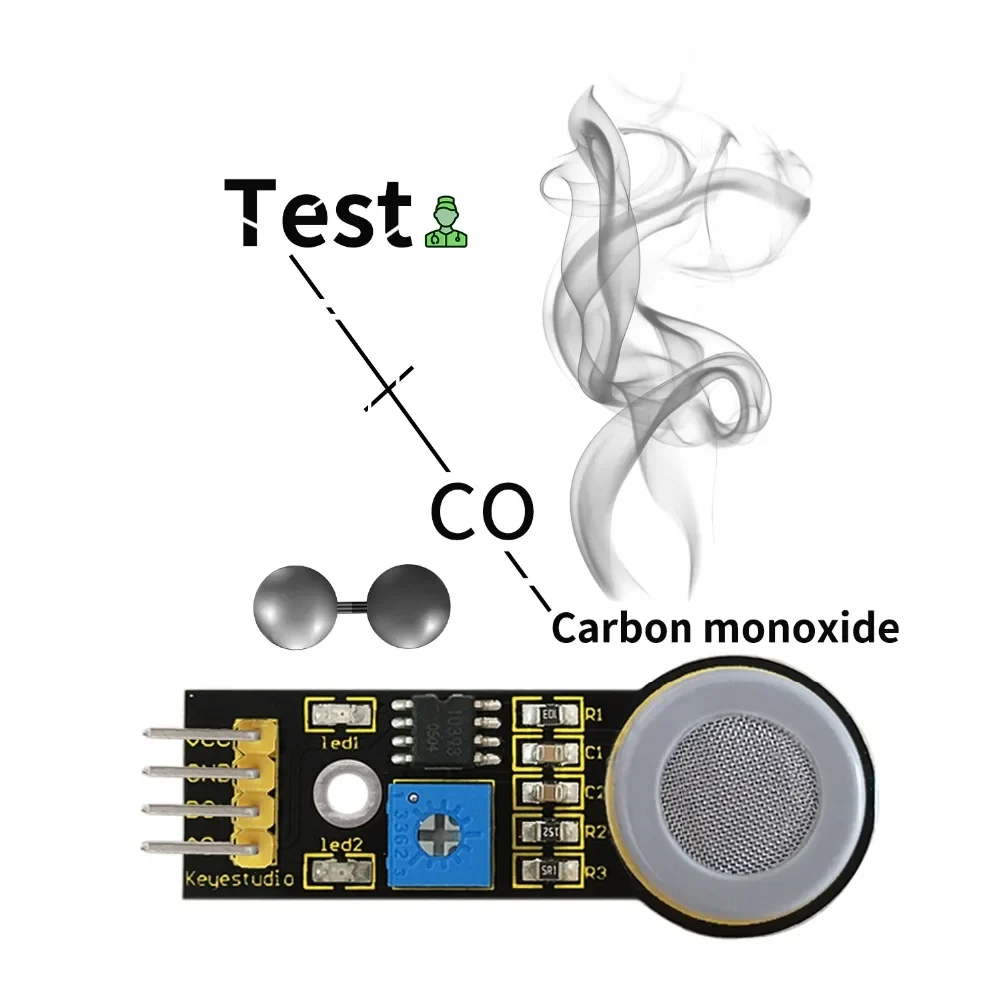

The gas sensitive material used in MQ-7 gas sensor is SnO2, which is of lower electrical conductivity in clean air. It detects carbon monoxide with low temperature (heated by 1.5V) through high-low temperature cycles. The electrical conductivity of the sensor increases with the increase of the carbon monoxide concentration in the air. The change of electrical conductivity can be converted to the output signal corresponding to that of the gas concentration by using a simple circuit.

The sensitivity of MQ-7 gas sensor to carbon monoxide is quite high, so it can be used to detect various gas containing carbon monoxide. It is a low-cost sensor suitable for a variety of applications.
Feature

  • good sensitivity to carbon monoxide.

  • long service life, low cost

  • simple drive circuit

Application

  • household gas leak alarm

  • Industrial-level carbon monoxide gas alarm

  • Portable gas detector

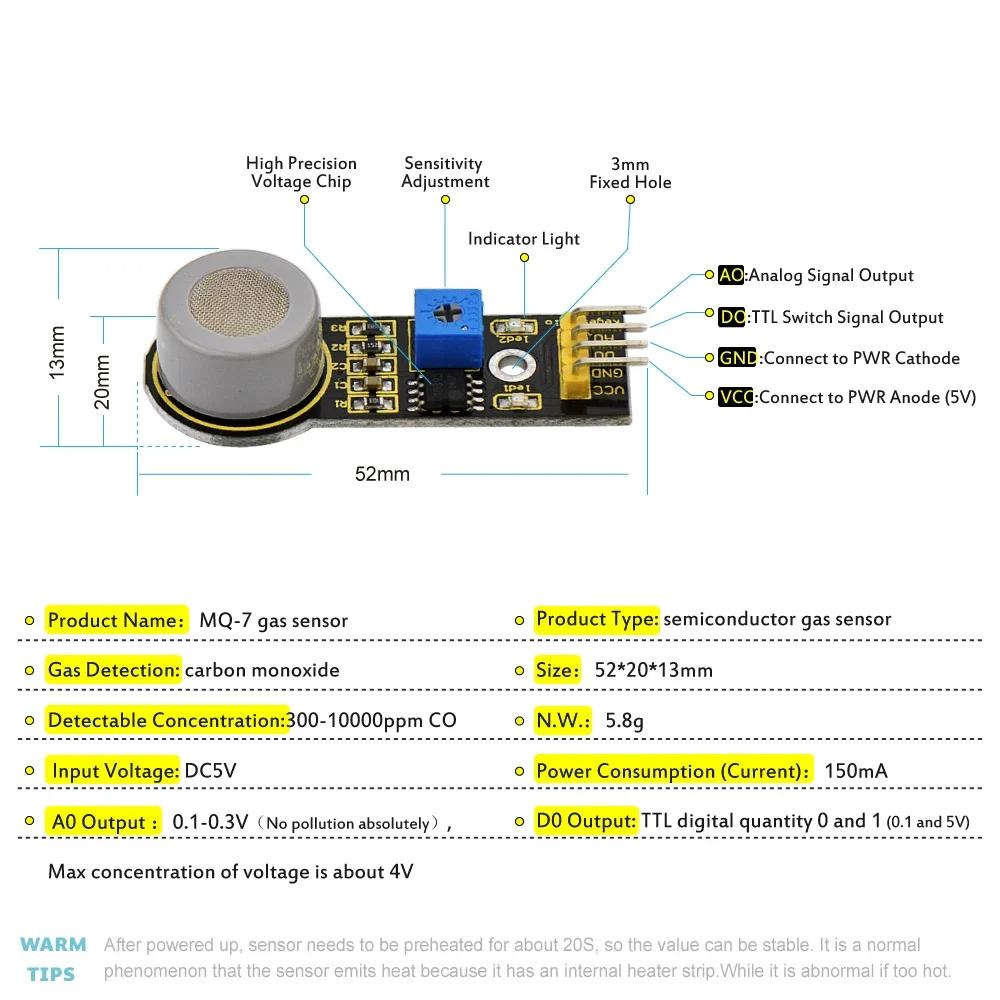

Specification

  • Target gas: carbon monoxide

  • Detectable concentration: 300-10000ppm CO

  • Loop voltage Vc ≤10V DC

  • Heating voltage VH 5.0V±0.2V ACorDC(hight); 1.5V±0.1V ACorDC(low)

  • Load resistance RL adjustable

  • Heating resistance RH 31Ω±3Ω(Room temperature)

  • Heating power PH ≤350mW

  • Surface resistance of sensitive material Rs 2KΩ-20KΩ(in100ppmCO)

  • Sensitivity S Rs(in air)/Rs(100ppmCO)≥5

  • Concentration slope: α ≤0.6(R300ppm/R100ppm CO)

  • Temperature, humidity: 20±2;65%±5%RH

  • Standard test circuit: Vc:5.0V±0.1V;VH(high): 5.0V±0.1V;VH(low): 1.5V±0.1V
