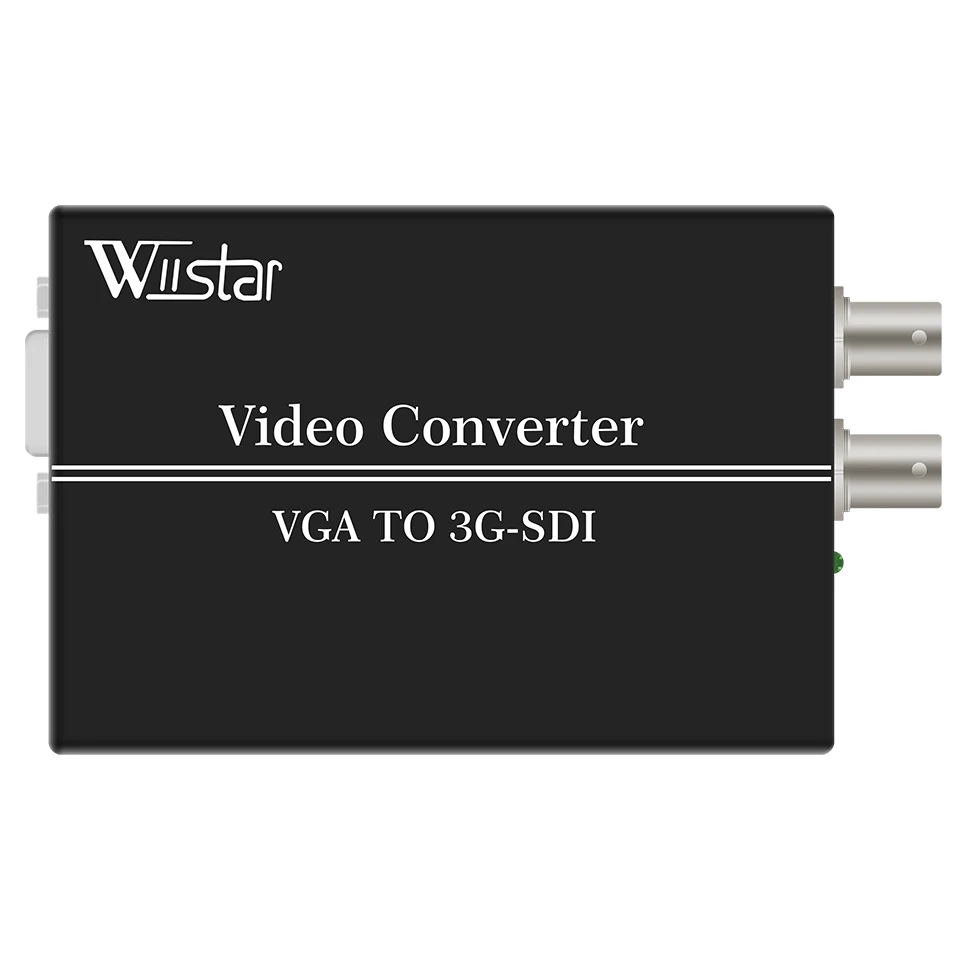

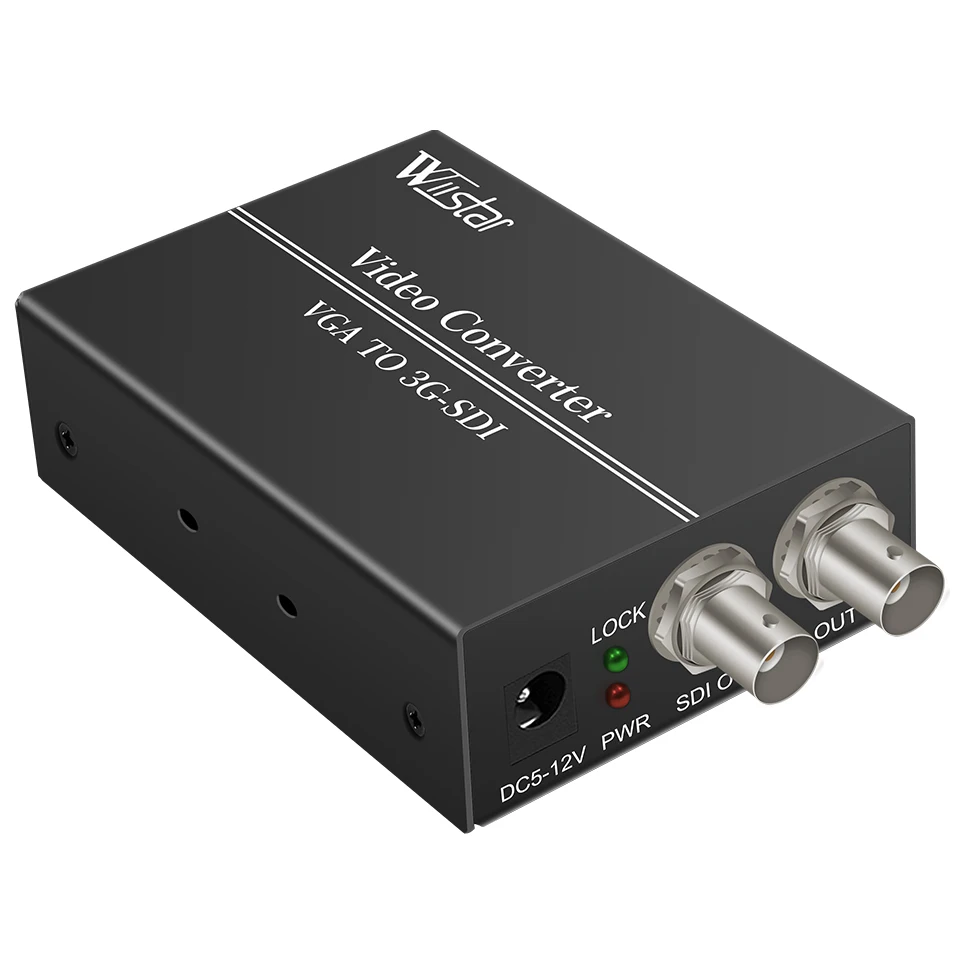

Wiistar VGA To 3G-SDI converter SCALER 1080P Broadcast General Display VGA+AUDIO TO SDI Video Audio Converter for Monitor PC

القسم:

Please select the product type to know the expected delivery time.

شحن دولي

يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن

Product sharing

  • High-concerned chemical: None
  • Model Number: WS-Z42SW
  • Brand Name: wiistar
  • Origin: Mainland China
  • Smart home platform: Other
  • Certification: CE
  • Waterproof: No
  • Type: converter
  • INPUT: VGA, AUDIO
  • OUTPUT: 2 PORT SDI

Wiistar Free Shipping  VGA To 3G-SDI converter SCALER 1080P Broadcast General Display Sdi Professional Monitor

Introduction
This product support VGA signal input,it support 2 ports of the SDI(SD-SDI/HD-SDI/3G-SDI) signal output,support HD SDI signal output,it also very easy to be use with high stability and reliability.This converter can be widely used in SDI broadcast room, no-linear editing field, CCTV security system and training
Features
1. Operation at 2.970Gbit / s, 2.970/1.001Gbit/s, 1.485Gbit / s, 1.485/1.001Gbit/s and 270Mbits / s
2. Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
4. Connect with other units to extend your signal over long distances

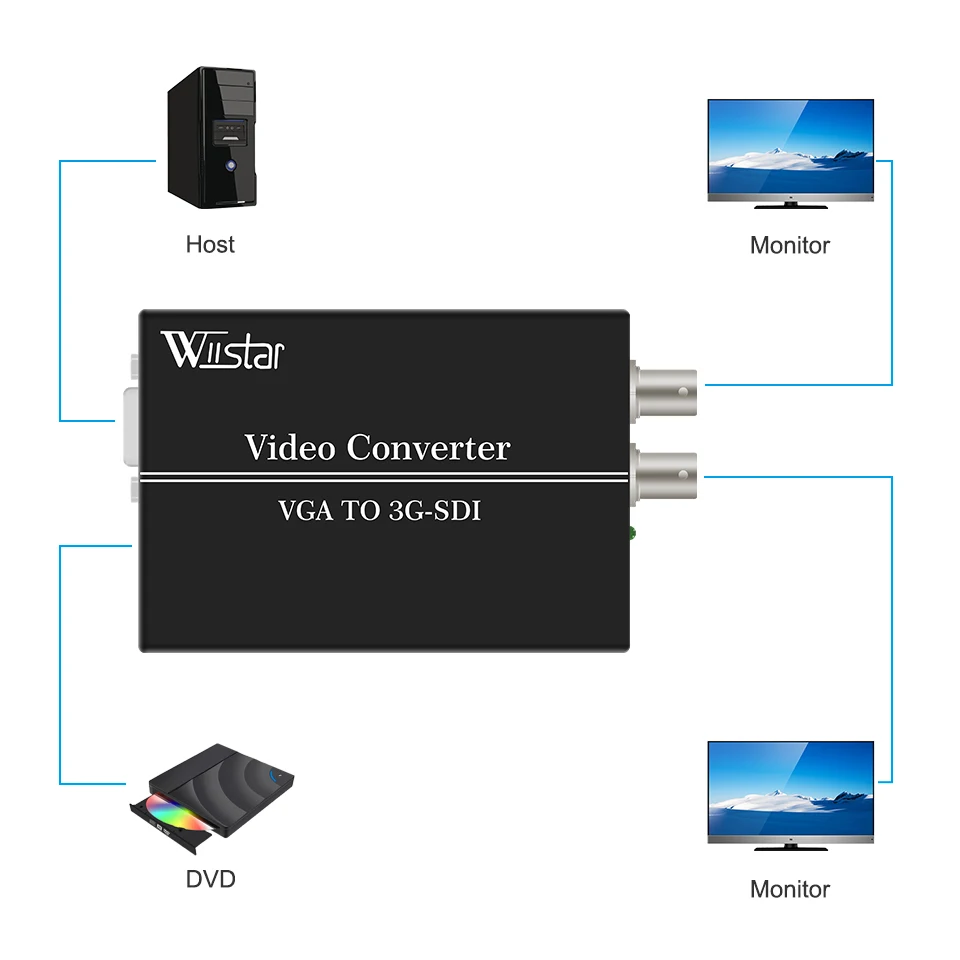

5. Simultaneous display with SDI and VGA signals
Specificaitons

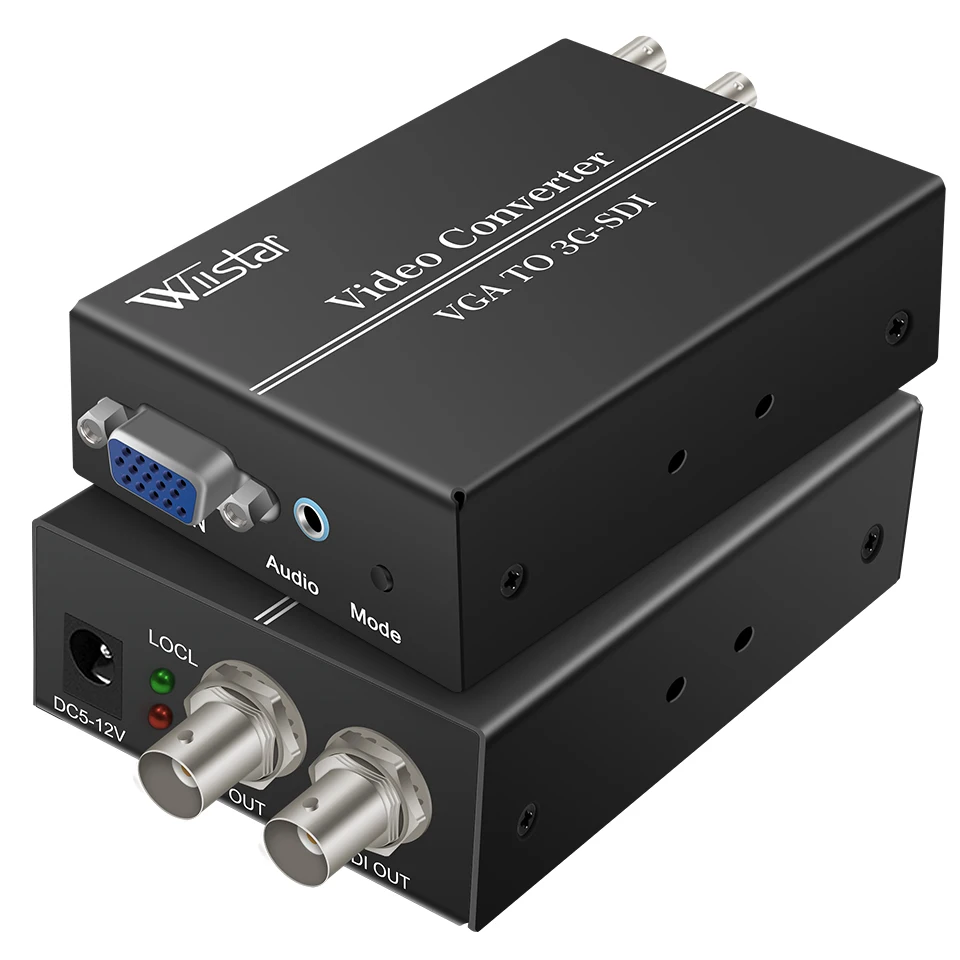

1. Input Port 1 x vga
2. Output Port 2 x BNC (SDI/HD-SDI/3G-SDI), 1xEarphone
3. SDI Transmission Rate 2.970 Gbit / s and 2.970/1.001 Gbit / s
4. SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C
5. sdi  / out Resolution , 576i, 720p @ 50/60
1080i @ 50/60
1080p @ 50/60
6. VGA in put Resolution 800×600 @ 60Hz, 1024×768 @ 60Hz
1280×1024 @ 60Hz, 1680×1050 @ 60Hz
1920×1080 @ 60Hz, 1920×1200 @ 60Hz
Package includes:
1X VGA to 3G SDI Converter
1X DC Power Supply Adapter(eu/us/uk/au available)
1X English Operation Manual


Color

, ,

High-concerned chemical

None

Model Number

WS-Z42SW

Brand Name

wiistar

Origin

Mainland China

Smart home platform

Other

Certification

CE

Waterproof

No

Type

converter

INPUT

VGA, AUDIO

OUTPUT

2 PORT SDI
