YoloLiv YoloBox Pro Overview

In stock welcome to place an order:

New Firmware 2.0.0 Update

With the new 2.0.0 firmware update, YoloLiv has added the following features:

Instant video replay

Overlay optimization

Web URL app now built in

Separate controls for monitor and program audio

Output 1080p60 to LiveU Solo

Various fixes and enhancements

Key Features

Touch control without a computer

8” LCD display with 400 cd/m² brightness

Built-in simultaneoulsy streaming to up to 3 destinations

HDCP compliant

Stream via Ethernet, Wi-Fi, LTE 4G

Live switch up to 10 sources

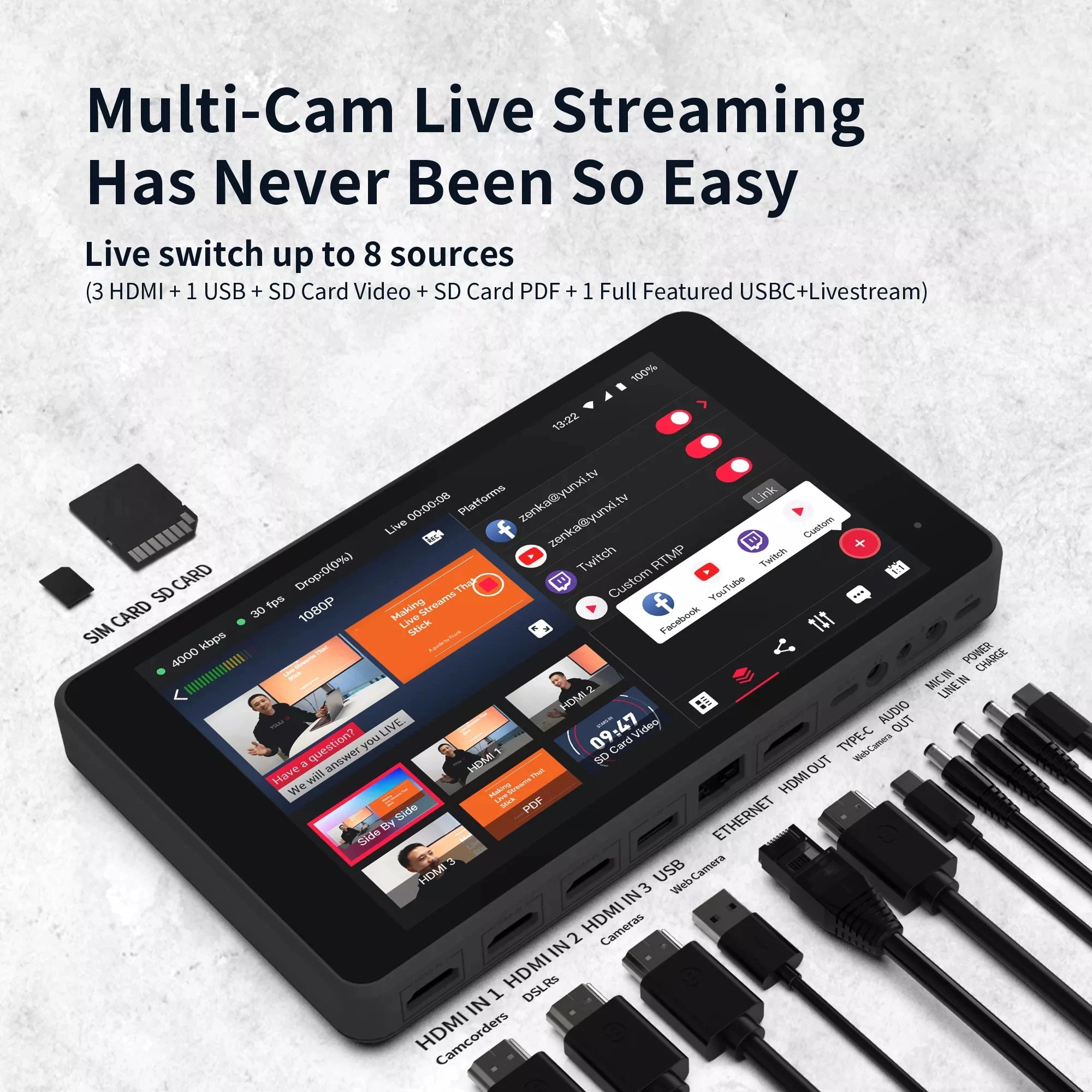

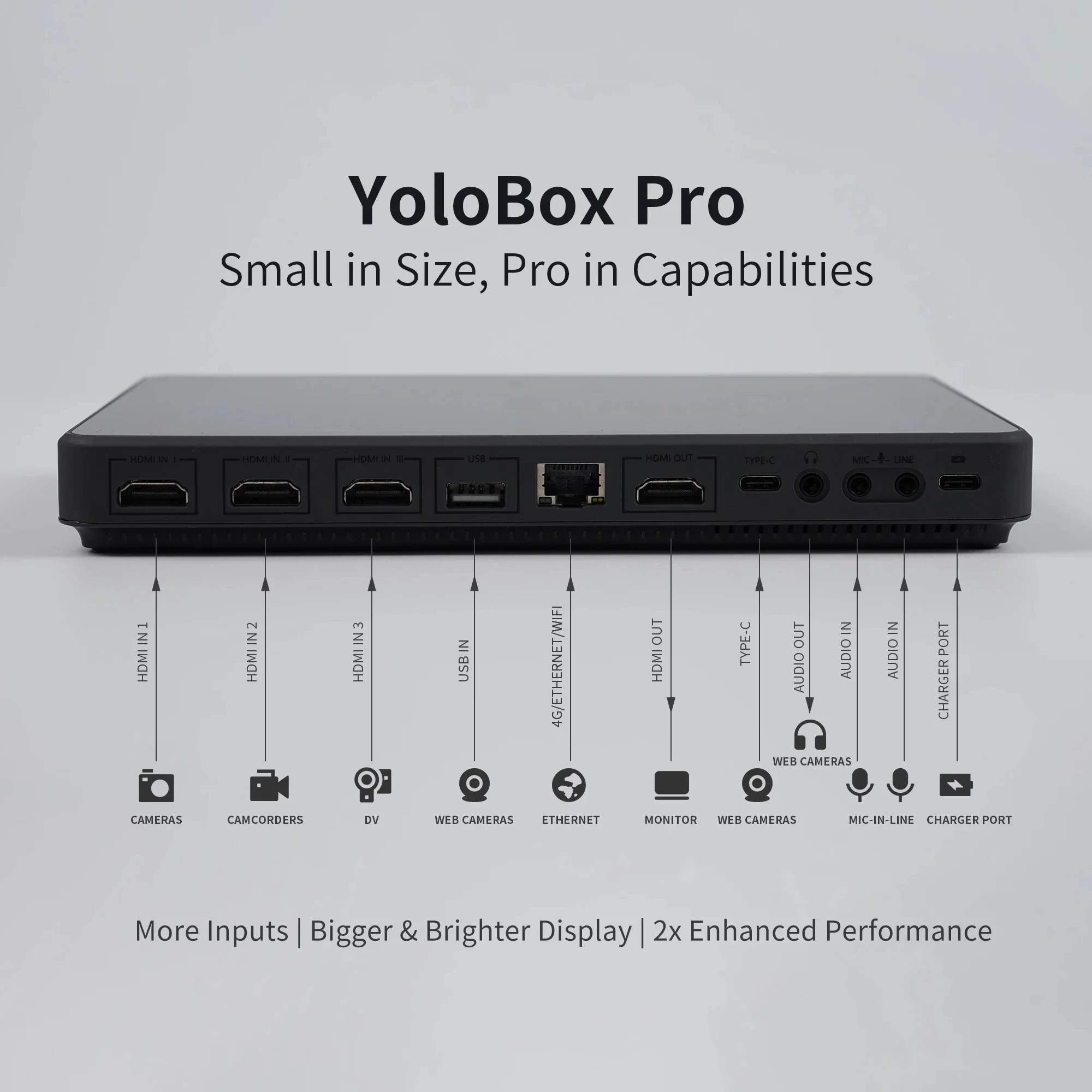

3 x HDMI inputs, 1 x USB video input, 1 x SD card slot, 1 x HDMI output

One USB Type-C charging input

Mic and Line audio input, 1 x audio output

Ability to input PDF

Add logos/comments to the stream

Import pictures/videos from SD card

Records internally to SD card up to 128GB

Direct integration with YouTube/Facebook/RTMP(s)

Supports up to 1080p60 video

Chroma key

CBR, VBR, CQ encoding options

Customizable graphic overlays

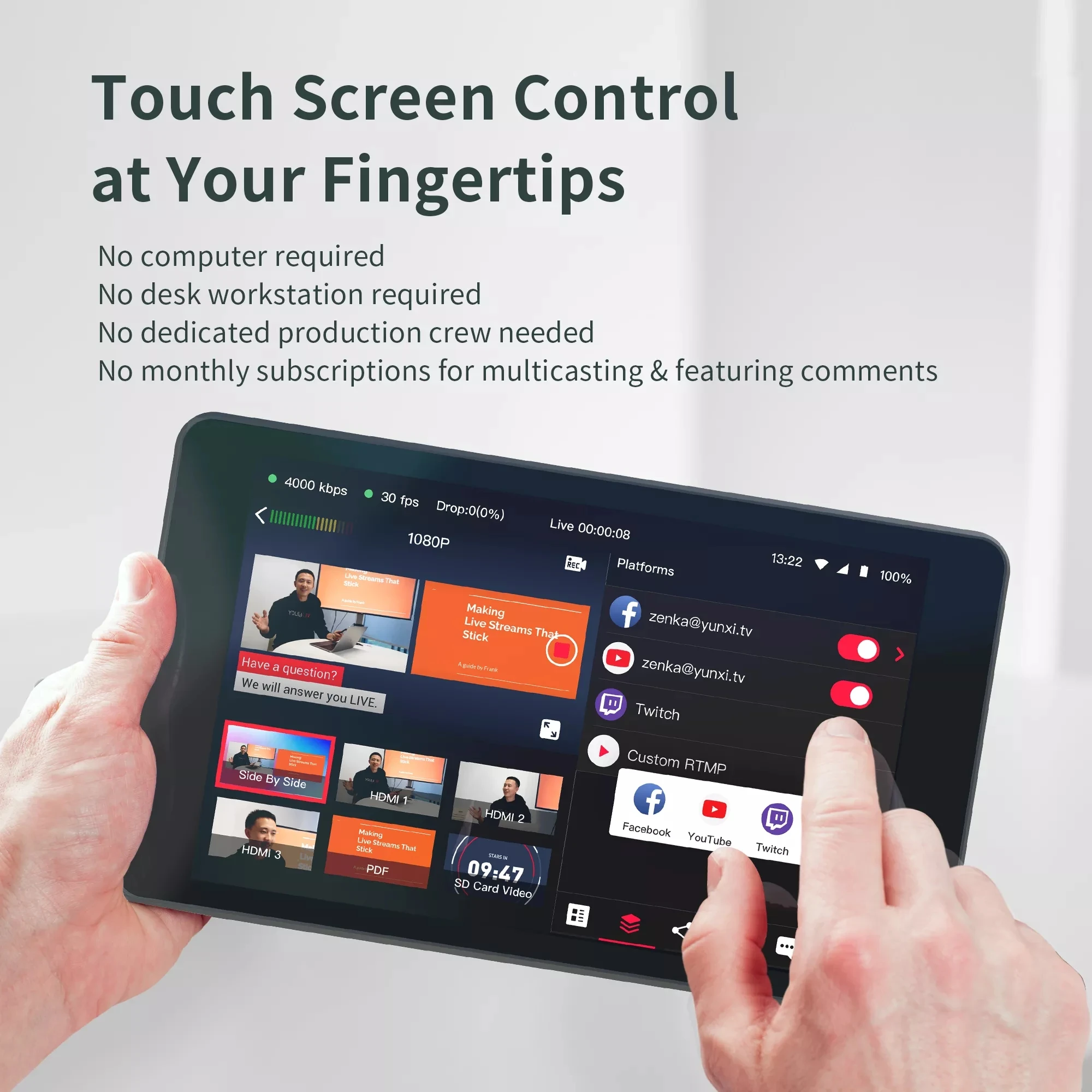

Touchscreen Control

The YoloBox Pro provides you with a large touchscreen interface for easy streaming and control.

USB Webcam Out

The USB webcam out feature allows you to output both video and audio to your computer for meetings on Zoom, Skype, Teams, and more. The feature allows you to invite guests or add background music for a countdown timer.

Auto-Switching

The auto-switching feature allows you to automatically rotate between up to 6 video sources, including camera angles (HDMI 1, HDMI 2, HDMI 3, USB Type-C, and USB Type-A), SD card (videos and PDF), multi-views (PIP, Side by Side, Split View, News Layout, and Triple), and live stream (as video source). This feature is especially useful if you are running a production by yourself, or if you want to have continuous camera switching.

Switching and Encoding Functions

The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards up to 128GB.

Overlays

You can brand your live stream by adding logos/watermarks/rolling captions

Customized PiP options, including Interview mode, allow you to bring a unique look and feel to your stream

Engage with your audience in real time via feature comment overlays

The customizable scoreboard feature displays a real-time-controlled scoreboard for professional looking results

Built-in lower-thirds templates can be edited or you can add your own

Enter an URL of a customized scoreboard generated from a live graphics platform like singular.live or flexyscore.net for professional sports events

Scoreboard Countdown Timer

You can easily create a timer or reset it whenever you want with just one tap. The longest time period supported is 100 minutes, satisfying various live streaming scenarios and taking your live production to a new level of flexibility.

Internet

You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.

Simultaneous Streaming

YoloBox Pro will first push your feed to the YoloLIV platform, from where it automatically forward your feed to a maximum of 3 destinations simultaneously.

Note:

Please note that at times a streaming service may change their policies, which will cause issues with integration; this is usually a temporary situation.

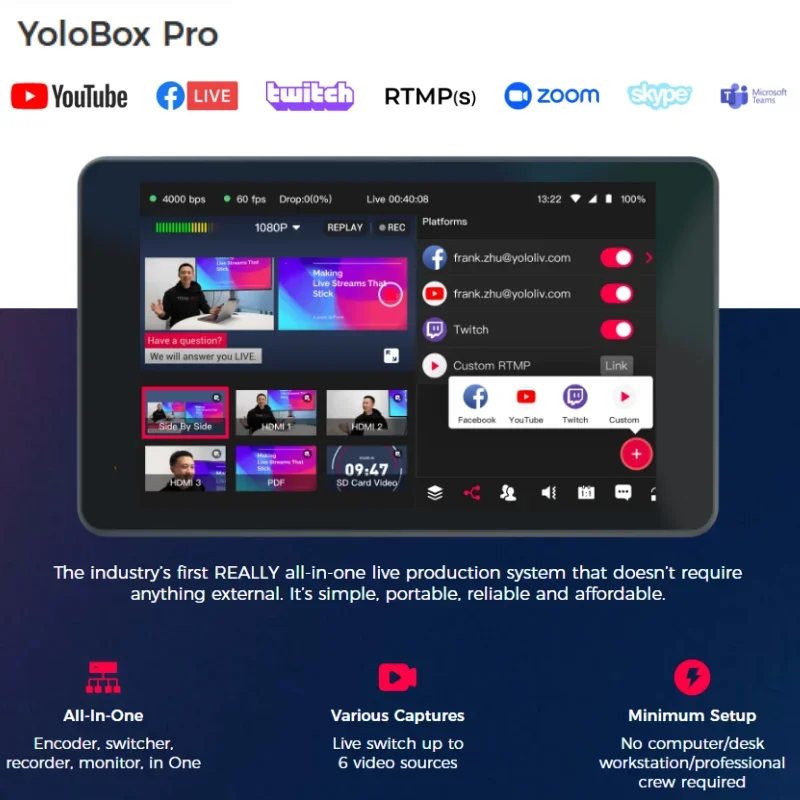

Streaming Platforms

Major steaming platforms such as Facebook live, YouTube, and twitch as well as YoloLIV are supported.

RTMP protocols allow you to stream to custom RTMP destinations including YouTube.

SD Card Input

Roll in pre-recorded videos for intro, countdown, B-roll, or special segments from an SD media card. Two videos supported from SD card: users can now add a total of 3 sources (2 videos and 1 PDF) from the SD card, and a total of 8 video sources (3 HDMI + 1 USB Type-A + 1 USB Type-C + 2 SD card videos + 1 PDF).

PDF

You can load a PDF as a local source to your YoloBox.

Battery Life

The internal 10,000mAh battery can power your YoloBox Pro for approximately 3 hours. The YoloBox Pro charges via a USB Type-C input, which is used for power only.

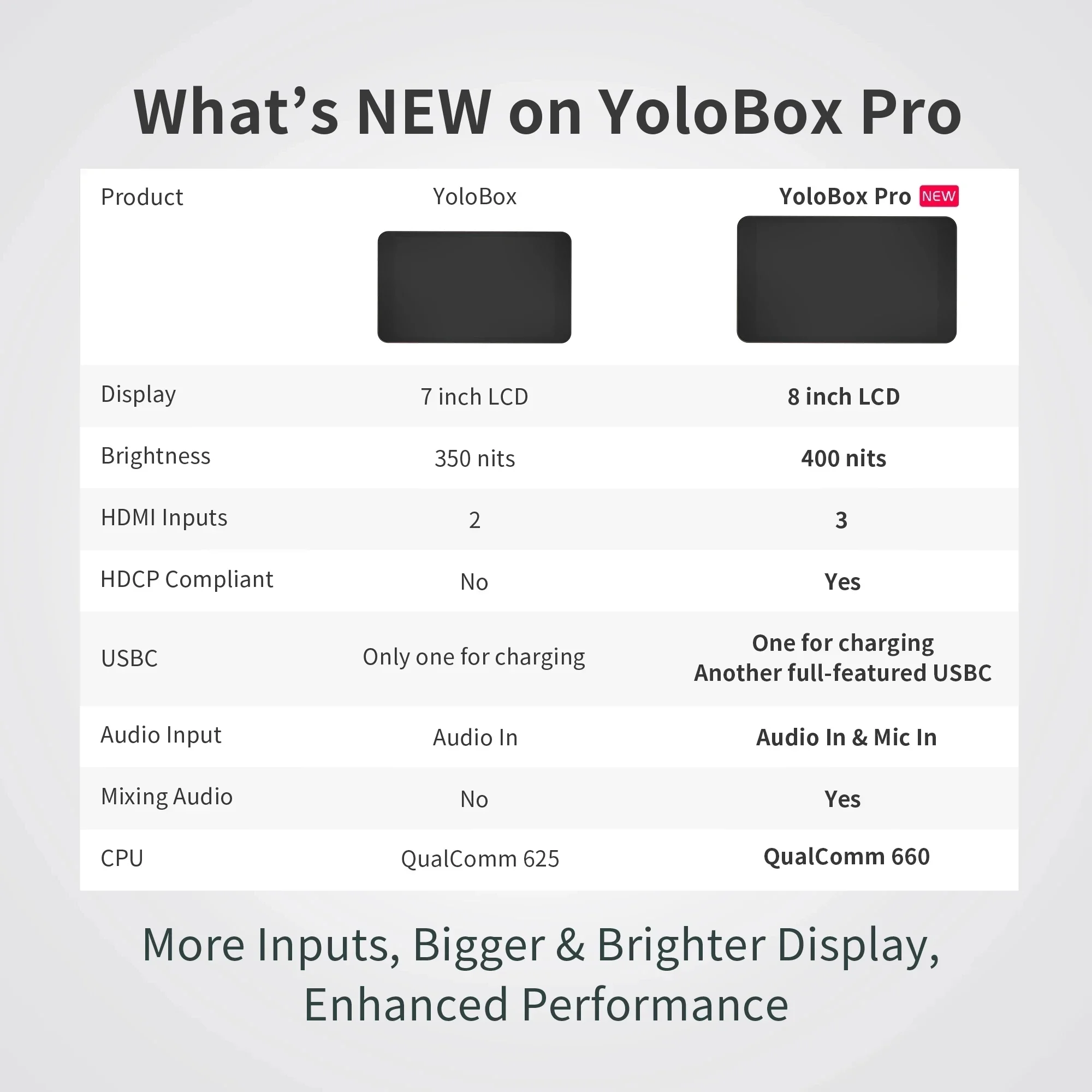

Create a live stream production from anywhere with the ultra-portable YoloBox Pro Portable Multi-Camera Encoder/Streamer, Switcher/Monitor & Recorder from YoloLiv. The YoloBox Pro can simultaneously broadcast up to three video streams via Wi-Fi, RJ45 Ethernet, or via 4G LTE with a separately available SIM card and subscription. The YoloBox Pro features multiple updates from the original YoloBox, including HDCP compliance, both mic and line analog audio inputs, a USB input, three HDMI inputs, a Qualcomm 660 encoder/processor, a high-capacity 10,000mAh internal battery, and a larger 8” LCD touchscreen display with 400 cd/m² brightness.

The YoloBox Pro allows you to connect and live switch up to 10 video sources, and then connect to a local area network via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included). The large 8” touchscreen display shows the streaming image, the input streams as well as the control interface, which allows you to switch between the info sources with a touch. It also features an HDMI output to display your stream locally on an optional HDMI display. It also has a line-level audio input, a mic-level audio input, and a discrete headphone audio out. The YoloBox Pro supports input resolutions ranging up to 1080p using the H.264 codec, and you can stream resolutions from 540p to 1080p to YouTube, Twitch, and other streaming services via custom RTMP presets. Stream to the Internet using a 4G cellular network such as Verizon, T-Mobile, and AT&T, using a separately available nano-size SIM card and a separately available data plan. You can record your stream directly in .mp4 format to an optional SD card with up to 128 GB capacity using the built-in SD card slot.
