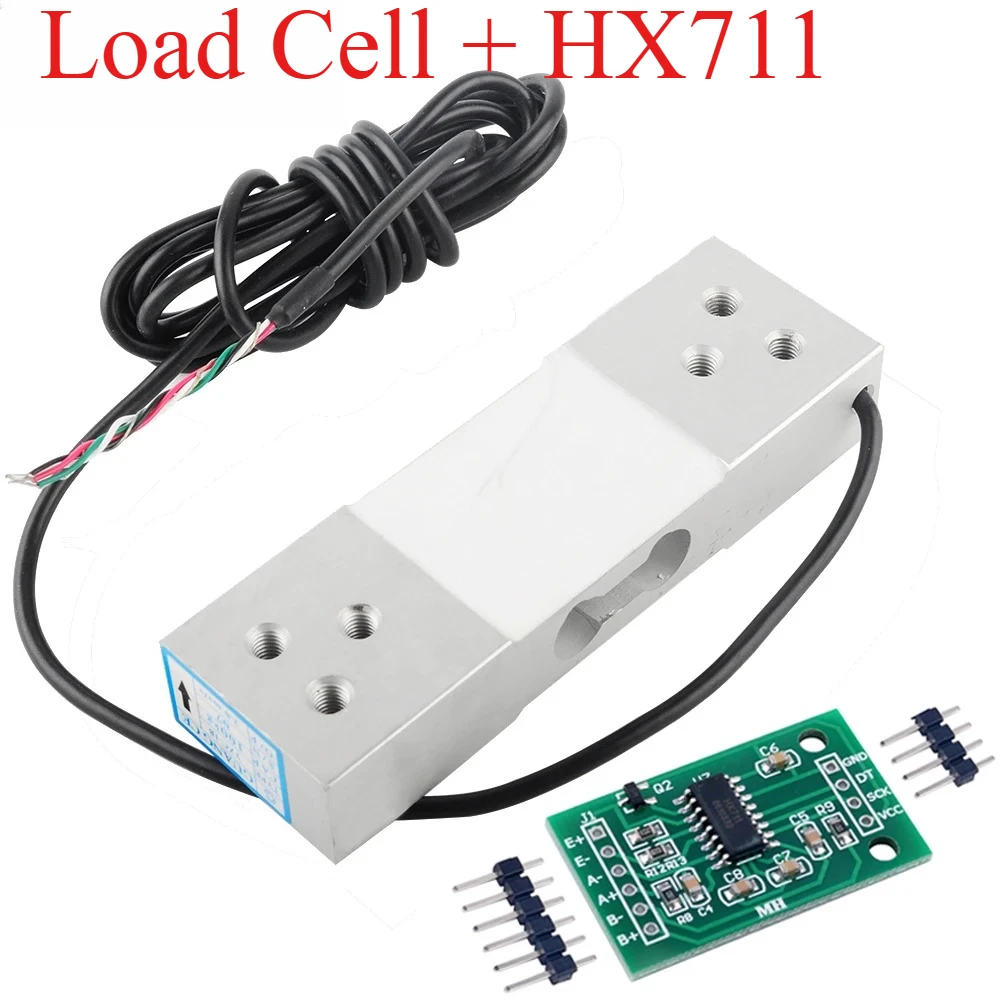

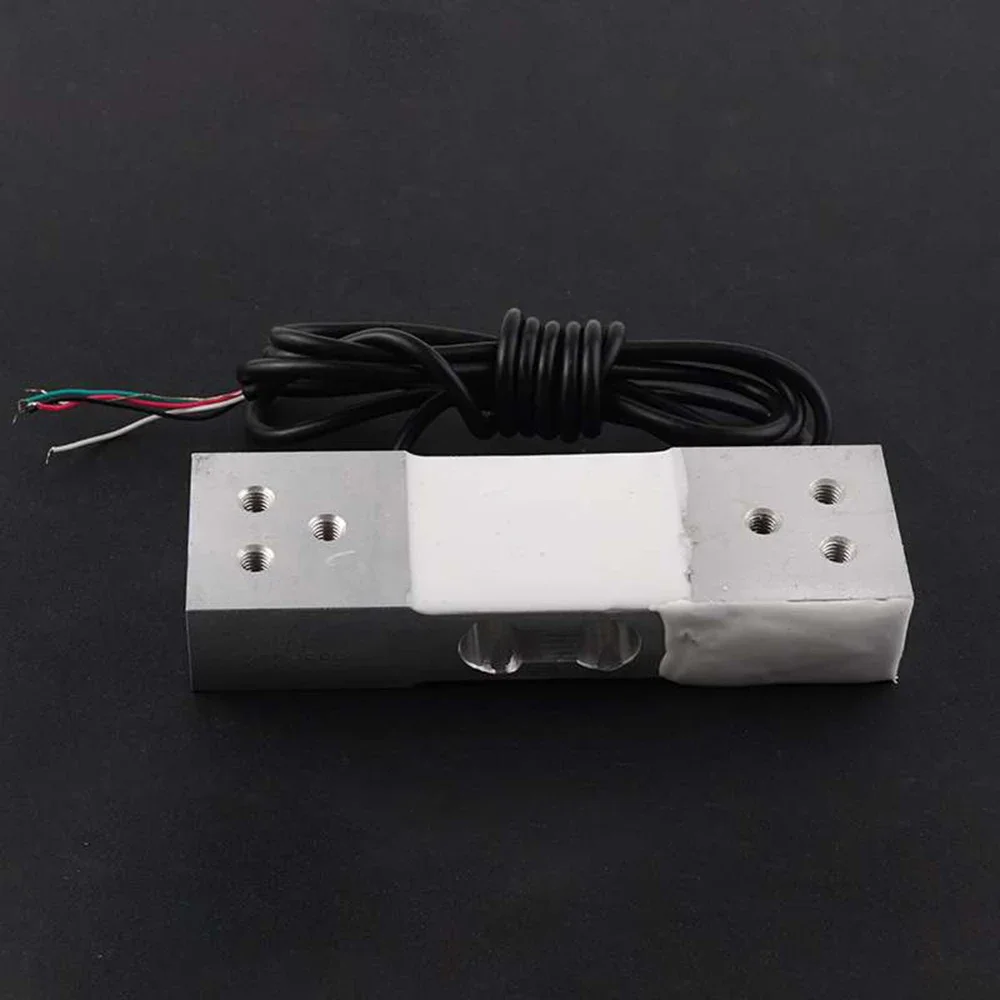

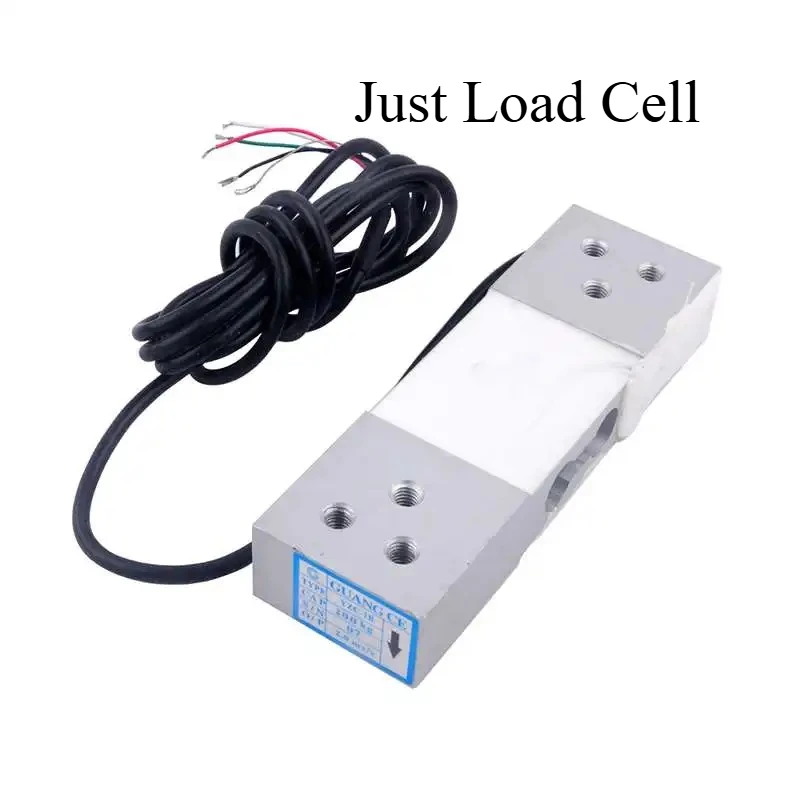

200KG Load cell YZC-1B Pressure Sensor Digital Portable Electronic Kitchen Scale Weight Weighing Sensor for Aduino

Description:

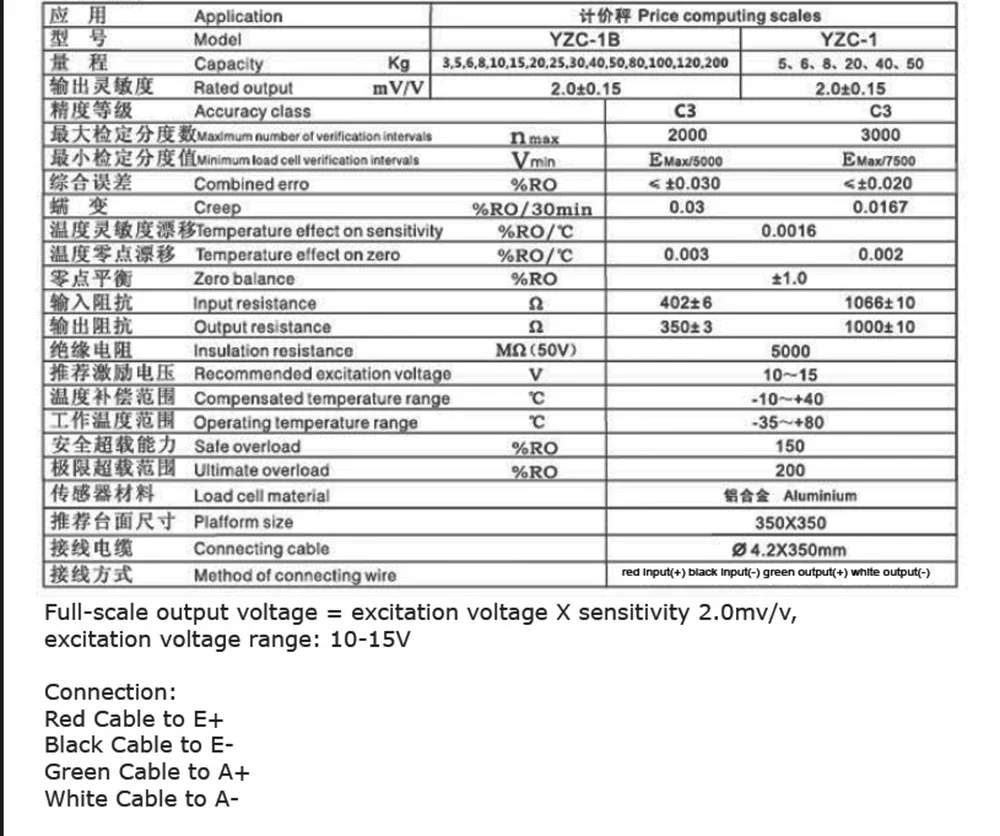

Capacity:200KG
Accuracy class:C3
Accuracy class:2000
Rated output:2.0+ or -0.15MV/V
Maximum number of verification intervals :2000Nmax
Minumum load cell verification intervals : Emax/5000 Vmin
Load cell material:Aluminiu

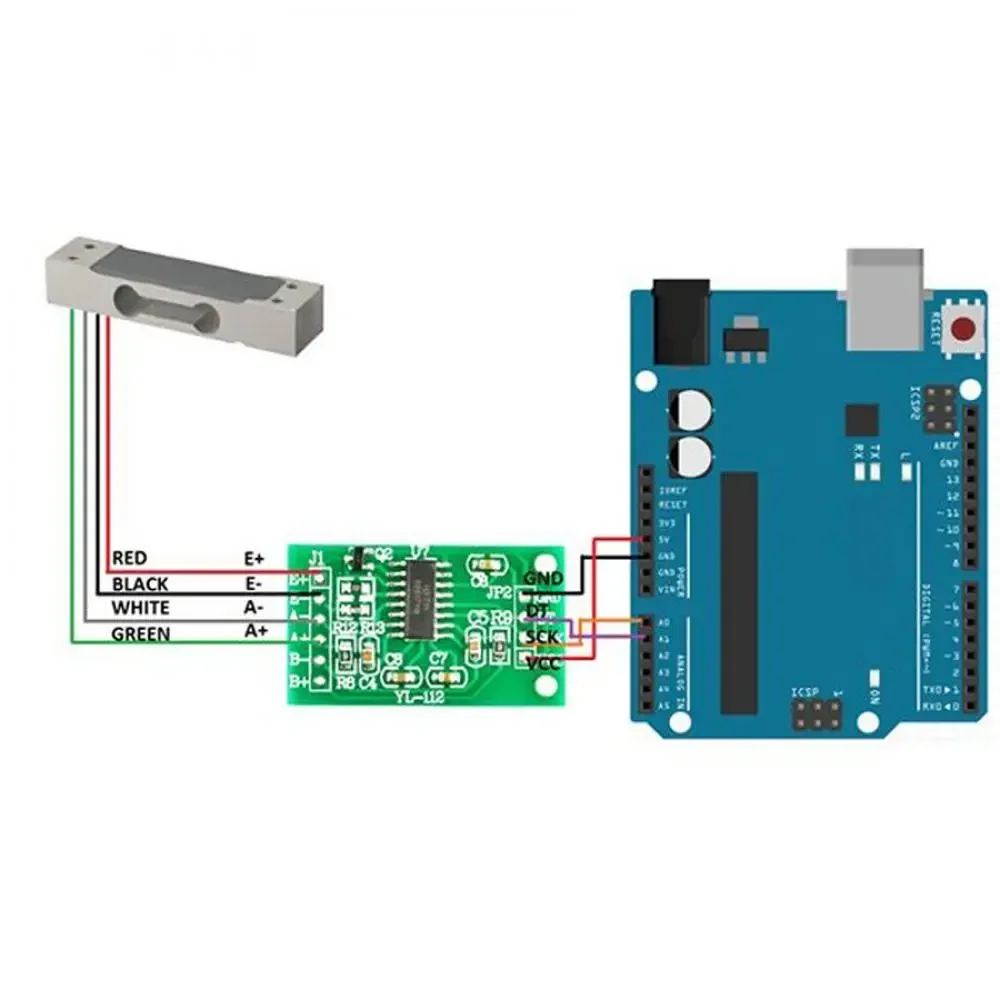

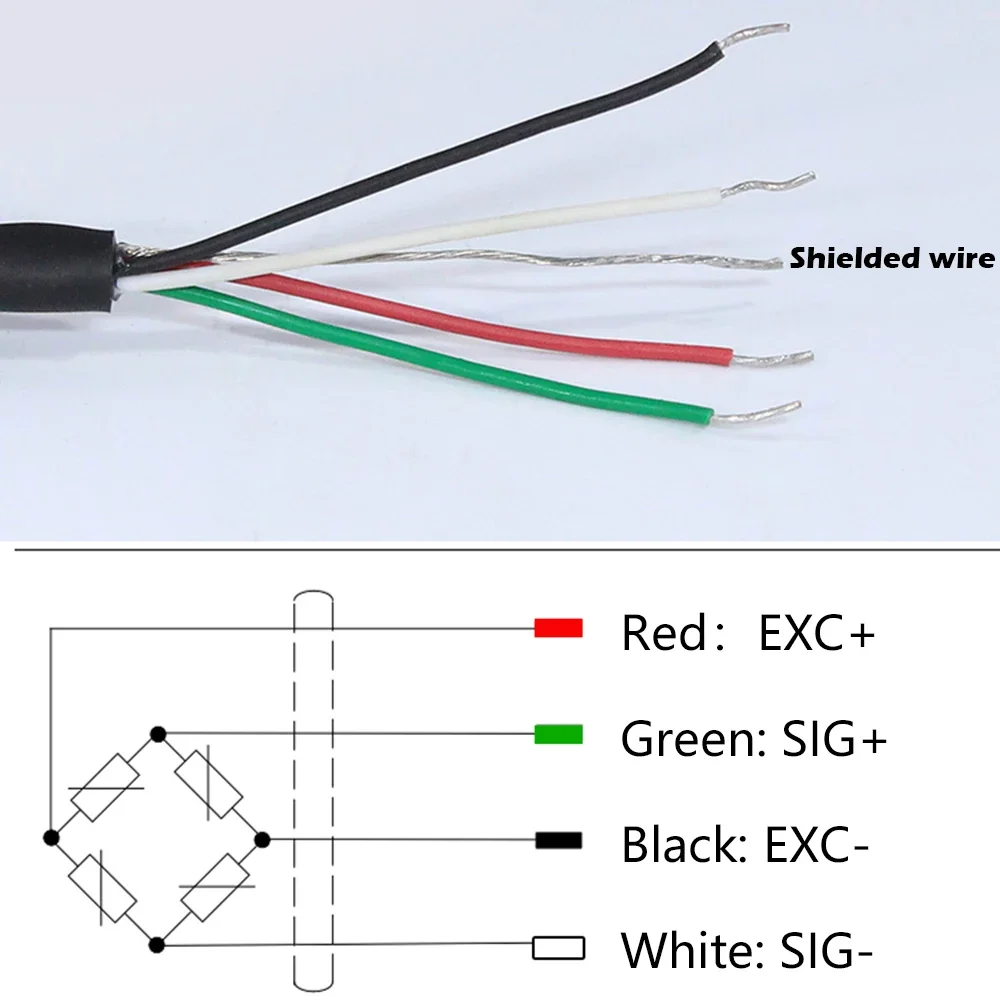

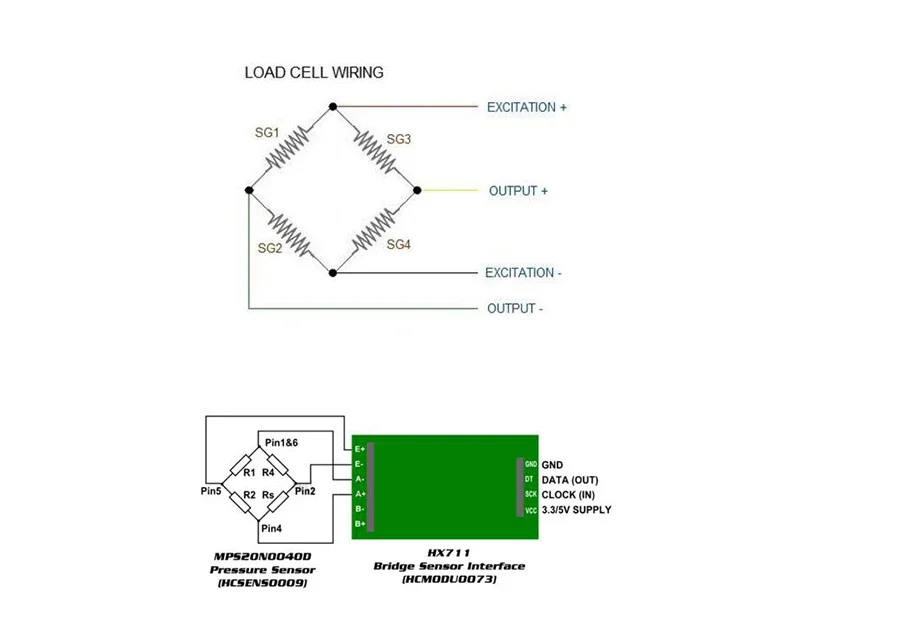

Connection:
Red to E+
Black to E-
Green to A+
White to A-

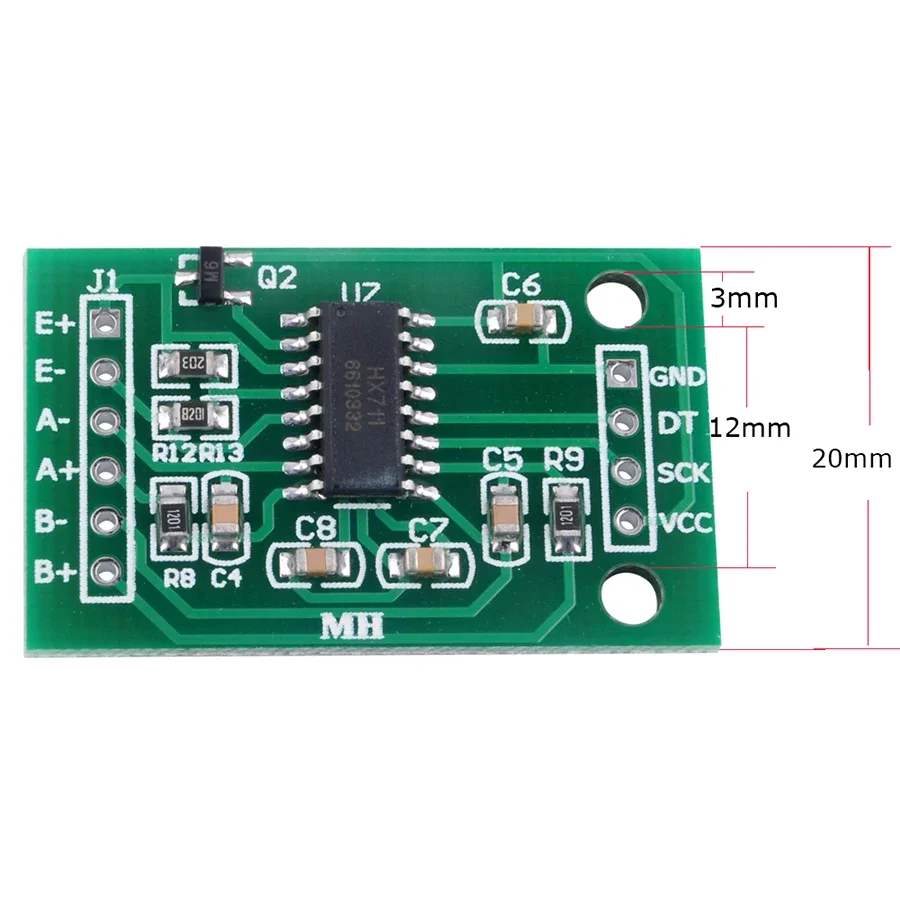

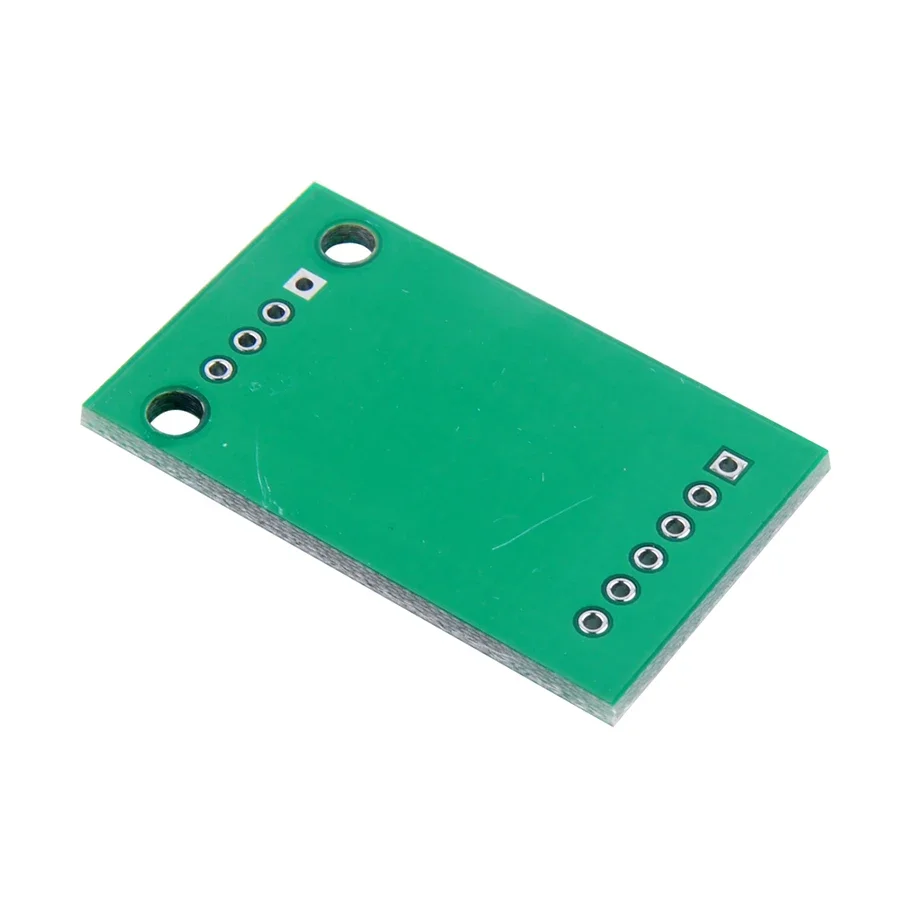

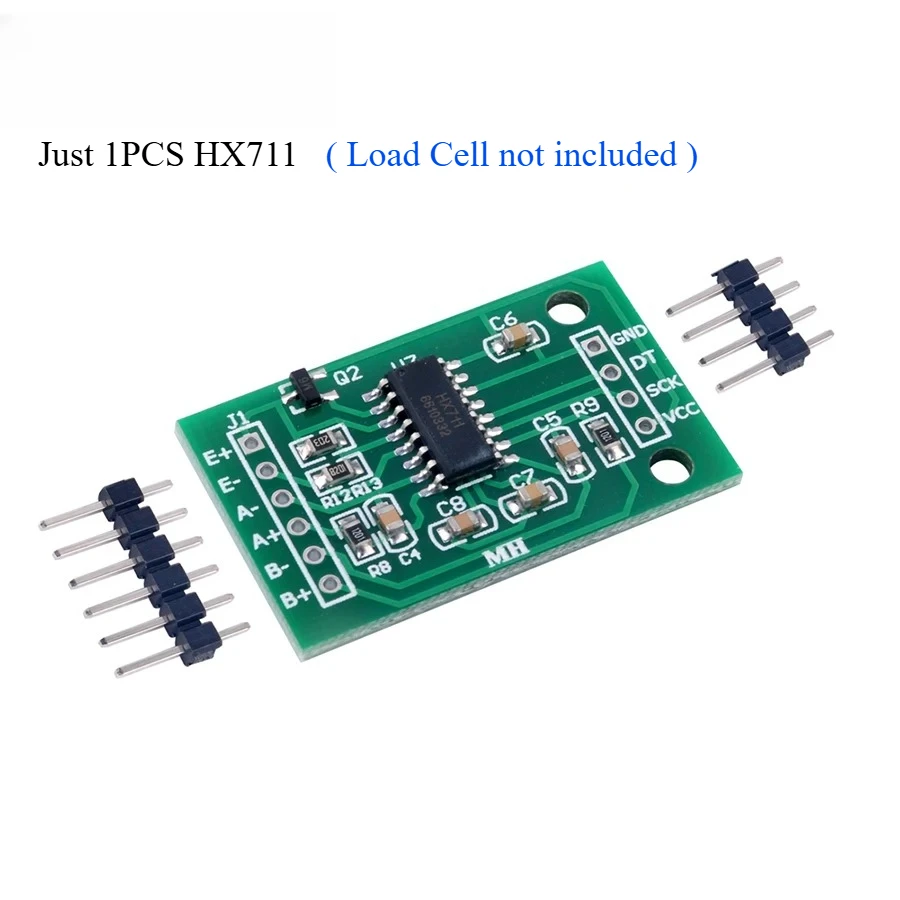

HX711 Ad Moudle Weighing Pressure Sensor Dual-Channel 24 Bit Precision Load Cell Amplifier Green PCB for Arduino

Description:

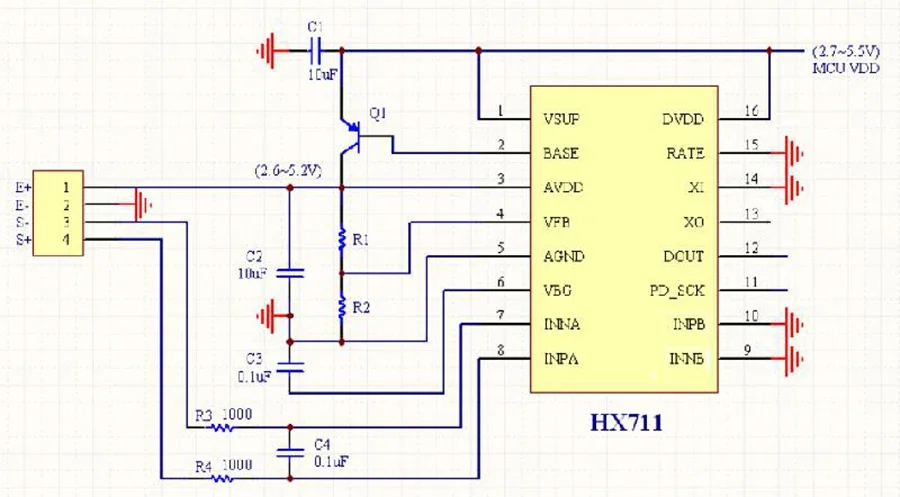

This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module.

Features:
Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 3264 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Simple digital control and serial interface: pin-driven controlsno programming needed
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA
Operation supply voltage range: 2.6 ~ 5.5V
Operating Temperature Range:-20 degree ~ +85 degree
