ZP3-T04/06/08/10/13/16U-A5/B5 Mini Industrial Pneumatic Vacuum Suction Cup With Ring Robotic Gripper Suction Cup
القسم: غير مصنف
Price range: 17 ر.ق through 95 ر.ق
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
Product sharing
- Brand Name: NONE
- Origin: Mainland China
- High-concerned chemical: None
- Type: Actuator
- Motivity Type: Other
- Product Name: ZP3 Series Vacuum Suction Cups
- Material: Black Nitrile Rubber / White Silicone
- Nitrile Rubber: Features excellent oil resistance, wear resistance, durability, and anti-static properties, along with strong adhesion. It has wide universality, good water resistance, and is easy to process, so it is widely used most commonly as a material for seals and suction cups.
- Imported Silicone: Silicone can withstand high and low temperatures. Due to its stable chemical properties and non-polluting nature, it is also commonly used in the pharmaceutical and food industries.
- Black Anti-Static Version: Since the anti-static version does not generate electrostatic sparks, it is widely applied in vacuum smelting, vacuum drying, chemical engineering, pharmaceutical manufacturing, light industry, electronic vacuum industry, and other fields.
- Shape: U Flat Type, UM Grooved Flat Type, B Bellows Type
- Cup Diameter: 015/02/035/04/06/08/10/13/16mm

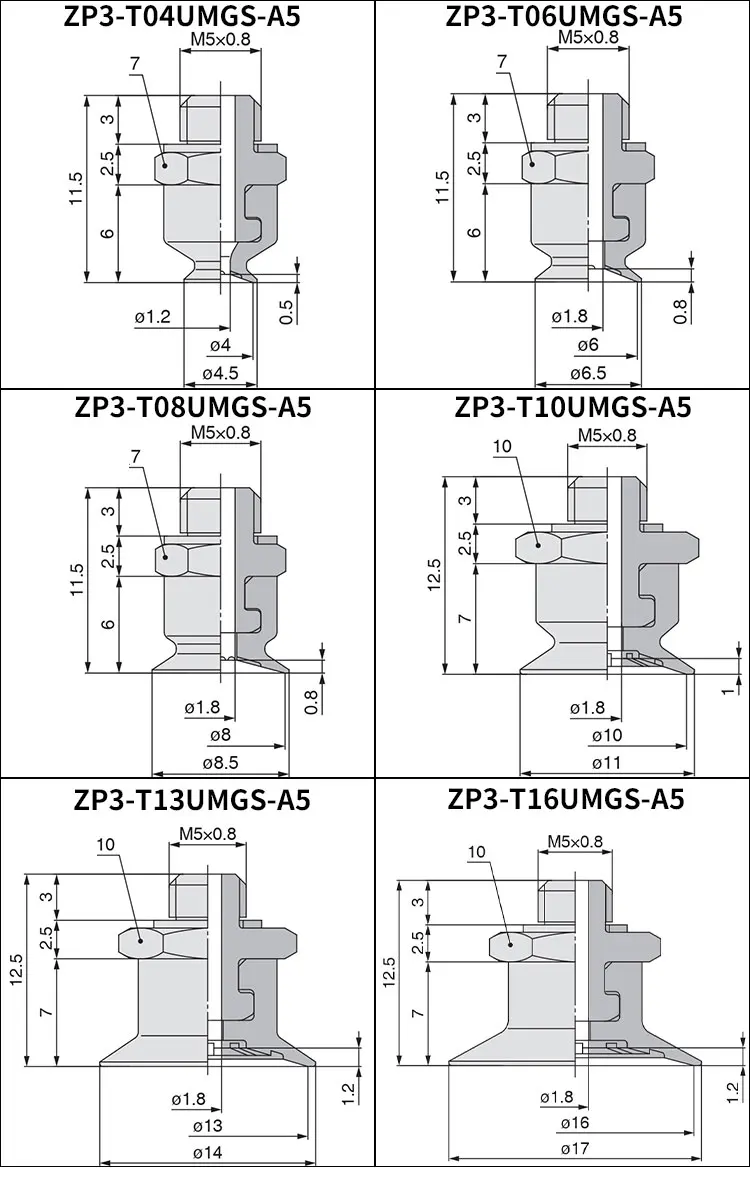

- Internal Threads: A3 (M3*0.5) A5 (M5*0.8) A6 (M6*0.75) A12 (M12*1) External Threads: B3 (M3*0.5) B5 (M5*0.8)
- Rounded Fitting: H5 (M5*0.8)
- Application Scenarios: Suitable for handling workpieces with uneven surfaces and pipes, as well as industrial robots, mechanized equipment, and other automated devices.
- Features: The fittings are mainly made of copper, with a nickel-plated surface. This nickel plating can prevent surface oxidation, vulcanization, and other phenomena, while also improving hardness, and providing corrosion resistance and wear resistance.
- Customization: Non-standard customization is supported.
1、Triple Shape Options for Versatile Handling
U Flat Type: Ideal for flat workpieces with stable adsorption.
UM Grooved Flat Type: Enhanced grip for slightly uneven surfaces or materials requiring anti-slip performance.
B Bellows Type: Flexible deformation to fit curved, uneven workpieces and pipes—solves the pain point of handling irregularly shaped objects.
2、Premium Material & Anti-Static Solution
Black Nitrile Rubber: Excellent oil/water resistance, wear durability, anti-static properties, and strong adhesion—versatile for general industrial sealing and suction with easy processability.
Imported White Silicone: Wide temperature tolerance, chemically stable and non-polluting—perfect for pharmaceutical, food, and high/low-temperature environments.
Black Anti-Static Version: Spark-free design prevents electrostatic discharge, safely applicable to vacuum smelting, vacuum drying, chemical engineering, pharmaceuticals, light industry, electronic vacuum industry, and other static-sensitive fields.
3、Extensive Sizing & Thread/Fitting Compatibility
Multiple Cup Diameters: 015/02/035/04/06/08/10/13/16mm—covers micro to medium-sized workpiece requirements.
Rich Thread Options:
Internal Threads: A3 (M30.5), A5 (M50.8), A6 (M60.75), A12 (M121)
External Threads: B3 (M30.5), B5 (M50.8)
Rounded Fitting: H5 (M5*0.8)—all standard threads ensure seamless integration with most industrial robots and automated equipment.
4、Durable Nickel-Plated Copper Fittings
Fittings are copper-based with nickel plating, which effectively resists oxidation, vulcanization, corrosion, and wear while enhancing surface hardness—guarantees long service life even in harsh industrial conditions.
5、Broad Automation Adaptability
Specialized in handling uneven workpieces and pipes, and fully compatible with industrial robots, mechanized systems, and various automated devices—suitable for multi-scenario industrial material handling.
6、Non-Standard Customization Support
Offers tailored solutions (size, material, shape, thread) to meet unique application requirements, ensuring perfect matching with specific production lines.
| Color | ZP3-T04U-A5, ZP3-T04U-B5, ZP3-T06U-A5, ZP3-T06U-B5, ZP3-T08U-A5, ZP3-T08U-B5, ZP3-T10U-A5, ZP3-T10U-B5, ZP3-T13U-A5, ZP3-T13U-B5, ZP3-T16U-A5, ZP3-T16U-B5 |
|---|---|
| Brand Name | NONE |
| Origin | Mainland China |
| High-concerned chemical | None |
| Type | Actuator |
| Motivity Type | Other |
| Product Name | ZP3 Series Vacuum Suction Cups |
| Material | Black Nitrile Rubber / White Silicone |
| Nitrile Rubber | Features excellent oil resistance, wear resistance, durability, and anti-static properties, along with strong adhesion. It has wide universality, good water resistance, and is easy to process, so it is widely used most commonly as a material for seals and suction cups. |
| Imported Silicone | Silicone can withstand high and low temperatures. Due to its stable chemical properties and non-polluting nature, it is also commonly used in the pharmaceutical and food industries. |
| Black Anti-Static Version | Since the anti-static version does not generate electrostatic sparks, it is widely applied in vacuum smelting, vacuum drying, chemical engineering, pharmaceutical manufacturing, light industry, electronic vacuum industry, and other fields. |
| Shape | U Flat Type, UM Grooved Flat Type, B Bellows Type |
| Cup Diameter | 015/02/035/04/06/08/10/13/16mm |
| Internal Threads | A3 (M3*0.5) A5 (M5*0.8) A6 (M6*0.75) A12 (M12*1) External Threads: B3 (M3*0.5) B5 (M5*0.8) |
| Rounded Fitting | H5 (M5*0.8) |
| Application Scenarios | Suitable for handling workpieces with uneven surfaces and pipes, as well as industrial robots, mechanized equipment, and other automated devices. |
| Features | The fittings are mainly made of copper, with a nickel-plated surface. This nickel plating can prevent surface oxidation, vulcanization, and other phenomena, while also improving hardness, and providing corrosion resistance and wear resistance. |
| Customization | Non-standard customization is supported. |
| Specification | Black(1PCS), Black(20pcs), White(1PCS), White(20pcs) |
