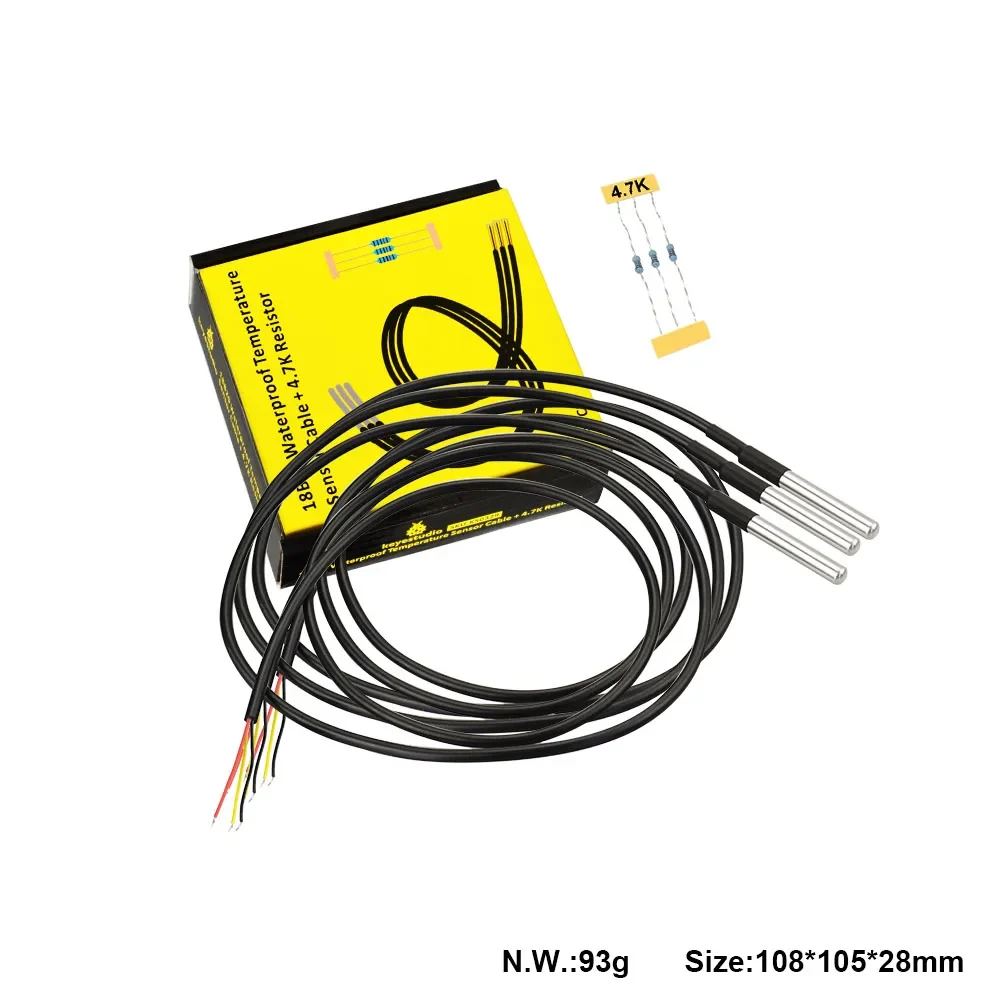

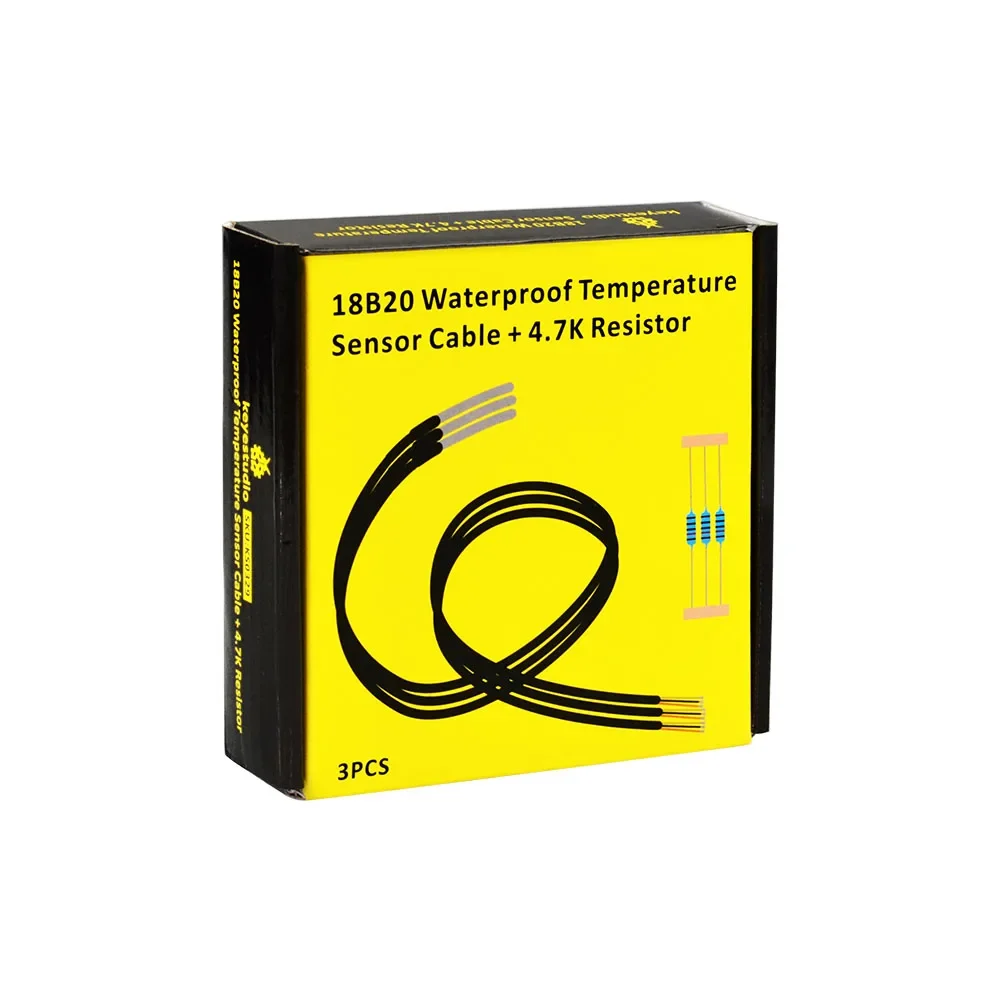

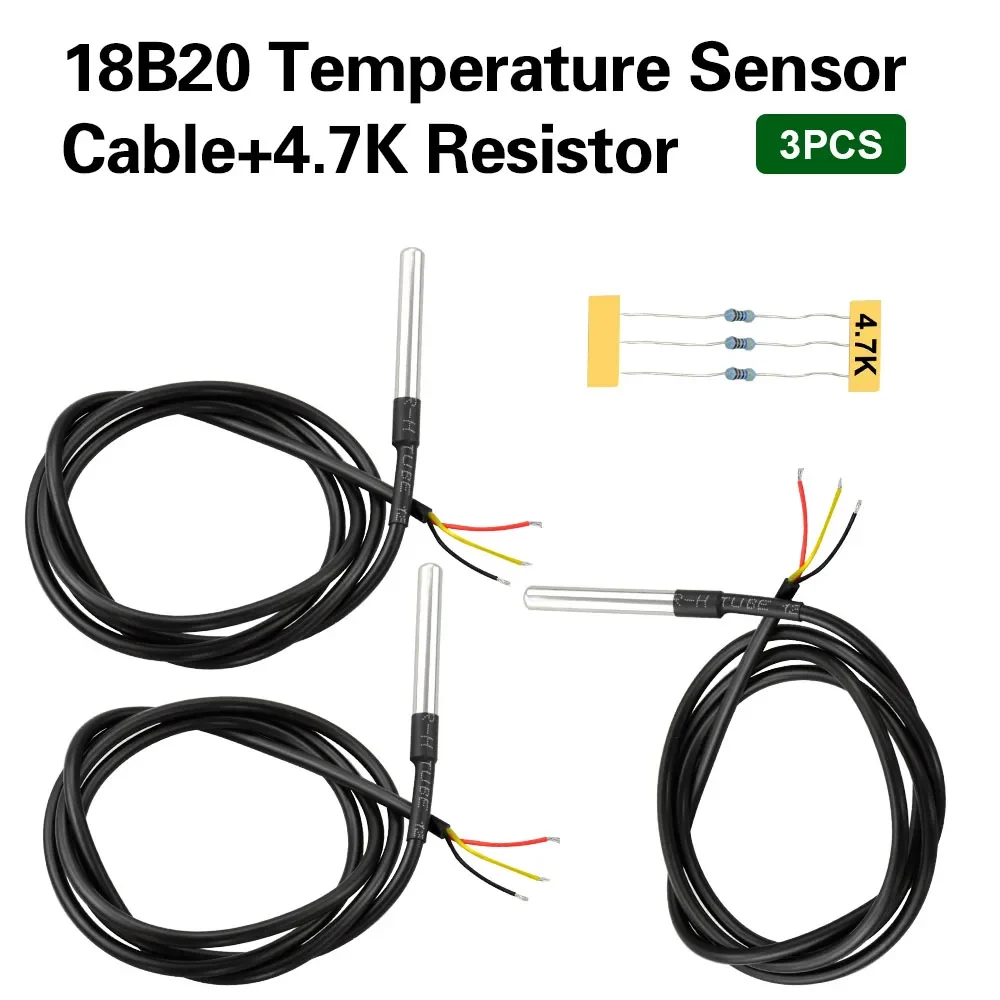

This kit includes three DS18b20 temperature detector sensor and three 4.7 K resistors.

Keyestudio DS18b20 temperature detector probe adopts the brand-new and original DS18B20 temperature sensor chip.

Each pin of chip is separated by heat shrinking tube to prevent the short circuit, and sealed inside for waterproof and damp-proof. Its direct “One line Bus” digital transmission greatly improves the anti-jamming capability of system, suitable for field temperature measurement in harsh environments.

At the same time, it is sealed with a high thermal conductivity of sealing rubber strip, to ensure the temperature sensor’s high sensitivity, with a very tiny temperature delay. Its measured temperature range is from -55℃ to +125℃, in the range of -10℃~ +85℃, its accuracy is±0.5℃.

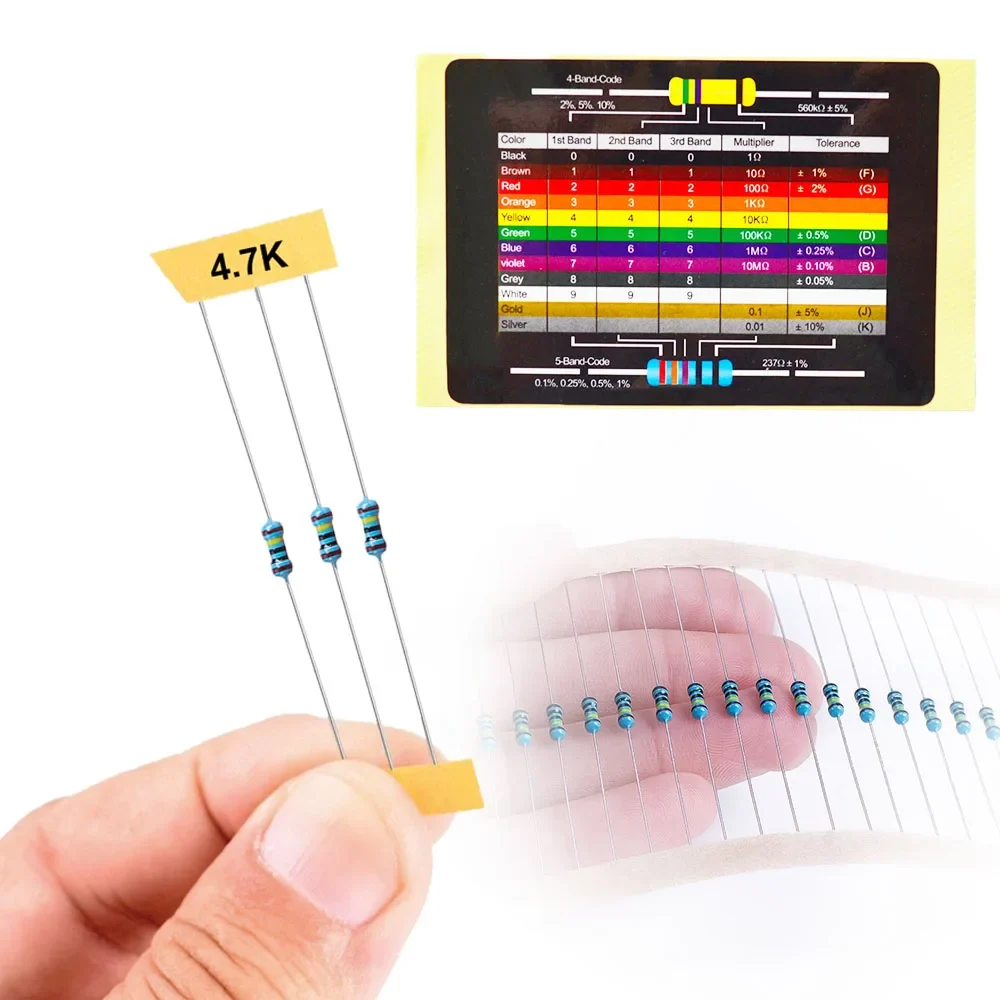

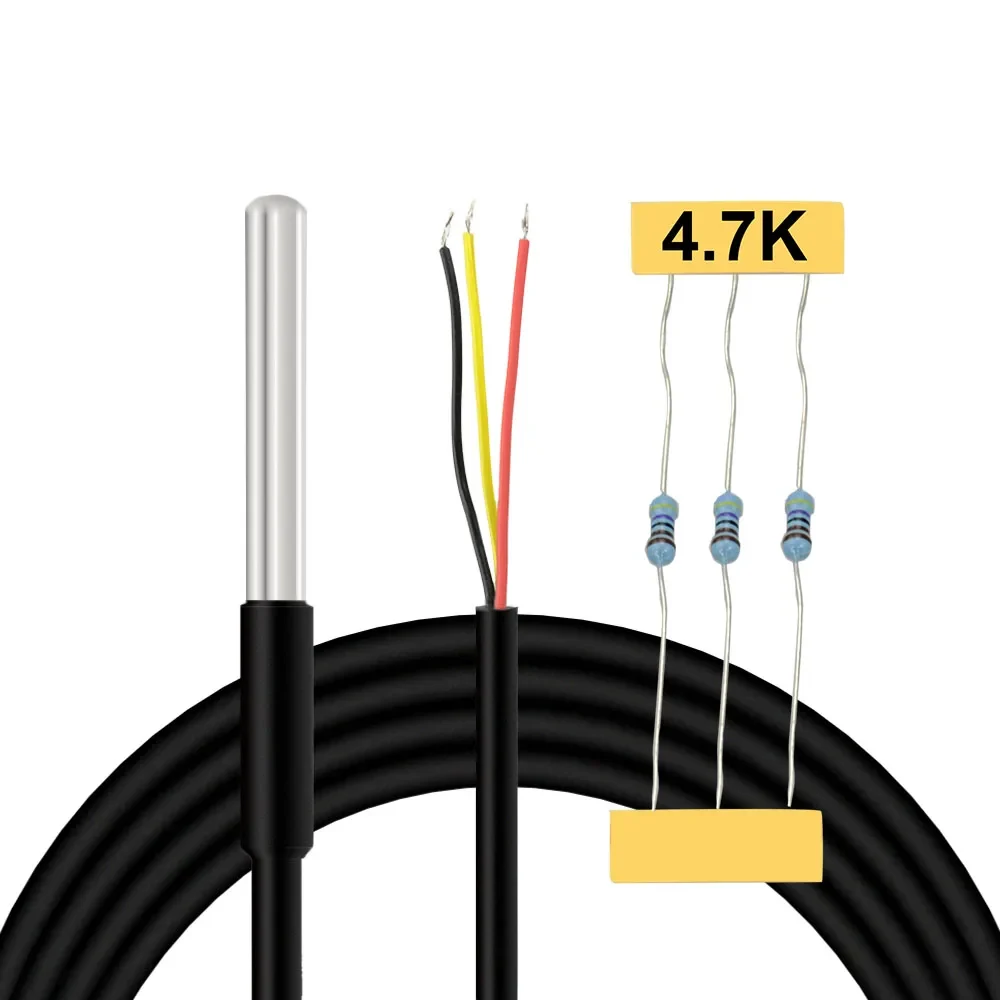

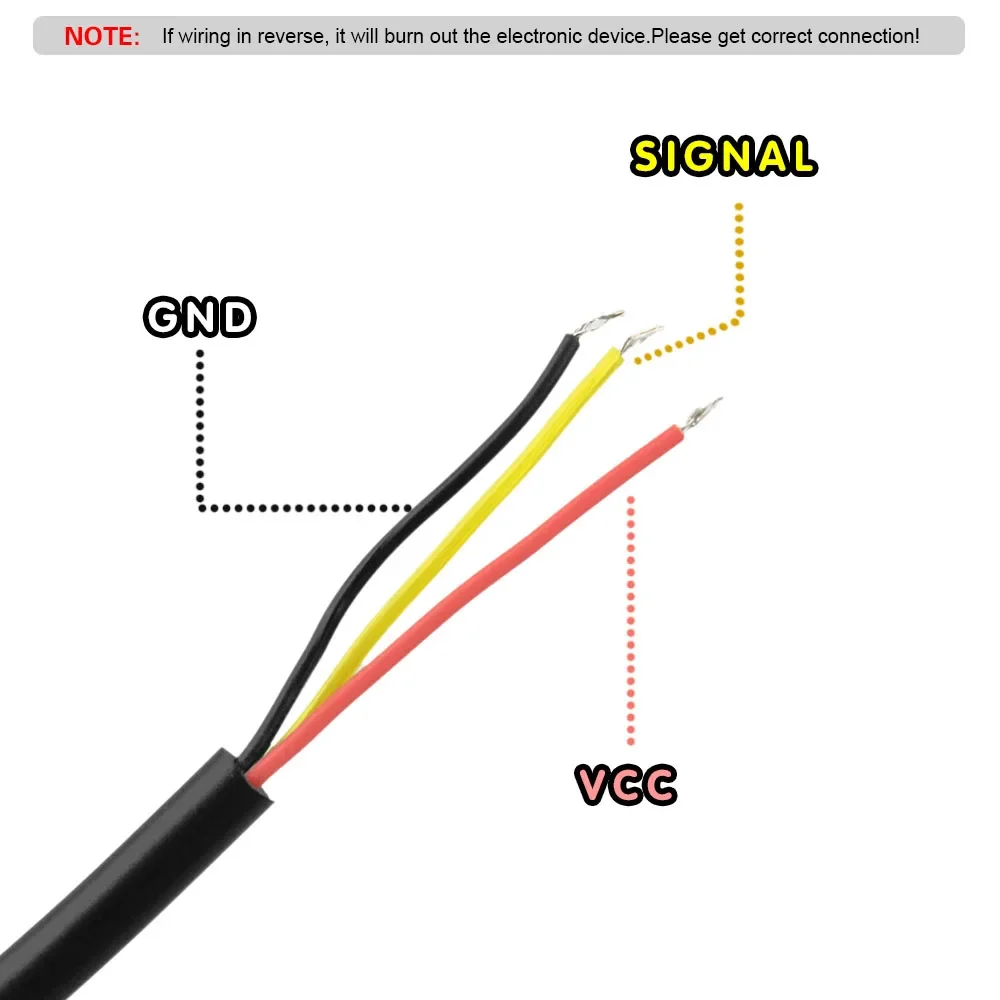

When testing it, need to connect the signal end (yellow line) of sensor to the Digital port of microcontroller, meanwhile, need to add a pull-up resistor on the Signal end, or else the test will fail. This kit we provide three 4.7 K resistors to used as pull-up resistor.

Specifications

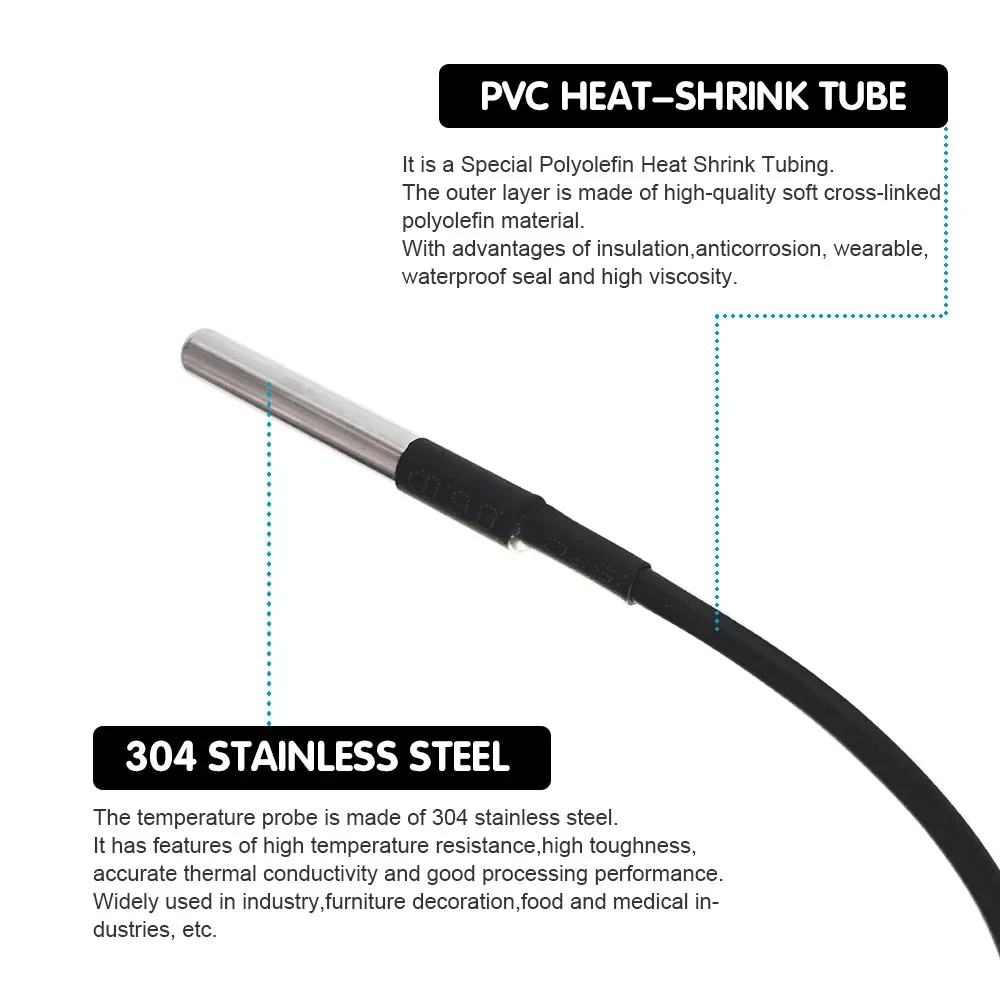

1.Each pin of chip is separated by heat shrinking tube to prevent the short-circuit

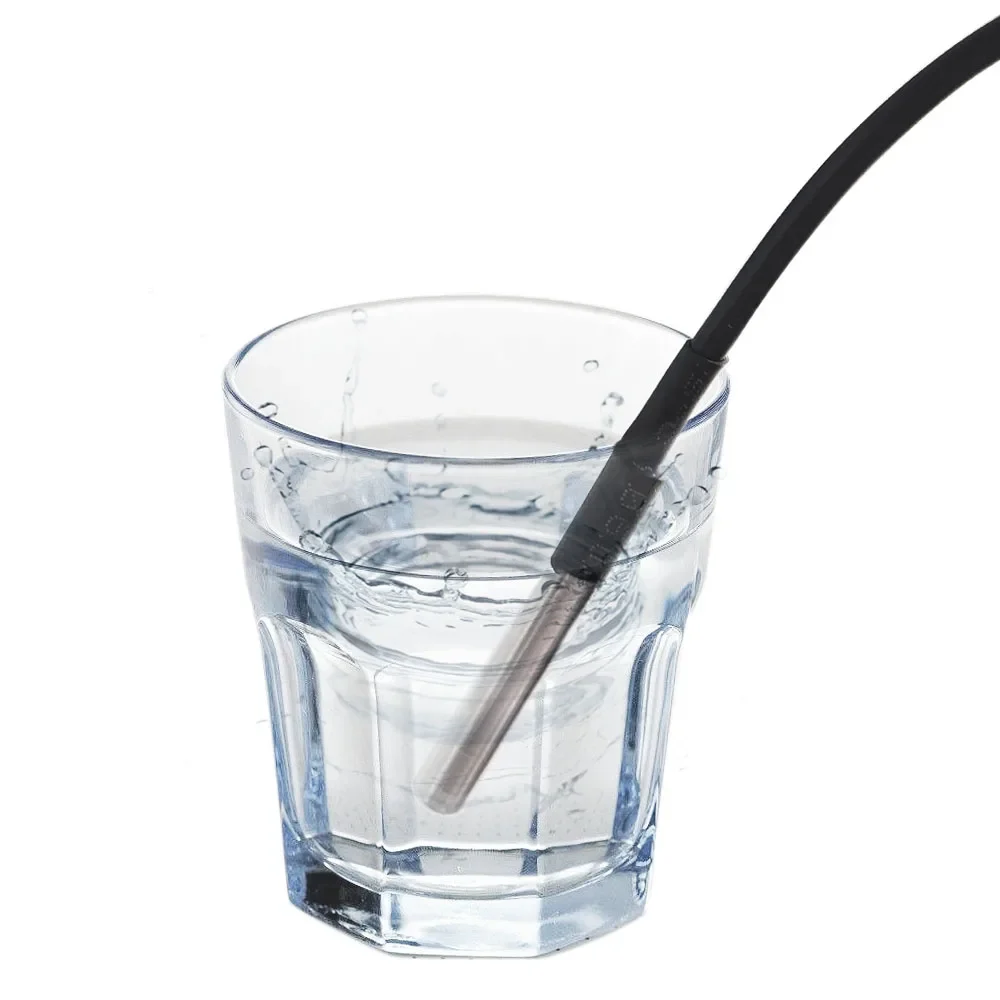

2.Sealed with premium stainless steel tube for waterproof, damp-proof and rustproof.

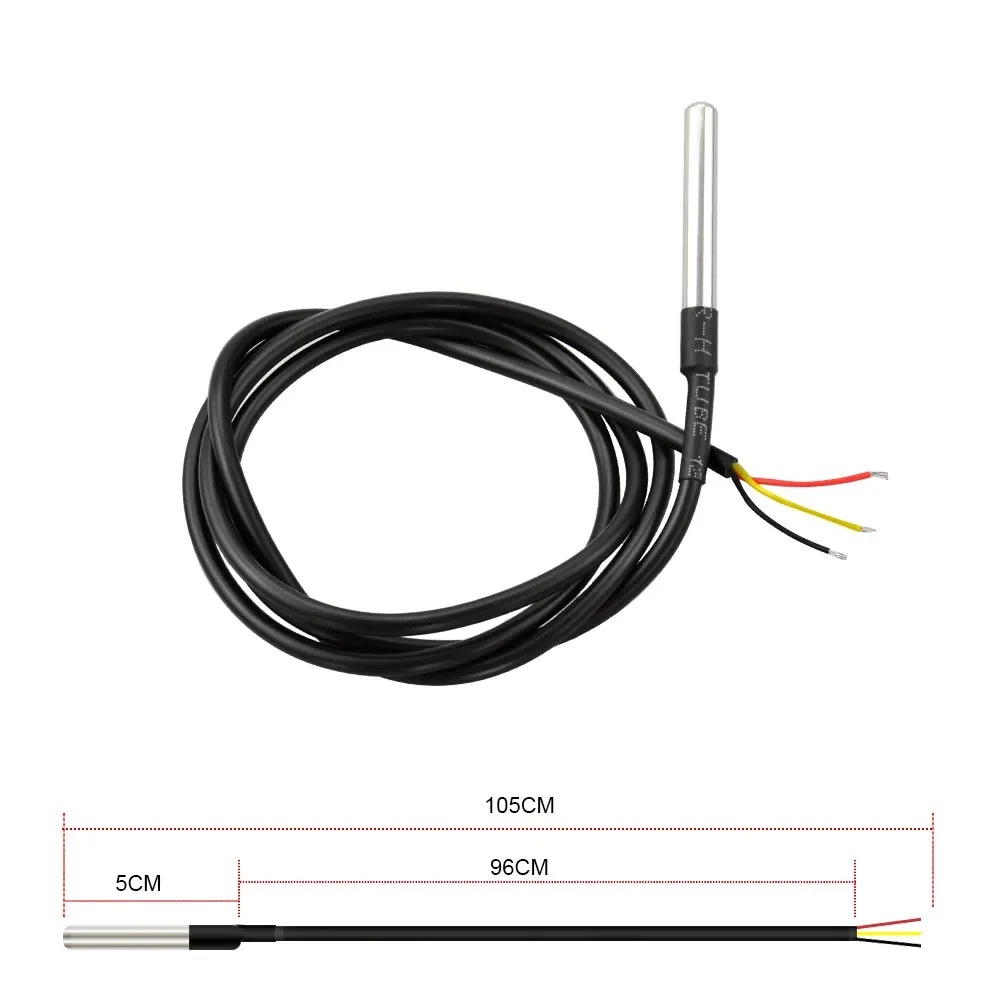

3.Total length of 1m

4.3.3-5V power supply

5.9~12 bit adjustable resolution

6.Temperature sensing range: -55℃~+125℃（lead wire can bear the temperature up to 85℃）
