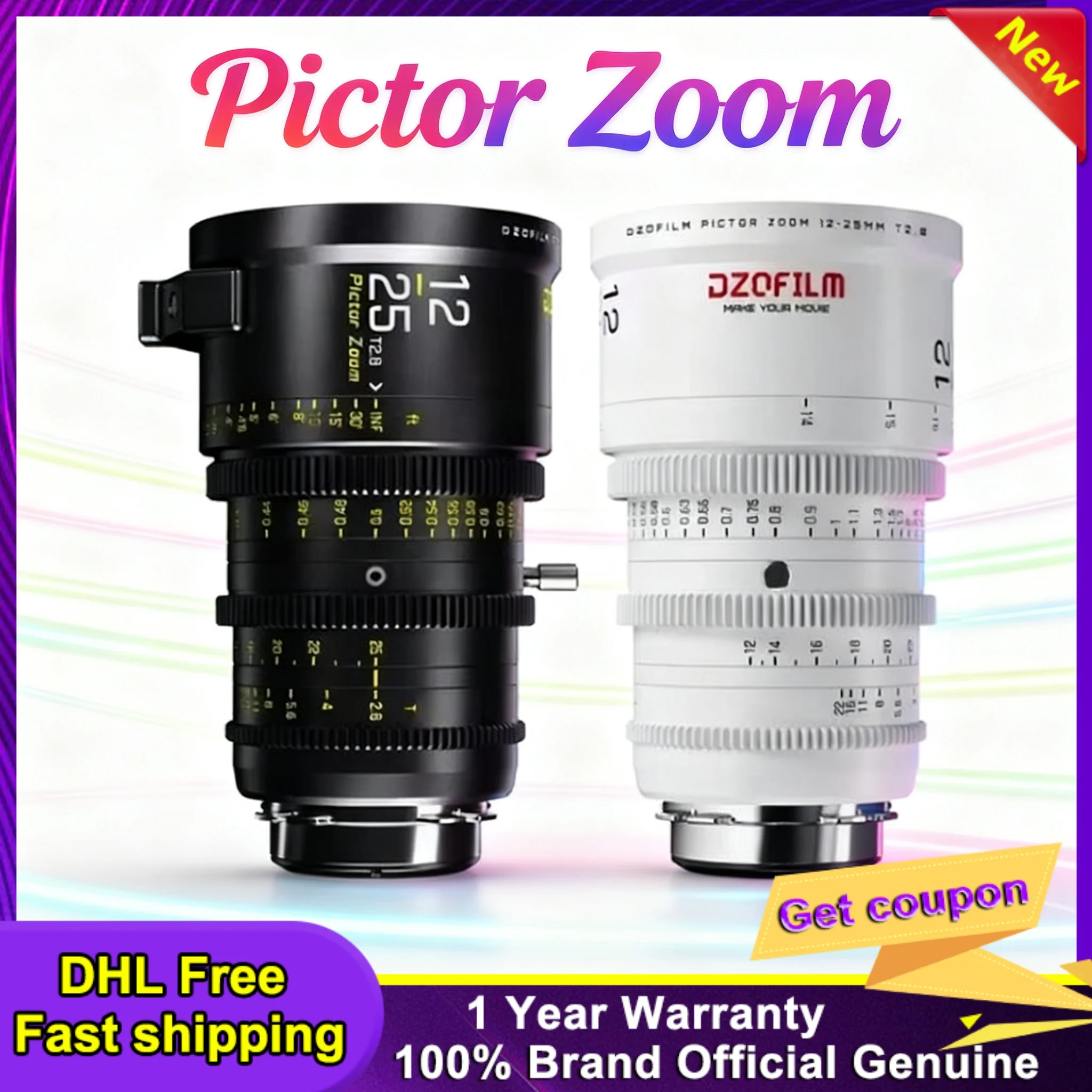

DZOFilm Pictor Zoom Super 35 Lens Set 12-25mm T2.8 20-55mm T2.8 55-125mm T2.8 with 1/4″-20 Thread · for PL/EF Mount Parfocal
القسم: غير مصنف
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- High-concerned chemical: None
- Applicable Camera Specifications: APS-C Mirrorless Camera
- Launch Date: 2022
- Lens Stabilization Type: None
- Number of Diaphragm Blades: 7 Blades
- Focus Mode: Af, Mf
- Focus Type: Wide Angle-Zoom
- Type: Zoom Lens
- Full Frame: No
- Lens Type: Automatic
- Scene Type: Wedding,Business,Human,Sports,Insect,Architecture,Special,Scenery,Still Life,Travel,People,Night Scene,starry sky,ORIGINALITY,Macro,Indoor
- Origin: Mainland China
- Use: Camera
- Focal Length: 12mm
Parfocal Design
This parfocal lens maintains focus throughout the zoom range.
Closer Minimum Focus
A close focus of just 16” enables you to shoot in more limited spaces and increases your audience’s sense of immersion.
Interchangeable Mounts
The efficient Pictor design enables you to swap out the ARRI PL mount for a Canon EF mount.
Use separately available Octopus adapters to use the Pictor zoom with Sony E/Canon RF, Fuji X, and Nikon Z-mount cameras.
Cine-Style Design
Features include a 95mm front diameter and compatibility with standard cine-style lens accessories
Focal Length | 12 to 25mm |
Lens Mount | ARRI PL |
Lens Format Coverage | Super35/APS-C |
Image Circle | 31.5 mm |
Maximum Aperture | T2.8 |
Minimum Aperture | T22 |
Minimum Focus Distance | From Image Plane: 1.3′ / 40 cm |
Optical Design | 21 Elements in 15 Groups |
Diaphragm Blades | 16 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch |
Front Diameter | 95 mm |
Filter Thread | 86 mm x 0.75 |
Focus Scales | Imperial |
Focus Rotation | 270° |
Iris Rotation | 64.4° |
Zoom Rotation | 100° |
Electronic Communication | No |
Image Stabilization | No |
Length | 5.9” / 150 mm |
Weight | 3.5 lb / 1.6 kg |

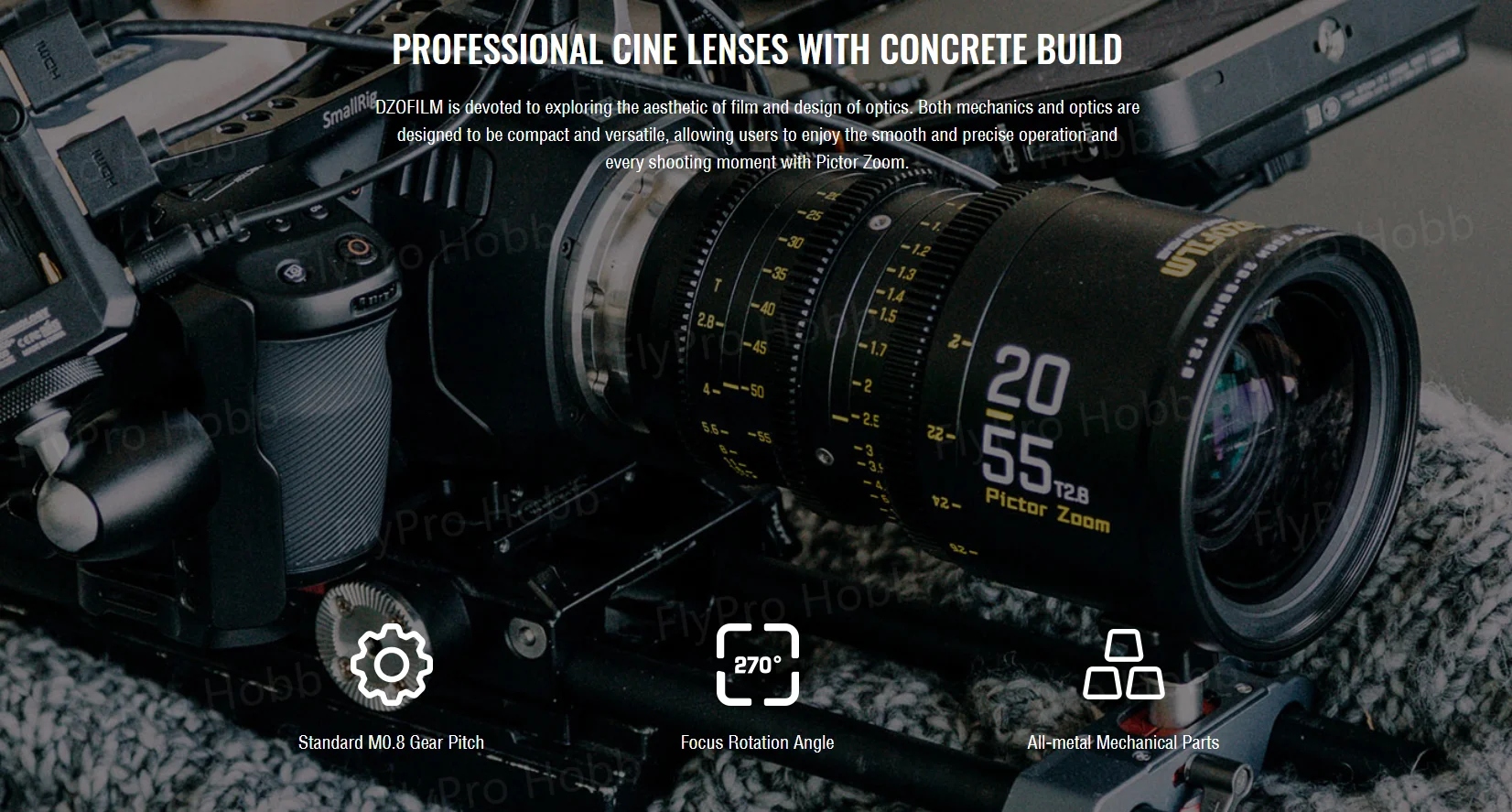

This Pictor lens features 0.8 MOD cine-style focus, iris, and zoom gear rings, making it compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems. The 95mm outer front diameter allows you to use a variety of compatible third-party matte boxes, and the lens has an 86mm filter thread. A lens foot with a 1/4”-20 thread enables you to use a support to help reduce strain on your camera’s lens port.
The black, parfocal

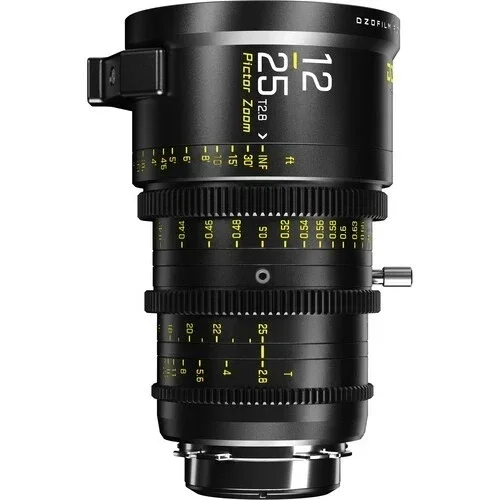

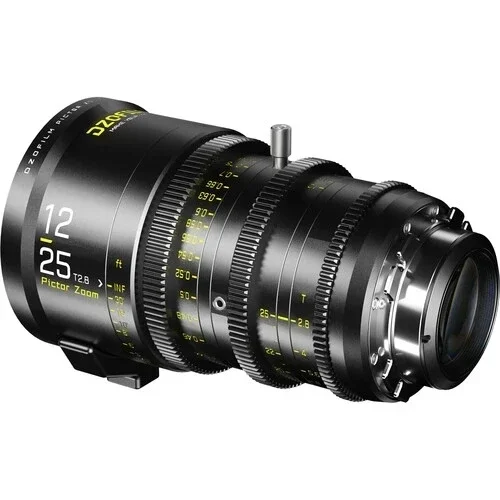

DZO Pictor 12-25mm T2.8 Super35 Zoom Lens
features an aperture range of T2.8 to T22, the ability to hold focus throughout the zoom range, and an internal focus design with floating elements that virtually eliminates focus breathing. It covers a Super35 image circle, comes standard with an interchangeable PL mount, and includes an EF mount. The 16-blade iris creates round out-of-focus highlights, which have a more natural appearance and contribute to the lens’s natural-looking bokeh.
| High-concerned chemical | None |
|---|---|
| Applicable Camera Specifications | APS-C Mirrorless Camera |
| Launch Date | 2022 |
| Lens Stabilization Type | None |
| Number of Diaphragm Blades | 7 Blades |
| Focus Mode | Af, Mf |
| Focus Type | Wide Angle-Zoom |
| Type | Zoom Lens |
| Full Frame | No |
| Lens Type | Automatic |
| Scene Type | Wedding,Business,Human,Sports,Insect,Architecture,Special,Scenery,Still Life,Travel,People,Night Scene,starry sky,ORIGINALITY,Macro,Indoor |
| Origin | Mainland China |
| Use | Camera |
| Focal Length | 12mm |

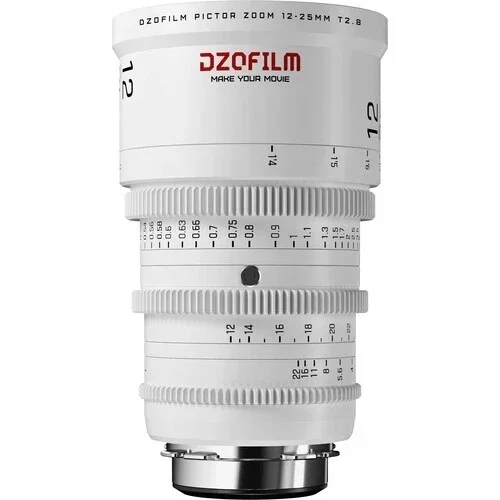

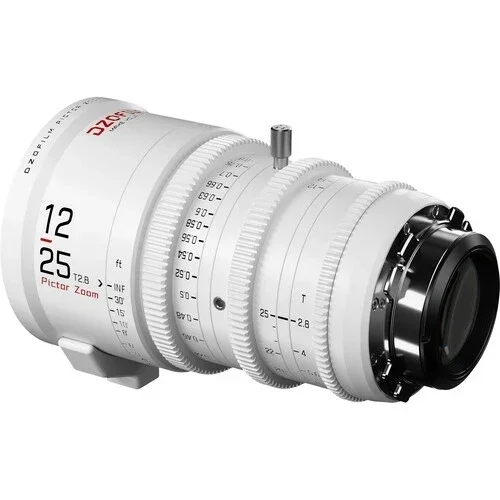

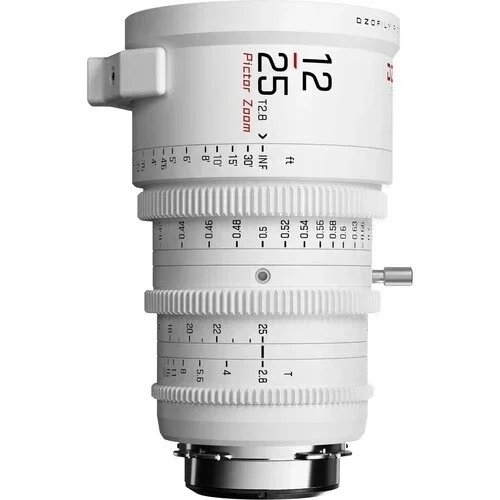

| Color | 12-25mm (Black), 12-25mm (White), 14-30mm (Black), 14-30mm (White), 20-55mm 50-125mm, 20-55mm 50-125mm-200003699, 20-55mm black, 3pcs KIT1 Black, 3pcs KIT1 White, 3pcs KIT2 Black, 3pcs KIT2 White, 50-125mm black |
