Keyestudio ATMEGA328P Maker Programming Development Board For Arduino UNO Compatible Lego Blocks Alligator clip Cable Connect
القسم: ألعاب أطفال, روبوتات الأطفال
حالة التوفر: متوفر في المخزون
مشاركة المنتج
- High-concerned chemical: None
- Package: SMD
- is_customized: Yes
- Supply Voltage: 5V
- Application: Arduino UNO
- Type: Voltage Regulator
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New

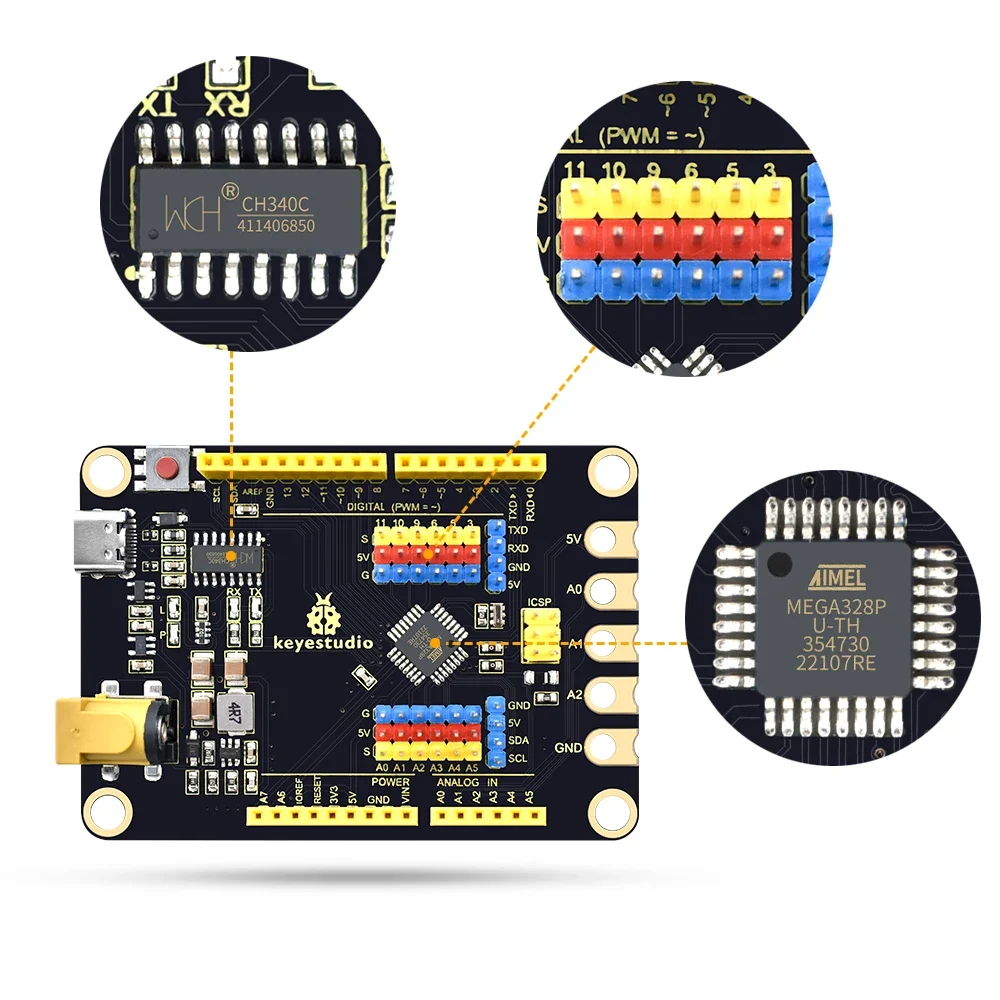

- Microcontroller: ATMEGA328P-AU
- USB to serial port: CH340C
- External power supply: DC 6-15V
- Digital I/O pins: 14 (D0-D13)
- PWM channels: 6 (D3 D5 D6 D9 D10 D11)
- Flash Memory: 32KB
- SRAM: 2KB (ATMEGA328P)
- EEPROM: 1 KB (ATMEGA328P-AU)
- Clock Speed: 16MHz
- Onboard LED pin: D13
Parameters
Microcontroller: ATMEGA328P-AU
USB to serial port chip: CH340C
Working voltage: 5V
External power supply: DC 6-15V (9V recommended)
Digital I/O pins: 14 (D0-D13)
PWM channels: 6 (D3 D5 D6 D9 D10 D11)
Analog Input Channels (ADC): 8(A0-A7) DC output capability per I/O: 10 mA 3.3V port output capability: 150 mA max
Flash Memory: 32KB
SRAM: 2KB (ATMEGA328P-AU)
EEPROM: 1 KB (ATMEGA328P-AU)
Clock Speed: 16MHz
Onboard LED pin: D13
Specialized Functions of Some Pins
Serial communication interface: D0 is RX, D1 is TX
PWM interface (pulse width modulation): D3 D5 D6 D9 D10 D11
External interrupt interface: D2 (interrupt 0) and D3 (interrupt 1)
SPI communication interface: D10 is SS, D11 is MOSI, D12 is MISO, D13 is SCK
IIC communication port: A4 is SDA, A5 is SCL
Tutorial : https://fs.keyestudio.com/KS7001
