Description

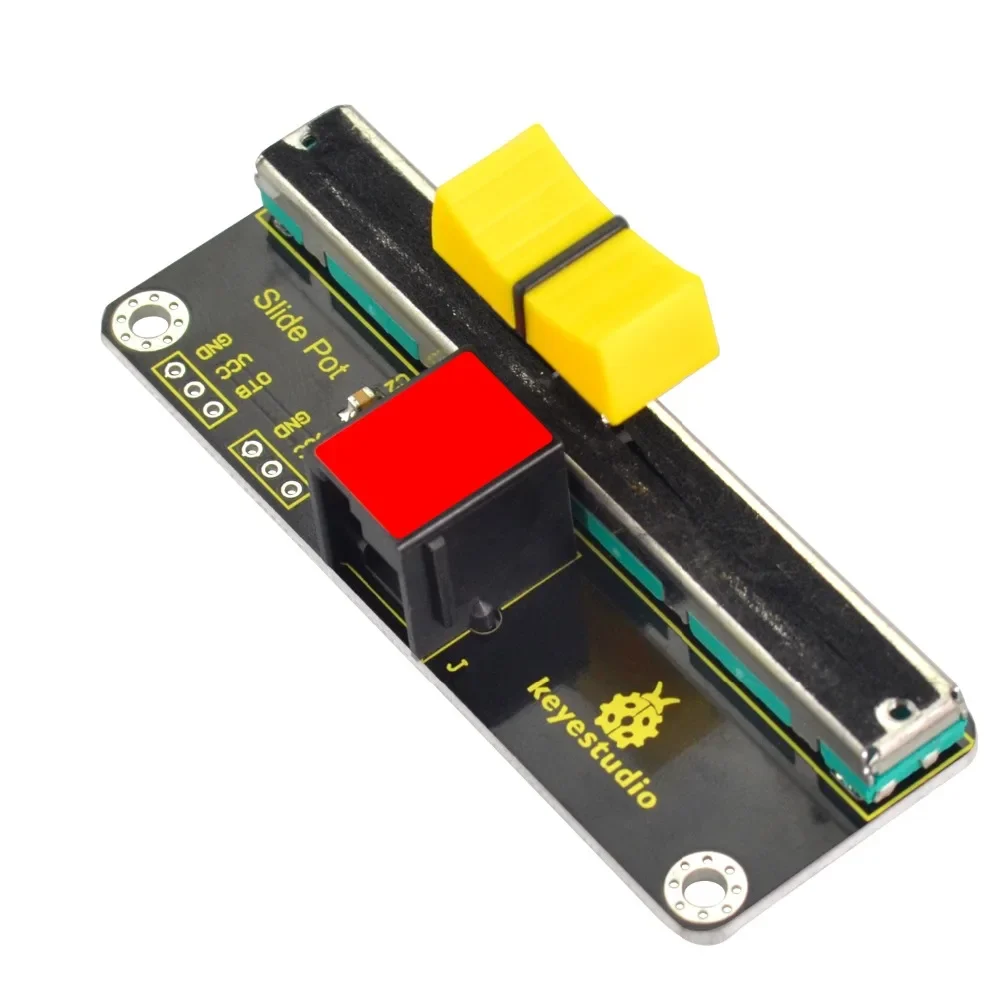

The EASY plug slide potentiometer uses high-quality sliding appliances for stable and reliable performance. It is a dual analog output that outputs a 0-VCC analog voltage signal.

The module pins are extended into Registered jack, so you can easily connect it to EASY Plug control board using a RJ11 cable.

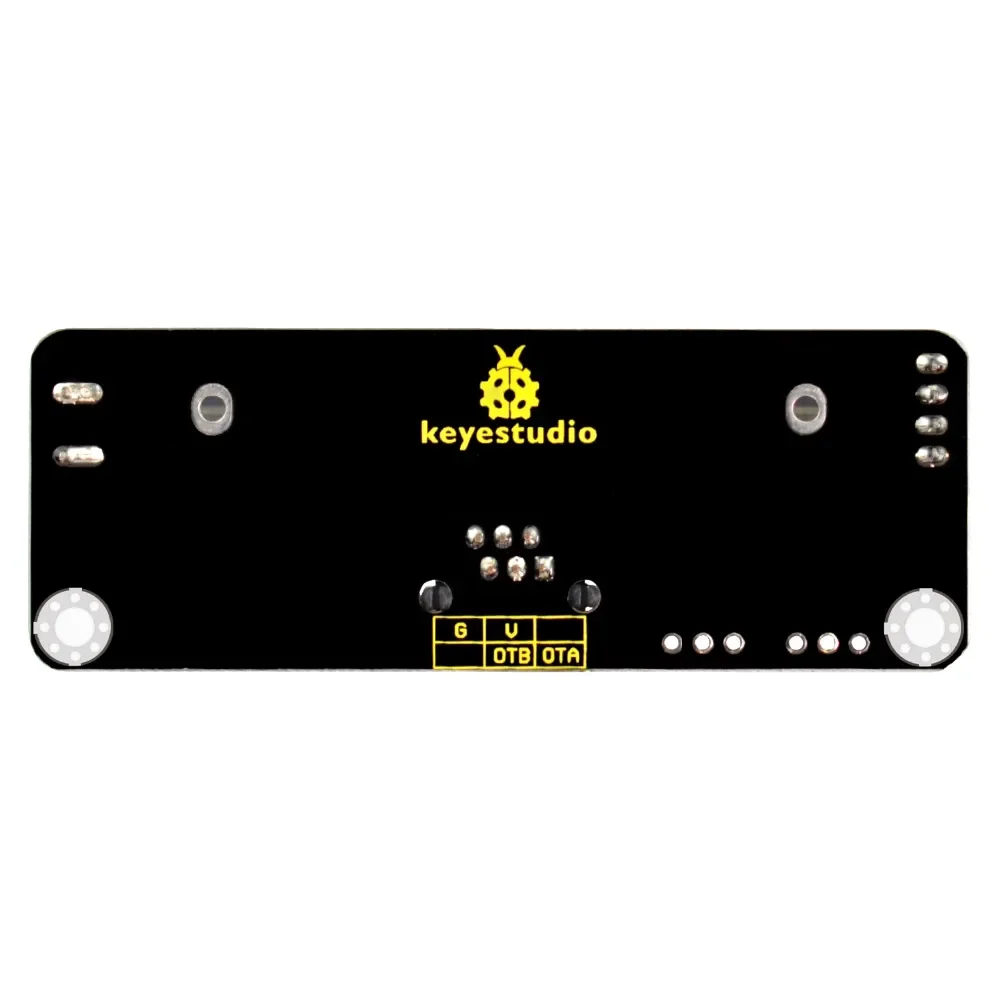

There are 6 pad interfaces on the module. So you can solder two 3pin headers with a pitch of 2.54mm on the module.

It can be used to connect with other MCUs. The signal terminal outputs two analog values. The sum of the two analog values is 1023.

Note: this module should be used together with EASY plug control board.

Parameters

• Operating Voltage: DC 3.3V-5V

• Resistance: 10K

• Port: analog quantity

• Property: ROH

Technical Details

• Dimensions: 28mm*76.7mm*31.3mm

• Weight: 17

Connect It Up

Connect the EASY Plug Slide Potentiometer to control board using an RJ11 cable. Then connect the control board to your PC with a USB cable.
