Keyestudio ESP32-IO Shield for Arduino ESP32-Wroom Core Board( (Pls Check the Spacing of the Pin Header Carefully Before Buying)
القسم: ألعاب أطفال, روبوتات الأطفال
أنت تشاهد الآن:Keyestudio ESP32-IO Shield for Arduino ESP32-Wroom Core Board( (Pls Check the Spacing of the Pin Header Carefully Before Buying)
esp-wroom-32-board
40 ر.ق
Total: 1,726 ر.ق
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- High-concerned chemical: None
- Package: SMD
- is_customized: Yes
- Dissipation Power: 0.3W
- Supply Voltage: DC 6-9V
- Application: Computer
- Type: Voltage Regulator
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: -25℃ to +65℃
- Product number: KS0465/KS0413

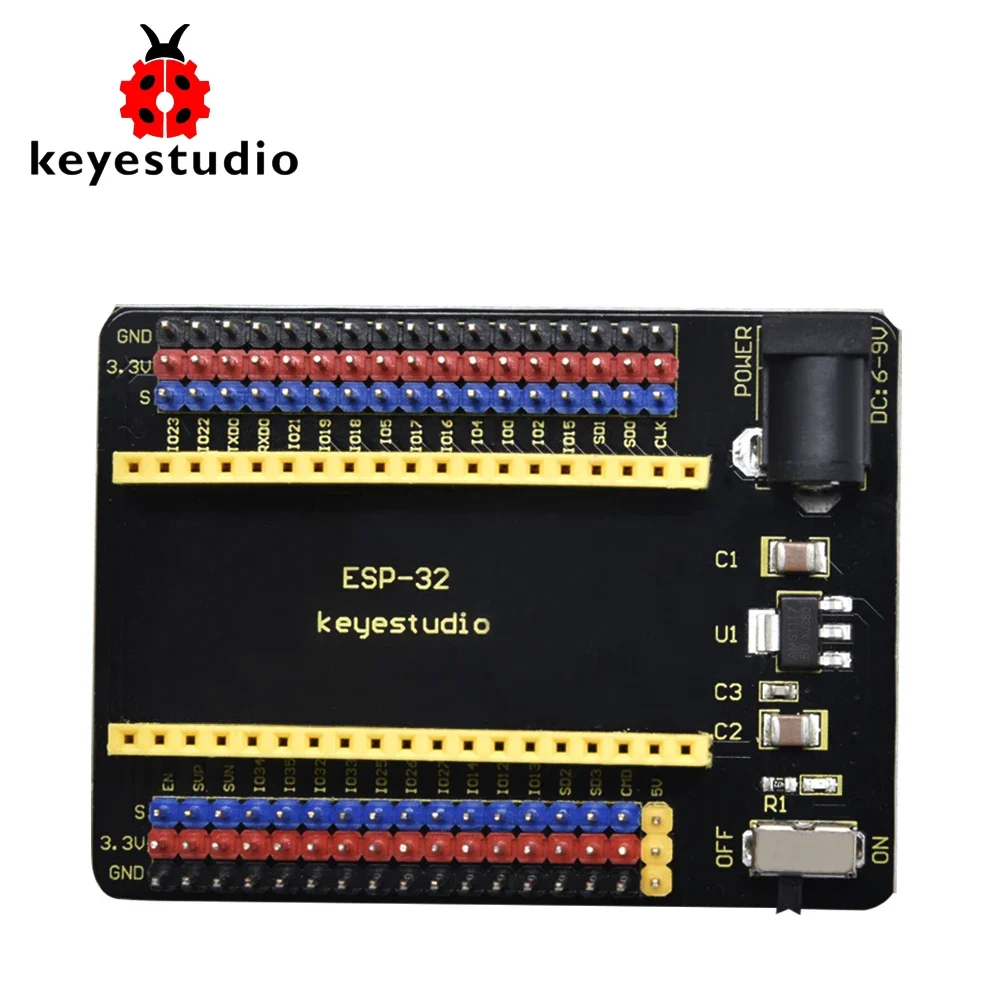

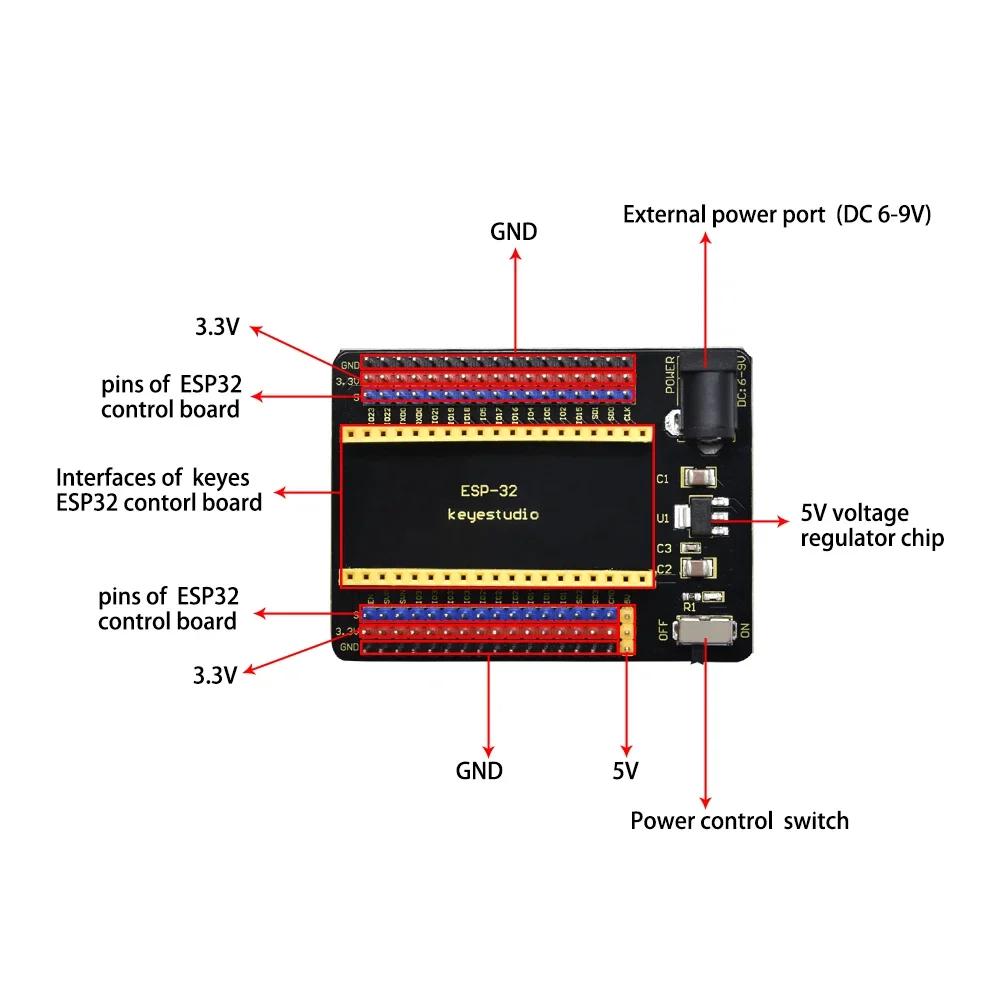

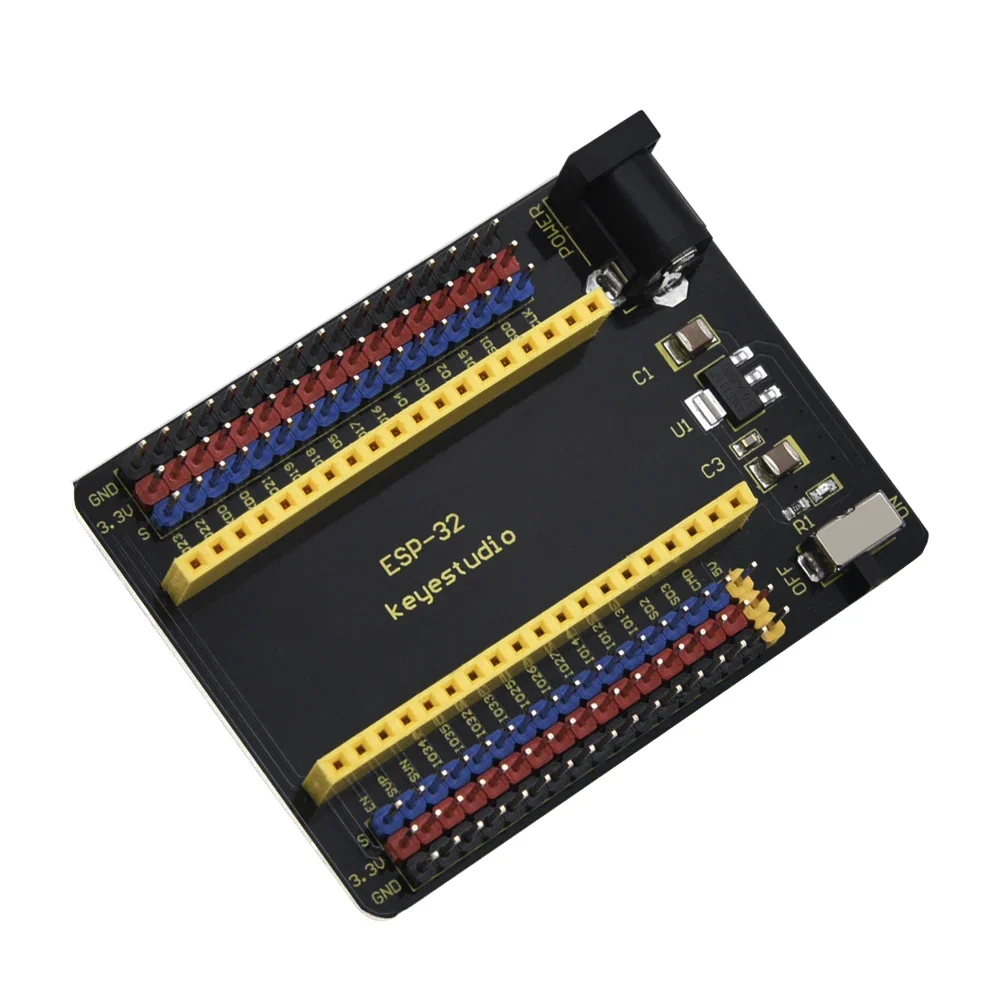

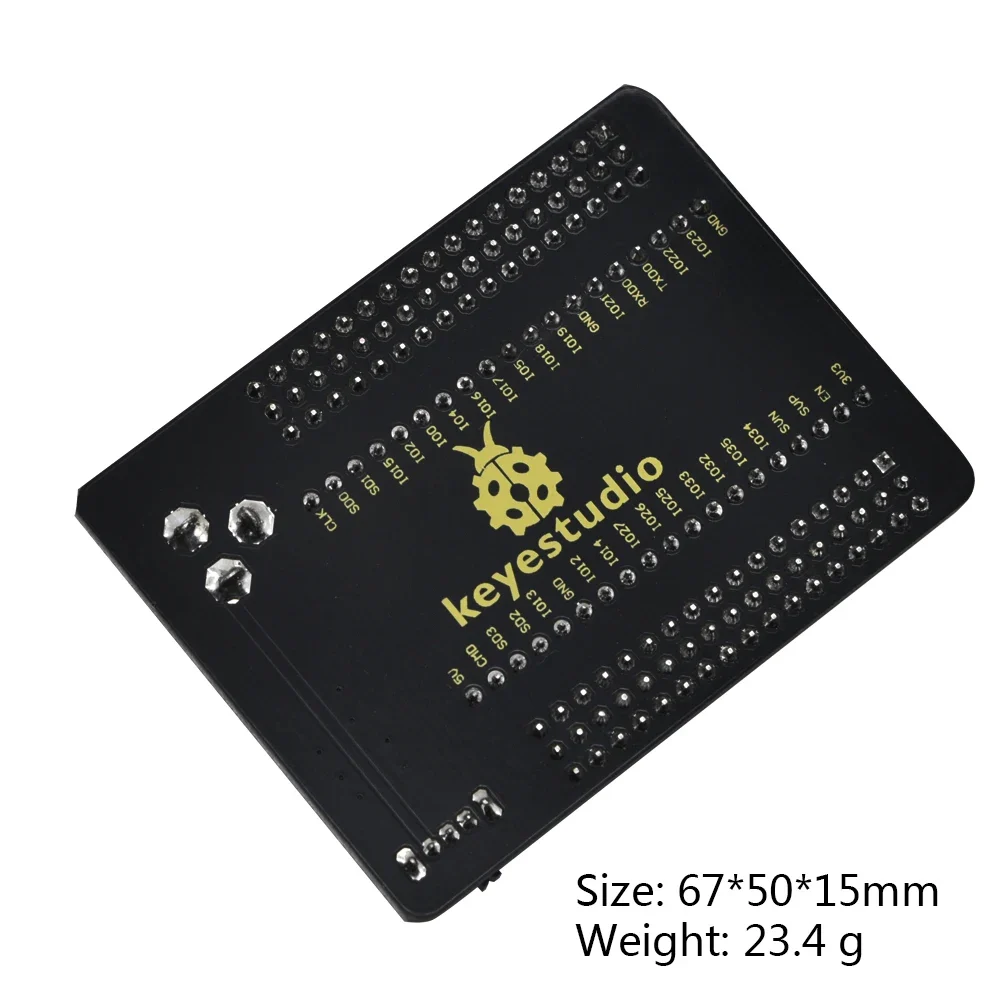

The keyestudio ESP32-IO shield is designed to be compatible with the keyestudio ESP32 Core board. The ESP32-IO shield has brought out all the pins of keyestudio ESP32 Core board in the form of 2.54mm pin header.
In order to connect other sensors easily, the ESP32-IO shield also has 2 rows of 2.54mm pin headers, powering external sensors/modules with DC 3.3V voltage.

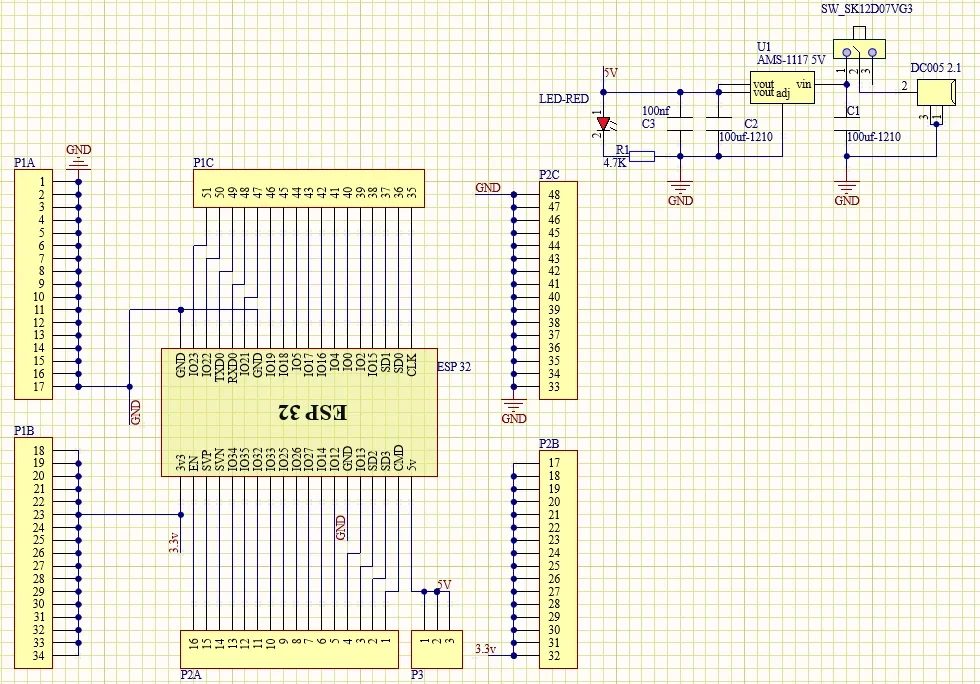

At the same time, in order to supply the power to keyestudio ESP32 Core board, the ESP32-IO shield has also designed with the power supply circuit.
When using, you only need to input DC6-9V voltage on the black DC jack to power the keyestudio ESP32 Core board.
And the ESP32-IO shield also comes with a DIP switch, for controlling the power.
Performance Parameters
Supply voltage: DC 6–9V
Working current: 60mA
Maximum power: 0.3W
Operating temperature: -25℃ to +65℃
Dimensions: 30mm*20mm
Environmental attributes: ROHS

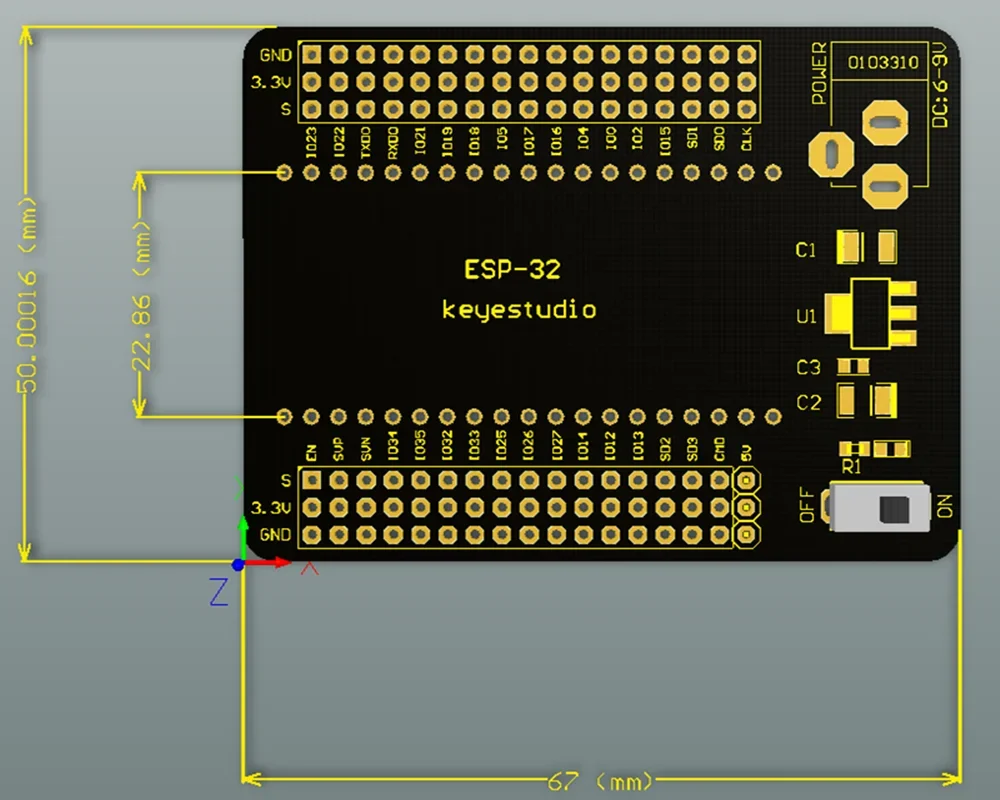

Note:ThisESP32-IO Shieldis only compatible with 8266 modules with a pin
spacing of 22.86mm. shown below:
| Color | |
|---|---|
| High-concerned chemical | None |
| Package | SMD |
| is_customized | Yes |
| Dissipation Power | 0.3W |
| Supply Voltage | DC 6-9V |
| Application | Computer |
| Type | Voltage Regulator |
| Brand Name | keyestudio |
| Origin | Mainland China |
| Condition | New |
| Operating Temperature | -25℃ to +65℃ |
| Product number | KS0465/KS0413 |
