Keyestudio MLX90614 Non-contact Infrared Temperature Sensor GY-906 for Arduino/IIC port
القسم: ألعاب أطفال, روبوتات الأطفال
حالة التوفر: متوفر في المخزون
مشاركة المنتج
- High-concerned chemical: None
- is_customized: Yes
- Theory: Inductance Sensor
- Material: Mixture
- Type: Temperature Sensor
- Output: Digital Sensor
- Brand Name: keyestudio
- Origin: Mainland China
- Use: Temperature Sensor
Introduction
Keyestudio MLX90614 non-contact infrared temperature sensor is mainly composed of sensor MLX90614. MLX90614 is an infrared non-contact thermometer, and the TO-39 package integrates infrared induction thermoelectric pile detector chip (MLX81101) and signal processing dedicated integrated chip MLX90302. Due to the integration of low noise amplifier, 17-bit analog digital converter and DSP processing unit, the sensor achieves high precision and high resolution measurement.
Specification
Working voltage：3.3-5V
Communication way：IIC communication
Working temperature rang：from -40 to +125 ℃
Measurement accuracy：±0.5℃（0 to 50℃）

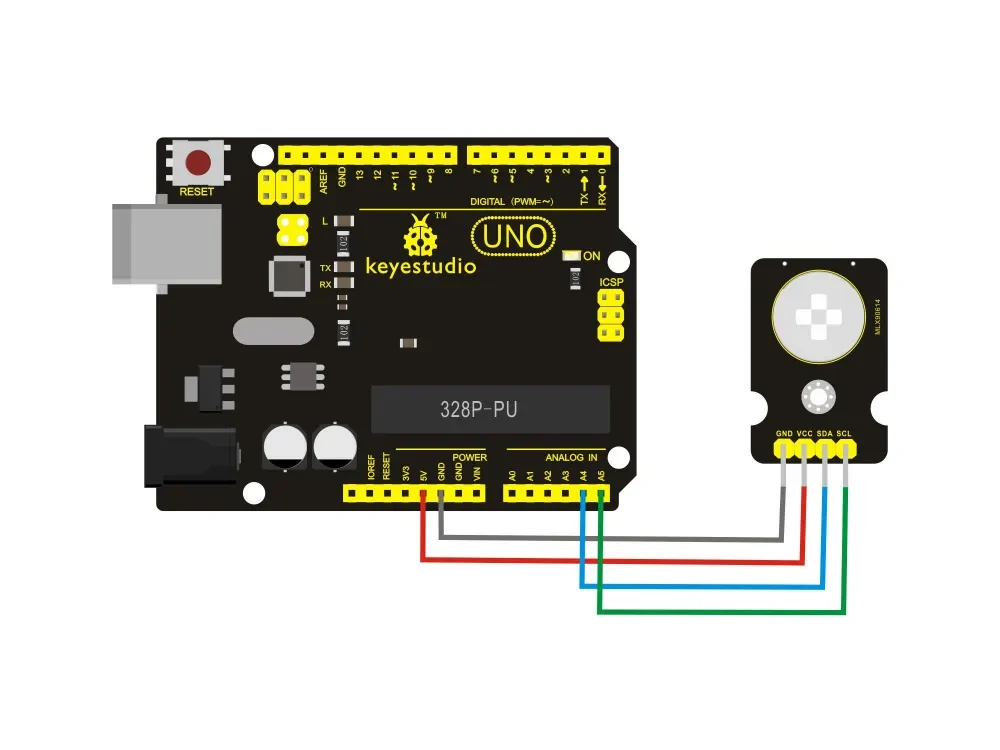

Connection Diagram
