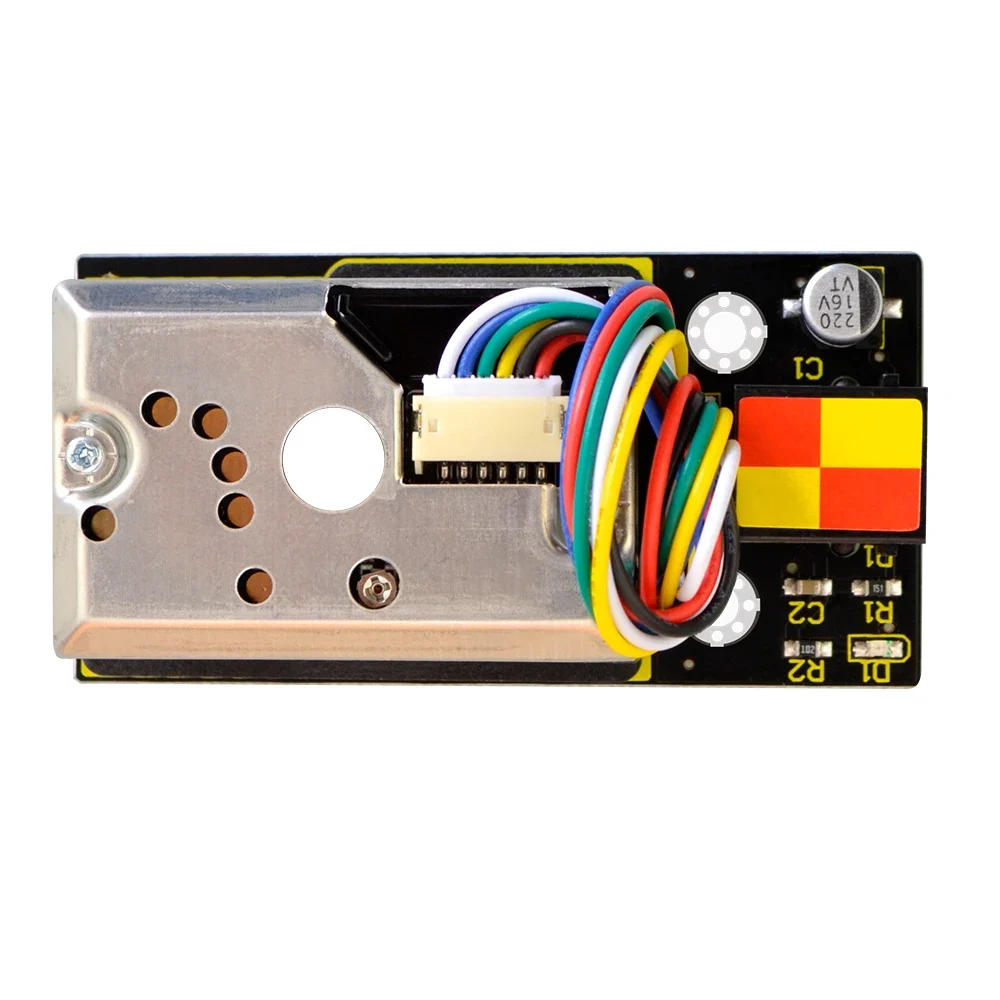

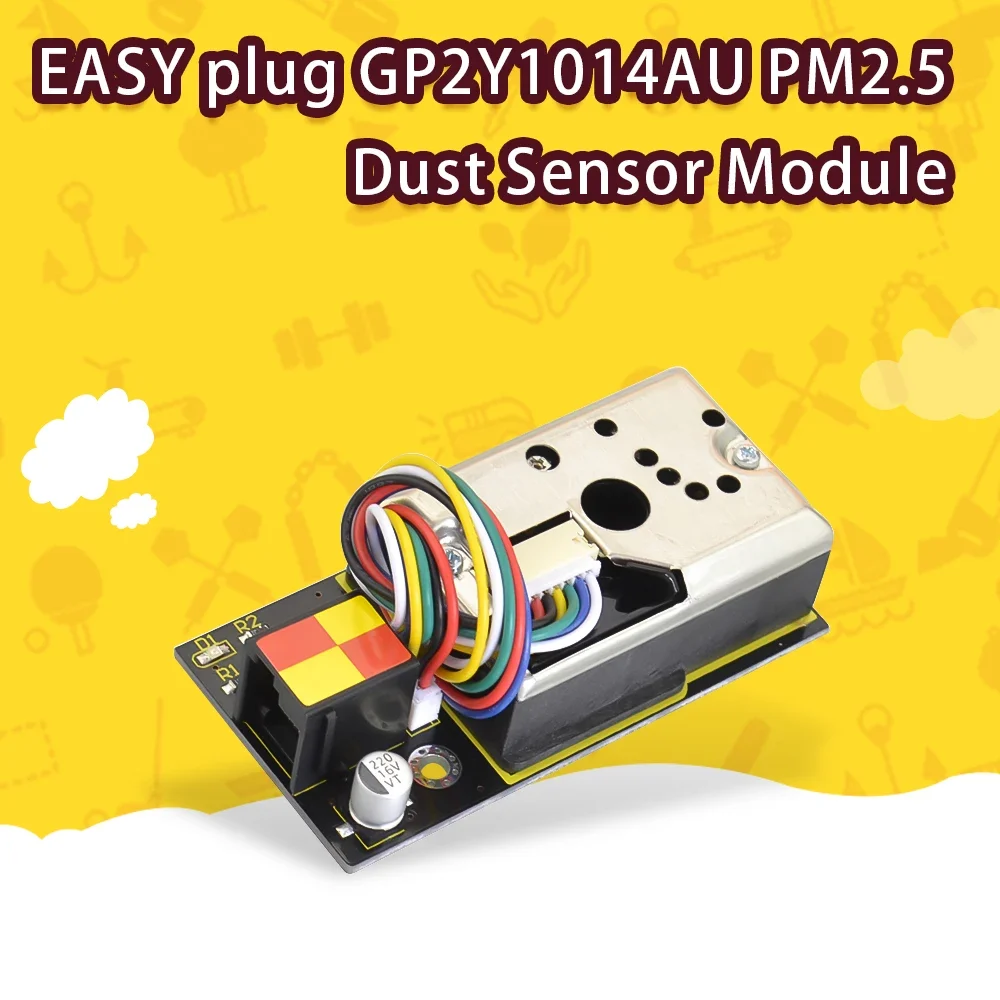

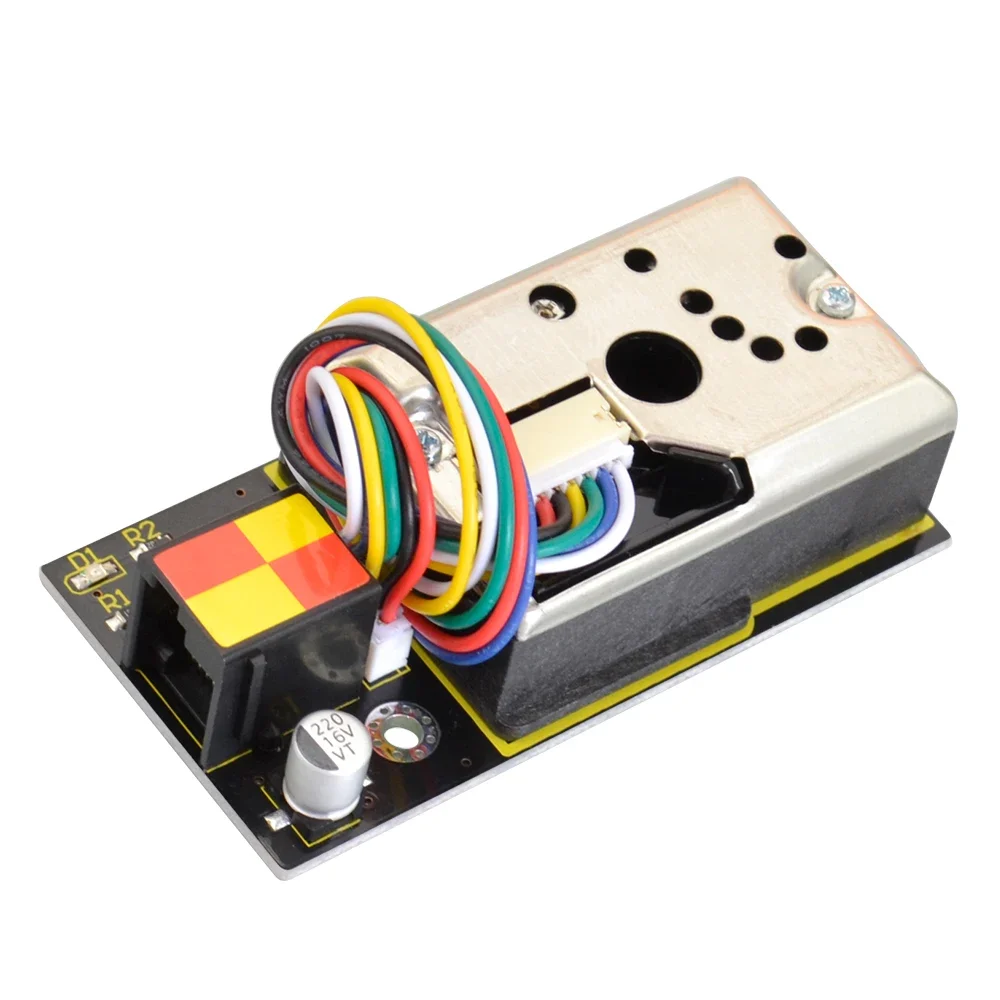

EASY plug GP2Y1014AU PM2.5 Dust sensor is particularly effective in detecting very fine particles, such as cigarette smoke, and is commonly used in air purifier system.
In the device, an infrared light emitting diode and a phototransistor are diagonally arranged to allow it to detect the light reflected by dust in the air.

The sensor has very low current consumption (up to 20mA, typical of 11 mA) and can carry up to 7VDC sensors.

The output is an analog voltage proportional to the measured dust concentration, with a sensitivity of 0.5V/0.1mg/m3.

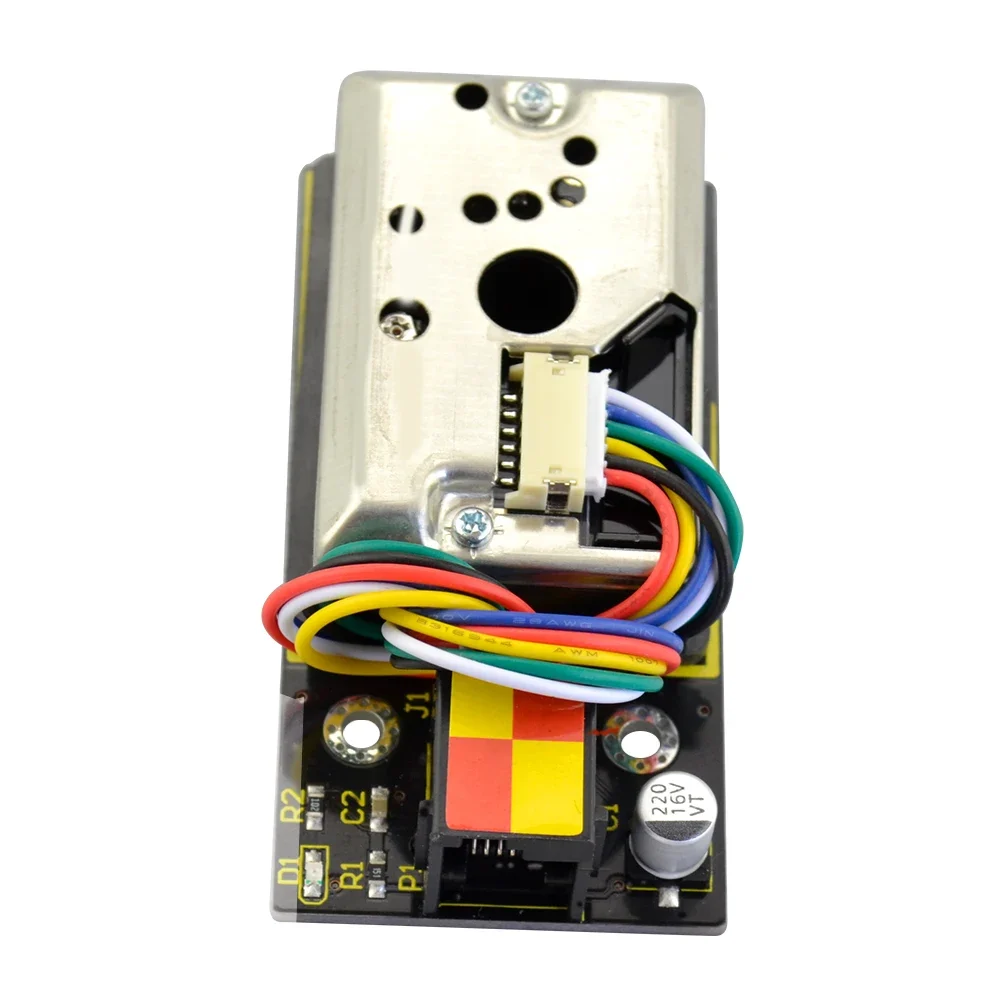

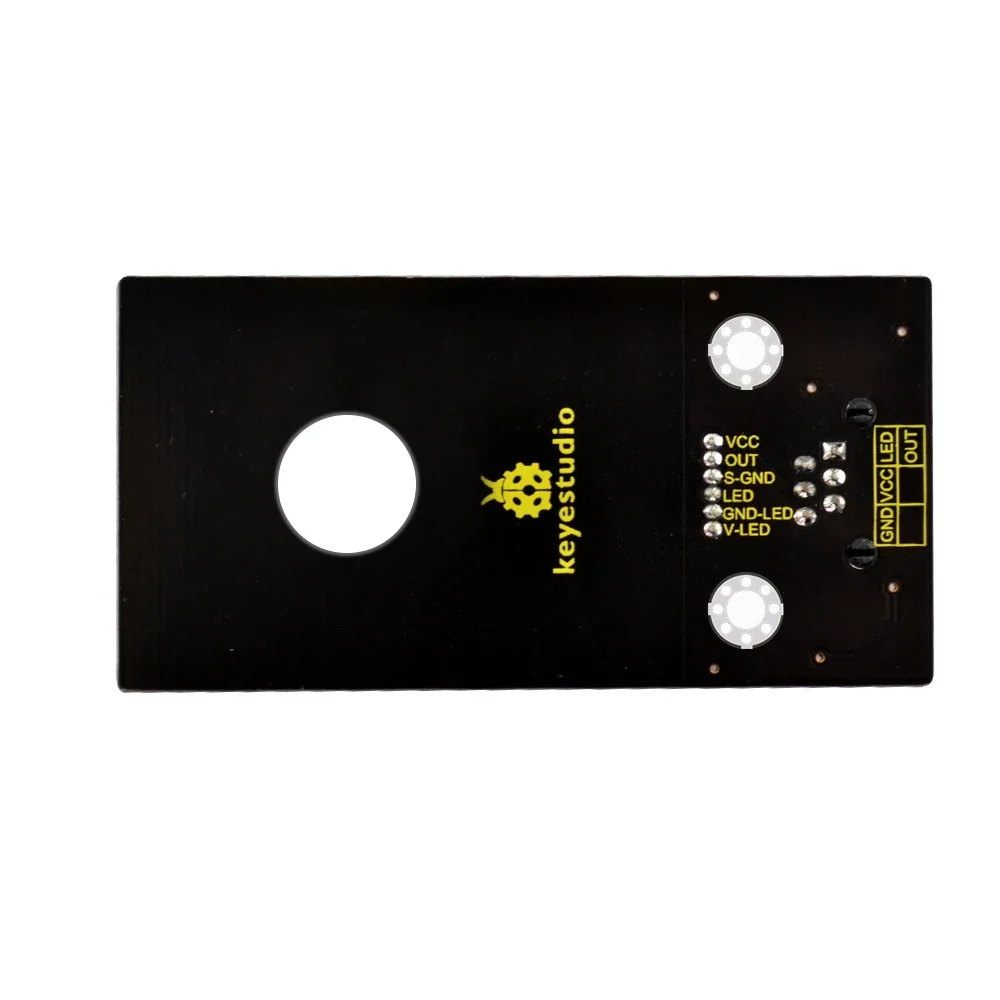

The sensor’s four pins are led out as Registered Jack, allowing you to connect it to EASY plug Control board V2.0 for communication with only an RJ11 cable.

Special Note:

• The sensor/module is equipped with the RJ11 6P6C interface, compatible with our keyestudio EASY plug Control Board with RJ11 6P6C interface.

• If you have the control board of other brands, it is also equipped with the RJ11 6P6C interface but has different internal line sequence, can’t be used compatibly with our sensor/module.


Technical Details

Power supply voltage: 5-7V

Working temperature: -10 to +65 degrees Celsius

Current consumption: 20mA maximum

Minimum particle detection: 0.8 microns

Sensitivity: 0.5V/(0.1mg/m3)

Voltage in clean air: 0.9V (typical)

Working temperature: -10°C to 65°C

Storage temperature: -20°C to 80°C

Service life: 5 years

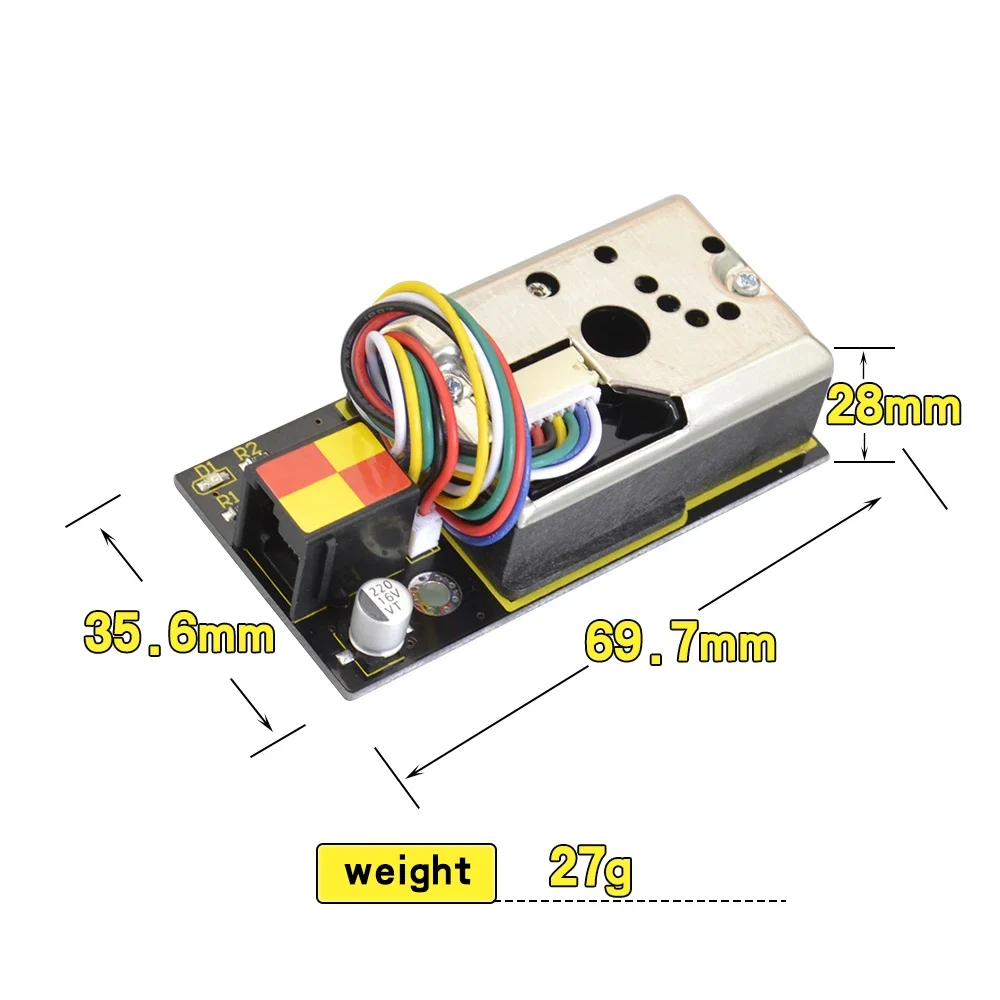

Dimensions: 35.6mm × 69.7mm × 28mm

Weight: 27g

Tutorial :https://fs.keyestudio.com/KS0394
