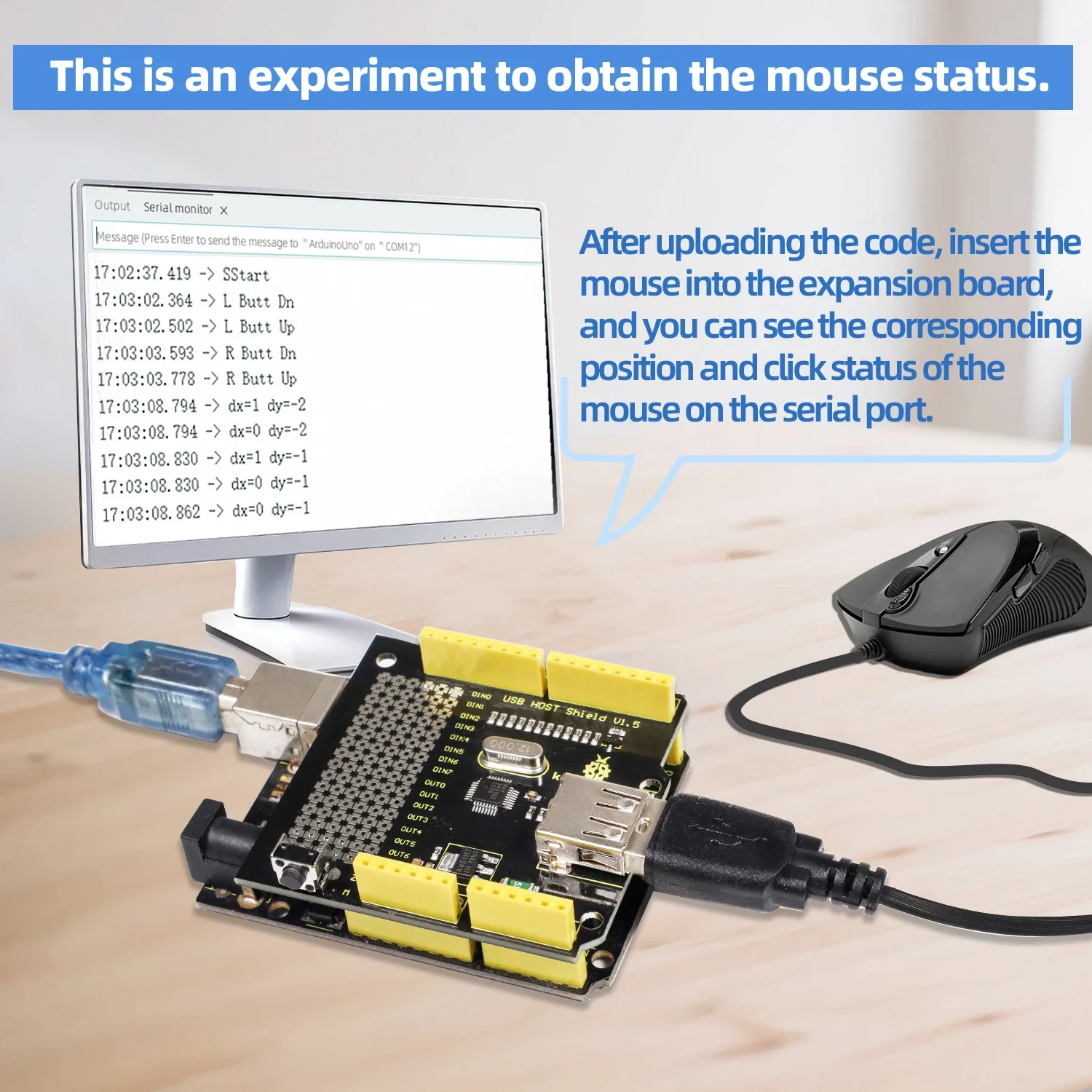

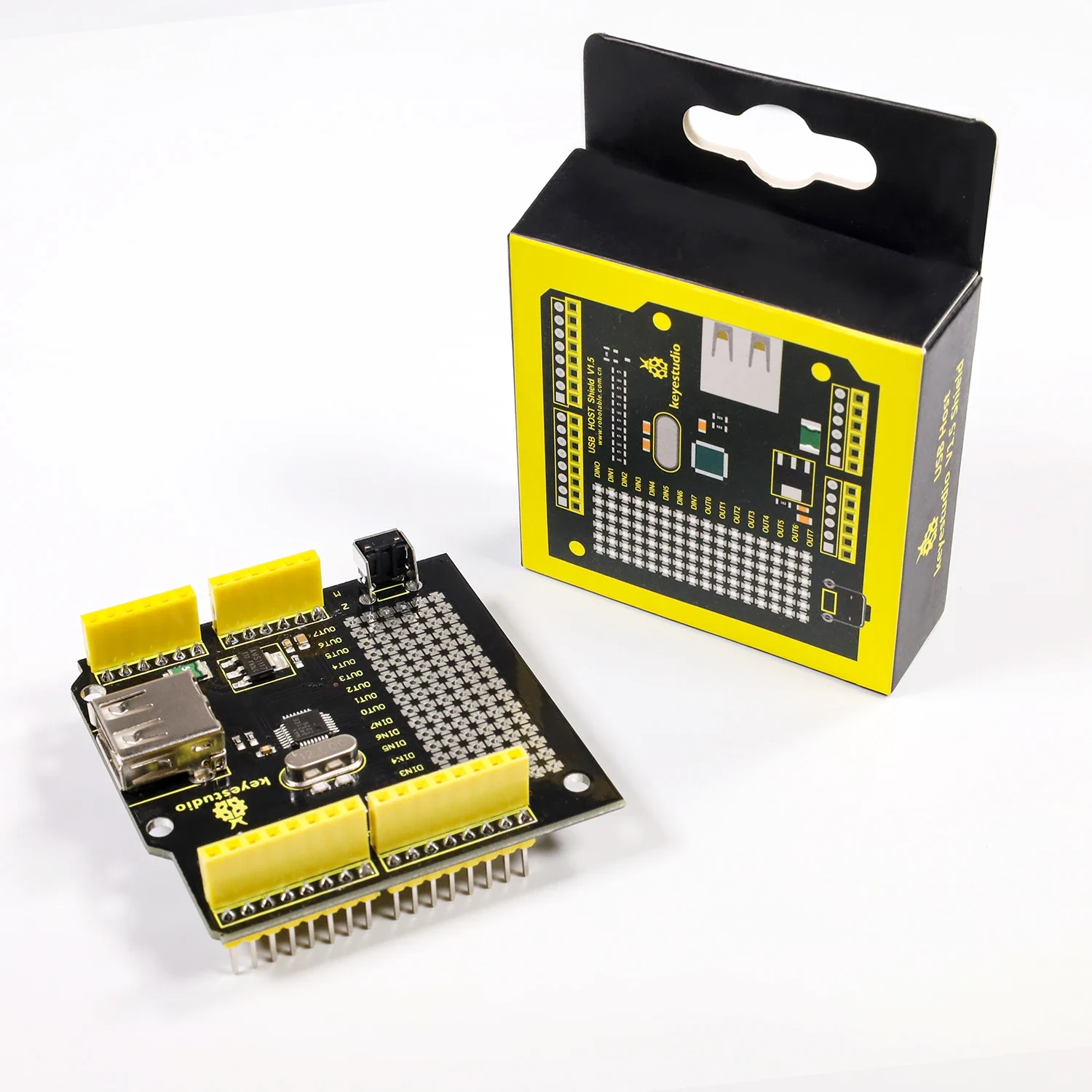

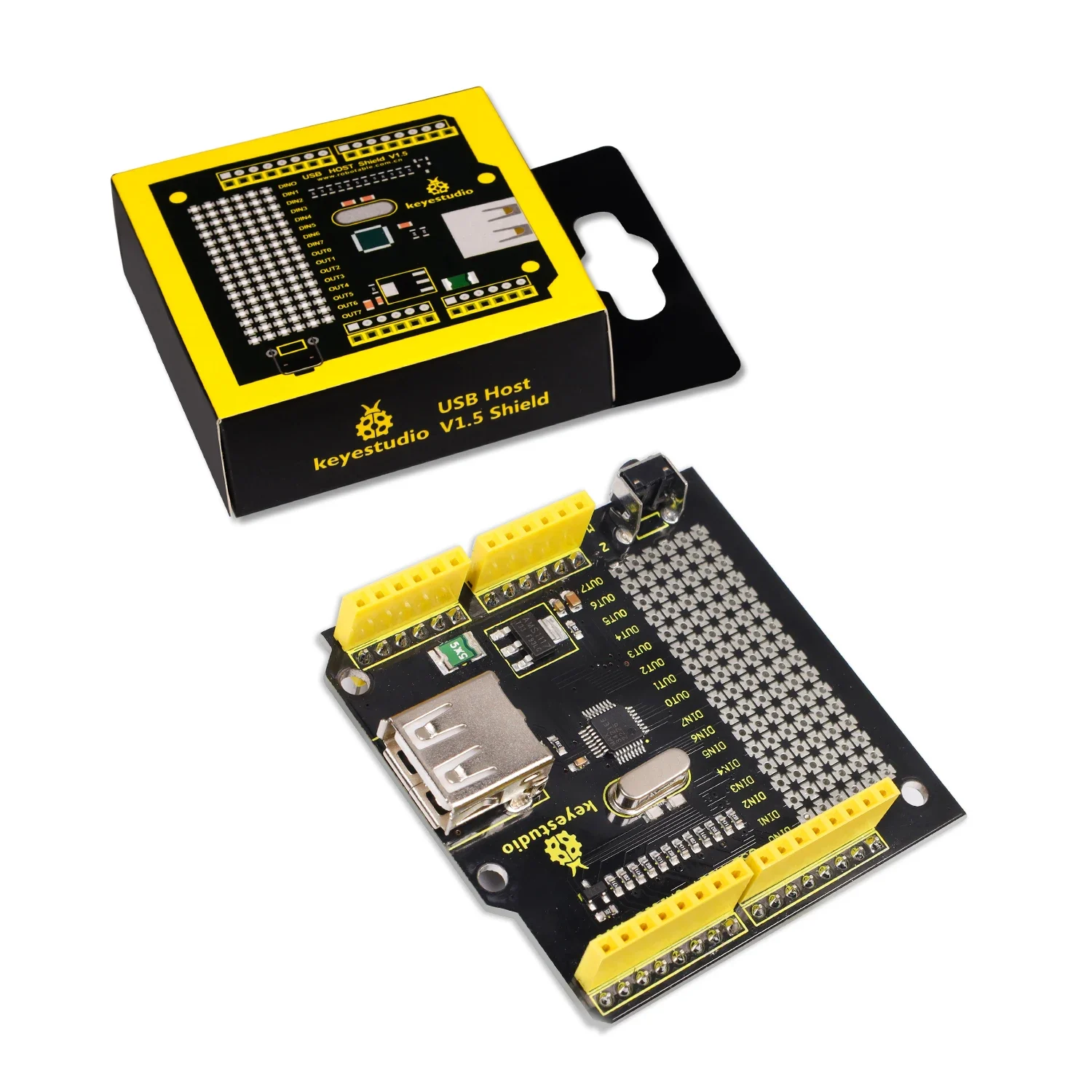

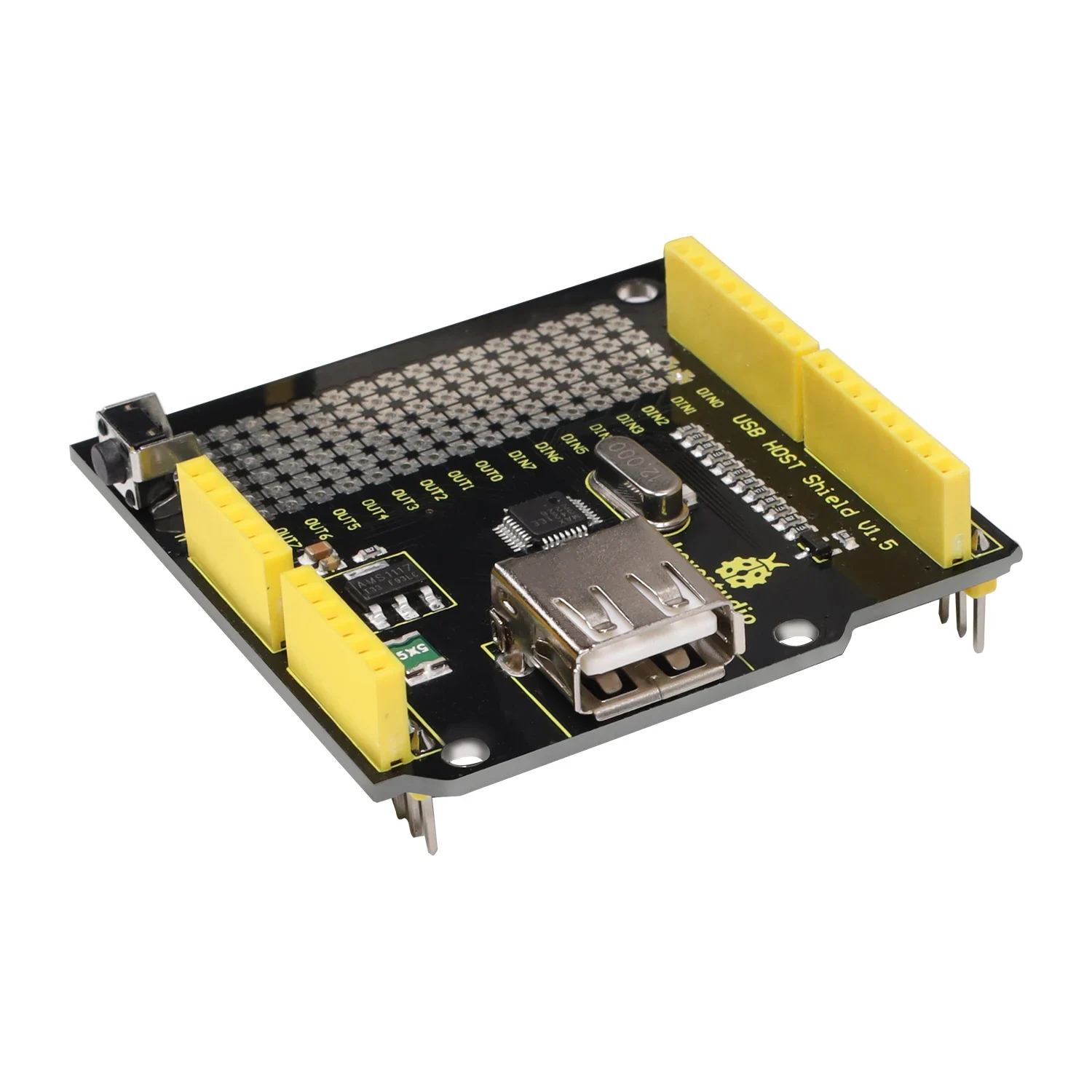

keyestudio USB Host shield V1.5 is an add-on board for Arduino USB Host. Directly plug it to Arduino board and it will allow Arduino to have USB Host function. Arduino with host function can communicate with USB devices, such as USB flash disk, keyboards, mouse, joysticks, digital cameras.

Among these functions, the most attractive one is supporting the connection of android phones to realize Google ADK function.

It enables your phone as a control terminal to control your robot or other devices. Meanwhile, it can display the collected data on your mobile terminal.

Specification

Supporting the Google Android ADK function

Compatible with UNO R3 and MEGA 2560 control board.

Supporting the Android system, provided with APP software ( at most Android 4.0.3 version)

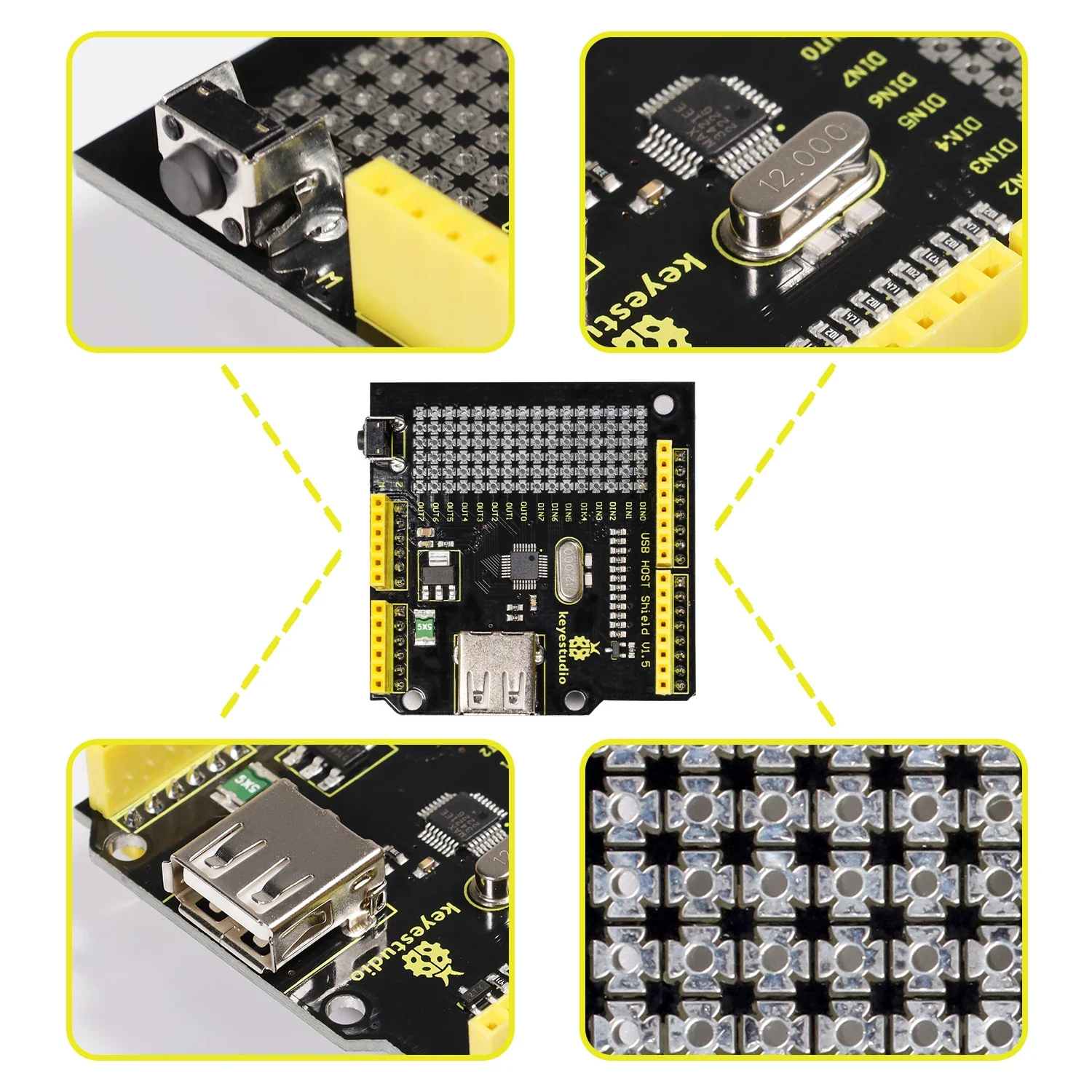

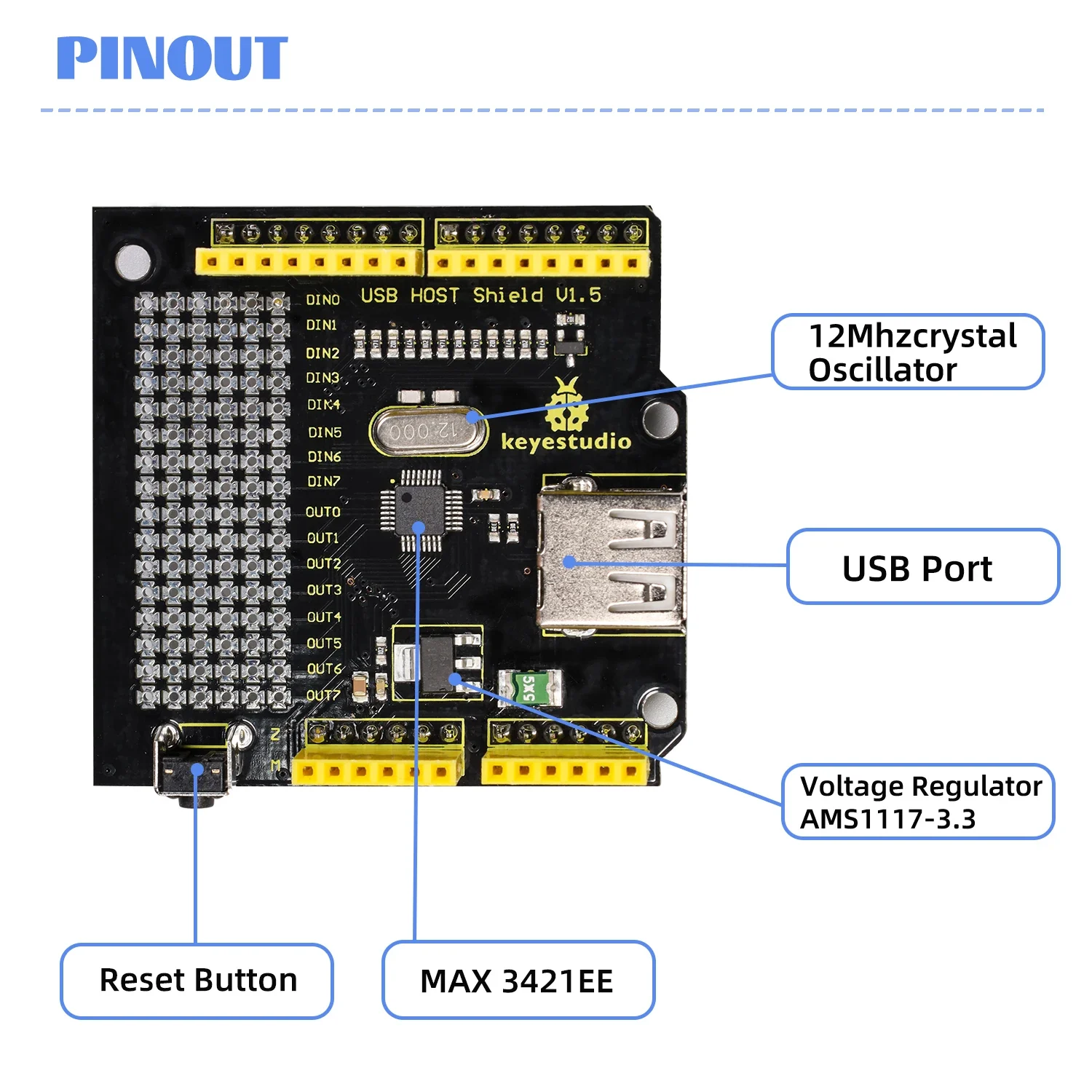

Comes with a reset button

Realizing the USB Host function, enable to communicate with other USB devices and support the USB HUB function.

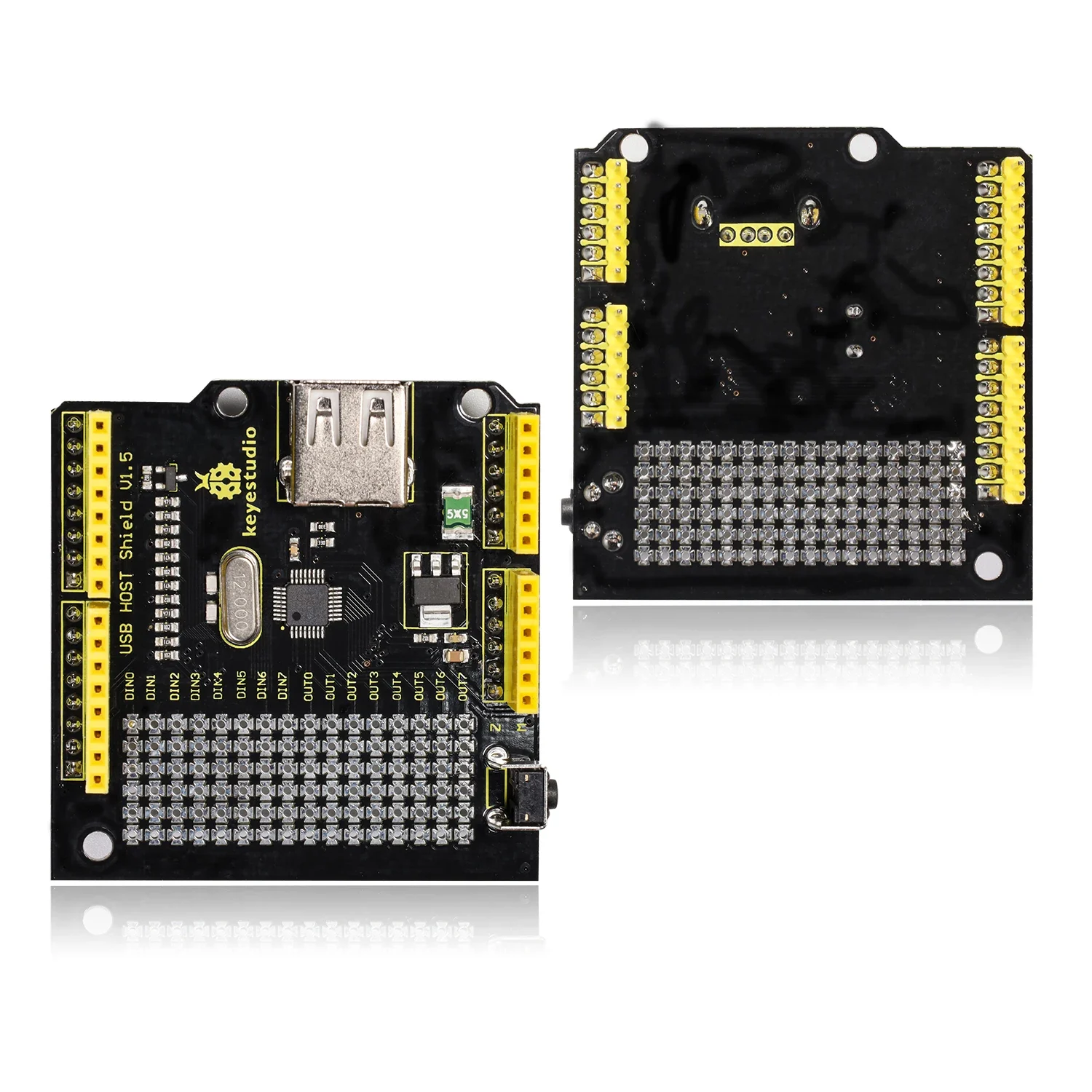

Onbaord comes with double-sided through-hole pad, welding the electronic elements and setting the prototype circuit.

Technical Details

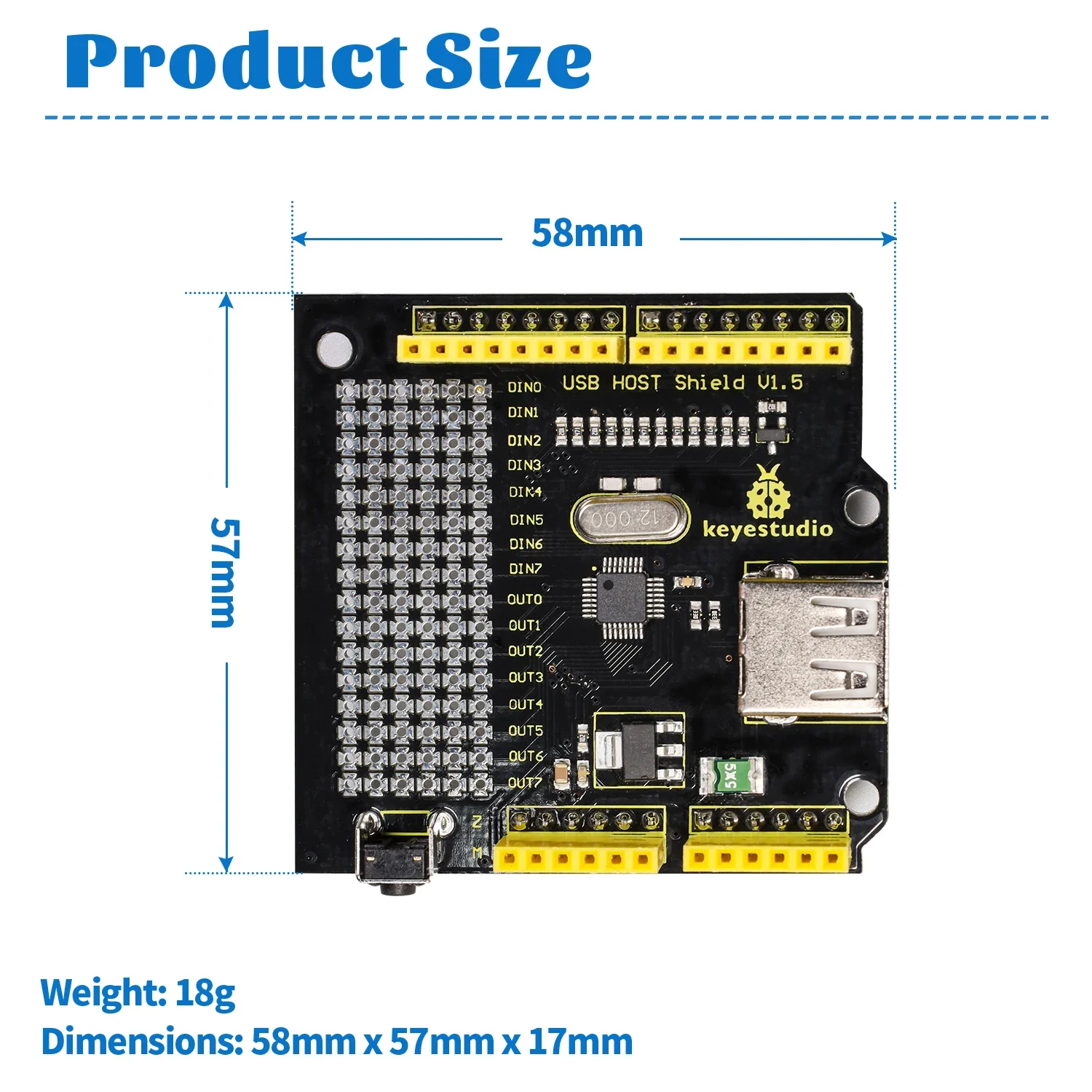

Dimensions: 58mm x 57mm x 17mm

Weight: 18g

Code to Note:

1. Before compile the code, do remember to add the necessary libraries inside the libraries directory of Arduino IDE.

Download the libraries from below link:

https://drive.google.com/open?id=1ARXS7q2lhEiykEva24em_GLnkHdzrxl5

2. The test code is only compatible for lower Arduino 1.0 version IDE.
