Note:

This module should be used together with easy-plug control board, the link to the control board is as follows:

http://www.Samama.com/store/product/2016-New-Keyestudio-EASY-plug-Main-Control-Board-Controller-for-arduino/1452162_32635551880.html

Introduction

OLED is short for organic light emitting diode. On the microscopic level, an OLED display is a matrix of organic LEDs that light up when they emit energy.

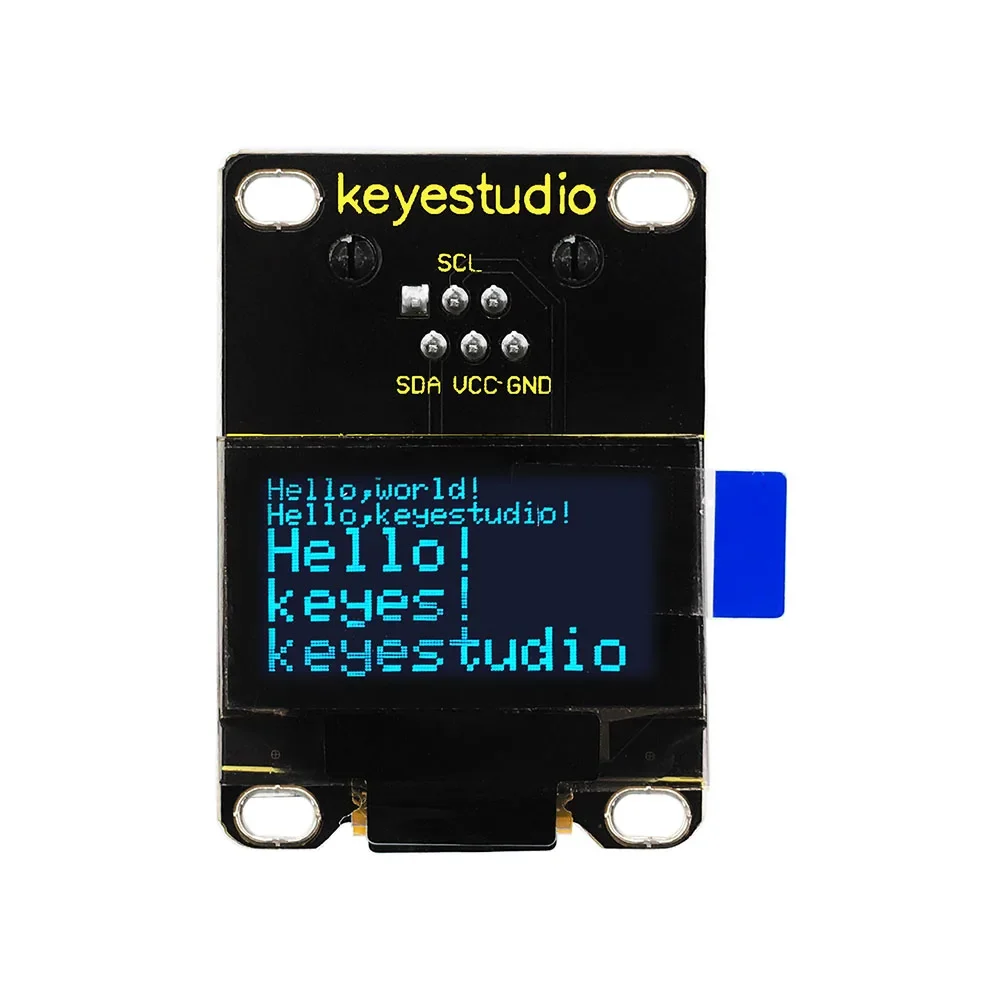

Our EASY Plug OLED displays are perfect when you need a small display with vivid, high-contrast color. The visible portion of the OLED measures 0.96″ diagonal and contains 128 x 64 pixels.

An OLED display works without a backlight. Thus, it can display deep black levels and can be thinner and lighter than a liquid crystal display (LCD).

In low ambient light conditions such as a dark room an OLED screen can achieve a higher contrast ratio than an LCD.

OLED technology is used in commercial applications such as displays for mobile phones and portable digital media players, car radios and digital cameras among others.

Specification

Interface: Easy-plug

Communication protocol: I2C

Number of Pixels: 128 X 64

Color Depth: Monochrome (White)

Brightness ( cd/m2): 100 (Typ) @ 12V

Size: 38.85*27mm

Weight: 20g

Connect It Up

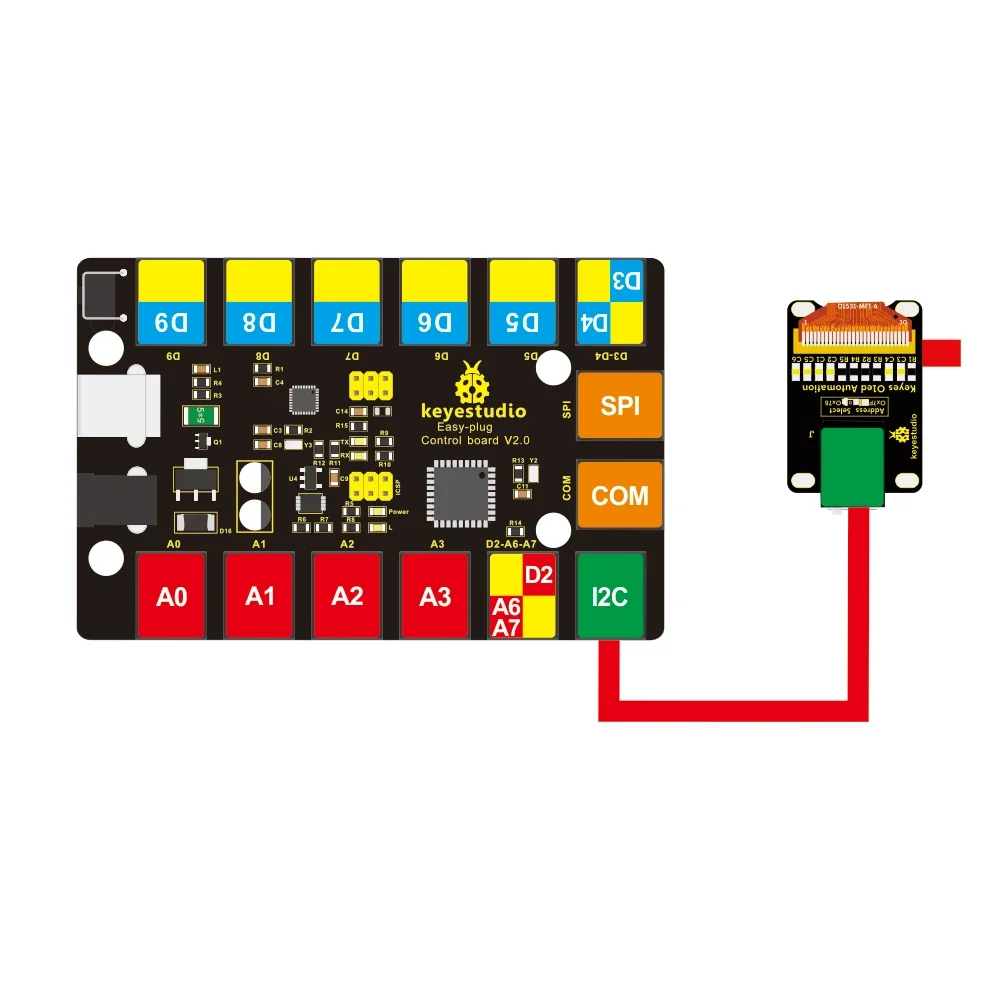

Connect the EASY Plug OLED module to control board using an RJ11 cable. Then connect the control board to your PC with a USB cable.
