OPT3001 Ambient Light Sensor Module – Human Eye Response, I2C Interface, for Smart Home Display Backlight Control, Smartphone/TV
القسم: غير مصنف
حالة التوفر: متوفر في المخزون
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- معلومات المنتج
- مواصفات المنتج
- Brand Name: NONE
- High-concerned chemical: None
- Origin: Mainland China
- Theory: Optical Sensor
- Use: Ambient Light Sensor Module
Feature:
1. Accurate Measurements: The OPT3001 chip offers high-resolution and precise measurement capabilities, ensuring that ambient light intensity readings are highly accurate and reliable for various applications.
2. Simplified Communication: By utilizing the I2C interface, this OPT3001 module ensures straightforward and efficient communication with the main control device. The I2C protocol simplifies data transfer between the chip and microcontroller, making integration easier.
3. Energy Efficiency: Designed with a low power consumption approach, the OPT3001 ambient light sensor module can significantly reduce power usage in standby mode. This energy-efficient design helps to extend the battery life of portable and battery-powered devices.
4. Compact Design: The ambient light sensor features a small form factor, making it ideal for applications where space is at a premium. Its compact design allows for easy incorporation into a wide range of devices and systems, including those with limited space.
5. Reliable Conversion: The special photosensitive elements in the OPT3001 ambient light sensor effectively sense light and convert light intensity into digital signals, ensuring reliable performance in different lighting conditions.
Origin: Mainland China
Input type: optical
Output interface: I2C
Spectral highlights: human eye response
Peak spectral sensitivity: 550nm
Spectral bandwidth: 460nm-655nm
Power supply range: 1.6-3.6V
Quiescent current: 2uA (max)
Dimensions: 18.8*17mm
Material: mixed material




About us:
We deal in all kinds of lC brands world-wide.
Our products are widely applied in civilian, industrial and military fieldslE work, communication, home appliances, RF, video display, memoriesRAM development, medical instruments, power supply system, programcontrolleddevices,digital devices,industrial equipments, aviation andnavigation equipments, etc.
We also supply Amplifier board,LCD Display,Soldering iron ,Temperature controller ,mppt solar controller,charger,Active balancer,BMS,battery tester,indicator ,esp8266 and so on
We have extensive industry knowledge and sufficient inventory. This enables us to provide a complete and versatile technical supports to our customers. Our products have been exported to many countries and regions around the world, and we have a good reputation among our customers. We welcome customers, chambers of commerce, and friends from all over the world to contact us and seek mutually beneficial cooperation.

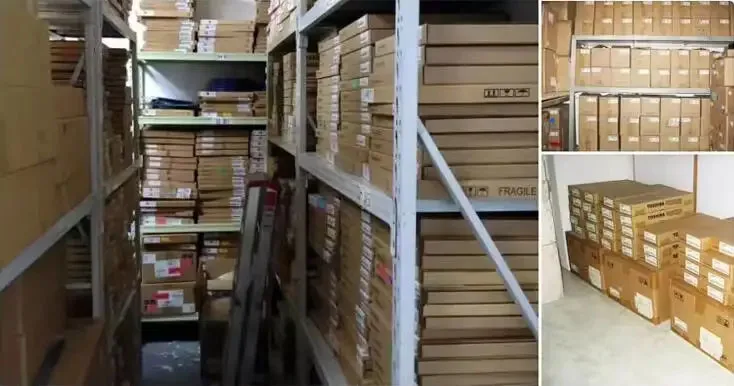

Company warehouse:
