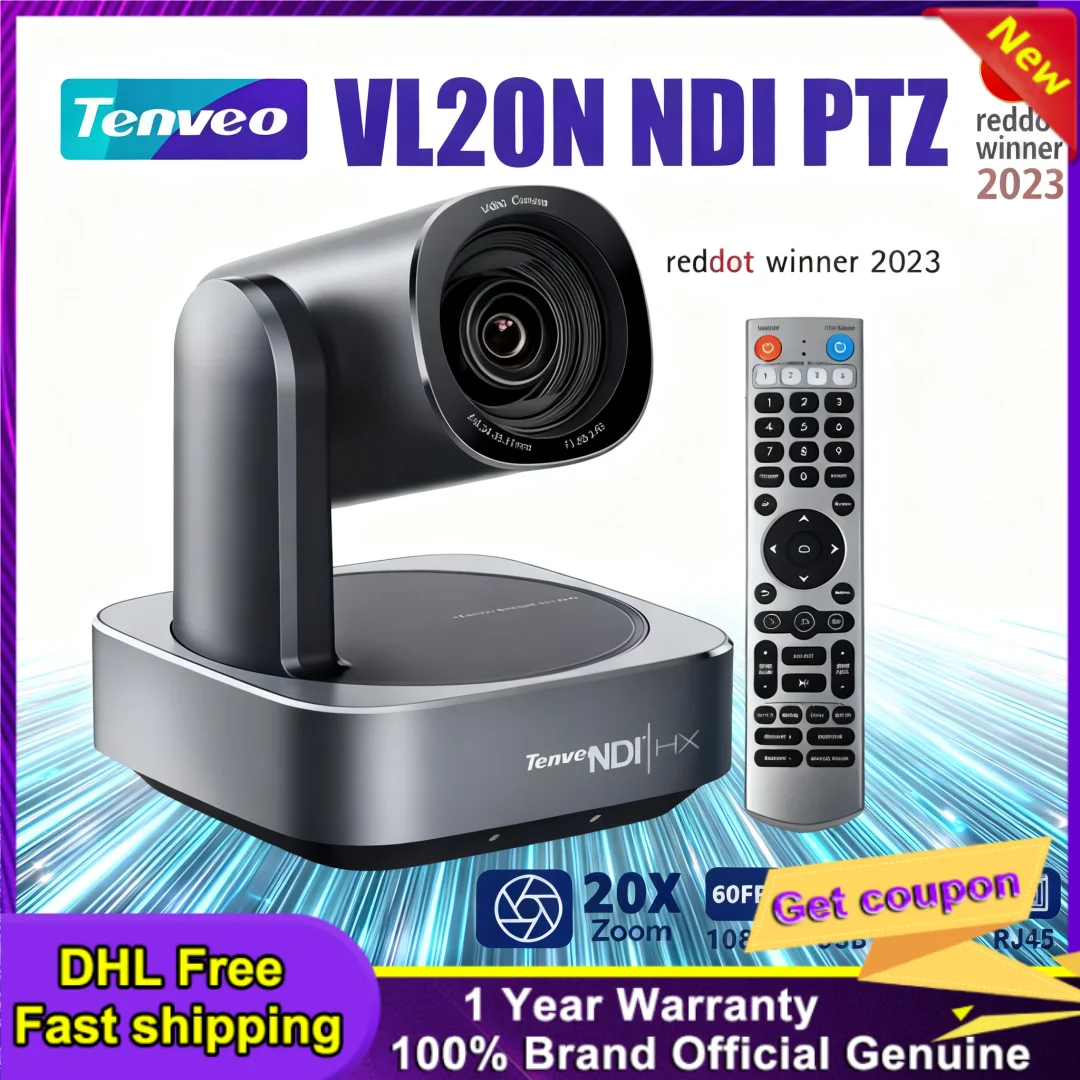

Tenveo VL20N NDI PTZ Conference Camera HD1080P 60fps 20x Zoom USB IP Live Streaming Camera HDMI POE ·for Church Worship Educatio
القسم: غير مصنف
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- High-concerned chemical: None
- Electric: Yes
- Photography Accessories Type: Dome Cameras
- Package: Yes
- Origin: Mainland China
- Brand Name: TENVEO
Noted:
1. If you are from European Union, Samama will show you the product price includes VAT TAX.
2. If your order amount is more than 150 euros, Samama will charge VAT tax; if your order amount is less than 150 euros, Samama will not charge VAT tax.((Except France)

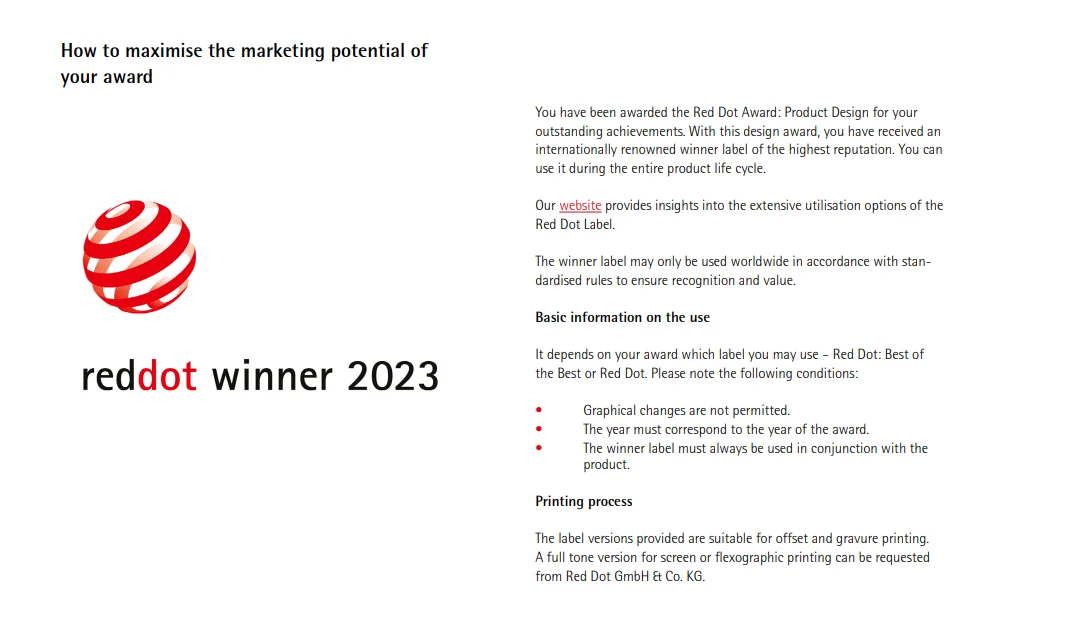

NDI PTZ Conference Camera NDI|HX2 HD1080P 60fps 20x Zoom USB IP Live Streaming Camera HDMI POE for Church Worship Education OBS VMix Red Dot Design Winner
Noted: We have standard IP Camera and NDI|HX2 IP Camera, please choose the right PTZ Camera you need.
20x Optical zoom
USB HDMI RJ45 Video Output
Sleek and intelligent design
Plug & Play USB Connectivity
1080p@60fps Video Image
Preset: 10 via IR remote setting (255 via RS232)
61° Wide field of view with no video distortion

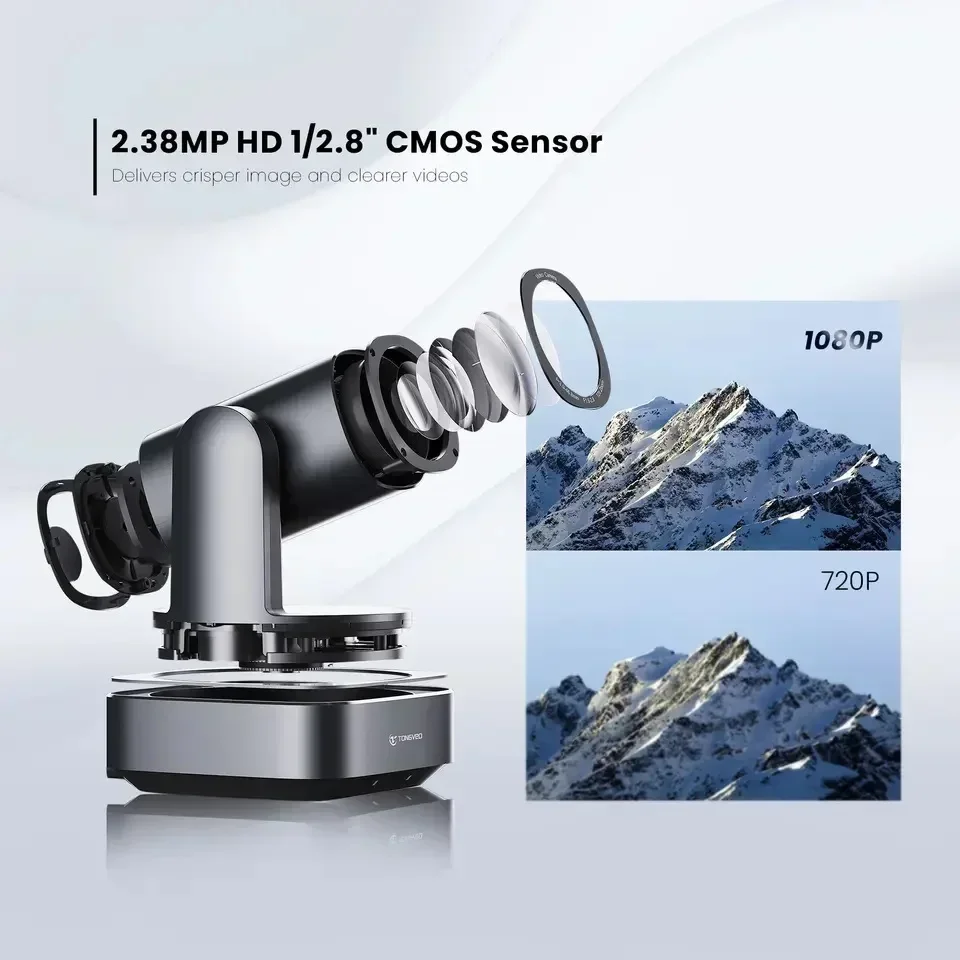

1/2.8 inch high quality, 2.38MP (16:9) CMOS sensor
Support H.264, H.265, MJPG, YUY2, NV12 Video Compression Format and LAN POE
Support RTSP, RTMP, ONVIF, GB/T28181 Network Protocol
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Compatible with most leading video conferencing software: Zoom, Skype, Webex. Teams, Google meet and LIve Streaming software: vMix, OBS, Facebook Live, YouTube Live, Vimeo Live, Twitch, Wirecast, Livestream Studio, MimoLive, Tricaster, etc.
Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth
Camera Parameters:
TEVO-VL20N USB+HDMI+IP PEO PTZ CAMERA | |
Item Name | USB/HDMI PTZ Camera with 10x Zoom |
Model No. | TEVO-VL20N |
Image Sensor | Sony IMX415 1/2.8; CMOS |
Effective Pixels | 2.38MP, 16:9 |
Lens | f=4.34mm-35.17mm |
Aperture | F1.6 ~ F2.8 |
Video Format | HDMI(1080P@60/50/30/25fps,720P@60/50/30/25fps) |
USB(1920*1080P@60fps, 1920*1080P@30fps,1280*720P@30fps,640*480P@30fps,320*240P@30fps | |
Optical Zoom | 20x zoom |
Horizontal angle | 55.8°(W)-3.2°(T) |
Vertial angle | 39.5°(W)-5.1°(T) |
Diagonal angle | 61°(W)-3.64°(T) |
SNR | >50dB |
Focus | Auto/Manual |
Digital Noise Reduction | 2D & 3 DNR |
Exposure | Auto/Manual |
Backlight Compensation | Support |
I / O Interface | |

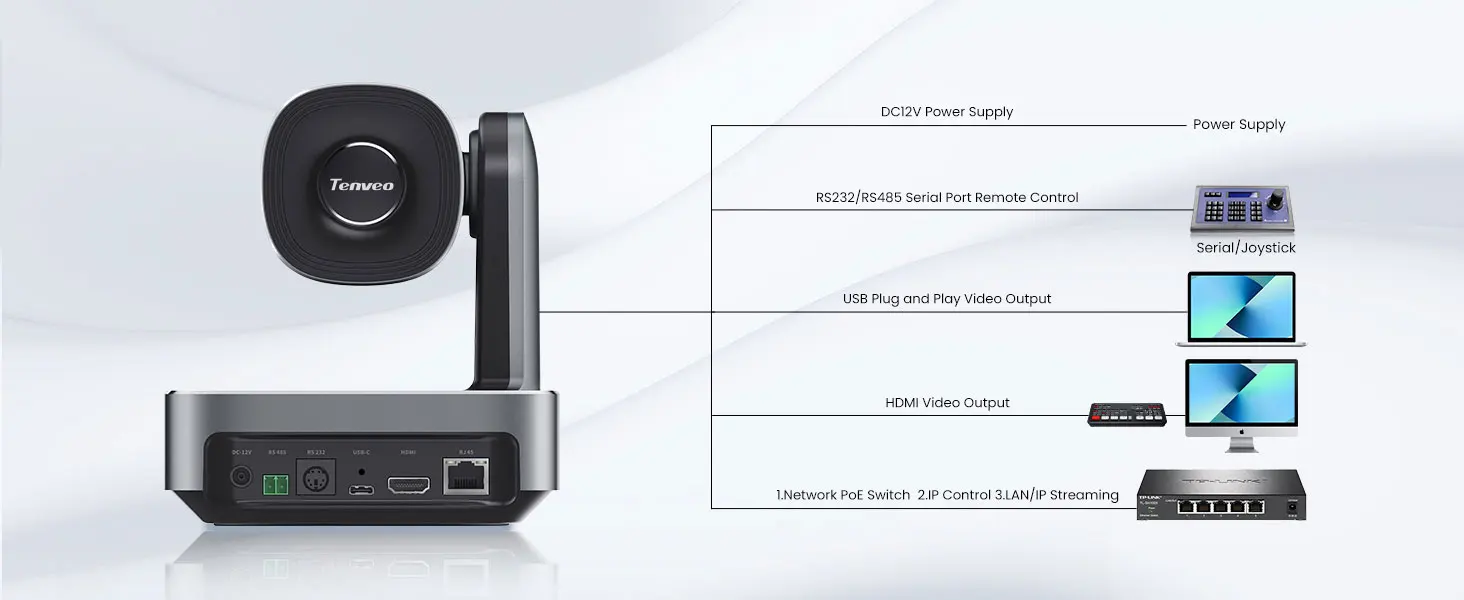

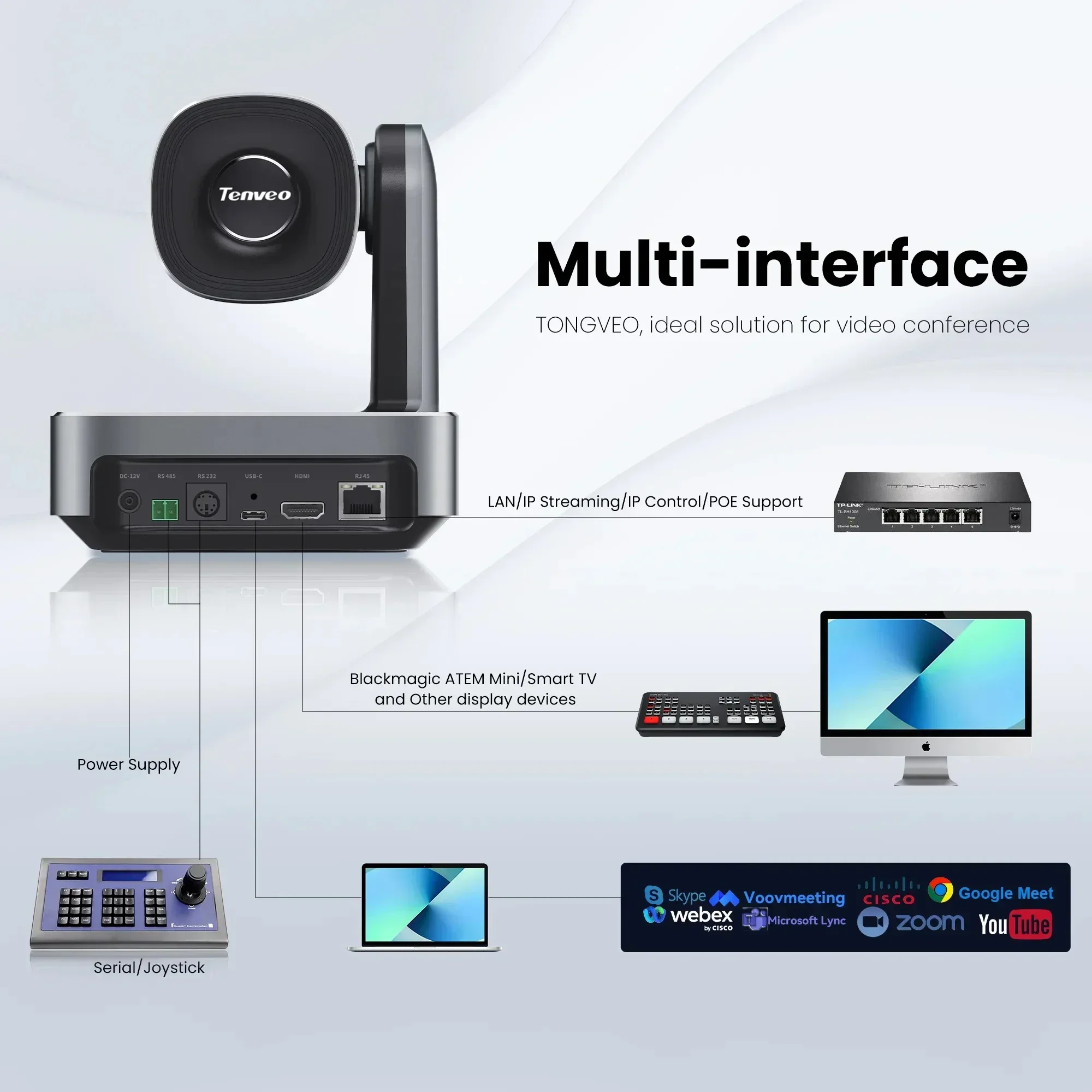

Video Interfaces | HDMI, TYPE-C USB, RJ45 |
Video Compression Format | H.264, H.265, MJPG, YUY2, NV12 |
LAN | 10M/100M adaptive Ethernet port, Support POE |
Network Protocol | RTSP, RTMP, ONVIF, GB/T28181; Support VISCA Control Protocol |
Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate: 9600/4800/38400/2400 |
Control Interface | RS232 (input & output), RS485, TYPE-C(UVC1.1) |
PTZ Parameter | |
Pan/Tilt Rotation | ±175°,-90°～+90° |
Pan Control Speed | 0.1 -80°/sec |
Tilt Control Speed | 0.1-60°/sec |
Preset Number | 255 presets by Pelco-D, 32 presets by Pelco-P, 7 presets by Visca (10 presets by remote controller) |
General Parameter | |
Operation Systems | Windows 7, Windows 8.1, Windows 10; macOS™ 10.10 or higher, Linux (Require to support UVC.) |
Input Voltage | 12V |
Input Current | 1A(Max.) |
Power Consumption | 12W/5W(Max.) |
Store Temperature | -10℃～+60℃ |
Store Humidity | 20%～90% |
Working Temperature | -10℃～+50℃ |
Working Humidity | 20%～80% |
Dimension（W*H*D） | 171.6*192.6*171.6mm/ 260*217*197mm (before/ after packing) |
N.W. / G.W | 1.35kg/ 2.05kg (Net/ Gross weight) |

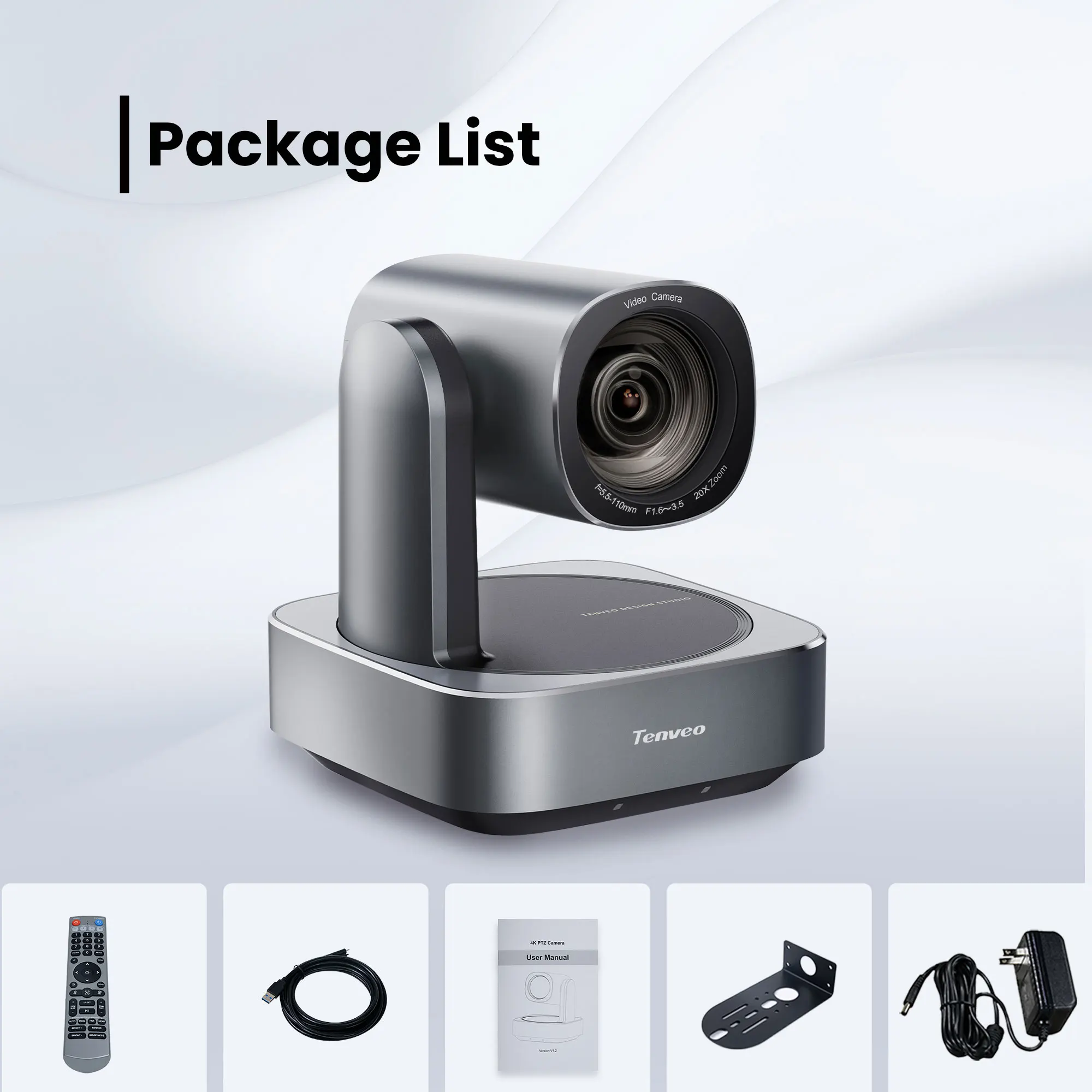

Accessory | 1*Camera; 1*USB Cable; 1*Power Adapter; 1*Ceiling Mount; 1*Manual |
Mfg. Warranty | 3 Years Parts & Labor |
| Color | 20x and Keyboard, 20x and Keyboard-691, 20x USB3.0 HDMI POE, 20x Zoom and Mic, 20x Zoom and Mic-350853, NDI 20x PTZ Camera |
|---|---|
| High-concerned chemical | None |
| Electric | Yes |
| Photography Accessories Type | Dome Cameras |
| Package | Yes |
| Origin | Mainland China |
| Brand Name | TENVEO |
