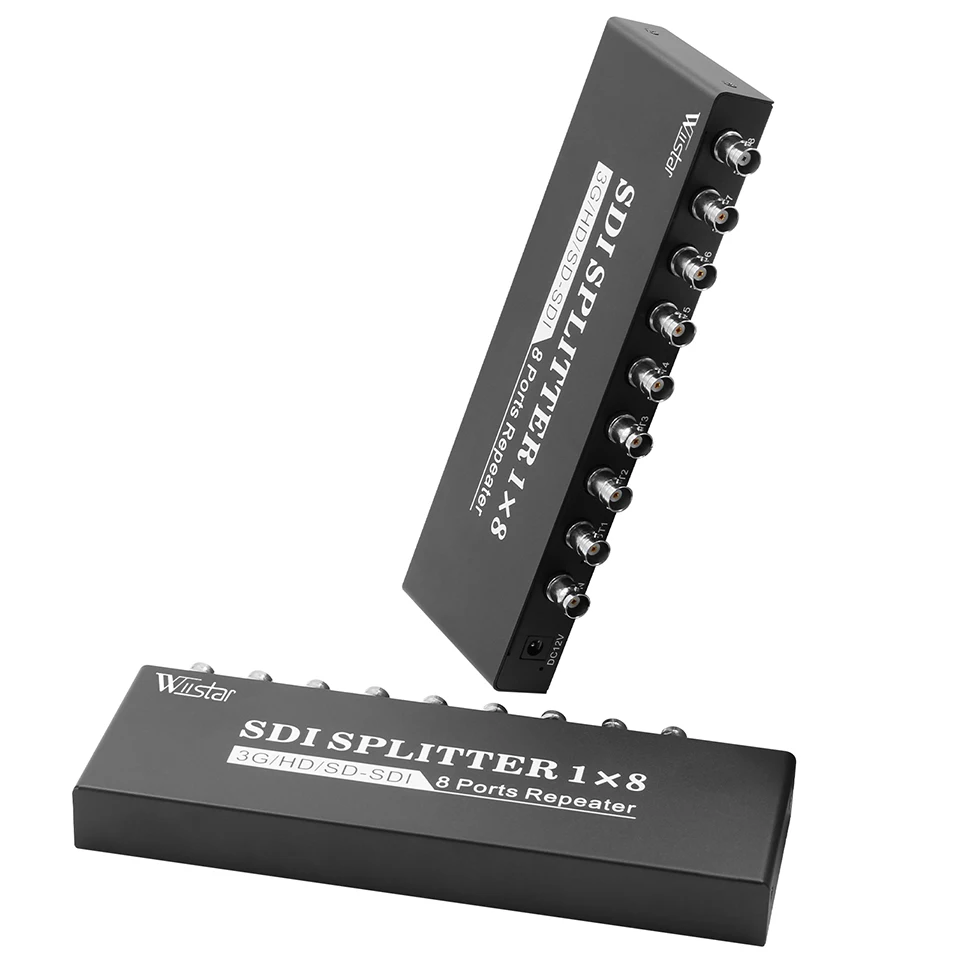

Wiistar SDI Splitter 1×8 1 in 8 Out Supports SD/HD/3G-SDI Repeater Extender with Power Adapter SDI Video Splitter for Monitor

Product Description:

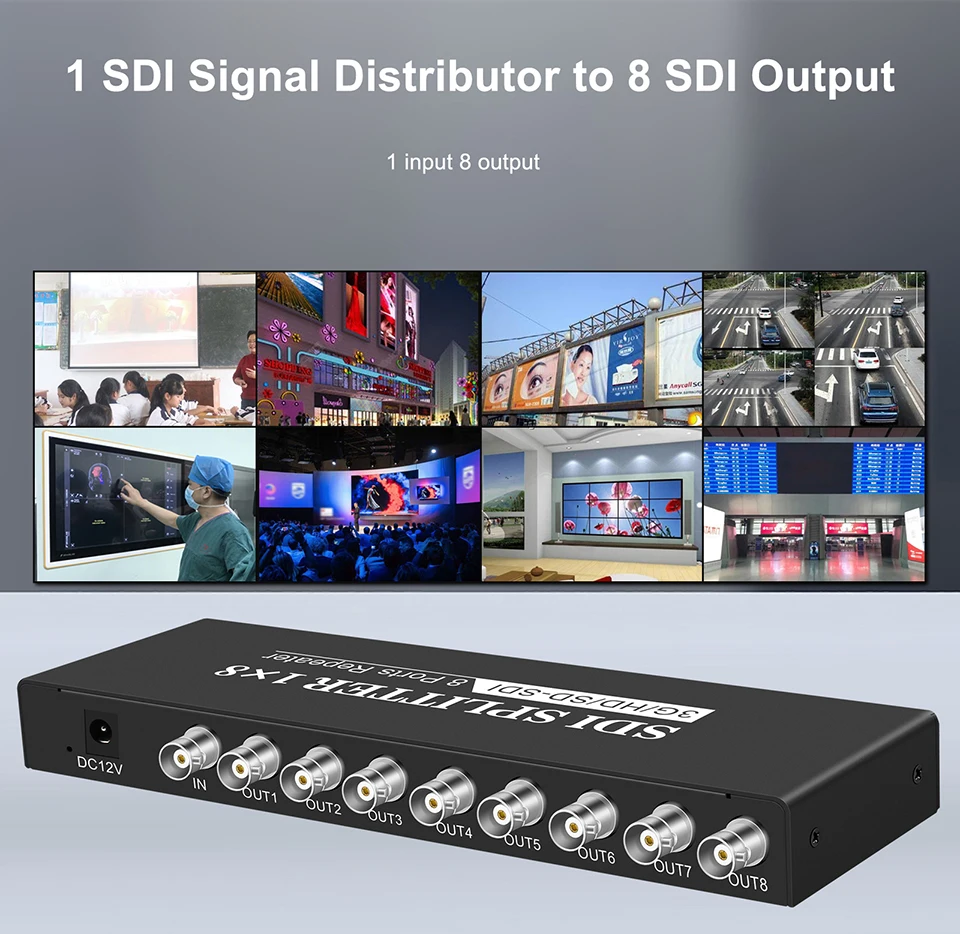

This SDI 1×8 splitter distributes one SDI signal to 8 SDI outputs simultaneously.

It supports full range of SDI signal formats including 3G-SDI, HD-SDI, SD-SDI with easy operation and high reliability.

Using broadcast quality processing technology, it delivers high definition, lossless and lag-free distribution.

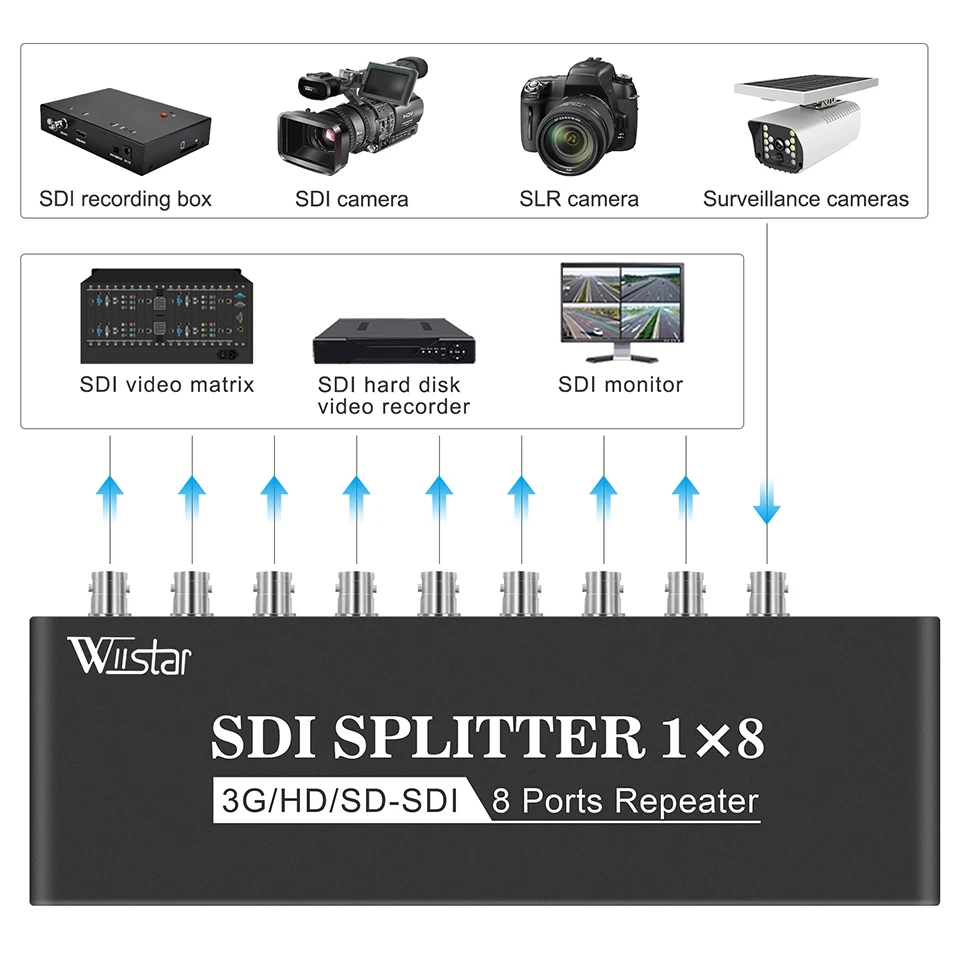

This splitter can be widely used in SDI broadcast room, no-linear editing field, CCTV security system and training showroom etc.

Specifications:

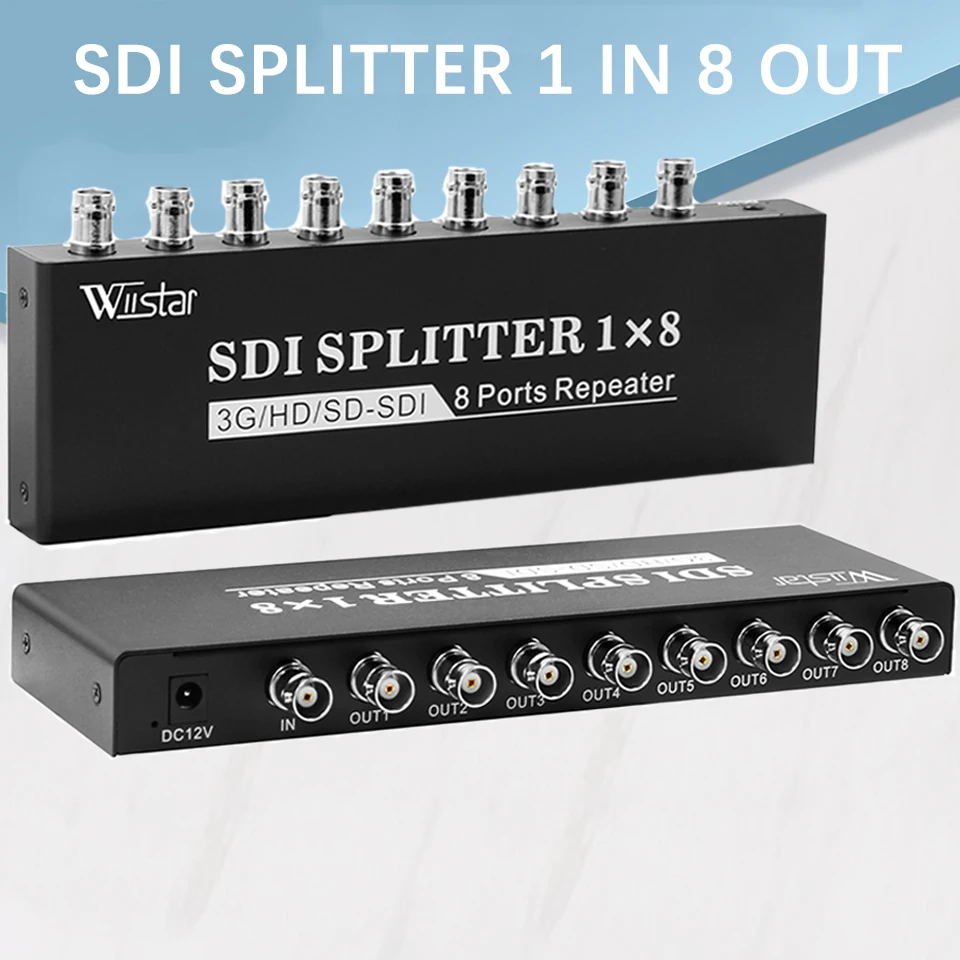

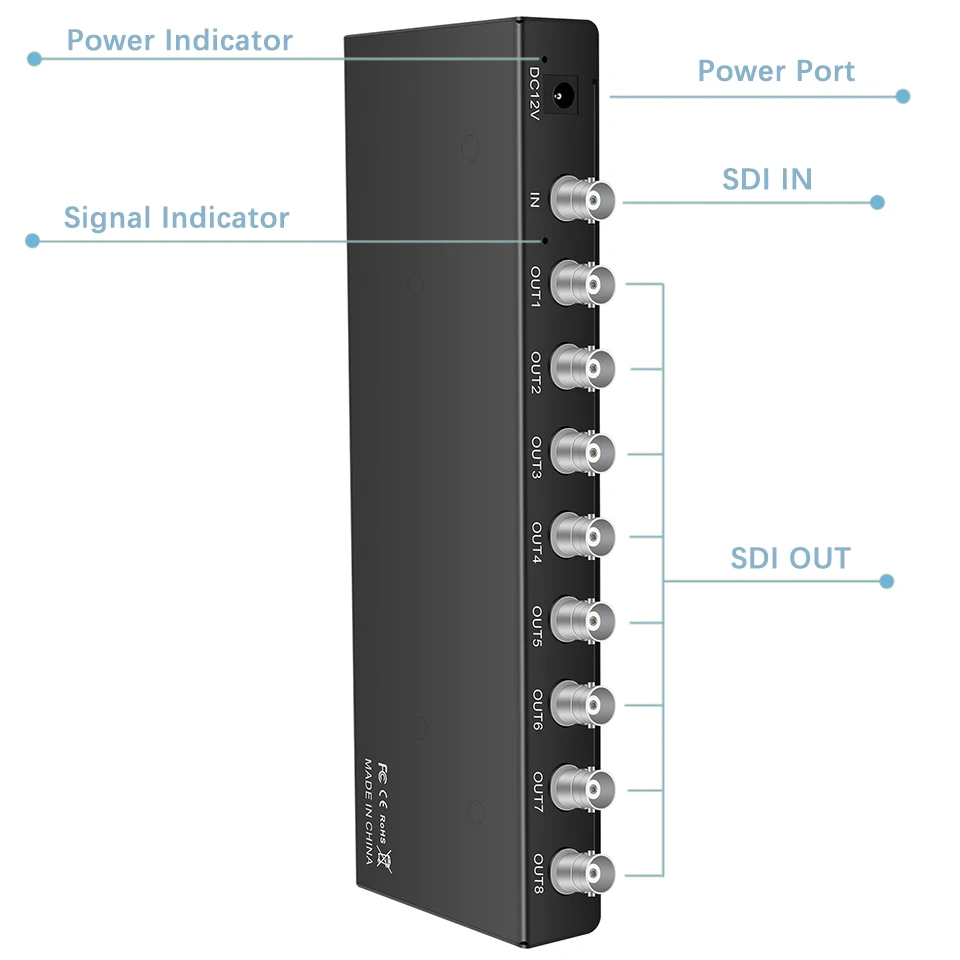

Input connector: 1 x SDI BNC (HD-SDI/SD-SDI/3G-SDI)

Output connector: 8 x SDI BNC (HD-SDI/SD-SDI/3G-SDI)

SDI standard: Compatible with 3G-SDI,SMPTE 424M,HD-SDI SMPTE292M and SD-SDI SMPTE259-C

SDI speed rate: 270~2970MB/s

Supported cable length(BELDEN 1694A)

3G mode: up to 330 ft.

HD mode: up to 660 ft.

SD mode: up to 1320 ft.

Features:

SDI Input Resolution:

480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ

SDI Output Resolution:

480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ

Note:

1.Only support SDI signal, not support RF,CVBS ,AHD,TVI,CVI signal.

2.Only Support 1080p,Not support 4K.

3.Only Support BNC to BNC 75-ohm Coaxial Cable

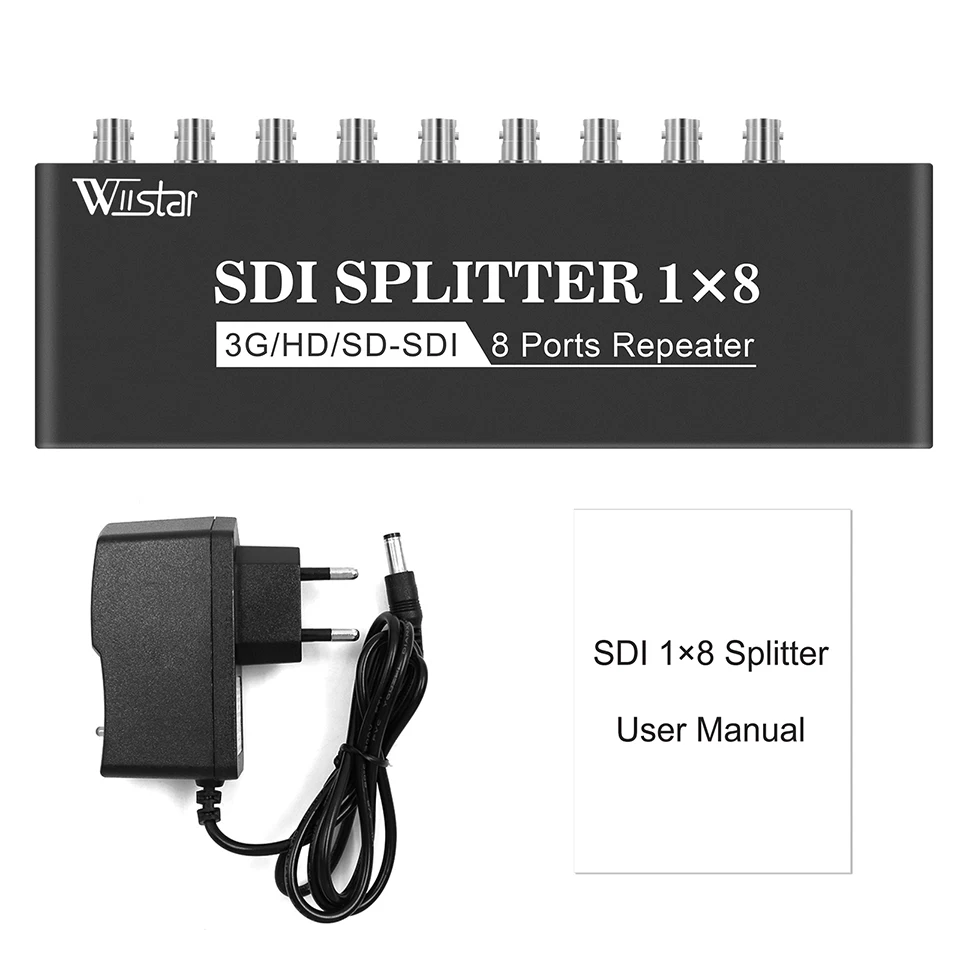

Package Contents:

1 X SDI 1×8 Splitter Converter

1 x 12V power adapter

1 x User Manual
