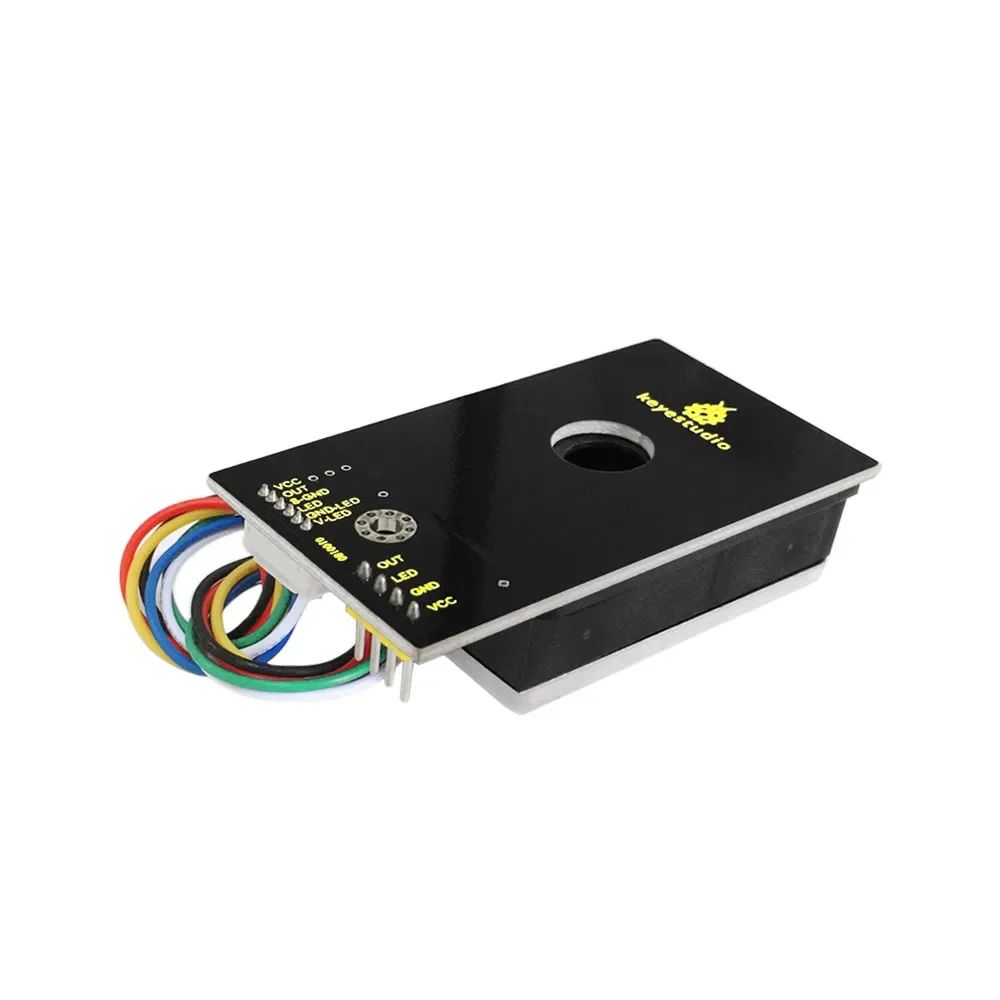

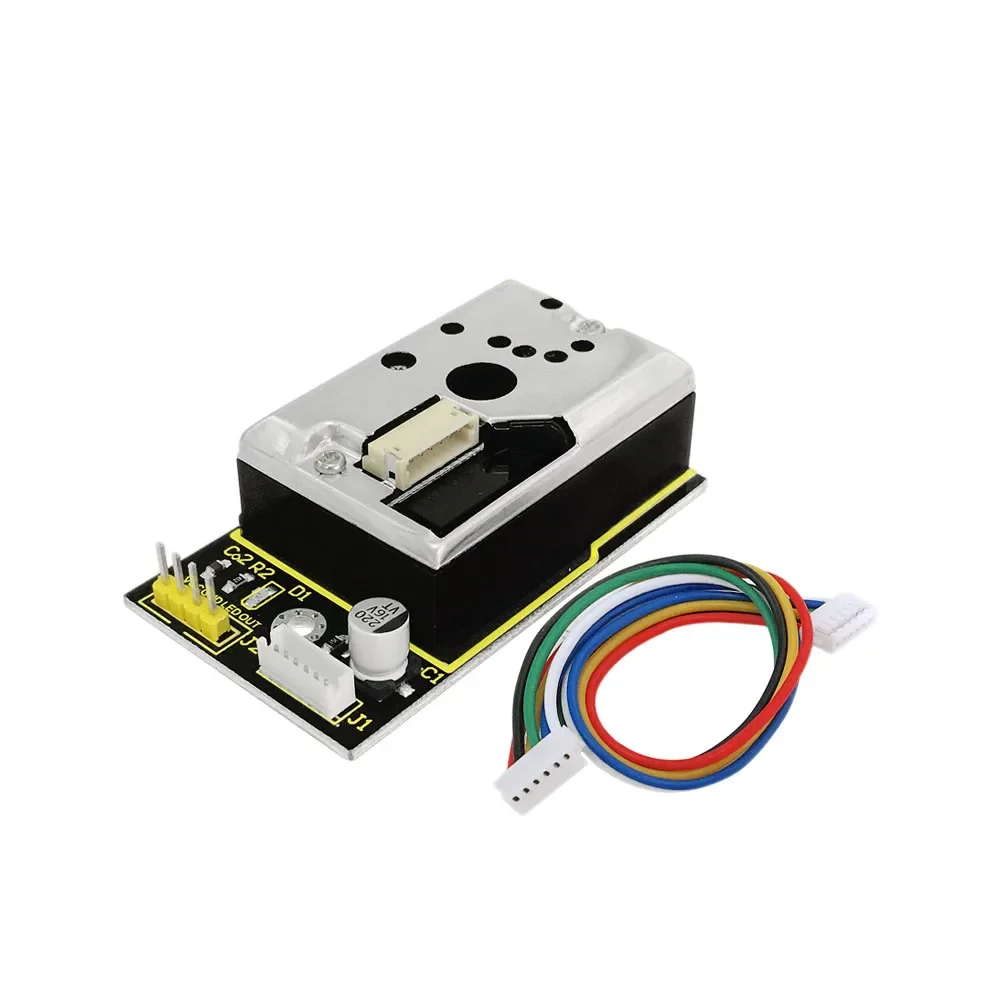

Keyestudio GP2Y1014AU PM2.5 Detection Dust Sensor Module For Arduino For Air Condition DIY Electronic Kit
القسم: Children's toys, روبوتات الأطفال
Availability: In stock
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
Product sharing
- Package: SOP
- is_customized: Yes
- Model Number: GP2Y1014AU PM2.5 Detection Dust Sensor Module
- Supply Voltage: 5V
- Application: Air Condition DIY Electronic Kit
- Type: Module
- Brand Name: keyestudio
- Operating Temperature: 0-65
- Origin: Mainland China
- Condition: New
- Operating Current: MAX 20mA
- Detecting Value of Minimum Particle: 0.8μm
- Voltage of Cleaning Air: 0.9V Typical
- Life time: 5 Years
- Feature: For Air Condition DIY
- SKU: KS0196

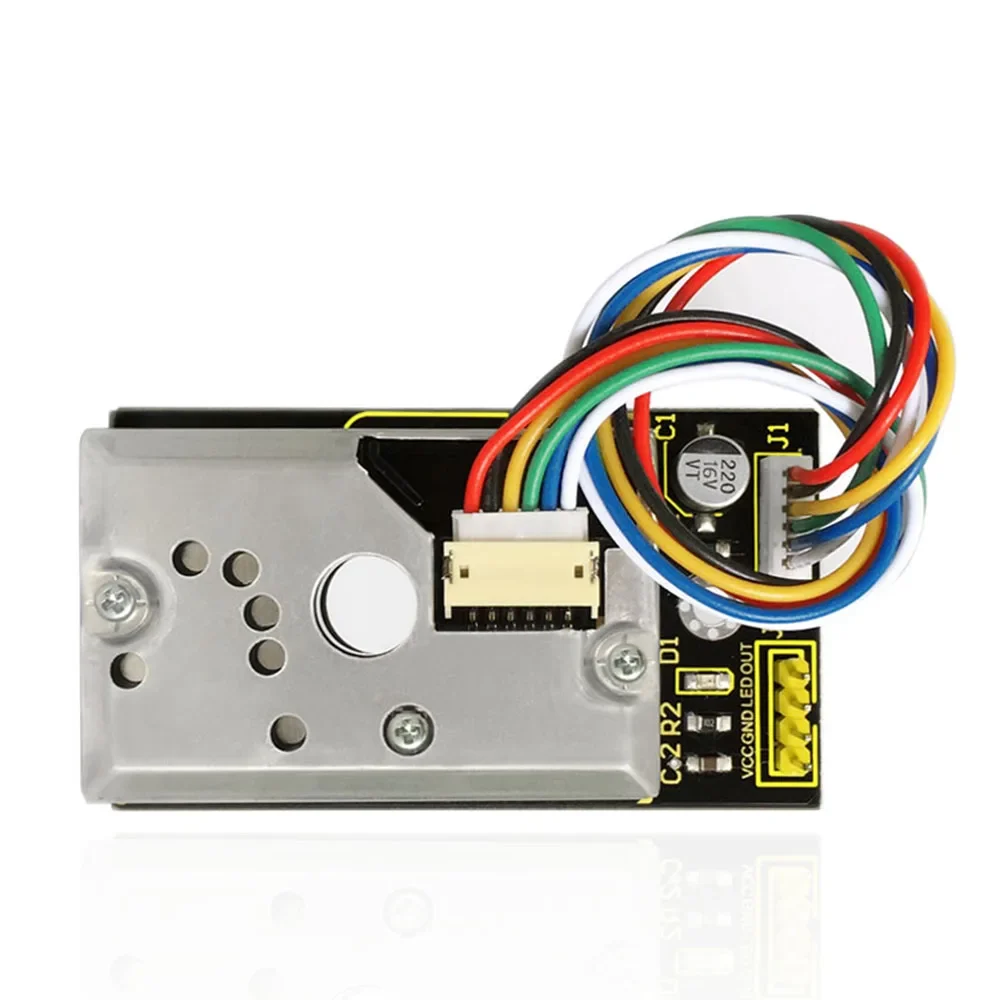

Keyestudio Dust sensor with Sharp GP2Y1014AU onboard works well in detecting very fine particle larger than 0.8μm in diameter, even like the cigarette smoke.
It also has an IR LED and photoeletric transistor. Arranging them with across corners can detect the reflected light of dust in the air.
Ultra-low power consumption(max at 20mA, typical at 11mA), analog voltage output is liner with dust density. It can be equipped with sensors up to 7V DC. The sensitivity is 0.5V/(0.1mg/m3).
Specification
Power Voltage: 5-7V
Working Temperature: -10℃ to 65 ℃
Operating Current: 20mA (max)
Detecting Value of Minimum Particle: 0.8μm
Sensitivity: 0.5V/(0.1mg/m3)
Voltage of Cleaning Air: 0.9V(typical)
Storage Temperature: -20℃~80℃
Life time: 5 Years

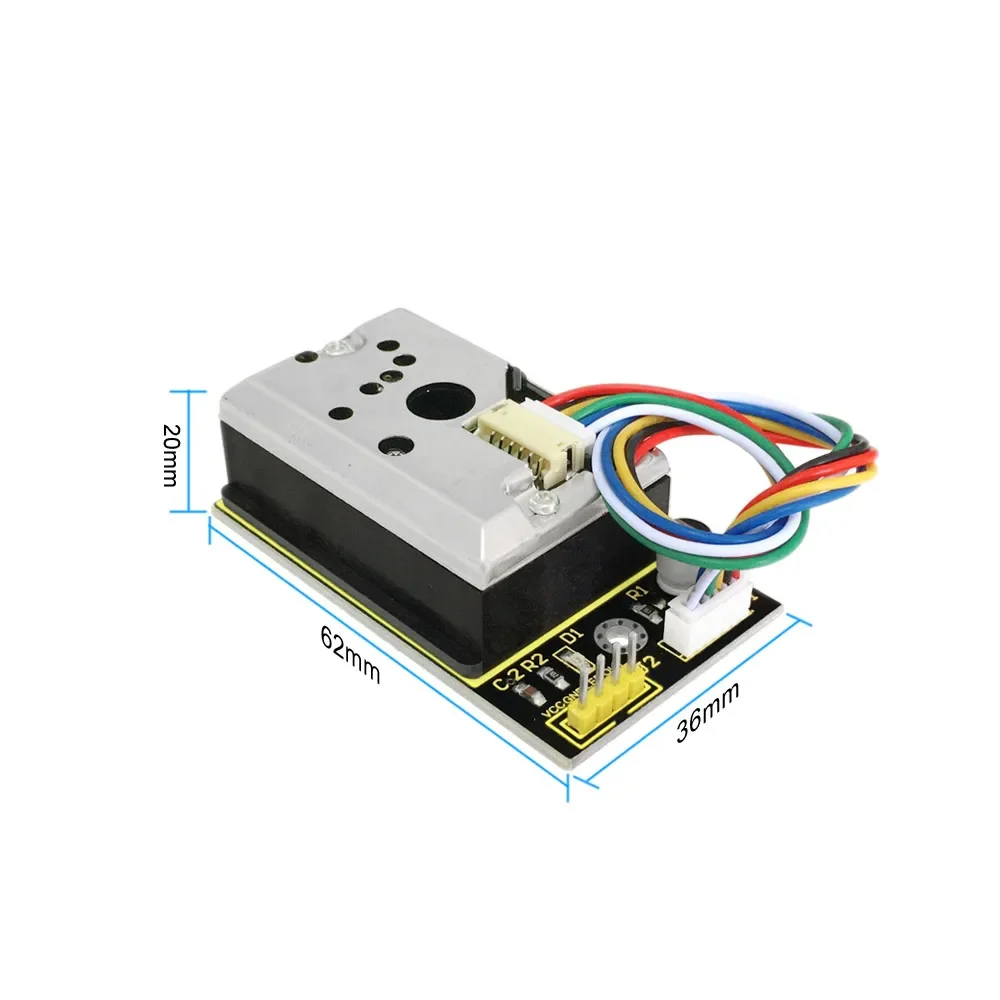

Dimension: 62mm×36mm×20mm
Applications
Air Purifier
Air Conditioner
Air Monitor
PM2.5 Detector
Tutorial for your reference:https://fs.keyestudio.com/KS0196
