Tips:

1.The Router not support Spain Digi Sim Card.

2.Because this is a CAT4 4G router, the theoretical maximum download speed is 150Mbps for use 4G SIM Card.

3.The Router can reach the maximum speed of 1000Mbps when the upper-layer network provides the network through the WAN port. Because the router have 10/100/1000Mbps WAN LAN ports.

Product Description:

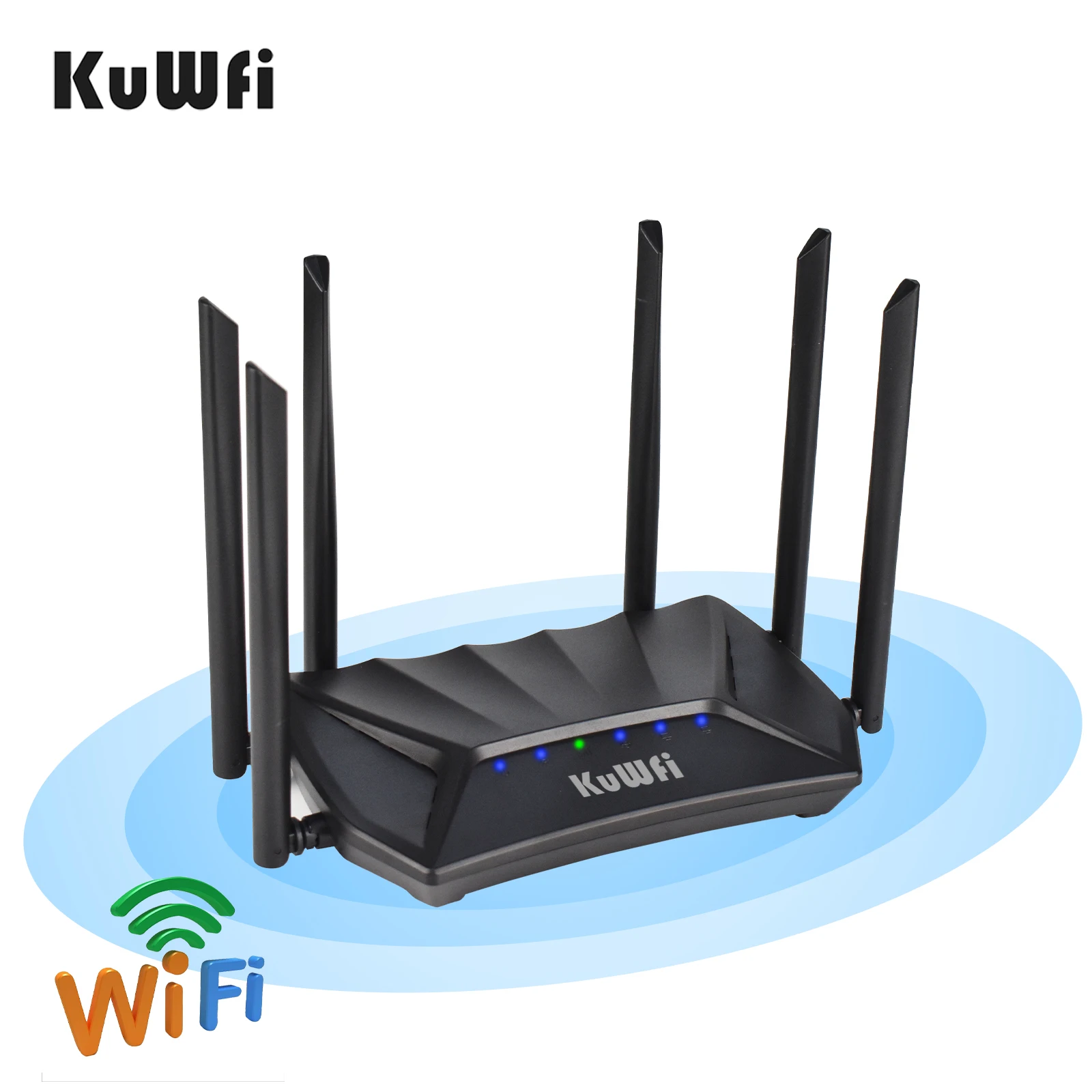

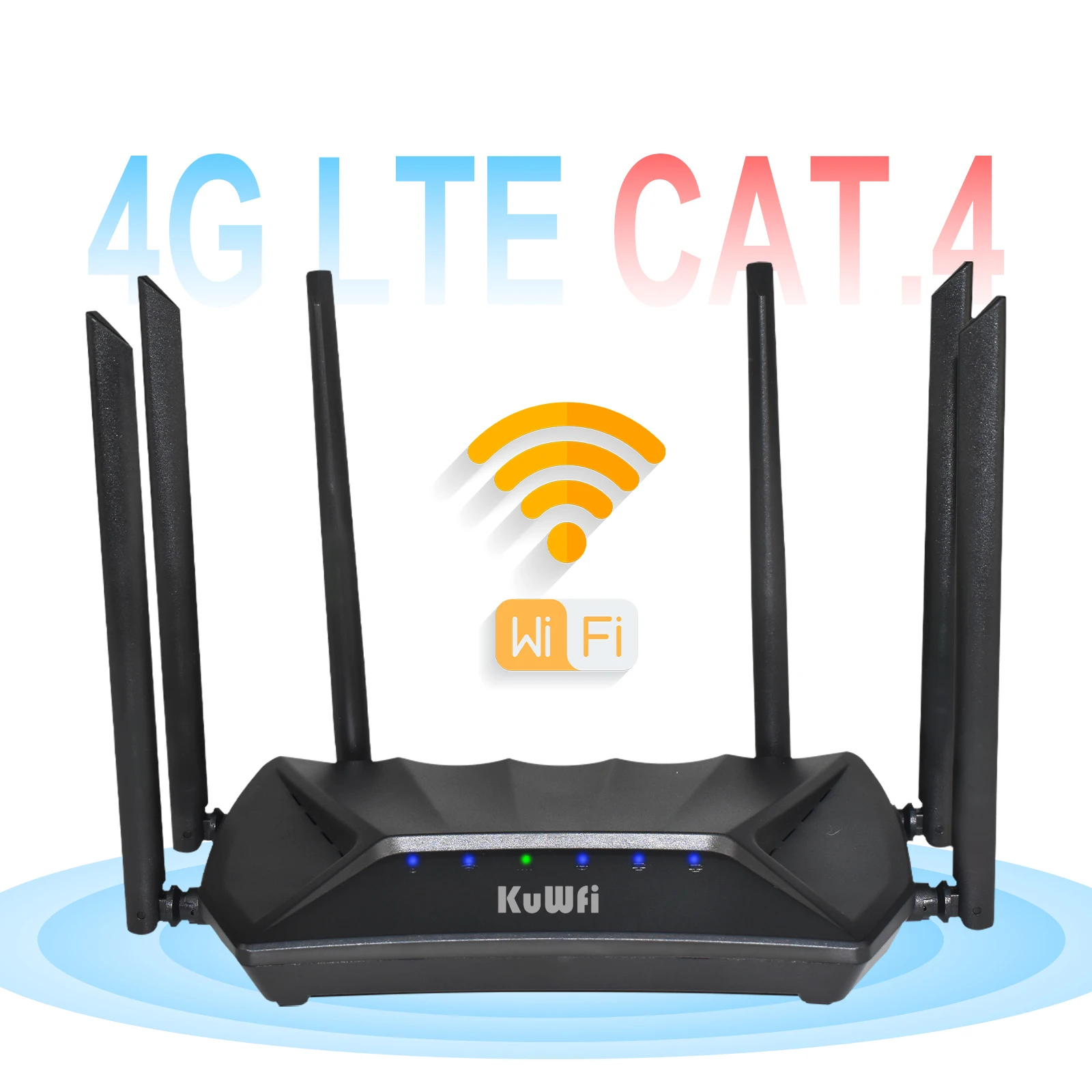

The T-CPE1202S is a high-performance wireless communication product developed to meet the demands of 4G network connectivity. It operates on both the 2.4GHz and 5GHz ISM wireless frequency bands, catering to the needs of up to 64 concurrent wireless high-speed internet connections. With a gigabit network interface, it supports speeds of up to 300Mbps in 2.4GHz 802.11n mode and up to 867Mbps in 5GHz 802.11ac mode, providing a total wireless throughput of 1200Mbps.

This product is designed to meet the requirements of small to medium-sized networks, such as SOHO offices and homes, offering fast, stable, secure, and simplified wireless internet access. It is also suitable for applications in the Internet of Things (IoT) communication industry, enabling users to wirelessly monitor, collect, and transmit data over long distances. With its universal 4G network access, it features two 10/100/1000M adaptive Ethernet LAN interfaces for internal LAN connectivity, and one 10/100/1000M adaptive Ethernet WAN interface for wired broadband access.

Product Features:

4G LTE Router:

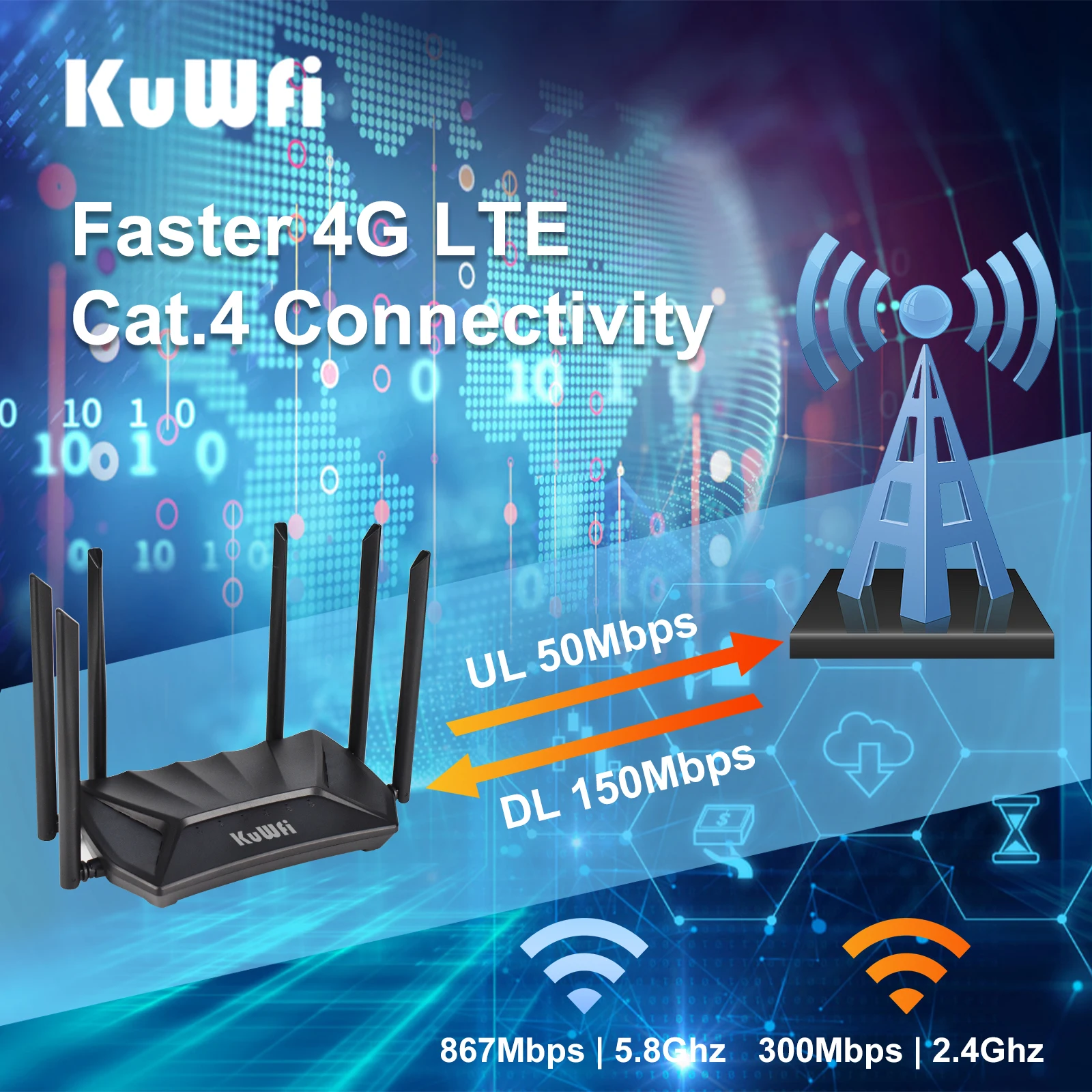

The Router provides a SIM Card Slot. After inserting the SIM card and logging in to the WEB UI to configure the APN information, the SIM card signal can be converted to Wi-fi signal.4G LTE transmission rate up to 150Mbps(DL) / 50Mbps(UL).

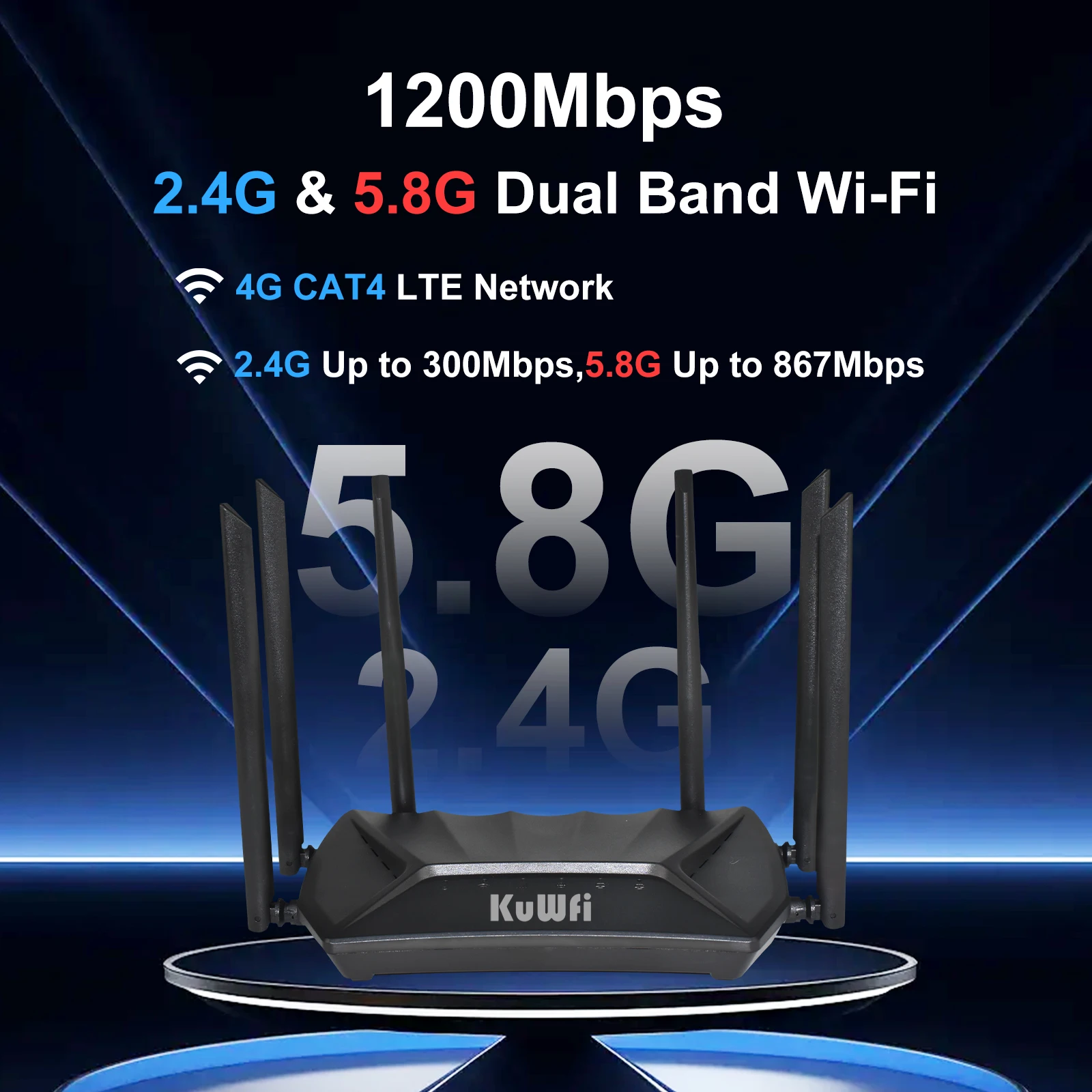

1200Mbps Dual Band Wi-Fi Router:

Providing 2.4GHz and 5.8GHz dual band wireless services, 2.4GHz up to 300Mbps access rate, 5GHz up to 866Mbps access rate.When the user chooses different Wi-fi protocols, the network speed and transmission distance will be different, which can be adjusted according to the actual use.

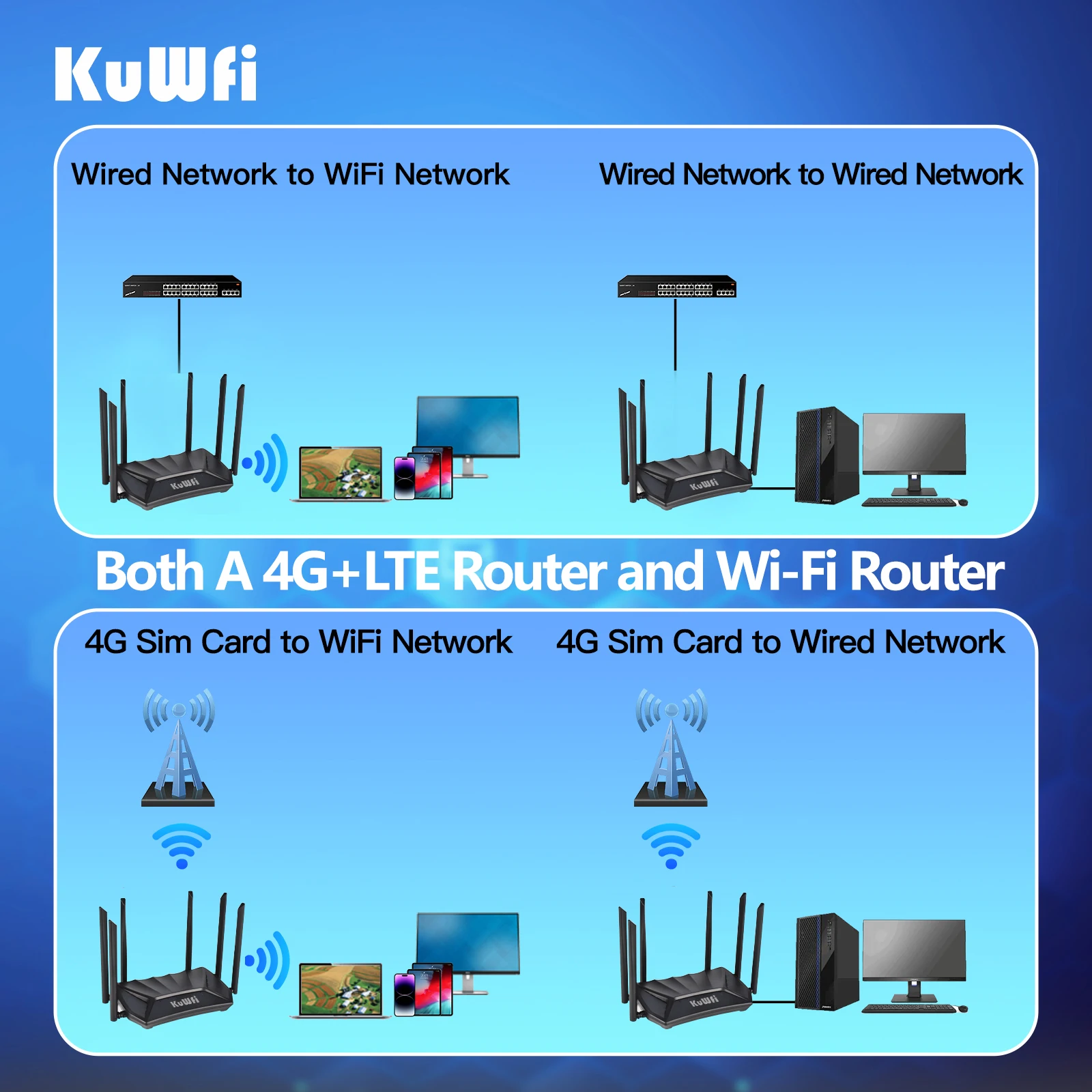

Support Three Modes:

①AP Mode:
Connect the upper-layer network to the WAN port of the router through a network cable to provide the Internet for the router. Users can choose to connect to the router’s Wi-fi signal or LAN port to connect to other network devices.

②4G to Wi-Fi Signal Mode:
After inserting a SIM card, log in to the WEB UI to configure correct APN information for the SIM card. It will convert the SIM network signal into a Wi-Fi signal.

③4G to Wired Mode:
When the router successfully connected to the SIM card’s 4G network, the user can provide the network to other network devices through the LAN port.

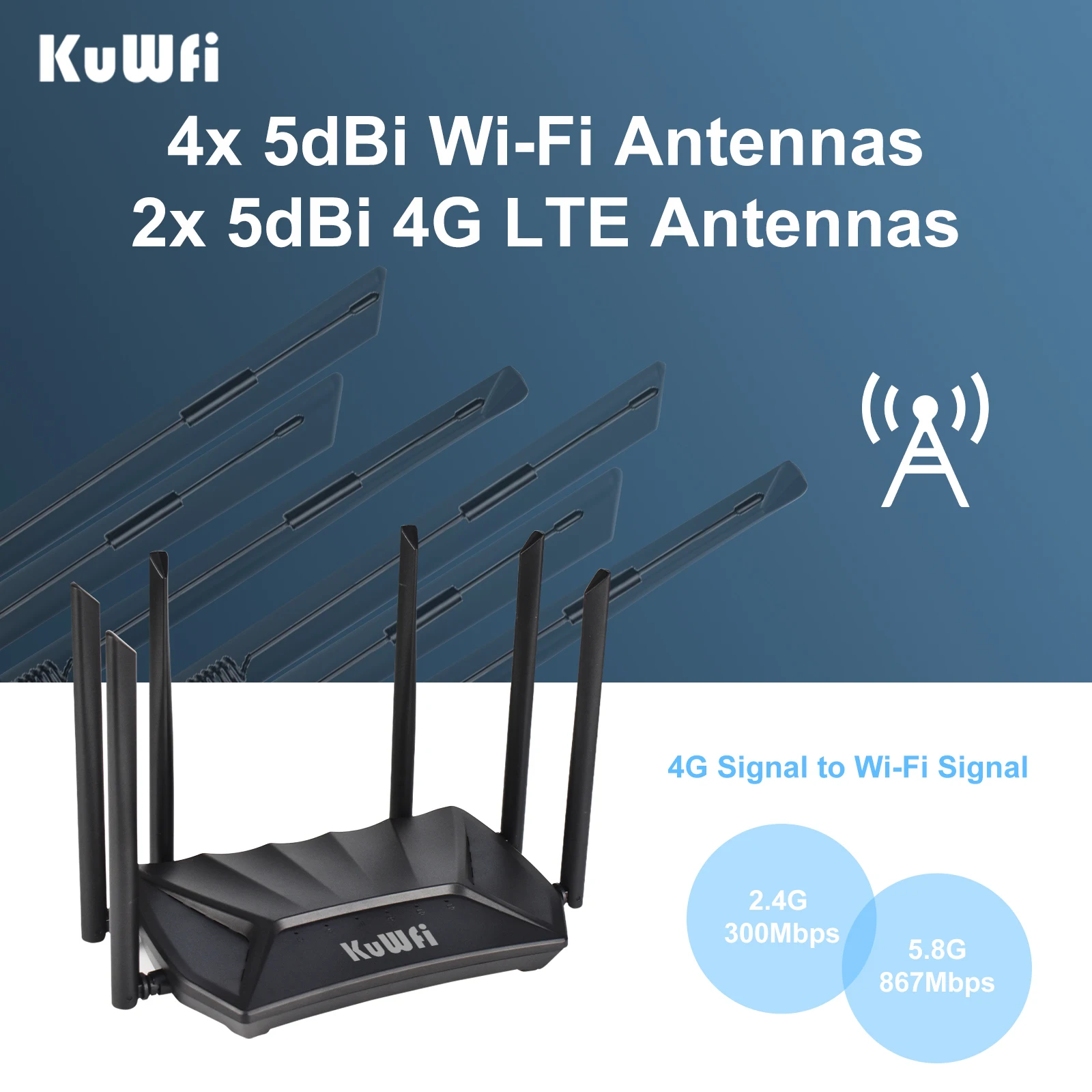

6Pcs External Antennas:

6*5dbi external antennas providing even better dual band wireless performance,4G Signal, transmission rates, stability technology automatically avoids channel conflicts using its channel selection feature.

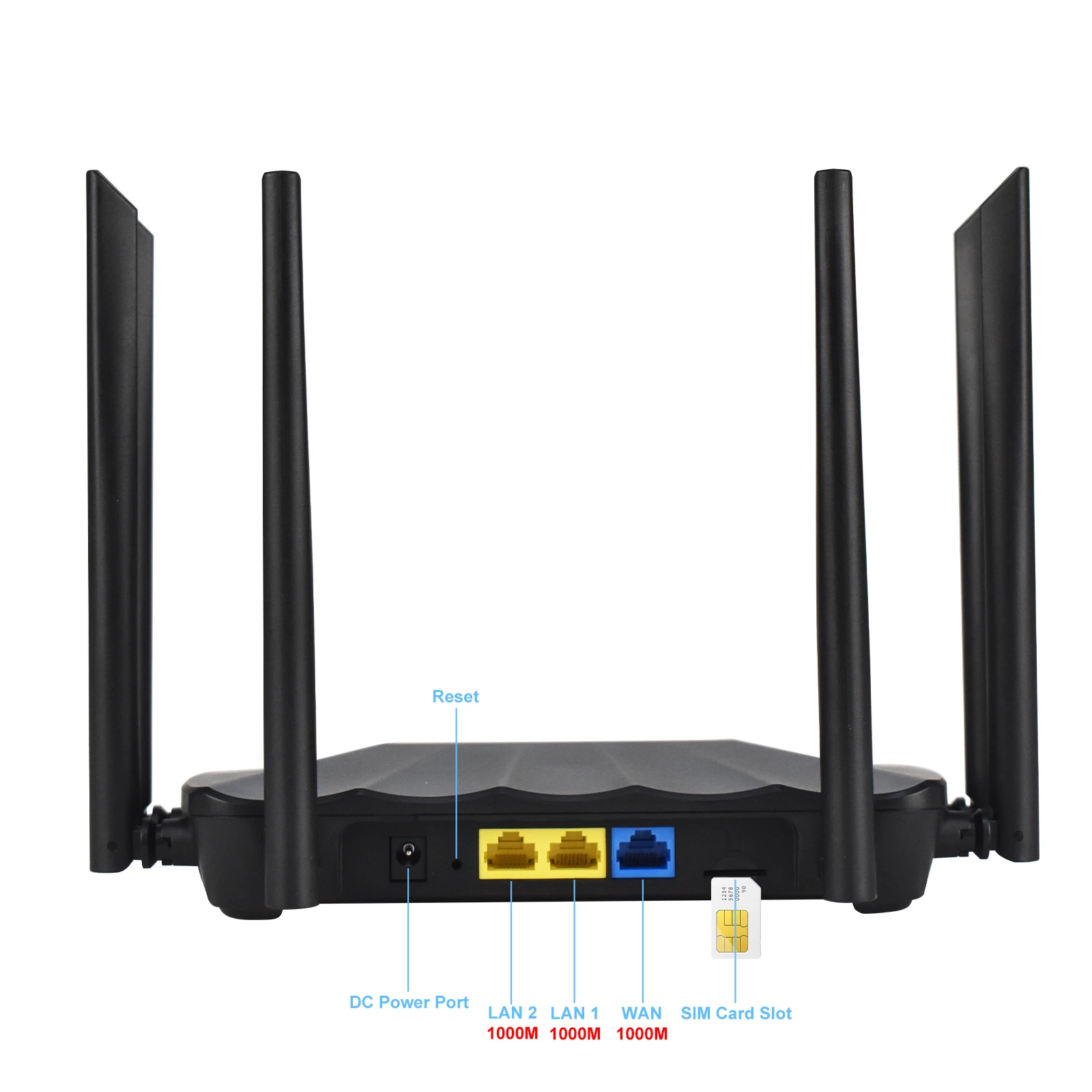

10/100/1000 Mbps RJ45 Ethernet Port:

The Router with 1x 10/100/1000 Mbps WAN port and 2x 10/100/1000 Mbps LAN port.It provides a faster network for more scenarios.

Support 64 User/Devies Connect at the same time

The router supports up to 128 simultaneous users/devices, allowing your friends or family to connect to your router.This makes it the perfect choice for wireless access in high-density, high-bandwidth environments such as homes, shops, restaurants, and enterprises.

Product Specification:

0Main Chipeset: SF19A2890 + QUECTEL 4G EC200ACN
Main Frequency: Dual-core quad-thread 1GHz MIPS architecture.
Flash: 16MB
Memory: 128MB
4G LTE Transmission Rate: Up 150Mbps(DL)/Up 50Mbps(UL)
2.4Ghz Wireless Technology: 300Mbps 802.11b/g/n 2*2 MIMO
5.8Ghz Wireless Technology: 866.7Mbps 802.11a/n/ac 2*2 MIMO
2.4Ghz Wi-fi Channel: 1、2、3、4、5、6、7、8、9、10、11、12、13
5.8Ghz Wi-fi Channel: 36、40、44、48、52、60、64、149、153、157、161、165
Transmission Rate: 11b up 11Mbps, 11a/g up 54Mbps, 11n up 300Mbps, 11ac up 864.7Mbps
External Antennas: 2x 2.4Ghz Wi-fi, 2x 5.8Ghz Wi-fi,2x 4G LTE
Antenna Gain: 5dBi
WAN Port: 1x 10/100/1000 Mbps
LAN Port: 2x 10/100/1000 Mbps
DC Power: DC 12V/1A
Size: 204.5*136.2*28.5mm (excluding antennas)
Operating Temperature: -10°C to 45°C
Storage Temperature: -20°C to 70°C
Humidity: 5%~95% (no condensation)

Package Listing:

1x 4G LTE Dual Band Wi-Fi Router
1x DC 12V Power Supply
1x Ethernet Cable
1x User Manual
