Original Arduino UNO R3/Mega 2560 R3 Arduino Development Board Programming Learning Board with USB Cable
Product sharing
- High-concerned chemical: None
- Supply Voltage: 5V
- Type: Logic ICs
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
Note:
this link with 2 models,you can choose Arduino Mega 2560 R3 Board or Arduino Uno R3 Board.

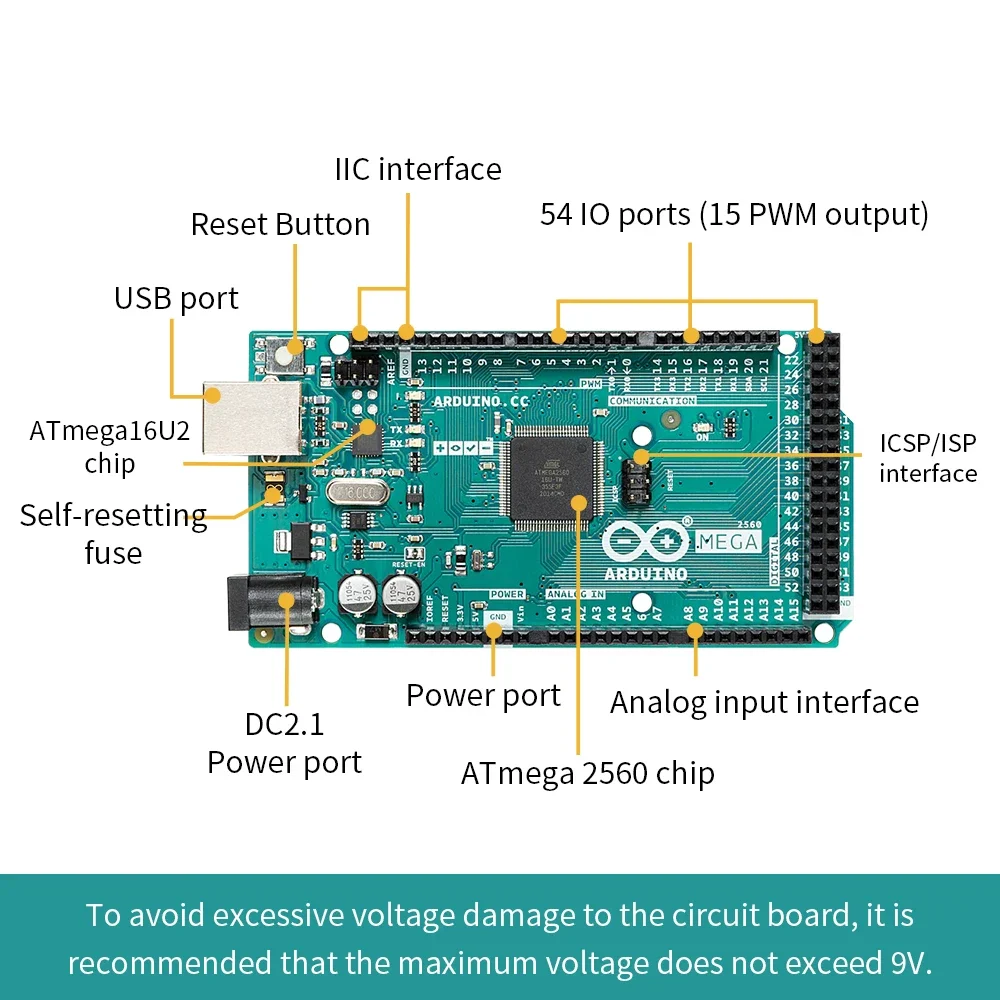

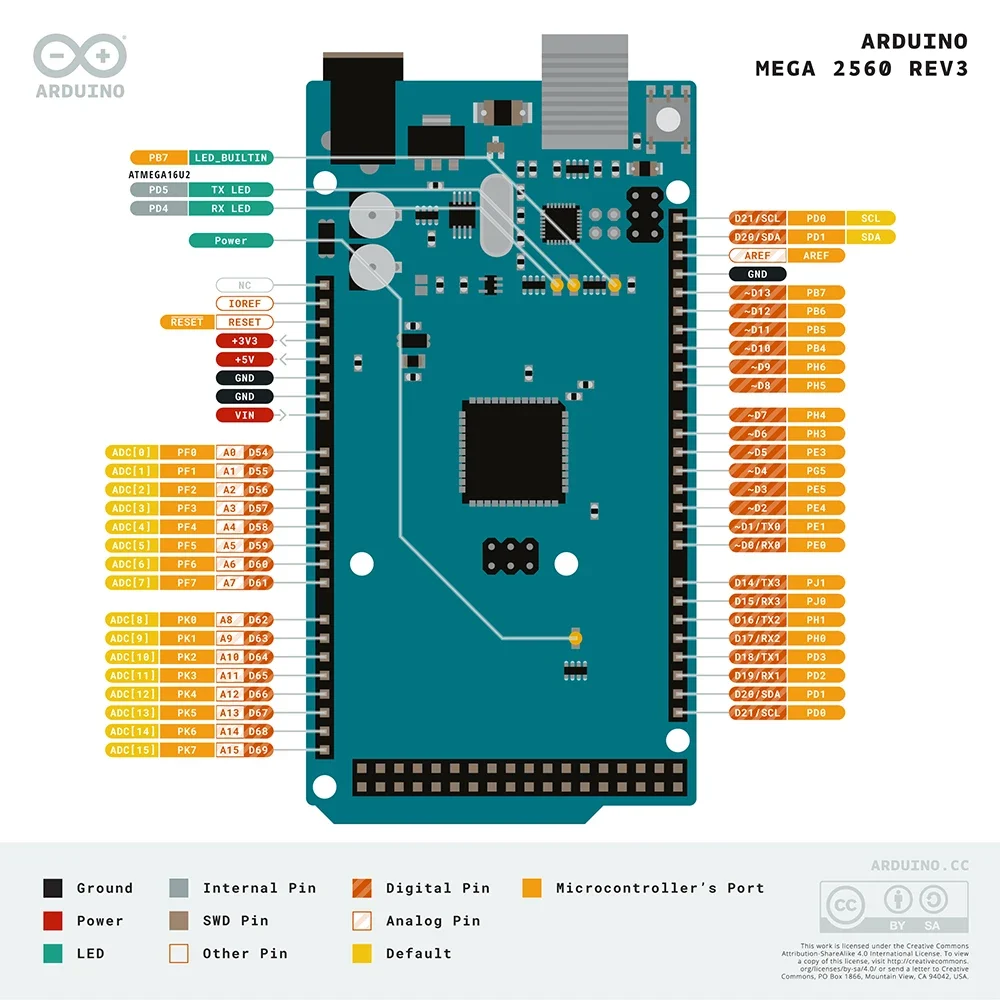

Model:Arduino Mega 2560 R3 Board
Microcontroller:ATmega2560
Operating Voltage:5V
Input Voltage (recommended):7-12V
Input Voltage (limit):6-20V
Digital I/O Pins:54 (of which 15 provide PWM output)
Analog Input Pins:16
DC Current per I/O Pin:20 mA
DC Current for 3.3V Pin:50 mA
Flash Memory:256 KB of which 8 KB used by bootloader
SRAM:8 KB
EEPROM:4 KB
Clock Speed:16 MHz
LED_BUILTIN:13

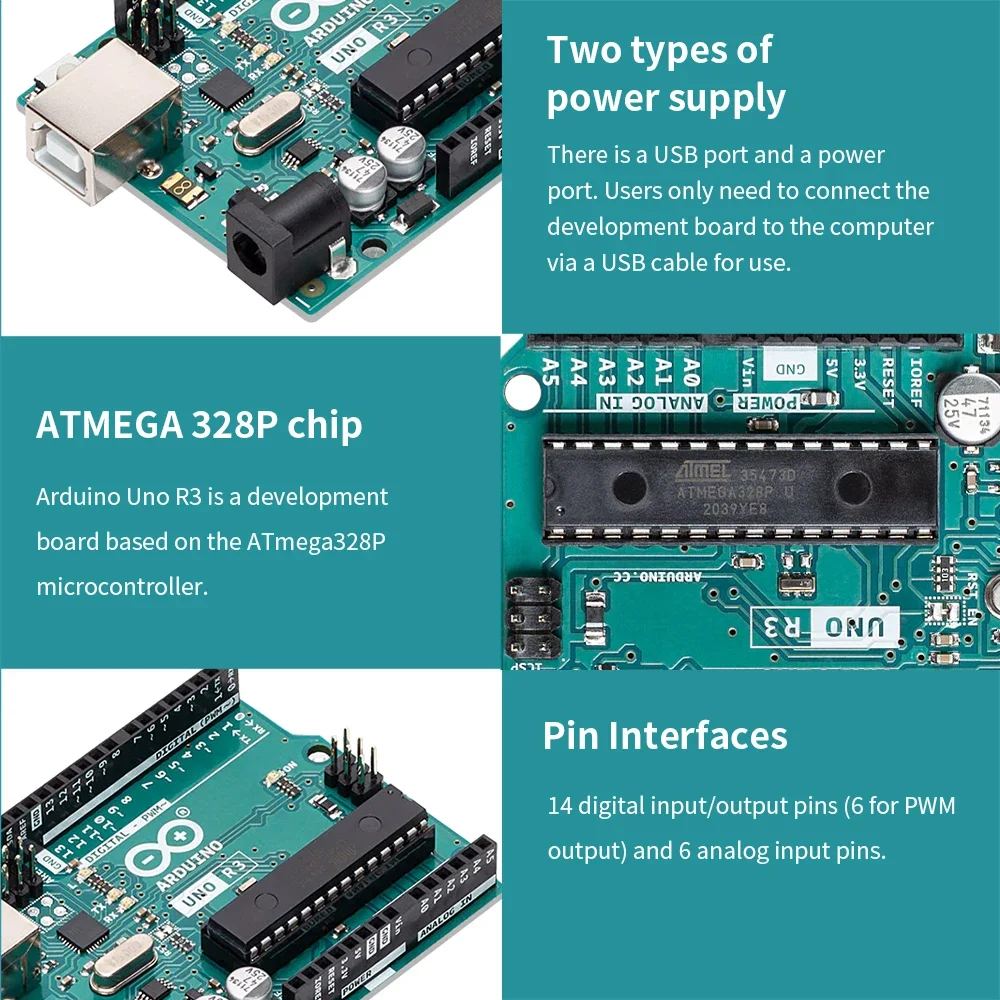

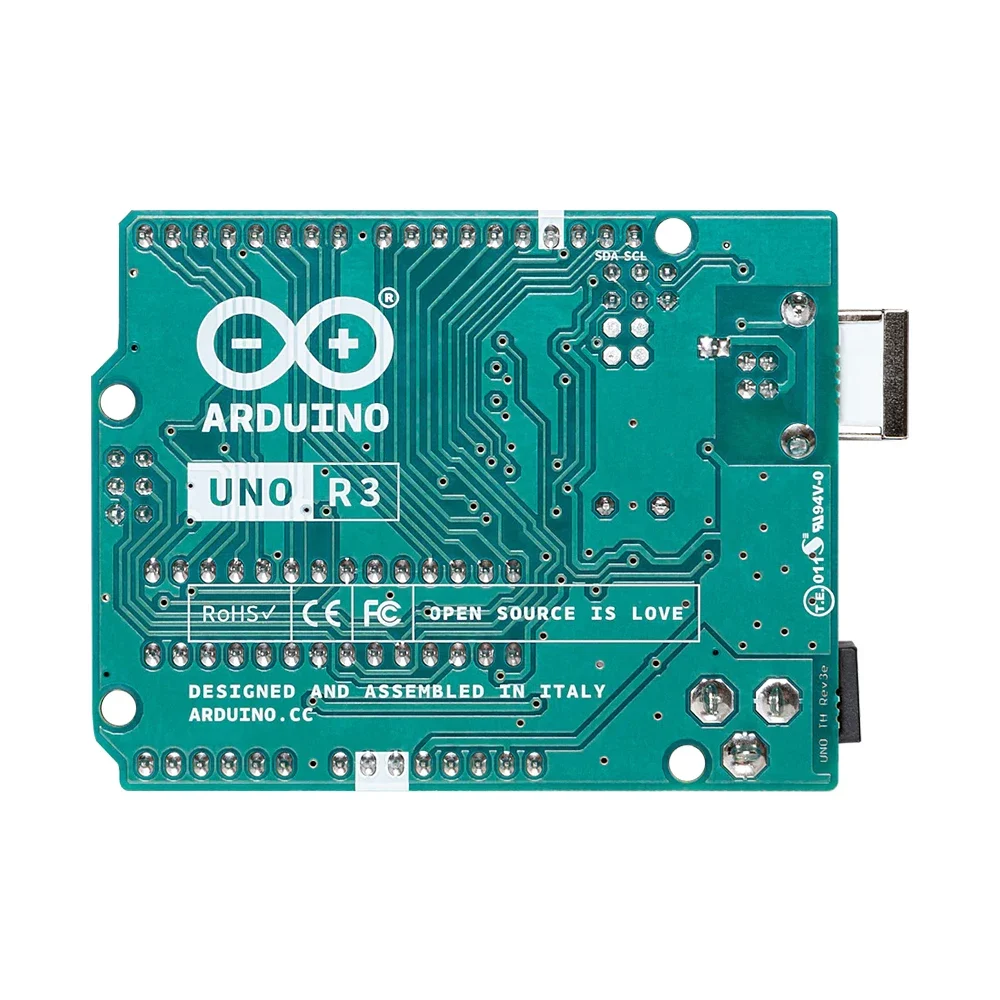

Model:Arduino Uno R3 Board
Microcontroller:ATmega328P
Operating Voltage:5V
Input Voltage (recommended):7-12V
Input Voltage (limit):6-20V
Digital I/O Pins:14 (of which 6 provide PWM output)
PWM Digital I/O Pins:6
Analog Input Pins:6
DC Current per I/O Pin:20 mA
DC Current for 3.3V Pin:50 mA
Flash Memory:32 KB (ATmega328P) of which 0.5 KB used by bootloader
SRAM:2 KB (ATmega328P)
EEPROM:1 KB (ATmega328P)
Clock Speed:16 MHz
LED_BUILTIN:13
| Color | |
|---|---|
| High-concerned chemical | None |
| Supply Voltage | 5V |
| Type | Logic ICs |
| Brand Name | keyestudio |
| Origin | Mainland China |
| Condition | New |
