Wiistar HDMI Video Wall Controller 4K30Hz Video Wall Processor Support 8 Display 2×2,1×2,1×3,1×4,2×1,3×1,4×1 180 Degree Rotation

القسم:

Please select the product type to know the expected delivery time.

شحن دولي

يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن

Product sharing

  • High-concerned chemical: None
  • Package: Yes
  • Model Number: P114_V10
  • Type: USB Adapter
  • Origin: Mainland China
  • Certification: CE

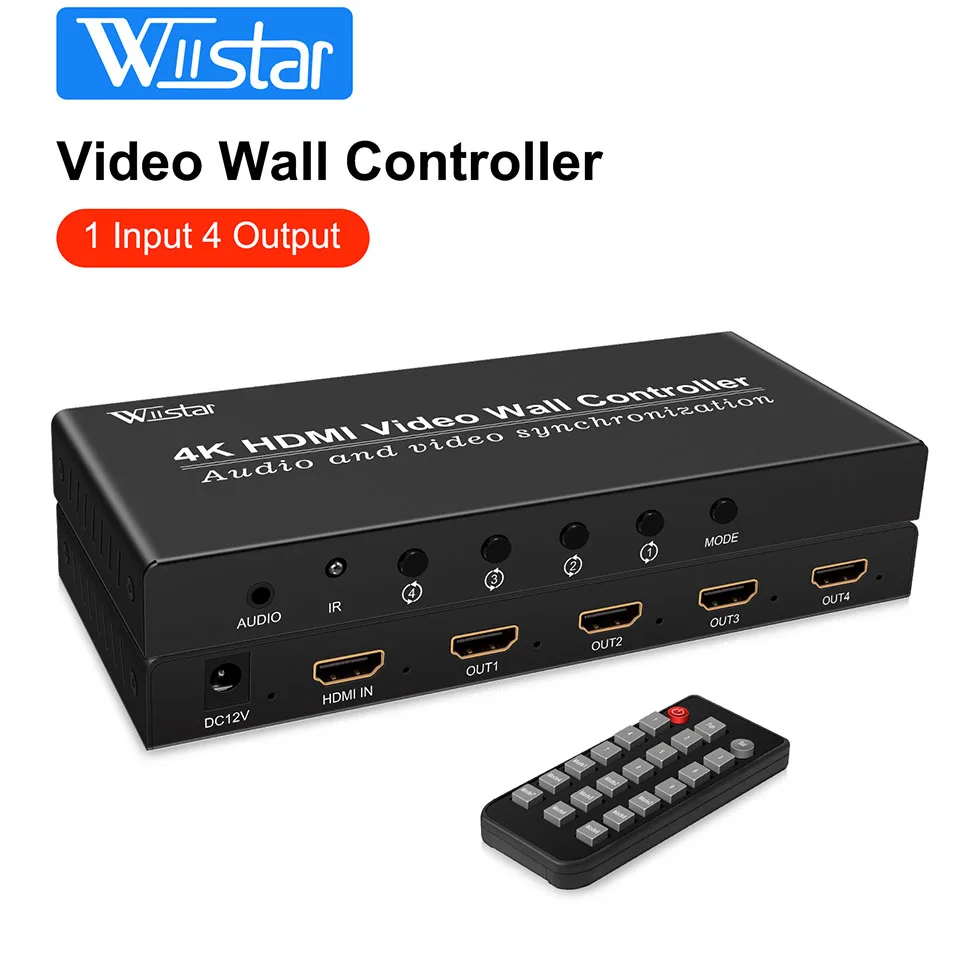

Wiistar HDMI Video Wall Controller 4K30Hz Video Wall Processor with 8 Display 2×2,1×2,1×3,1×4,2×1,3×1,4×1 180 Degree Rotation with 3.5mm Audio Output

Description:

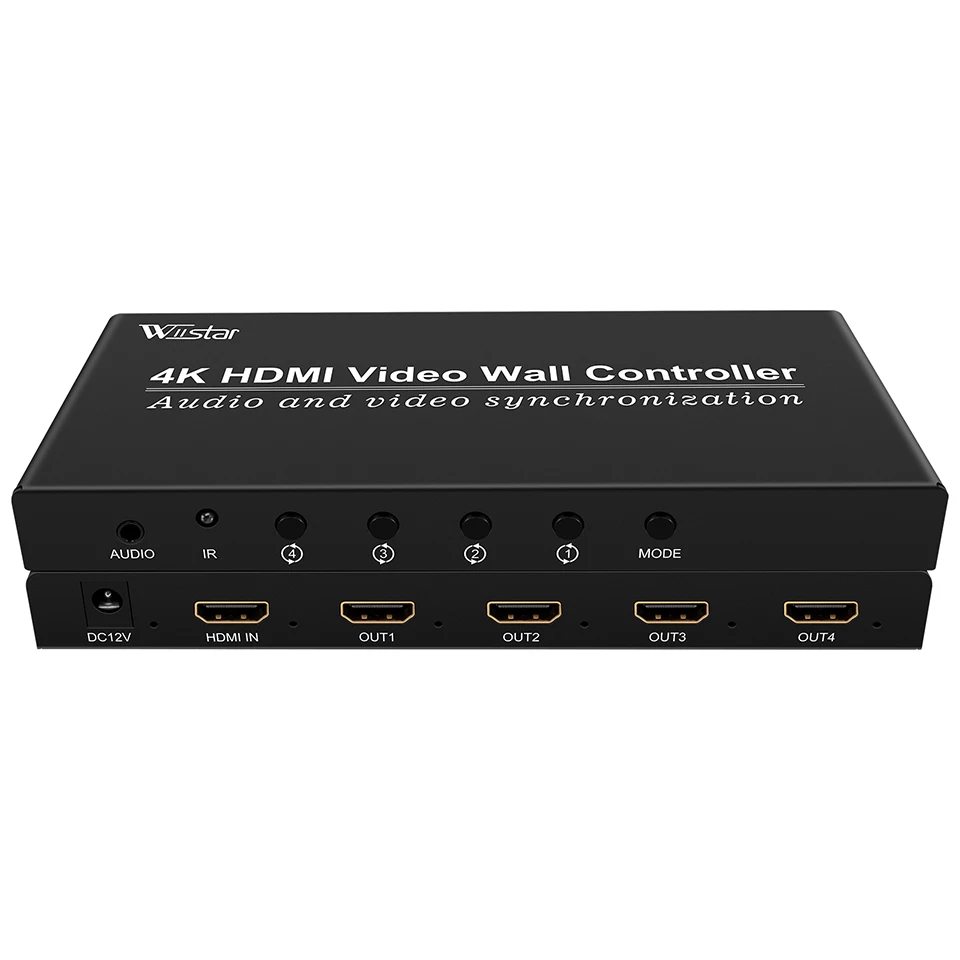

The Wiistar 2×2 HDMI Video Wall Controlle support 1-way HDMI input and 4 HDMI Output,the main function is to divide a complete HDMI HD image signal into 4 blocks and assign to 4 video display unit(such as Rear projection unit,LCD TV,etc), Complete with 4 HDMI hign-definition video display units to form a large dynamic image screen.

This 4K HDMI video wall controller is compliant with HDCP 1.4 and HDMI 1.4, HDMI input can support resolution can up to 4K@30Hz.

Meanwhile, this Video Wall Controlle comes with a 3.5mm stereo audio output, which can be connected to the external speaker, sound bar, etc.

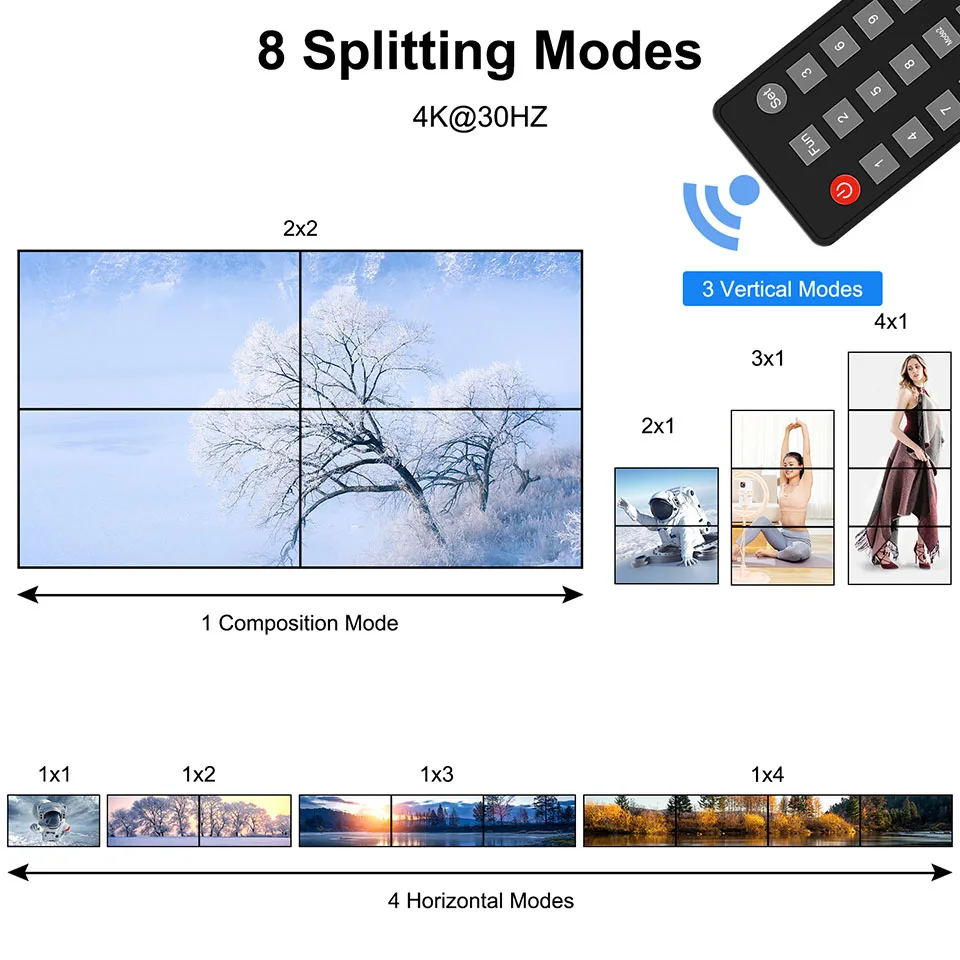

Support 8 Adjustable Display Modes

This 2×2 HDMI video image processor can connect up to 4 LCD TVs or other displays, which can support multiple display modes, such as 2×2, 1×1, 1×2, 1×3, 1×4, 4×1, 3×1, 2×1. It can easily switch the modes through the IR remote control or press the switch botton at the video wall controller.


with 3.5mm Stereo udio Out

It also has an individual 3.5mm stereo audio output port can connect to the external speaker, amplifier, sound bar etc.


Support 180°Screen Rotation & Edge Mask

With the rotation function, you can flip the image of HDMI output 1 & output 2 to 180 degree, which can adjust the screens in an orientation with the thinnest edges, reduce the thick middle border. And the edge mask function can correct and align the bezels and image edges, making the multiple screens more comfortable. NOTE: 180°rotation can work only in 2×2 mode, and the output resolutions NOT more than 1080P@60Hz.


Specifications:

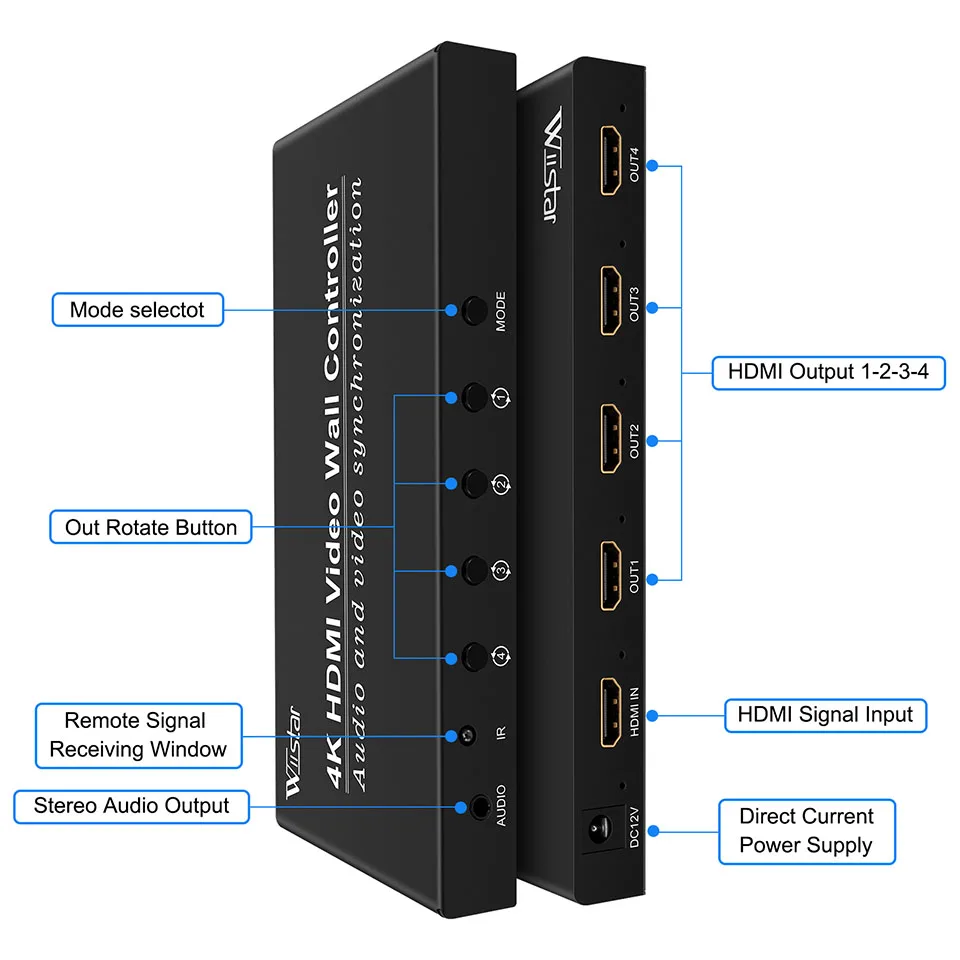

Type: 4K Video Wall Controller

Input port: 1 X HDMI

Output port: 4 X HDMI; 1 X 3.5mm audio

HDMI version: HDMI 1.4, HDCP 1.4

Input resolution: Max 4K30HZ

Input cable length: ≤8m AWG26 HDMI standard cable

Output cable length: ≤10M,AWG26 HDMI standard cable

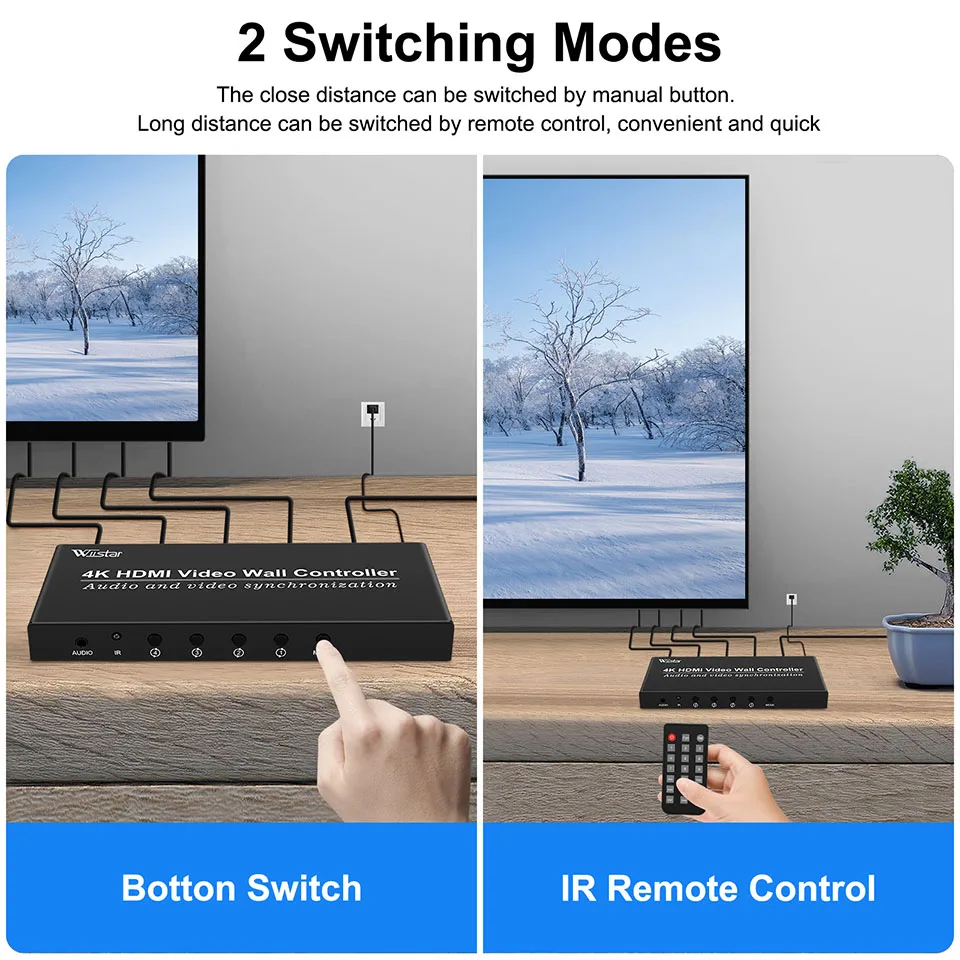

2 Sswitching methods: Switch button & Remote controller

HDMI Audio output: PCM2,5.1,Dolby 5.1, DTS5.1

Operating temperature range: -109C~+45°C

Power supply: 12V

Dimension: 180mm*79.5mm*20mm

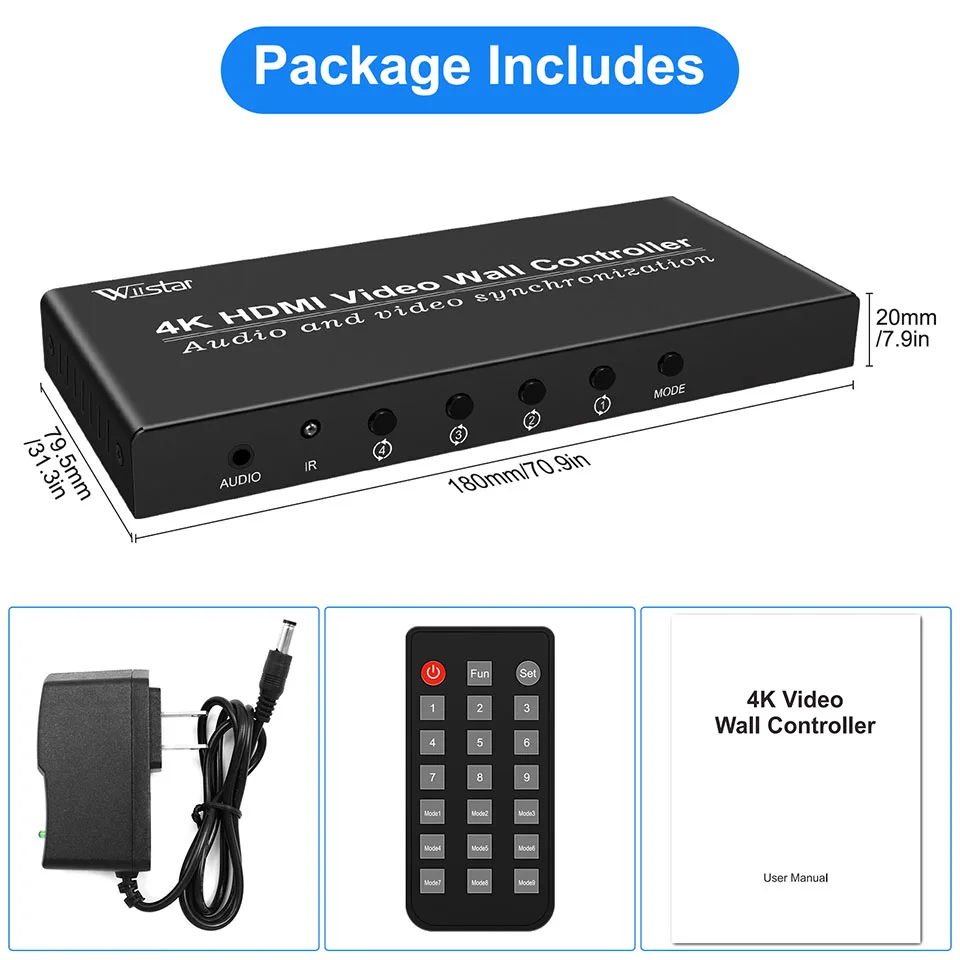

Package Lists:

HDMI video wall controller X1
Remote control X1 (no battery)
User manual X1
12V power adapter X1


Cable length

add 12V EU plug, add 12V UK plug, add 12V US plug

High-concerned chemical

None

Package

Yes

Model Number

P114_V10

Type

USB Adapter

Origin

Mainland China

Certification

CE
