Receiver sensitivity: > 97 dbm

Transmitting distance:> 100 m ( open space)

Decoding mode: MCU software decoding

Remote storage: 20

Support remote type: EV1527 learning code

Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )

Output terminal: NO , NC , COM

Dimension of PCB:35 x 30 x 18 mm (L,W,H)

Remote control battery: 2 x 3 V CR2016 button batteries

Note: Maximum input power is 250 V

Remote programming

-Clearing the code :

Push the learning button on the receiver 8 times , the codes will be reset.

After clearing the code, remotes will be need to be recalibrated

-Momentary mode

Please contact us for detailed use instructions

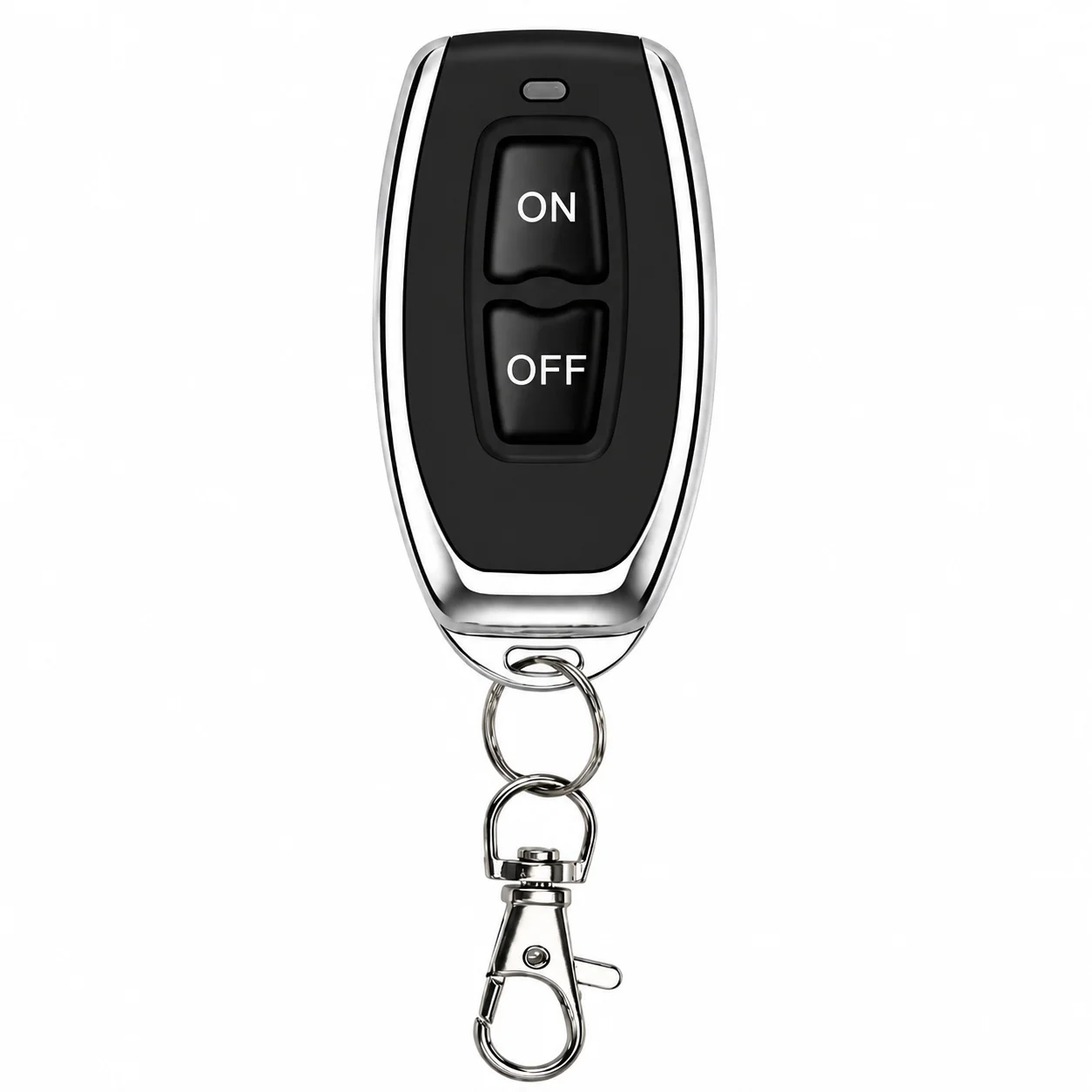

-Learning the code : ( Toggle – Press remote button to turn on, press again to turn off.)

Press the learning key on the receiver 2 times, Wait for a moment , the LED will be off , it comes into learning state .

-Push the learning key on the receiver 3 times , the LED (on the Receiver)will blink 3 times.

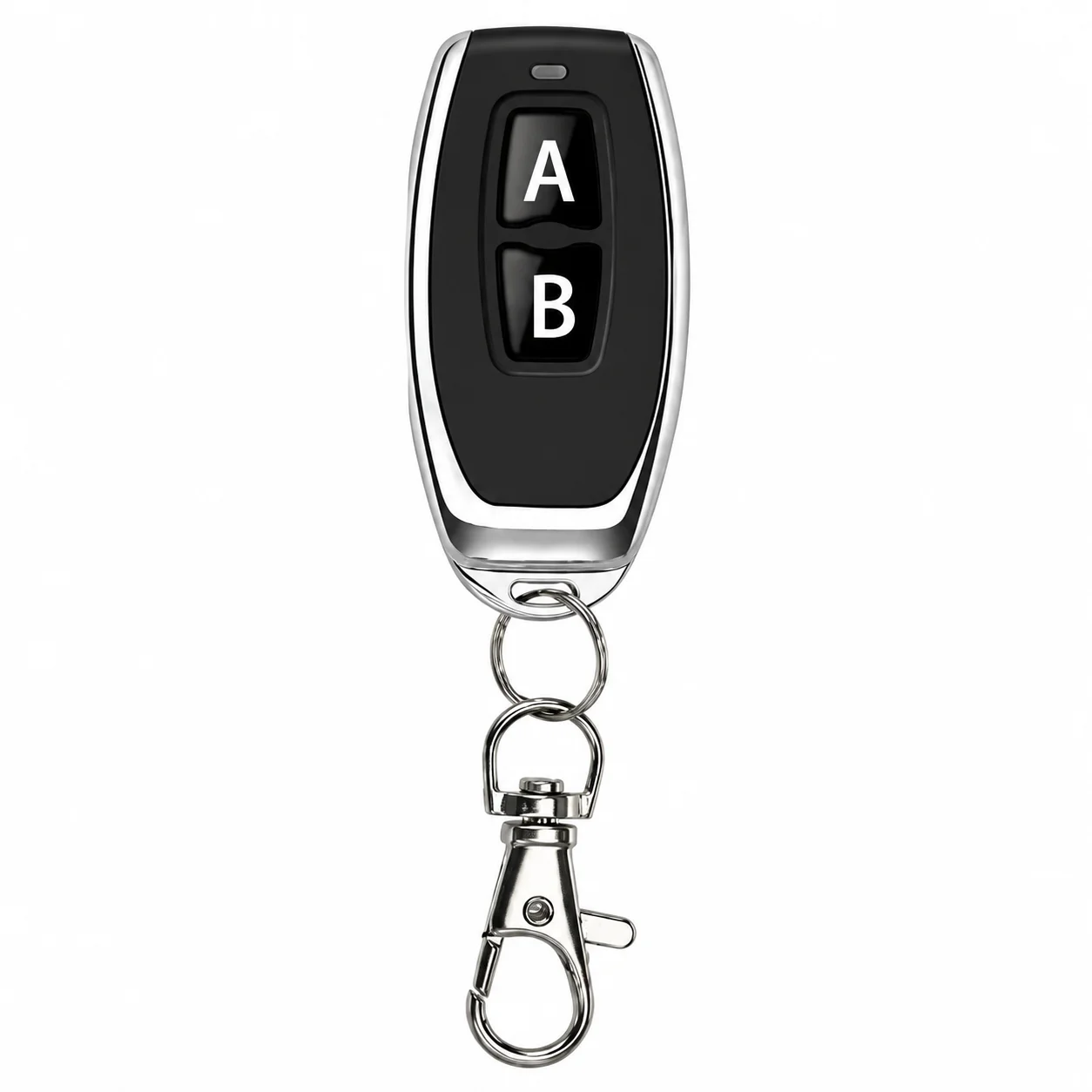

When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times .

Push the remote button B, Led flash for 3 times .

After 3 seconds , the LED indicator will be off , Learning to succeed.

Model Number: Wireless Remote Control Switch

Wireless Communication: RF

Frequency:433 MHz

Package included

1* RF 433 Mhz Remote Control (with battery)
