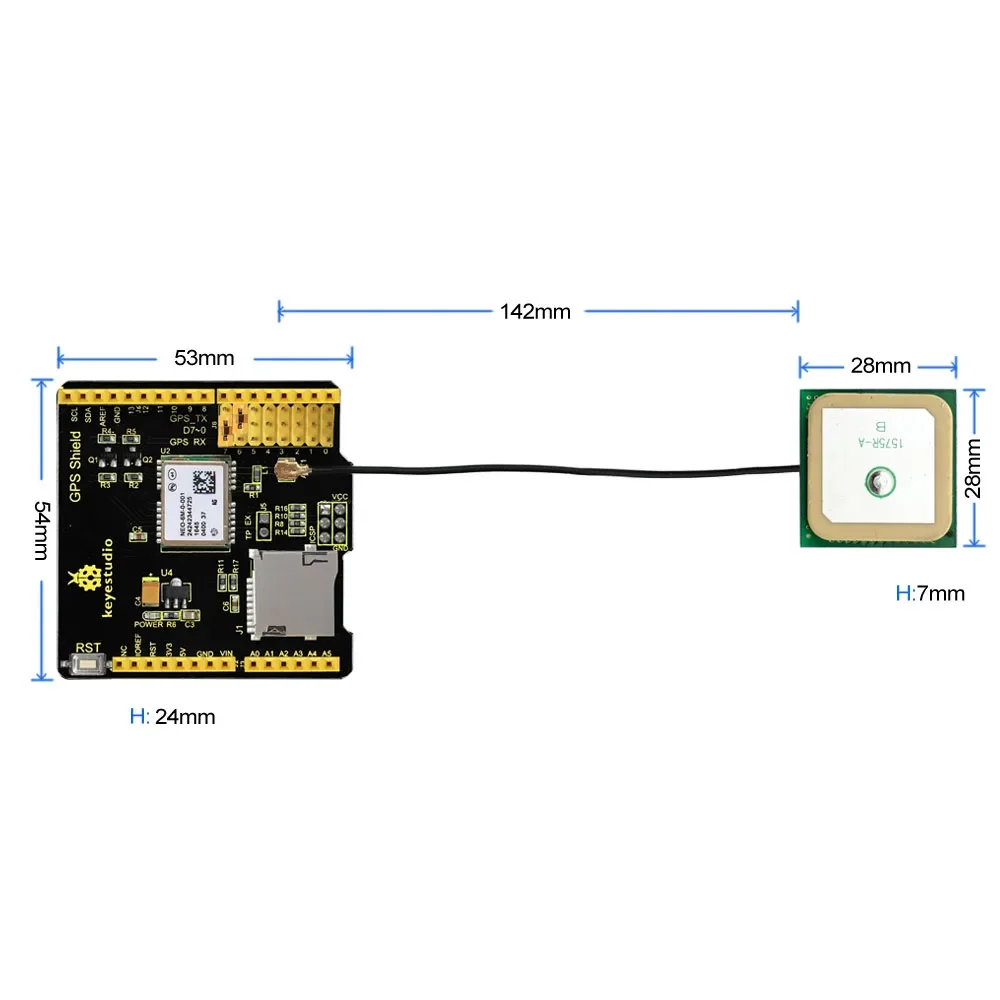

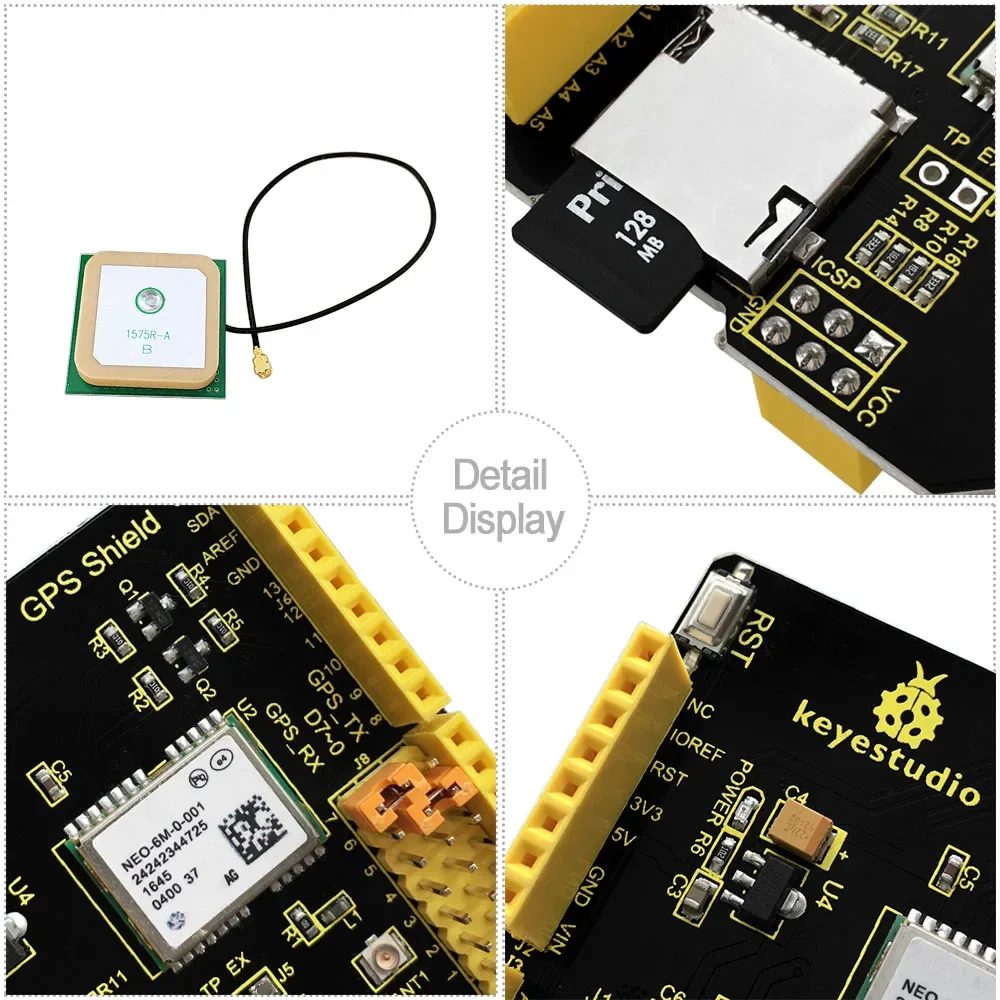

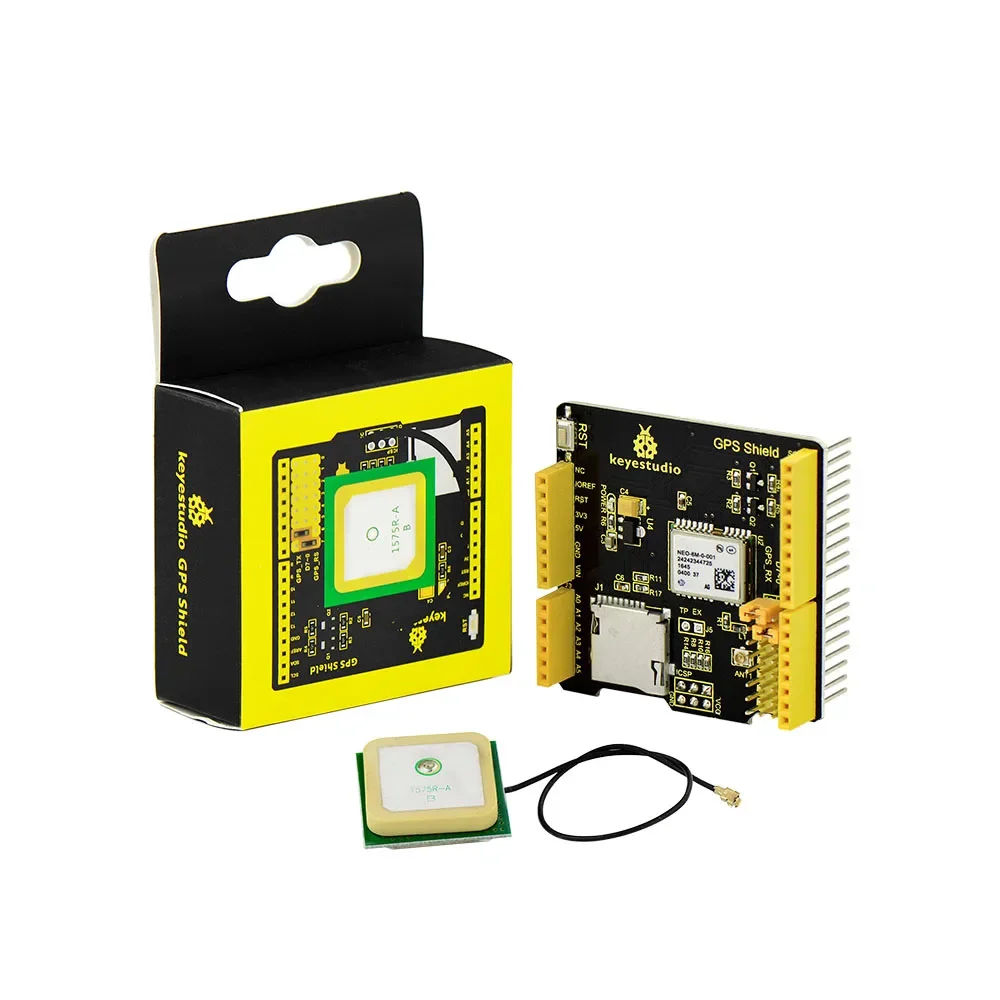

keyestudio GPS shield with SD slot +Antenna for Arduino UNO R3
حالة التوفر: متوفر في المخزون
مشاركة المنتج
- Package: Other
- is_customized: Yes
- Model Number: KS0253
- Supply Voltage: 5v
- Application: Computer
- Type: Logic ICs
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: 0-40
Introduction

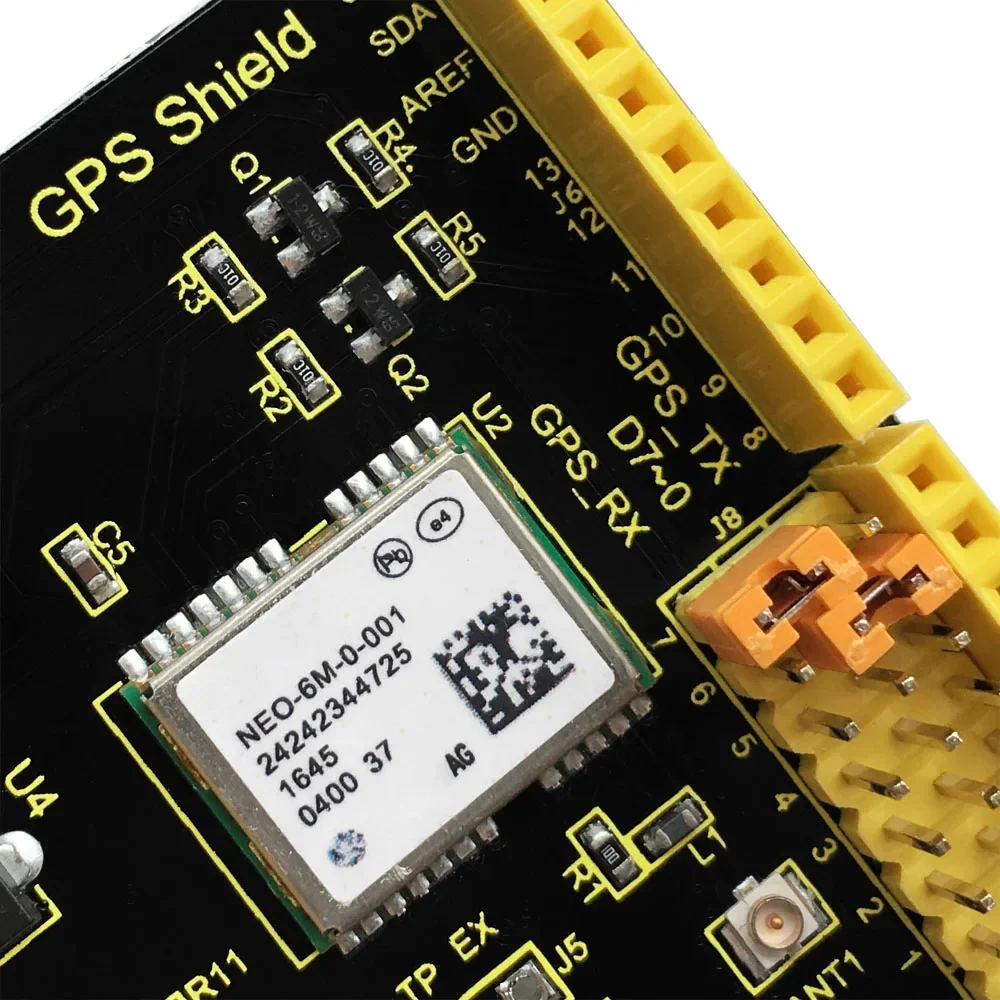

It is based on the NEO – 6 GPS module, and its pins are compatible with Arduino/MEGA board. Regular GPS pins (RX, TX) can be connected to Arduino D0-D7.
Several GPS receivers are easily installed on the expansion board and you can find your exact position within a few meters. At the same time, GPS also provides a very accurate time for you!
It is applied to automobile navigation, personal positioning, team management, navigation and so on.
Performance Parameters
1.Using a source GPS antenna;
2. connecting TxD and RxD to Ardino pins (D0-D8 optional) by jumping wire, and the default position for the jumper caps is as below:
D2 RX, D3 TX.

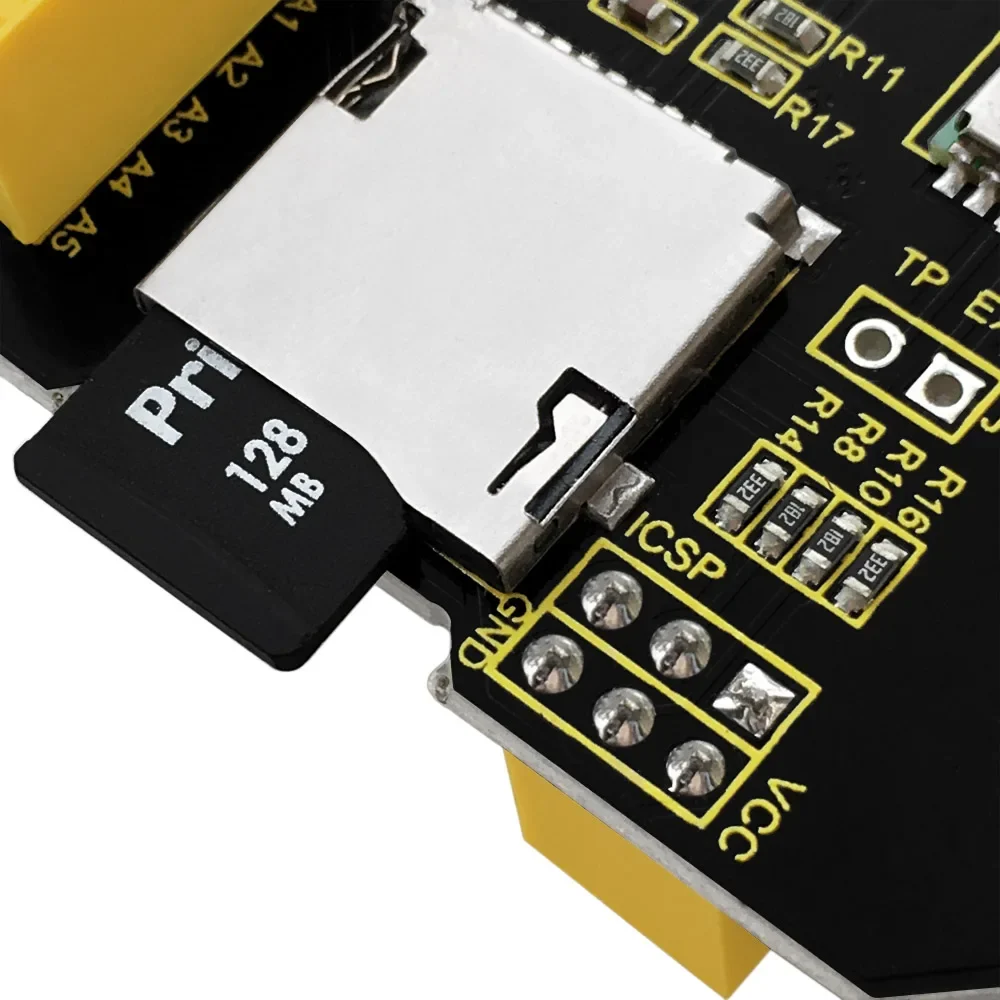

3. TF cassette, SPI interface, supporting Arduino library;

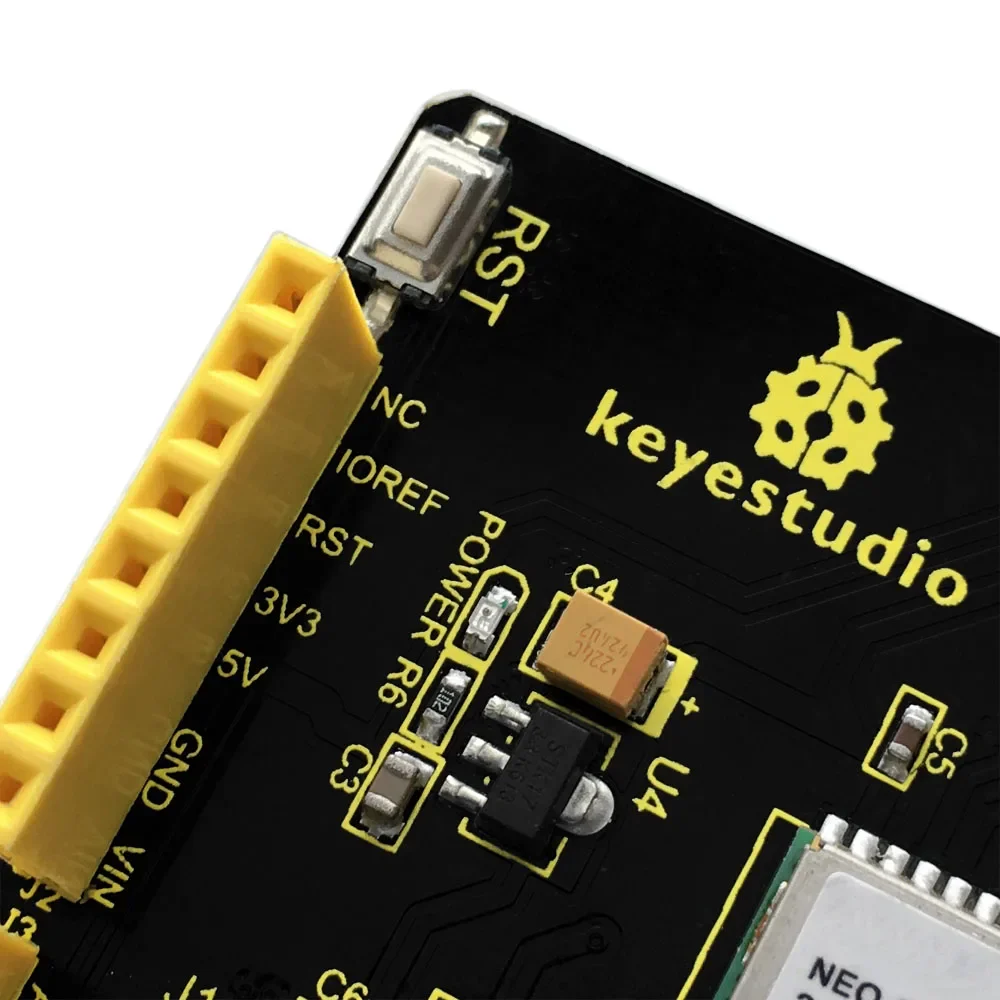

4. With reset button, supporting directly reset the Arduino baseplate.
