Keyestudio LM35 Linear Temperature Sensor Module for Arduino

الرئيسية

دخول

تتبع الطلب

معلومات المنتج
مواصفات المنتج

High-concerned chemical: None
is_customized: Yes
Theory: Resistance Sensor
Model Number: LM35
Material: Mixture
Type: Magnetic Sensor
Output: Analog Sensor
Brand Name: keyestudio
Origin: Mainland China
Use: Temperature Sensor

LM35 Linear Temperature Sensor is based on semiconductor LM35 temperature sensor. It can be used to detect ambient air temperature. This sensor offers a functional range among 0 degree Celsius to 100 degree Celsius. Sensitivity is 10mV per degree Celsius. The output voltage is proportional to the temperature.

This sensor is commonly used as a temperature measurement sensor. It includes thermocouples, platinum resistance, and thermal resistance and temperature semiconductor chips. The chip is commonly used in high temperature measurement thermocouples. Platinum resistance temperature sensor is used in the measurement of 800 degrees Celsius, while the thermal resistance and semiconductor temperature sensor is suitable for measuring the temperature of 100-200 degrees or below, in which the application of a simple semiconductor temperature sensor is good in linearity and high in sensitivity. The LM35 linear temperature sensor and sensor-specific Arduino shield can be easily combined.

Specification

Based on the semiconductor LM35 temperature sensor
Can be used to detect ambient air temperature
Sensitivity: 10mV per degree Celcius
Functional range: 0 degree Celsius to 100 degree Celsius

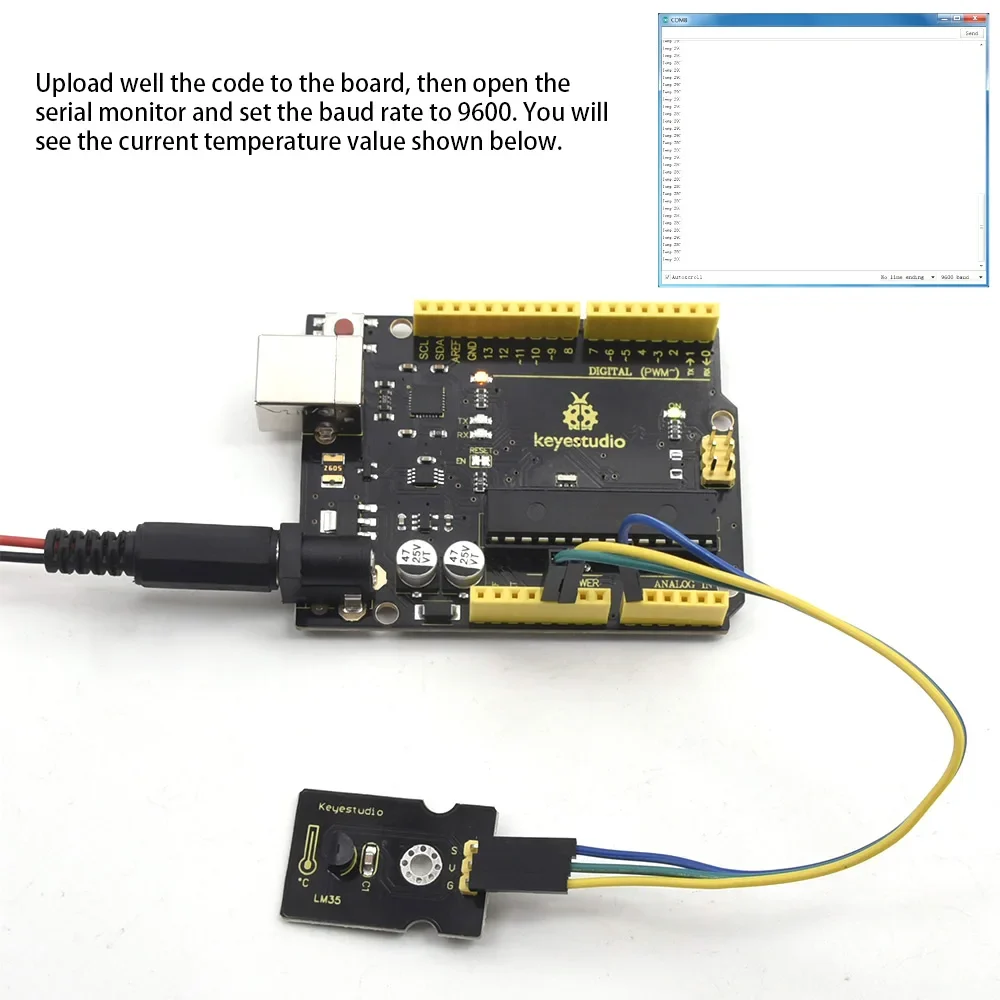

Sample code:

void setup()

{

Serial.begin(9600);//Set Baud Rate to 9600 bps

}

void loop()

{ int val;

int dat;

val=analogRead(0);//Connect LM35 on Analog 0

dat=(500 * val) /1024;;

Serial.print(“Temp:”); //Display the temperature on Serial monitor

Serial.print(dat);

Serial.println(“C”);

delay(500);

}
