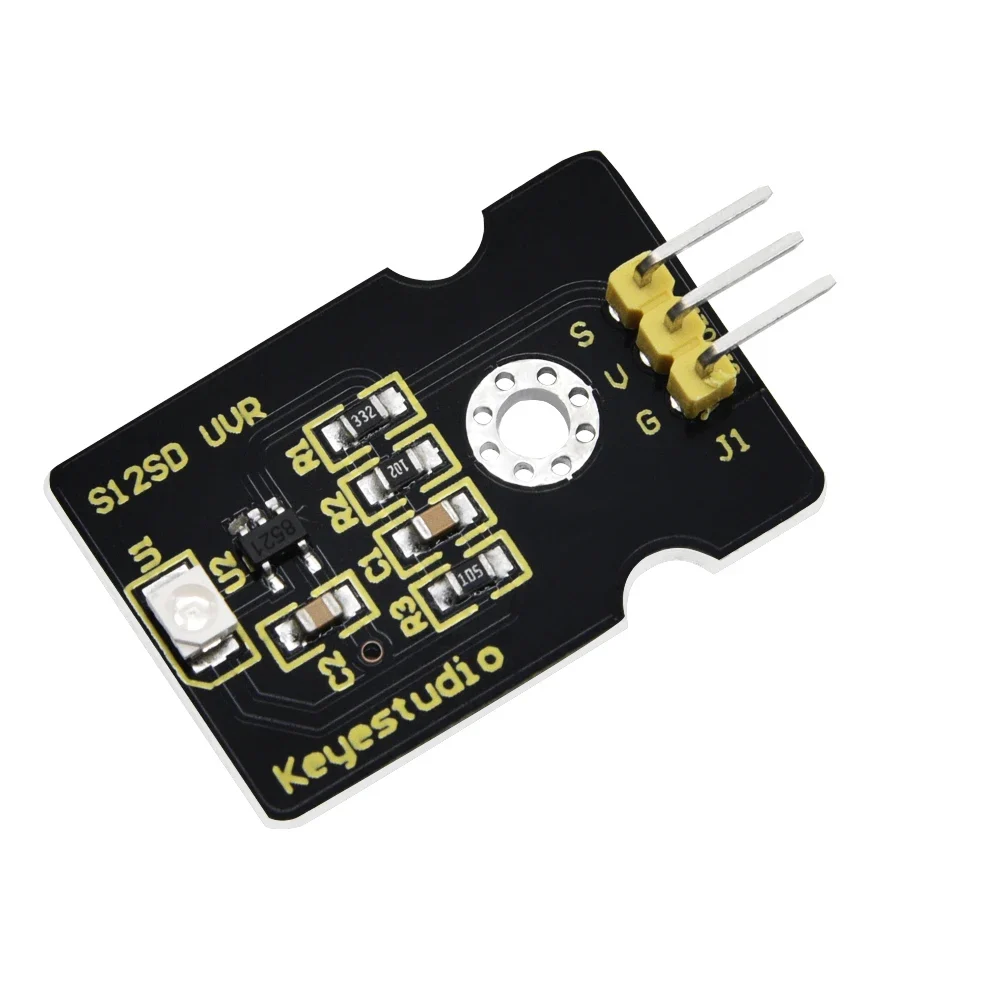

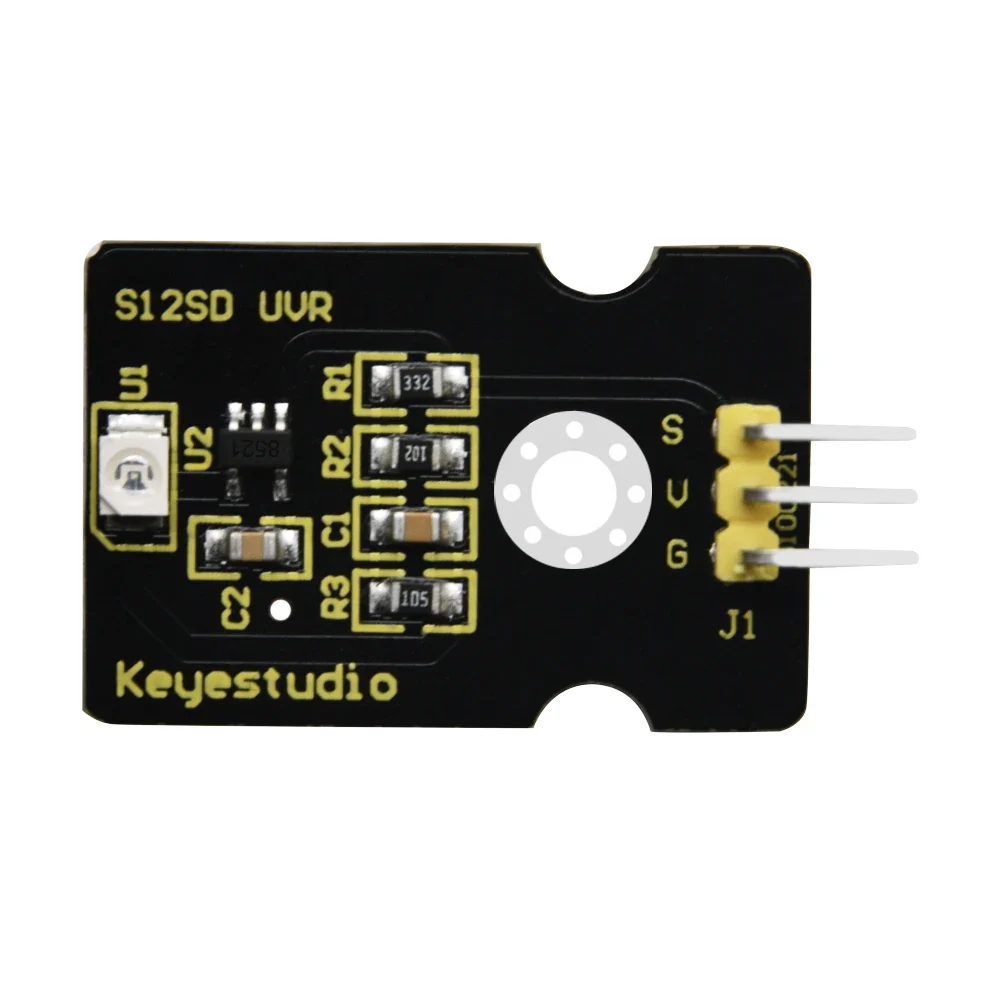

Keyestudio UV Sensor 240-370nm GUVA-S12SD 3528 Solar Ultraviolet Intensity Module DC 2.5-5V For Arduino /Raspberry pi UV Sensor
القسم: ألعاب أطفال, روبوتات الأطفال
حالة التوفر: متوفر في المخزون
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- Package: SMD
- is_customized: Yes
- Model Number: GUVA-S12SD 3528
- Supply Voltage: 2.5V- 5V
- Application: Ultraviolet
- Type: Drive IC
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: 0-40
- Responsivity: 0.14A/W
- Active Region: 0.076mm2
- Dark Current: 1nA
- Light Current: 101~125nA UVA Light,1mW/cm2
- Product number: KS0204
keyestudio GUVA-S12SD 3528 Ultraviolet Sensor is used to detect ultraviolet light. It includes GUVA-S12SD, applied to measure ultraviolet index of intelligent wearable device, such as watches,smart phone and outdoor device with UV index detecting. It still is used to monitor the intensity of ultraviolet light and as a UV flame detector when disinfecting things by ultraviolet light.
Performance Parameters

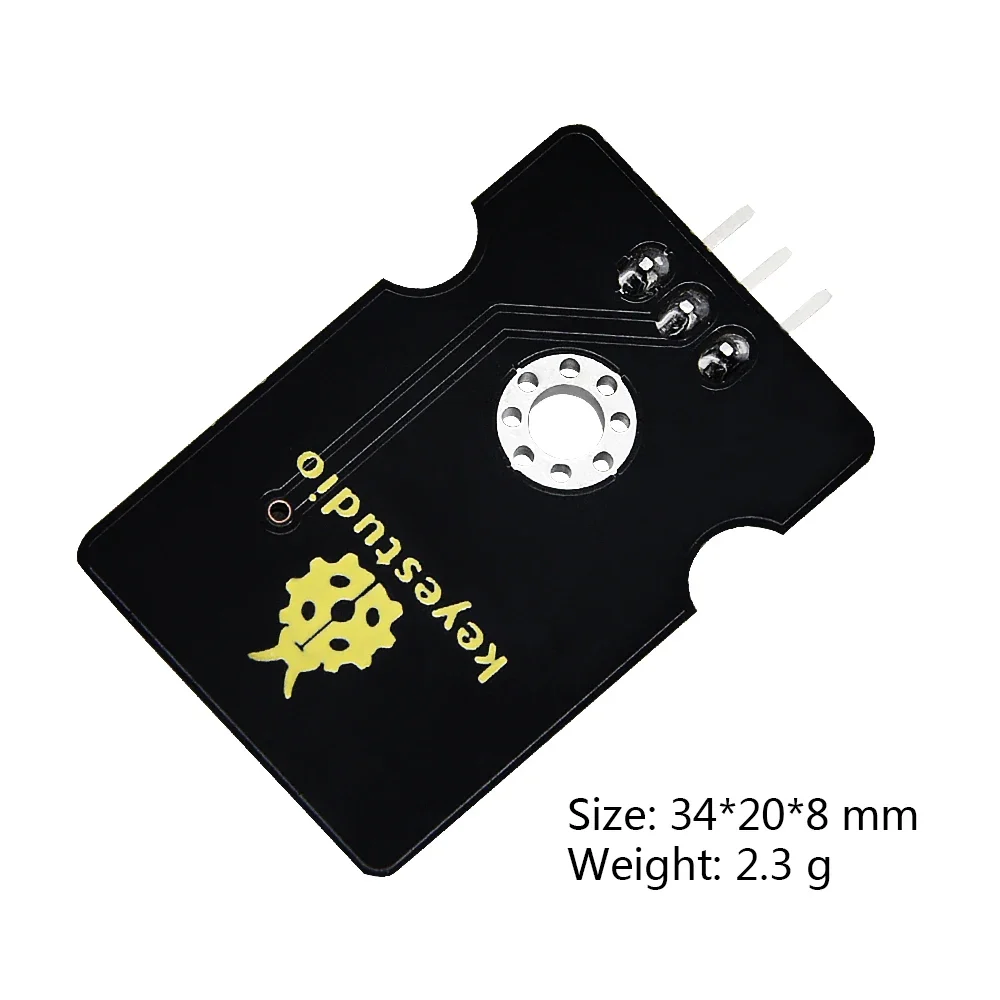

Size:15mm×30mm×0.7mm
Supply Voltage:2.5V～5V
Output Signal:Analog Signal
Parameters of GUVA-S12SD
Detecting Range of Spectrum:240-370nm
Active Region：0.076mm2
Responsivity:0.14A/W
Dark Current::1nA
Light Current:101~125nA UVA Light,1mW/cm2
