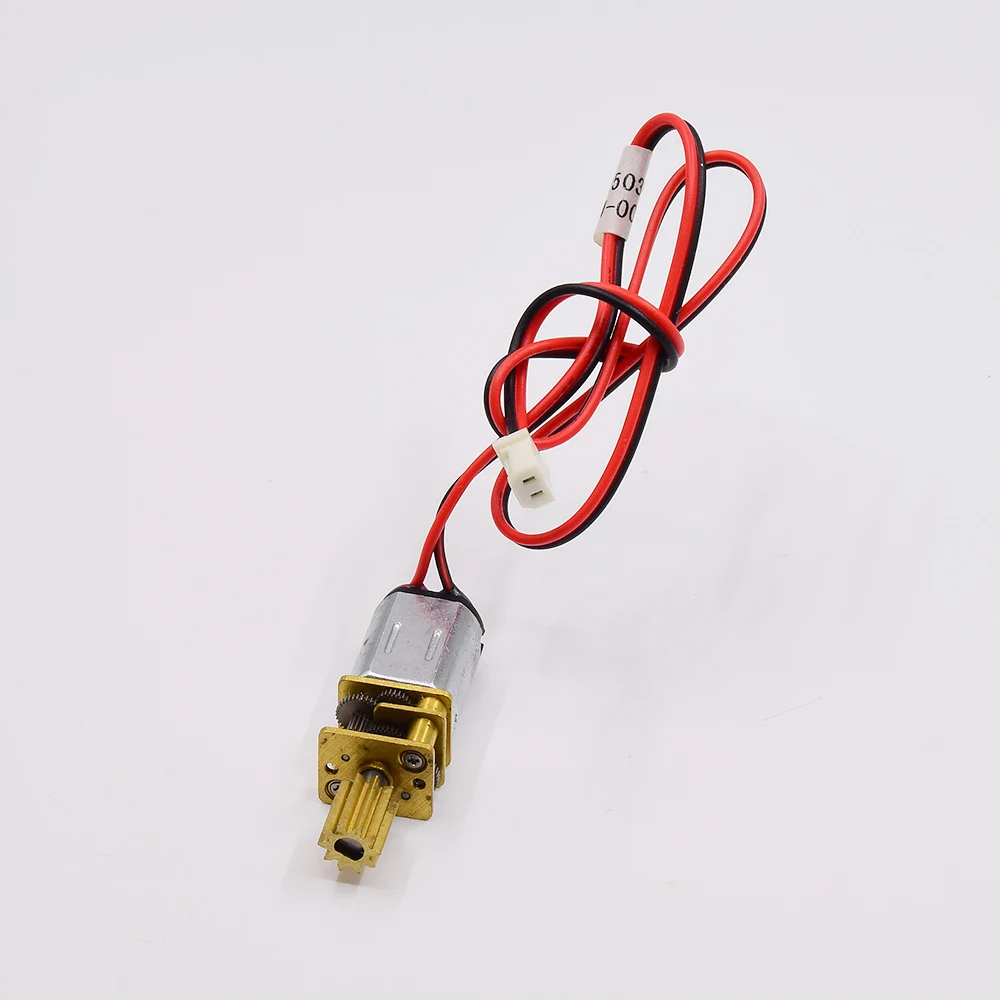

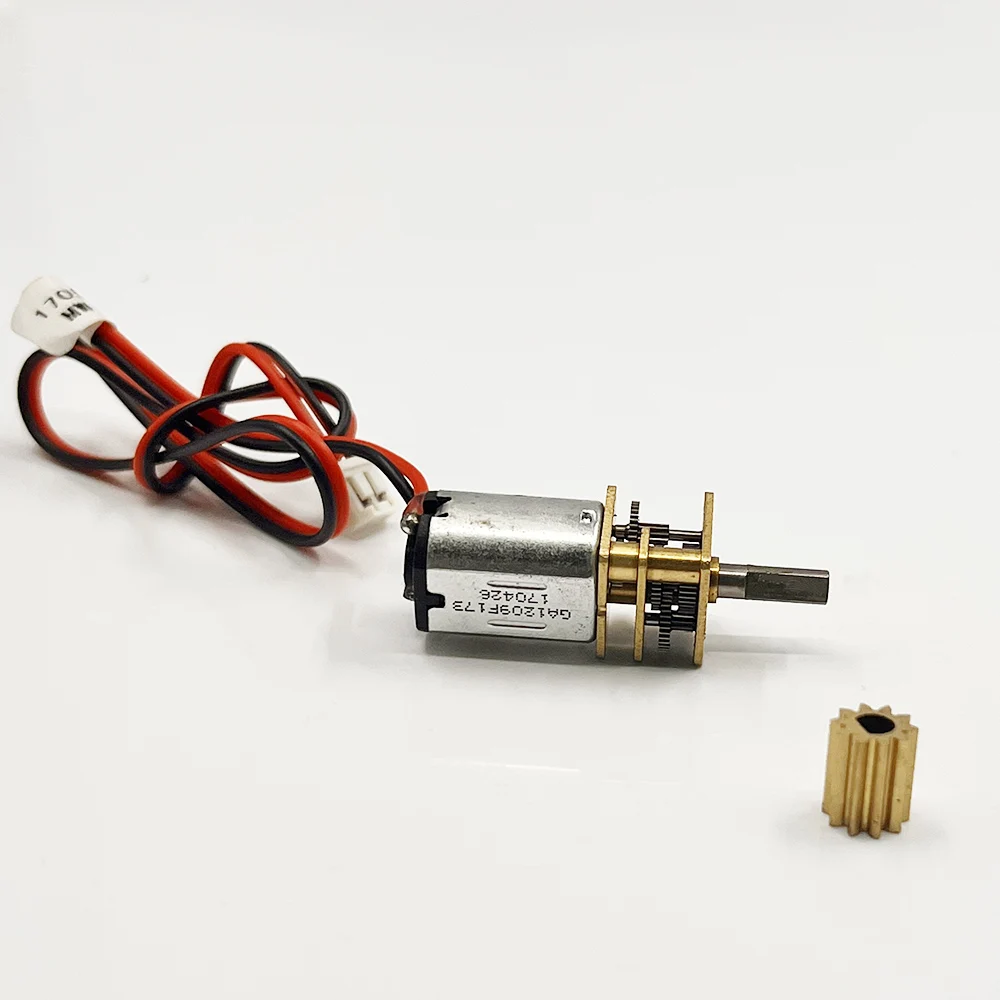

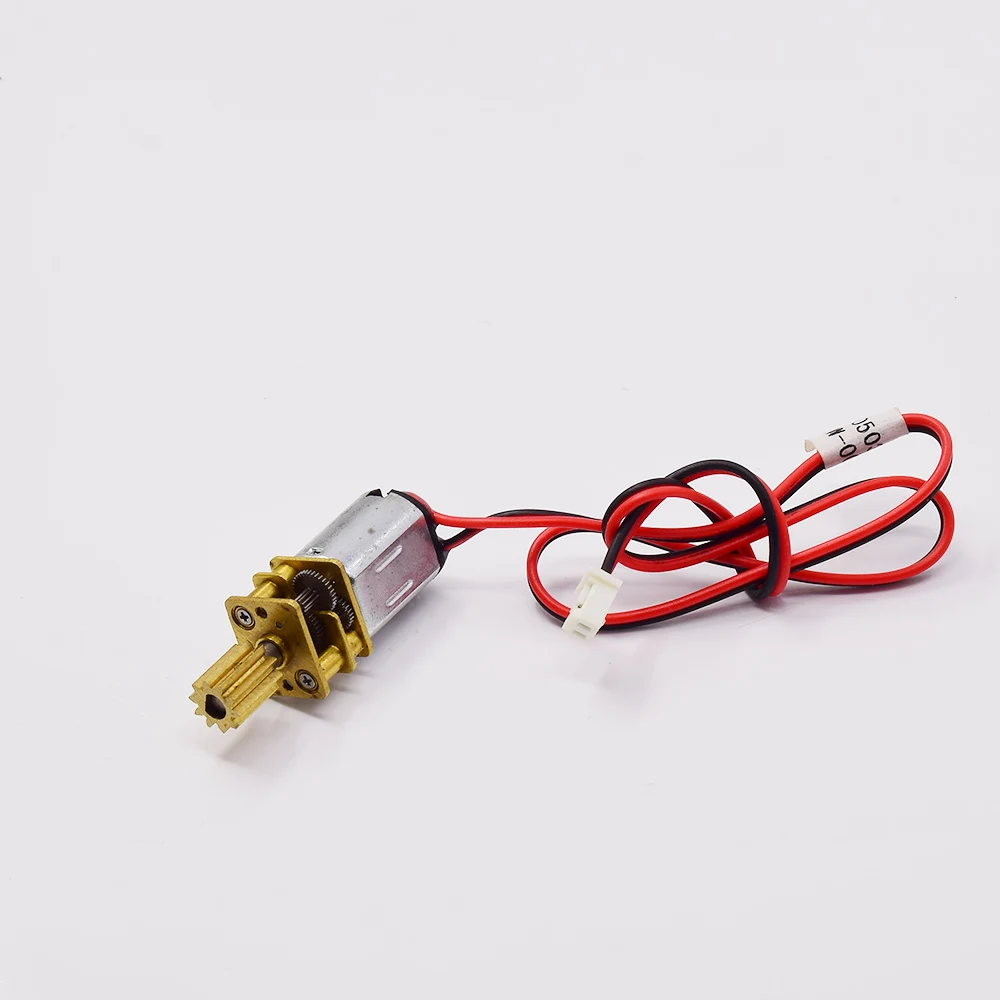

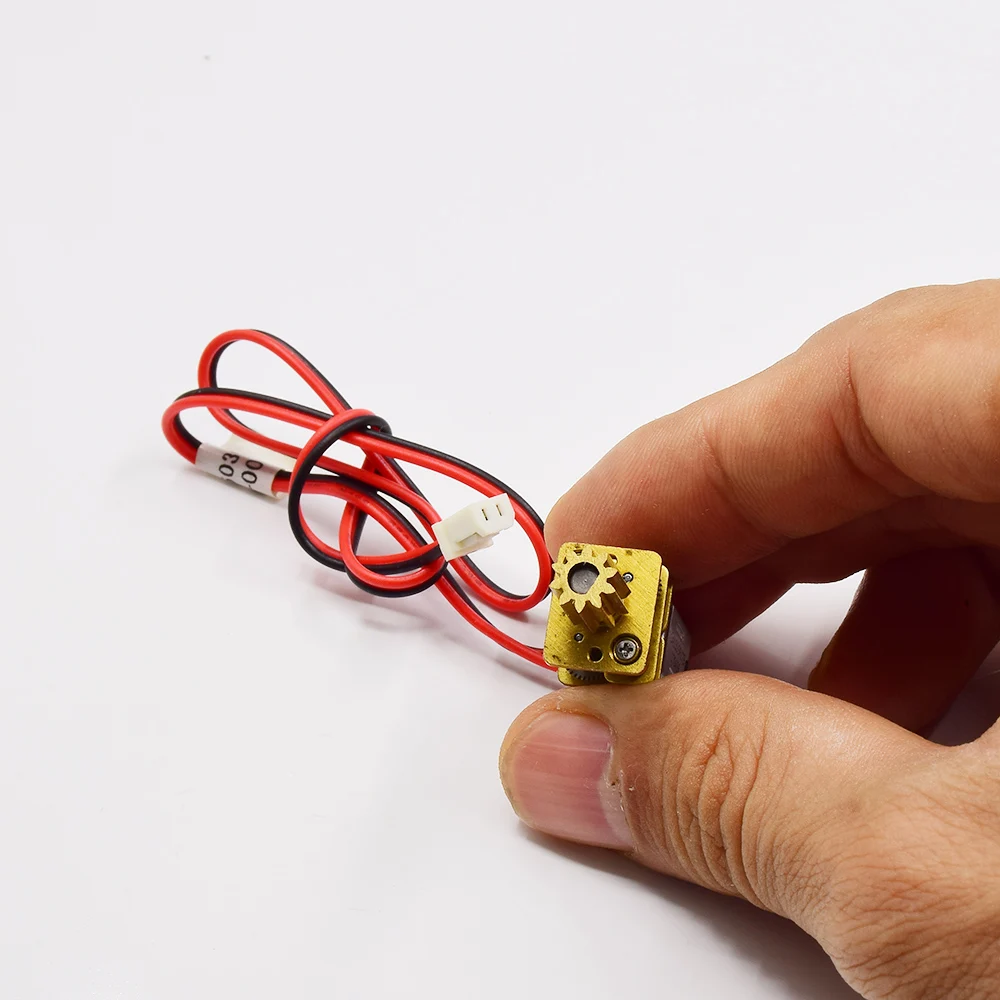

Mini N20 Gear Motor DC 3V-6V 5V 40RPM Slow Speed D-shaft Micro Metal Geared Motor Output 10 Teeth Gear DIY Robot Smart Car Lock
القسم: غير مصنف
31 ر.ق
حالة التوفر: متوفر في المخزون
273 متبقي
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- Shaft Diameter: 3mm(D shaft 2.5mm)
- Brand Name: NONE
- Model Number: GA12-N20 Motor
- Use: Home Appliance
- Continuous Current(A): not clear
- High-concerned chemical: None
- Protect Feature: Totally Enclosed
- Commutation: Brush
- Efficiency: IE 2
- Construction: Permanent Magnet
- Origin: Mainland China
- Certification: ce, ROHS
- Type: Gear Motor
- Torque: No clear
- Output Power: ＜18.65
- Output Voltage: not clear
- Choice: yes
- semi_Choice: yes
Specification:

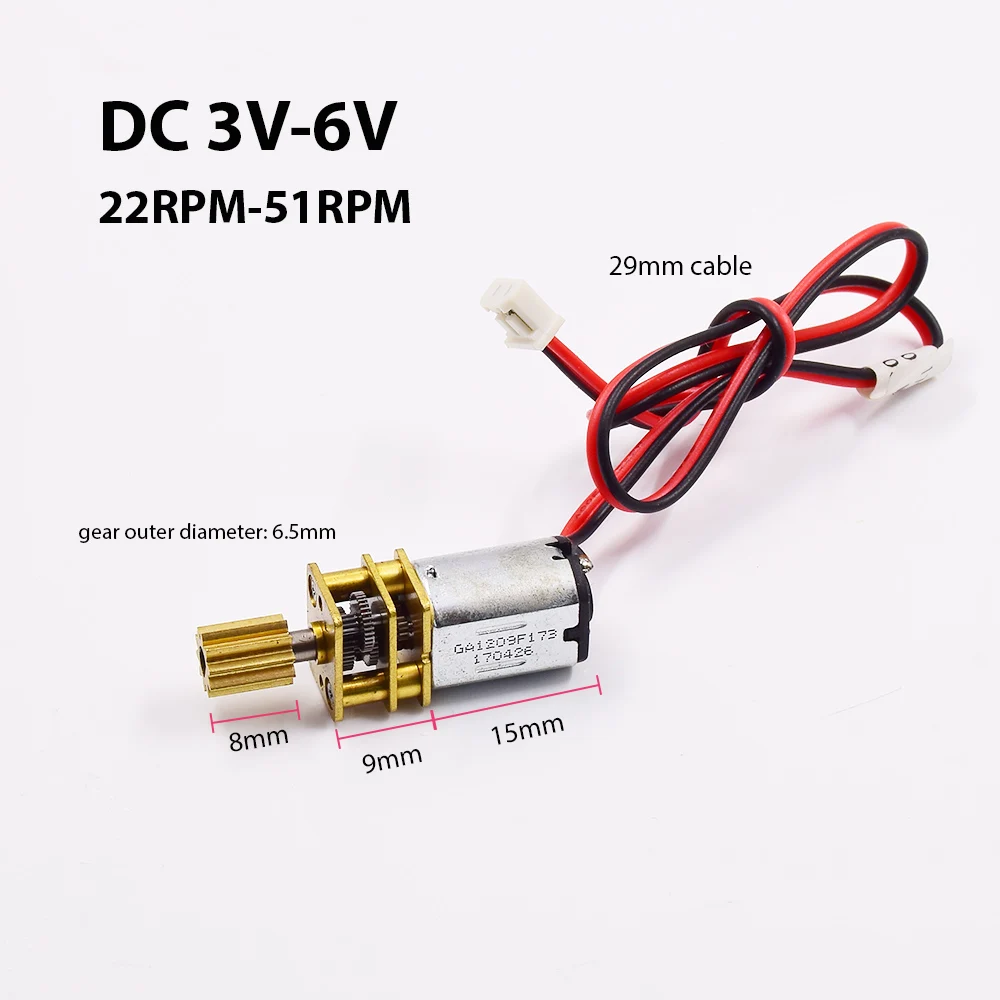

1.Motor size: 10*12*15mm(N20 motor)
2.Gearbox size: 10*12*9mm
3.Output shaft diameter: 3mm(D shaft 2.5mm)
4.Output shaft length: 10mm (with gear 11.2mm)
5.Weight: 10g
6.Voltage range: DC 3V-6V
7.Test data:
Voltage:3.0V Current:71mA Speed:22RPM
Voltage:5.0V Current:71mA Speed:40RPM
Voltage:6.0V Current:83mA Speed:51RPM
Package Include:
Gear Motor x 1pc
