New for DC 12V High Output Air Ionizer Airborne Negative Anion Generator DIY

Description:
Working Principle:
By using pulses and vibration of electric appliances, rise low to for DC high negative pressure. Making use of for DC of carbon brush tip to produce high emitting large amounts of electronic at a high speed. Electronics can not remain in the air for a long for time, therefore,after reacting with molecules in the air , negative ions will form.

Features:

brand new and high quality
Can increase the content of the room,for play the role of for fresh air.
Can eliminate secondhand smoke from the air, pollen, dust
Has the function of for health care: Improve sleep, promote the new supersedes the old, the body, and so did the human immune functions.

Specification:
Type: Double-headed with bracket
PK-D12F
Power Supply: Car Power
Applicable Area: 11㎡-20㎡
Air Purifier Volume: 50m⊃3
Input DC12V

Output DC-3.5KV1.0KV
Negative concentration: ≧4x106PCS/cm⊃3;(Test at 100mm)
Insulation resistance: ≥40MΩ(500V for
Dielectric Strength: AC3000V 50Hz 5mA
Rated Power: ≤1W
Input Current: ≤20mA
Concentration: ＜0.05PPM
Working Temperature: -10℃~50℃
Working Humidity: 35%~85%
Storage Temperature: -20℃~50℃
I/P: D12V Red:+ Black:-
O/P: -DV2.0~6.0KV
Material: ABS+Silicone Line

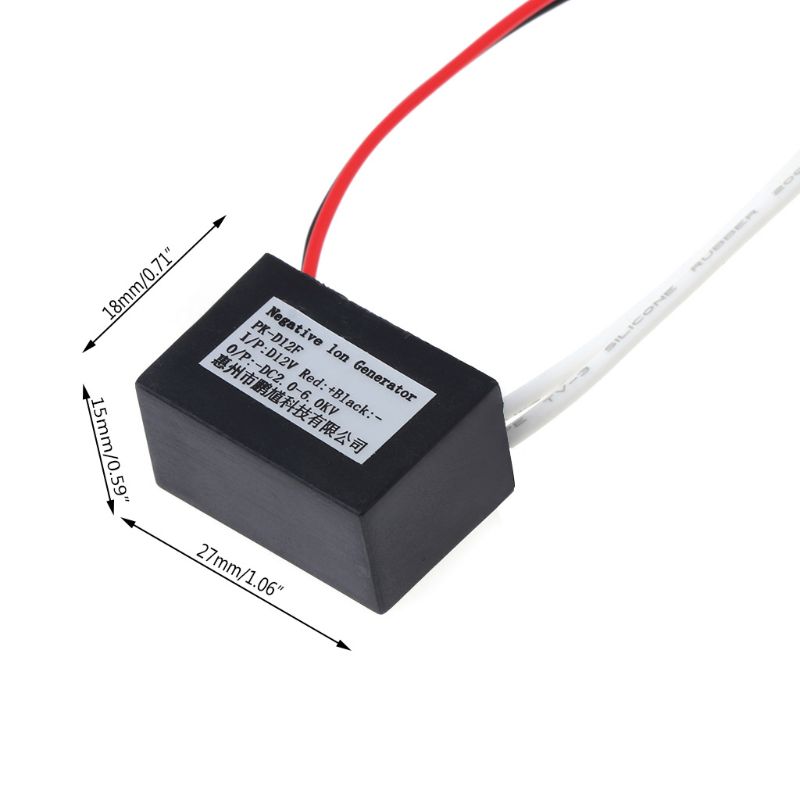

Dimensions: 27x15x18mm/1.06×0.59×0.71’’(approx)
Color: Black
Quantity: 1 pc

Note:

1cm=10mm=0.39inch
No retail package.
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:

1 Negative Generator(other accessories in the picture is not included.)
