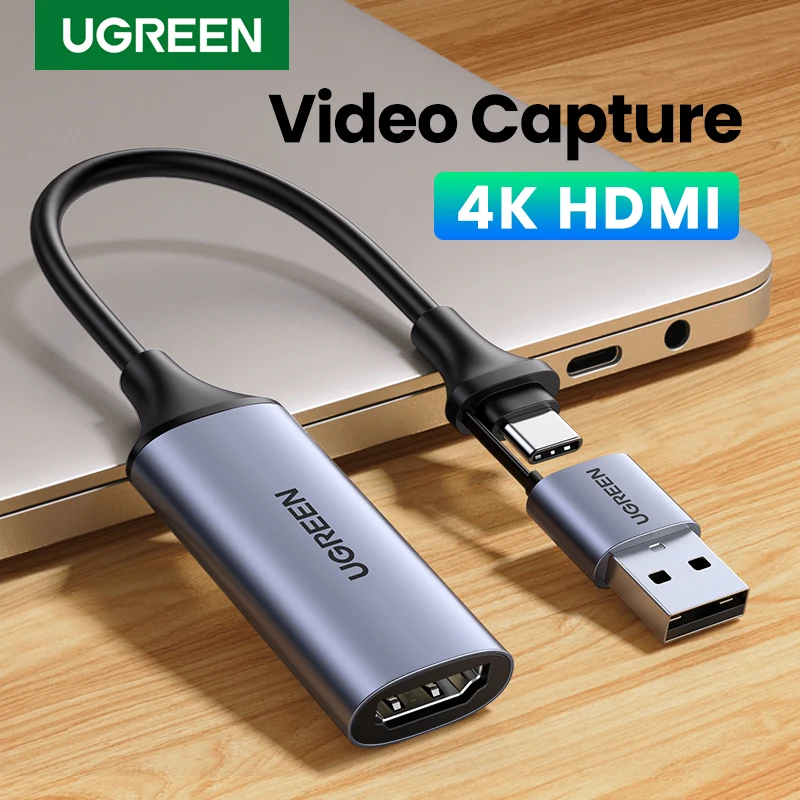

Video Capture Card

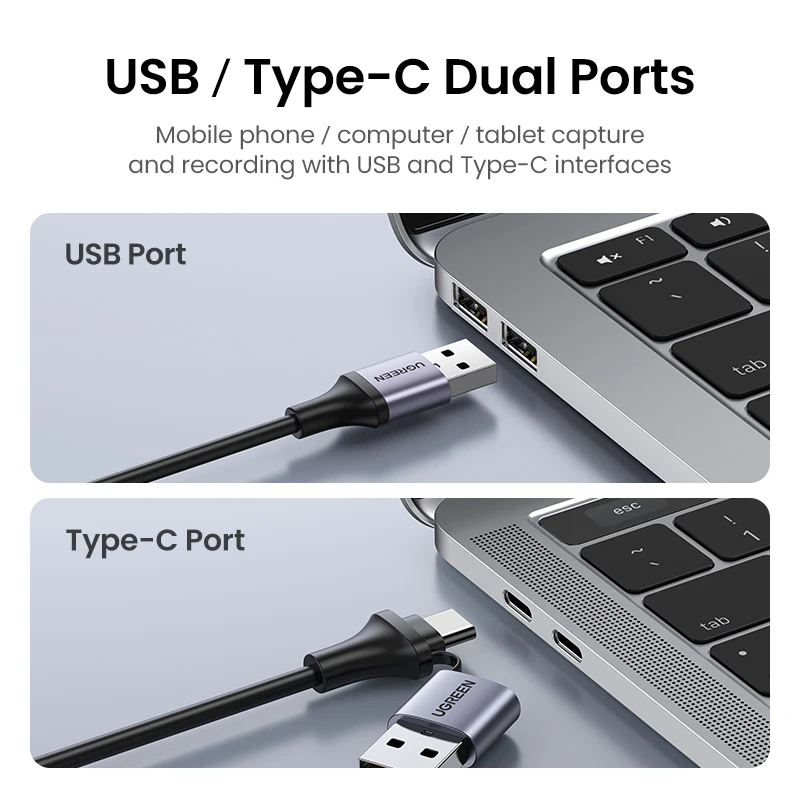

Dual Ports: USB / Type-C

USB/ Type-C Dual Ports

Mobile phone / computer / tablet capture
and recording with USB and Type-C interfaces

1080P Full HD Display

Support 4K/60Hz HD input ,
1080P/30Hz capture and recording

Use at Live Streaming

Capture real-time HD live images , increase interaction

Use at Online Course

Real-time recording and collection of important meetings 1 online courses for easy review

Portable & Durable

Take it anywhere, use it anytime

Aluminum-alloy shell, make sure a longer use life

Smart Chip

 data transmission rate 480Mbps & high-speed decoding

low latency and no caton

Plug & Play

Driver-Free, no external power supply

Support System: Window8.1/10 , Mac OS，Linus，Android

Support Record App: OBS，Potplayer, QuickTime , XSPlit…

Recording Software

Operating Instructions

1. Click “+” in the lower left corner of “Sources”

2. Click “Video Capture Device”

3. Create a new Video Capture Device

4. Select “USB Video / USB3.0 Capture” in Device, check “Use custom audio device” at the bottom, and other parameters are the same as those in the picture

5. Click the Settings button in “Desktop Audio” and then click “Advanced Audio Properties”

6. “Video Capture Device” and “Desktop Audio” all select “Monitor and Output”, after these operations can be used

Product Specifications

Package Display

Important Note

1. It does not support IOS mobile phones or tablets, because there is no corresponding acquisition software.

2. When the computer prompts “The video format is abnormal, please press the reset button”, you need to poke the reset hole on the product with a hard object, and the screen will display normally.

3. The item supports the use of multiple devices on the same computer simultaneously, but the smoothness depends on the computer’s performance, and there may be a carton.

4. Why can’t the capture card software capture the picture and display color bars?

Follow the steps below to exclude:

1) Check the abnormality of the signal source end and try to directly connect the signal source and display device without using this item.

2) Turn on the computer’s camera function and select the device with the name ‘ USB Video ‘ when adding a camera. If it can be displayed normally, it means that this product is normal.

3) Check whether the acquisition software settings are normal, and reopen the software to try.

4) Please use popular software such as OBS and Potplayer to see if it is normal and check the software compatibility.
