20kg Digital Load Cell Weight Sensor HX711 Module Weight Sensor Module IDY Kit Electronic Kitchen Scale for Arduino Raspberry Pi
القسم: غير مصنف
49 ر.ق
حالة التوفر: المتوفر في المخزون 2 فقط
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- Brand Name: wishiot
- High-concerned chemical: None
- Origin: Mainland China
- Choice: yes
Product Description
Description:

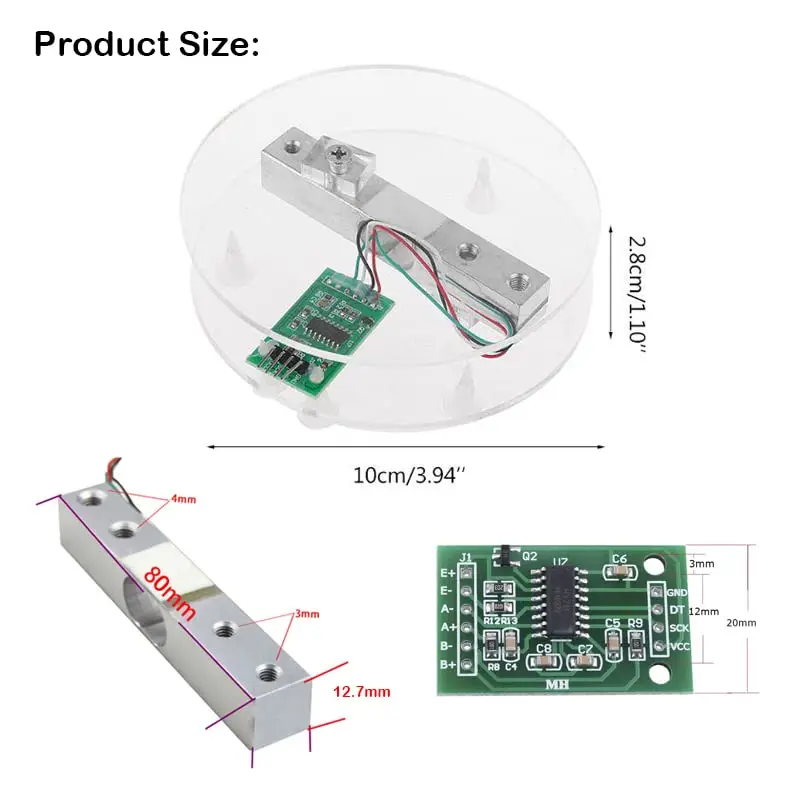

Bracket Diameter: 10cm(Tray Diameter)
Operation Voltage: 3.3V–5V(recommended 5V)
Maximum Measures Force: 20KG
Appearance Height: 3.5cm(include Pillar)
AD Module: HX711(24 bit high precision A/D converter chip hx711)
Post-calibration Accuracy: Within 1g
Operation Current: 1.5mA

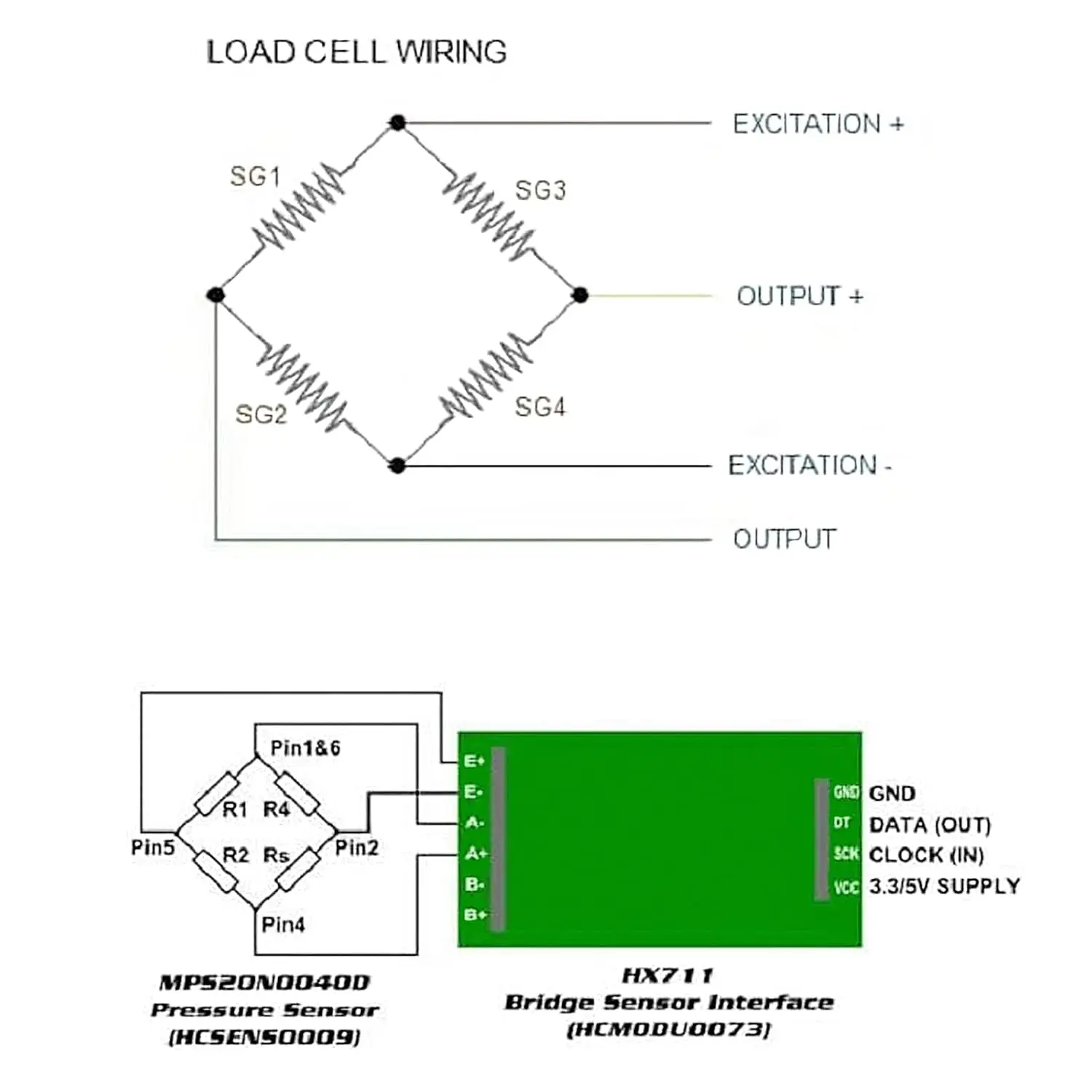

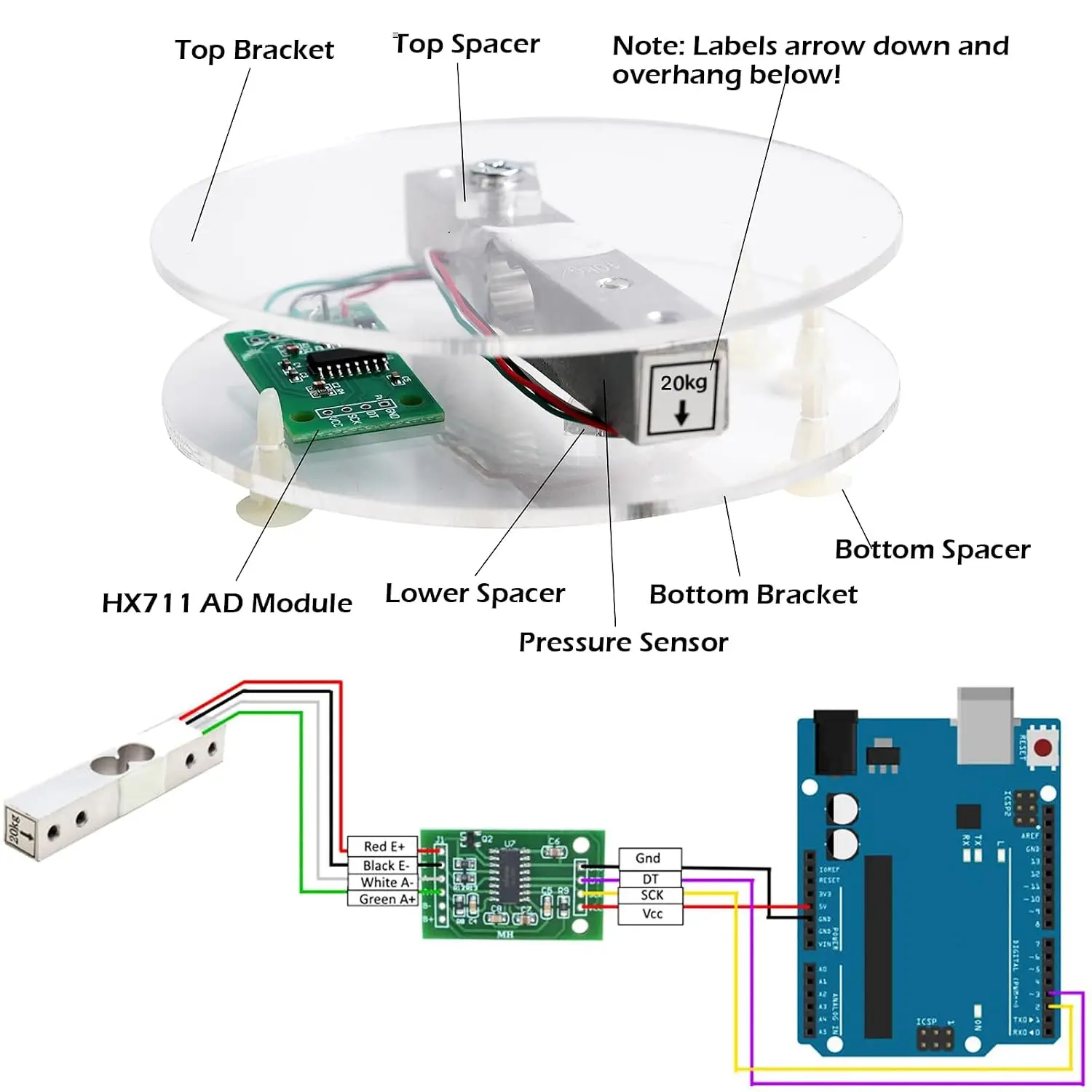

Connection:
Red to E+
Black to E-
Green to A+
White to A-

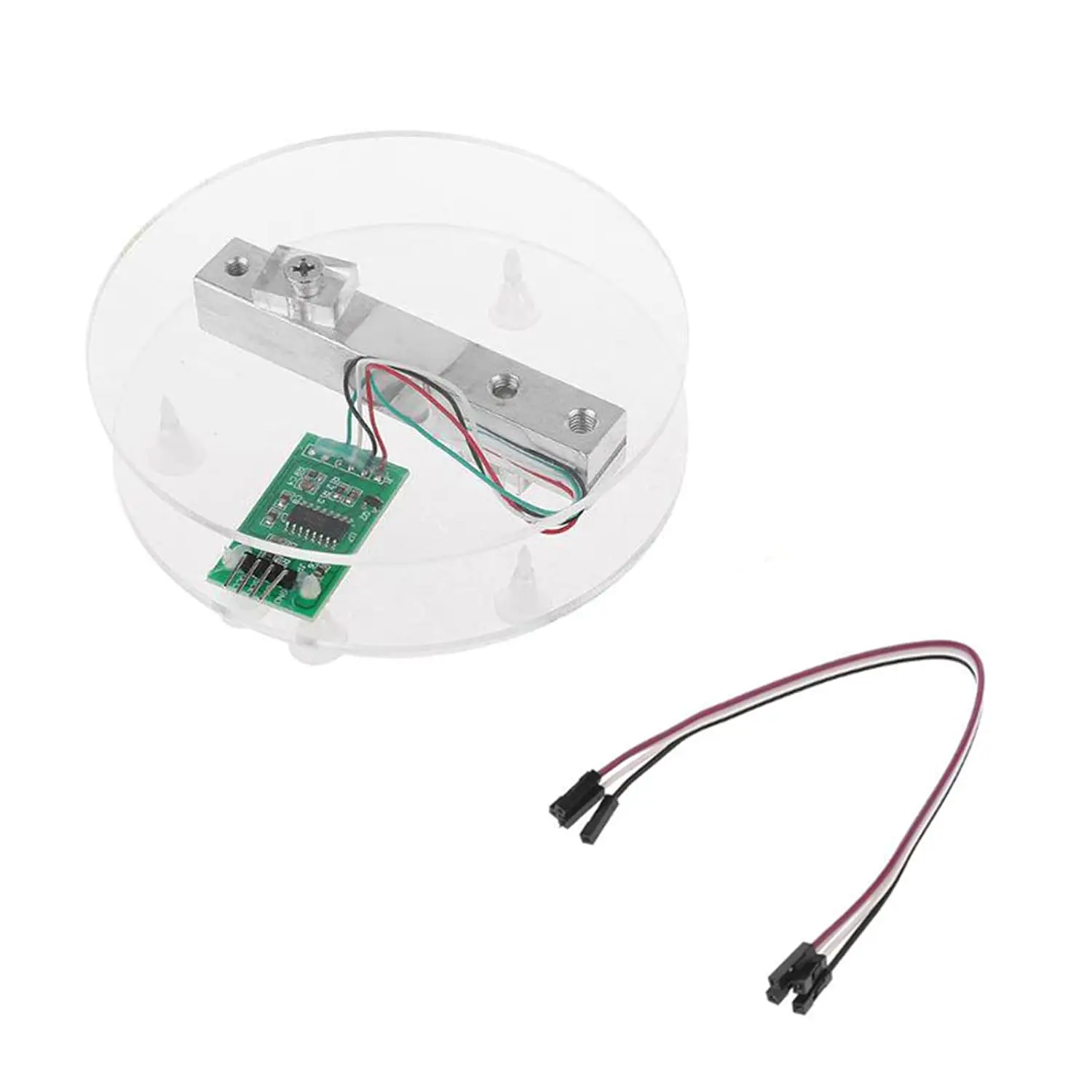

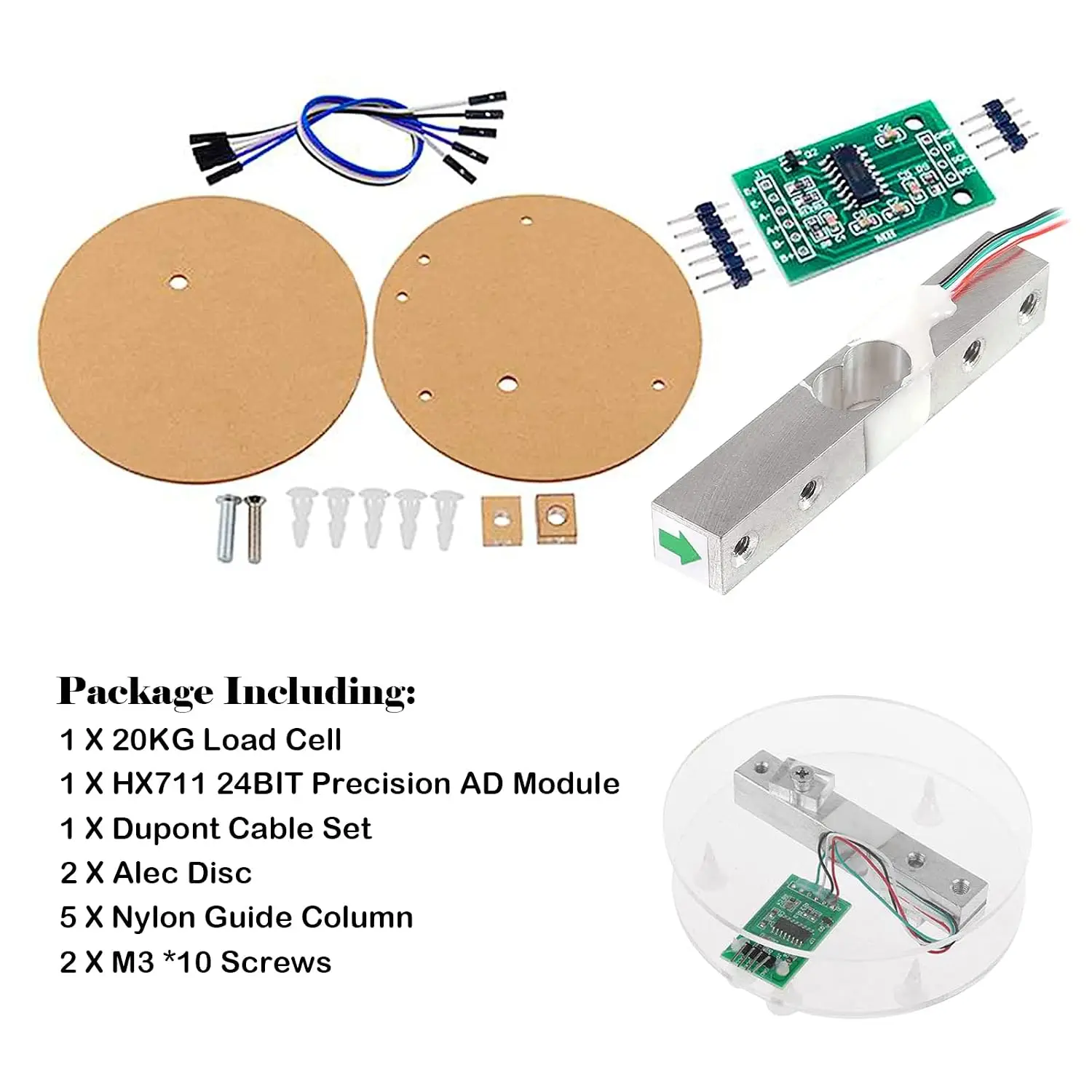

Package Includes:
1 X 20KG Load Cell
1 X HX711 AD Module
1 X Dupont Cable Set
1 X Acrylic Disc
5 X Nylon Guide Column
2 X M3 *10 Screws
