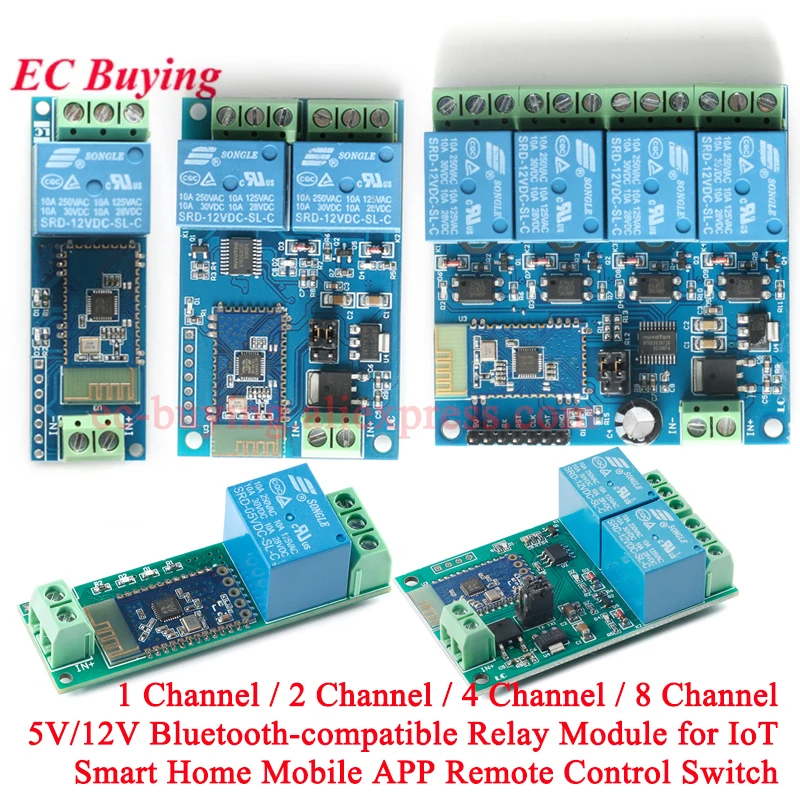

5V/12V ESP8266 Bluetooth-compatible Relay Module 1 2 4 Way Channel IoT Things Smart Home Mobile Phone APP Remote Control Switch
القسم: غير مصنف
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- Brand Name: EC Buying
- Origin: Mainland China
- High-concerned chemical: None
- Condition: New
- Type: Voltage Regulator
- Supply Voltage: DC12V DC 12V 5V DC5V
- Dissipation Power: low
- is_customized: Yes
- Operating Temperature: normal
- Application: Computer
- Package: Module
- Smart Electronics Experiment: Switch And Sensor For Arduino STM32
- ESP8266 12V WiFi Bluetooth-compatible Ble Relay Module: 1 2 4 Way Channel Wireless Things Smart Home Remote Control Switch Mobile Phone
- 5V 12V Relay Module ESP8266 for Bluetooth-compatible: Relay Module Internet of Things Smart Home Mobile APP Remote Control Switch 1 Channel
Product introduction:
Bluetooth-compatible relay module Android phone wireless remote control switch
Product parameter:

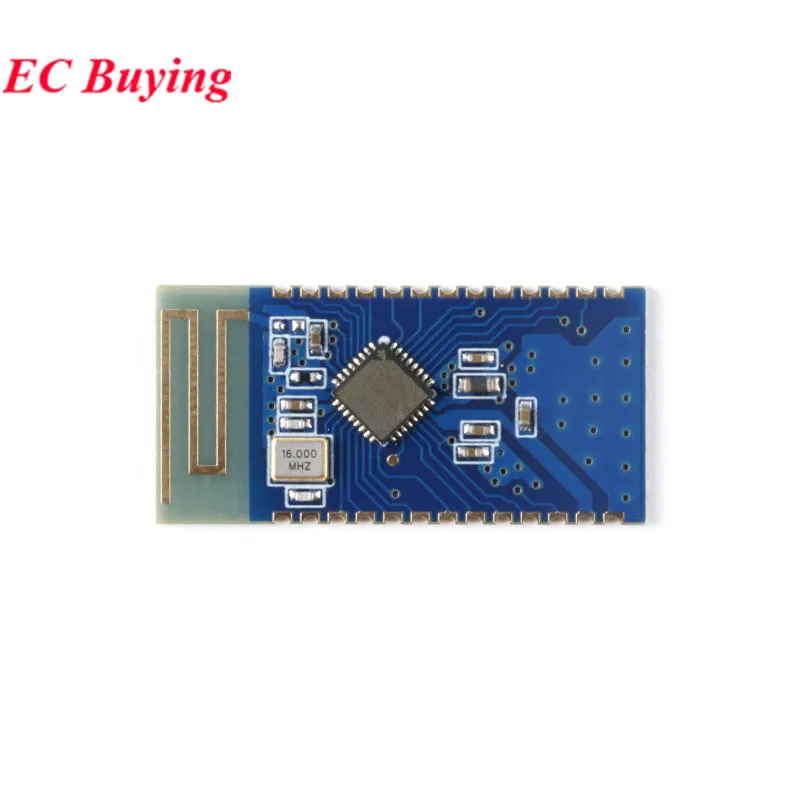

1. Onboard module: Onboard SPP_C Bluetooth-compatible serial slave module,
2. With wireless control function
3. Onboard relay: 12V, 10A/250V AC, 10A/30V DC relay, long relay life, can be continuously pulled in 100,000 times
4. Diode efflux protection: with diode efflux protection, short response time
5. On-board indicator: Bluetooth-compatible status indicator (slow flashing when not connected, long light after connection) and relay status indicator (lights up after closing)
6. Control distance: 10m (open environment)
7. Follow the specification: follow the Bluetooth-compatible 2.1 +EDR specification
8. Working voltage: DC 12V
9. DC control maximum voltage: DC 30V
10. Maximum voltage for AC control: AC 250V
Interface introduction:

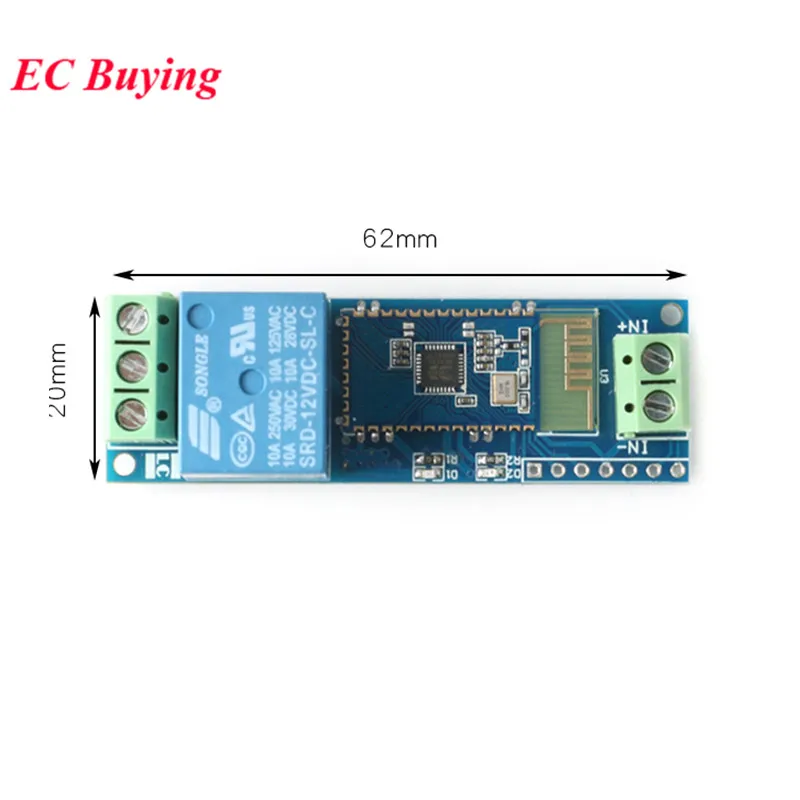

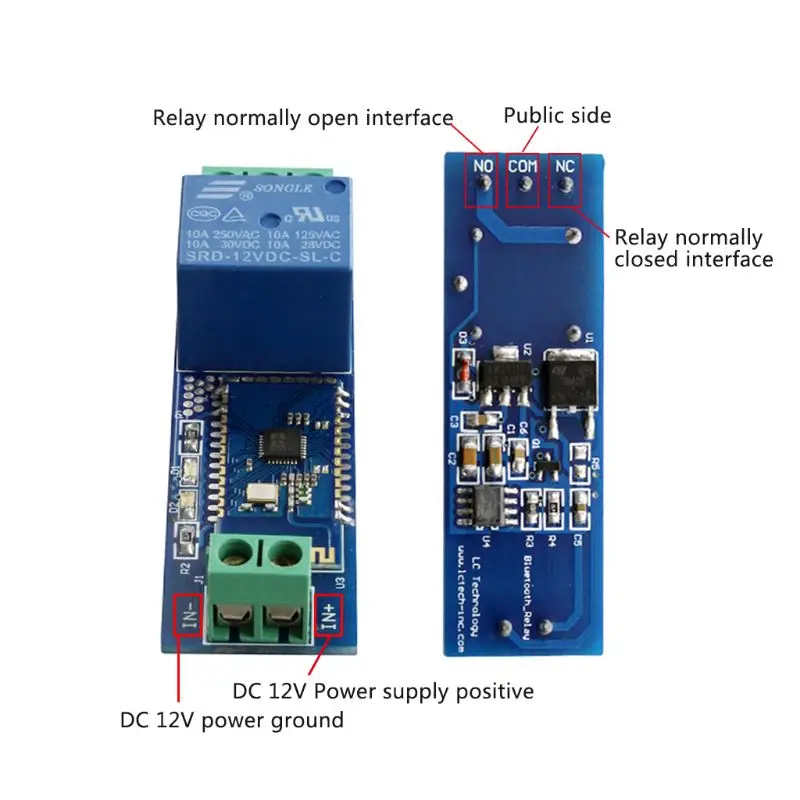

1 Way Bluetooth-compatible Relay Mdoule
IN+: input positive
IN-: input negative
NC: Relay normally closed 0
N0: Relay normally open interface
COM: public
Open relay command: A0 01 01 A2 (sent in hexadecimal)
Close relay command: A0 01 00 A1 (sent in 16 hex)

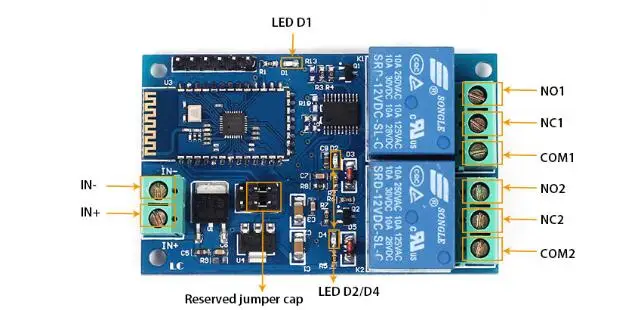

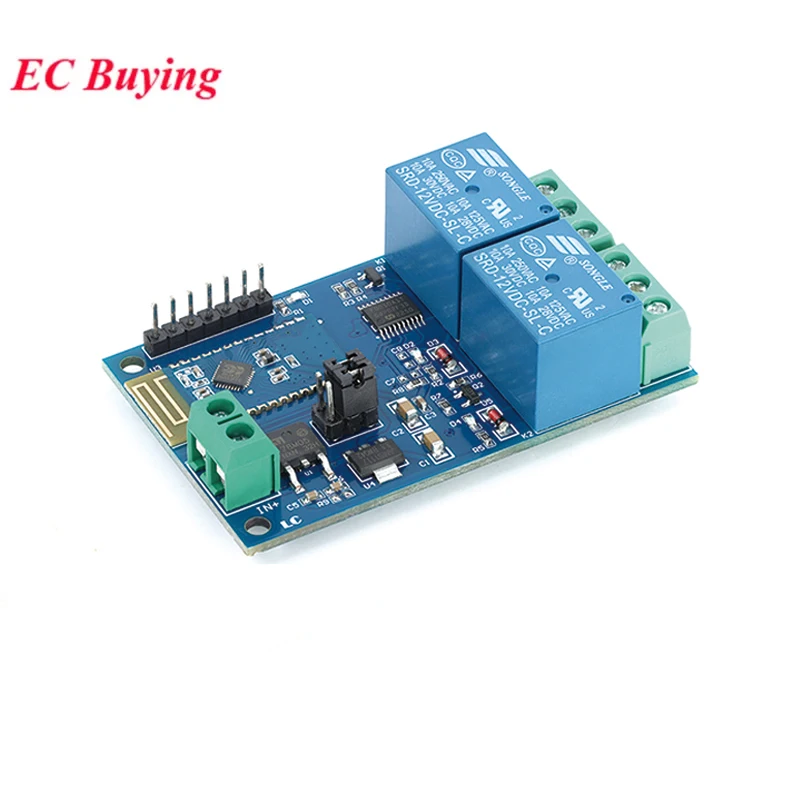

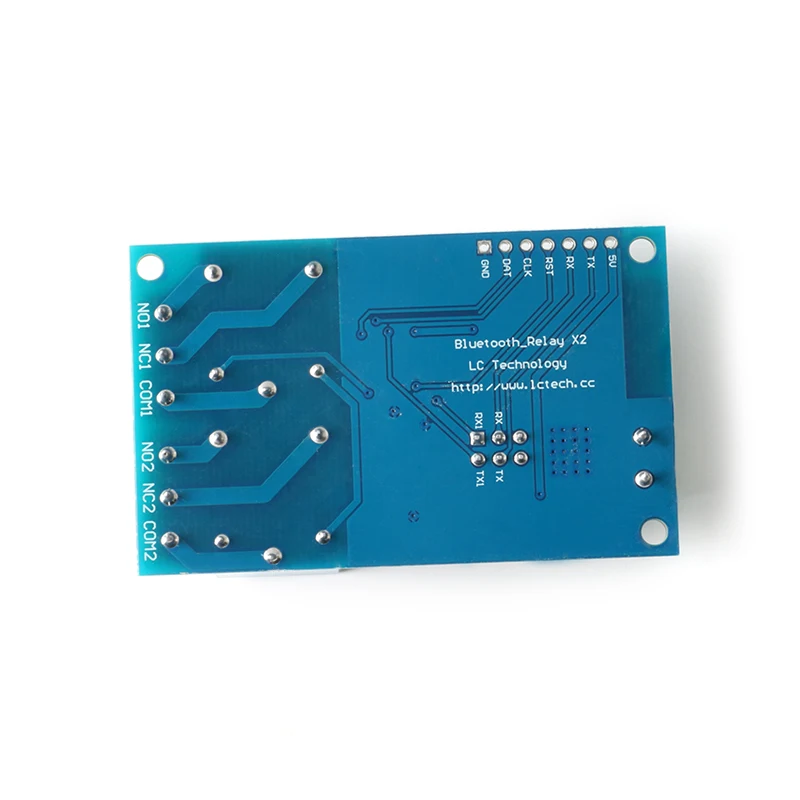

2Way Bluetooth-compatible Relay Mdoule
IN+, IN-: 12V power input
TX, RX: UART serial port pins
EV, GND, SWIM, NRST: STM8S microcontroller program download port
LED D2 and D4 (red light): relay working indicator, light when open
LED D1 (blue light): blue light status indicator, slow flashing indicates waiting to establish connection with mobile phone, steady on indicates successful connection establishment with mobile phone
Two jumper caps are reserved: please plug to the right end during normal use (ie RX to RX1, TX to TX1). If you want to use the USB-TTL serial port module to debug the SPP-C module, please plug to the left end (otherwise Interfering)
COM1, COM2: public terminal
NO1: Normally open, the relay hangs before pull-in, short-circuit with COM1 after pull-in
NC1: Normally closed end, the relay pull-in is short-circuited with COM1, and hangs up after pull-in
NO2: Normally open, the relay hangs before pull-in, short-circuit with COM2 after pull-in
NC2: Normally closed end, the relay pull-in is short-circuited with COM2, and hangs up after pull-in
Relay control command (hexadecimal HEX form): turn on the first-way relay: A0 01 01 A2
Close the second relay: A0 01 00 A1
Turn on the second relay: A0 02 01 A3
Close the second relay: A0 02 00 A2

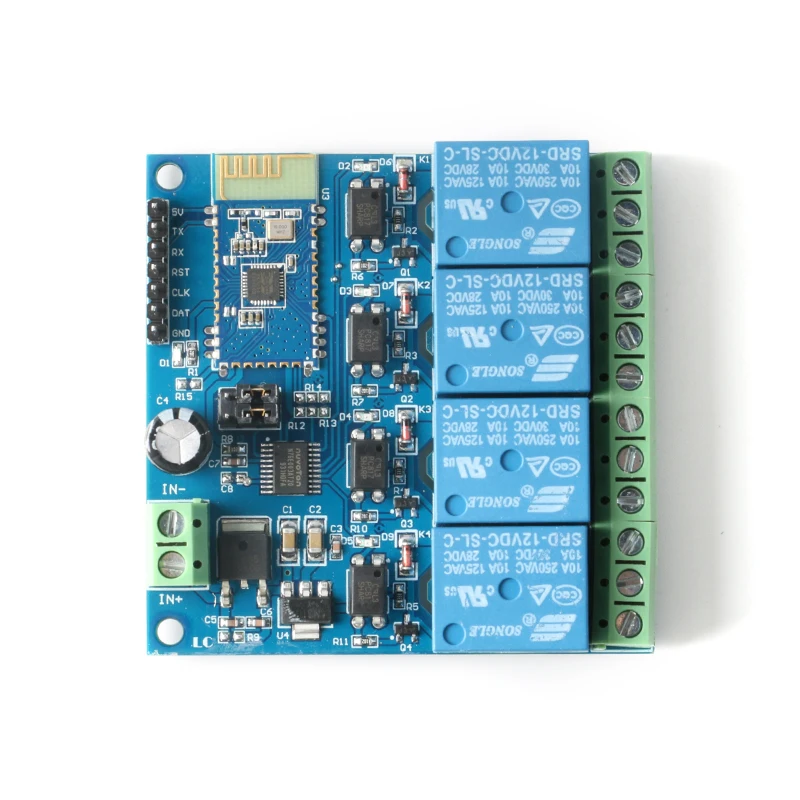

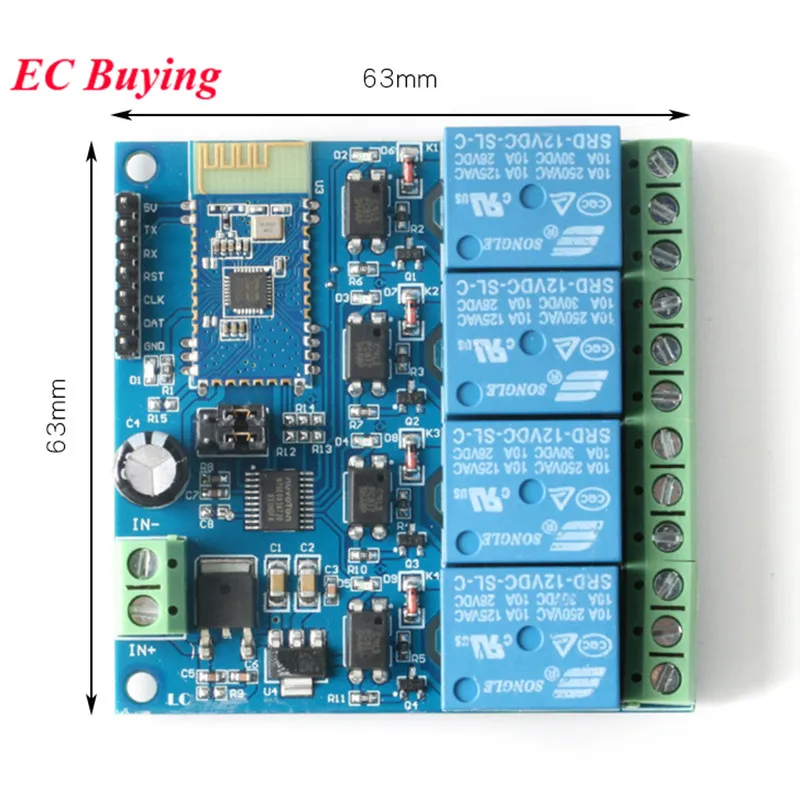

4 Way Bluetooth-compatible Relay Mdoule
IN+, IN-: 12V power input;
TX, RX: ART serial port pins;
5V, GND, SWIM, NRST: MCU program download port.
LED D2/D3/D4/D5 (red light): relay work indicator light, light when open
LED D1 (blue light): Bluetooth-compatible status indicator, described as follows:
When flashing slowly, it means waiting to establish a connection with the phone;
When it is always on, it means a successful connection with the mobile phone.
Two reserved jumper caps: please plug them to the right end during normal use (i.e. RX connected to RX1, TX connected to TX1)
If you want to use the USB to TTL serial port module to debug the SPP-C module alone, please plug it to the left end (otherwise there may be interference).
COM1: public terminal;
NC1: normally closed end, the relay is short-circuited with COM1 before pull-in, and hangs up after pull-in;
NO1: Normally open, the relay is suspended before pull-in, and shorted to COM1 after pull-in. COM2: public terminal;
NC2: normally closed end, the relay is short-circuited with COM2 before pull-in, and hangs up after pull-in;
NO2: Normally open, the relay hangs open before pull-in, and short-circuit with COM2 after pull-in. COM3: public terminal;
NC3: normally closed end, the relay is short-circuited with COM3 before pull-in, and hangs up after pull-in;
NO3: Normally open, the relay is suspended before pull-in, and shorted to COM3 after pull-in. COM4: public terminal;
NC4: Normally closed end, the relay is short-circuited with COM4 before pull-in, and hangs up after pull-in;
NO4; normally open, the relay hangs before pull-in, short-circuit with COM4 after pull-in.
2 Relay control instructions (16 hex system),
Turn on the first relay: A0 01 01 A2
Close the first relay: A0 01 00 A1
Turn on the second relay: A0 02 01 A3
Close the first relay: A0 02 00 A2
Turn on the third relay: A0 03 01 A4
Close the third relay: A0 03 00 A3
Turn on the fourth relay: A0 04 01 A5
Close the fourth relay: A0 04 00 A4
This product has no data sheet and connection diagram, Thanks

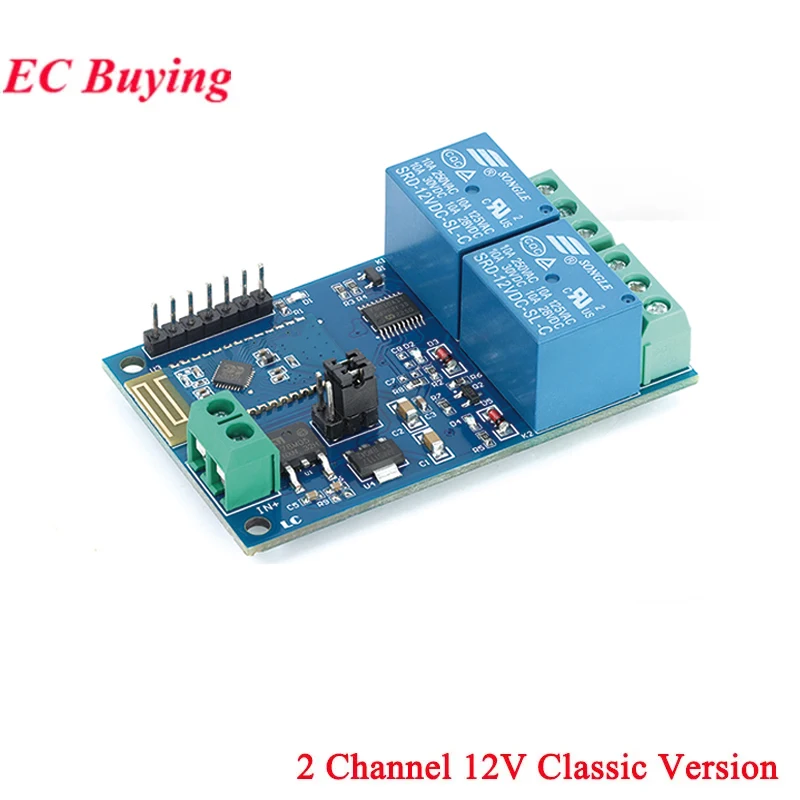

| Color | 1 Channel 12V, 1 Channel 5V, 1Channel 12V Classic, 2 Channel 12V, 4 Channel 12V, BLE Module |
|---|---|
| Brand Name | EC Buying |
| Origin | Mainland China |
| High-concerned chemical | None |
| Condition | New |
| Type | Voltage Regulator |
| Supply Voltage | DC12V DC 12V 5V DC5V |
| Dissipation Power | low |
| is_customized | Yes |
| Operating Temperature | normal |
| Application | Computer |
| Package | Module |
| Smart Electronics Experiment | Switch And Sensor For Arduino STM32 |
| ESP8266 12V WiFi Bluetooth-compatible Ble Relay Module | 1 2 4 Way Channel Wireless Things Smart Home Remote Control Switch Mobile Phone |
| 5V 12V Relay Module ESP8266 for Bluetooth-compatible | Relay Module Internet of Things Smart Home Mobile APP Remote Control Switch 1 Channel |
