DC 6-24V Flip-Flop Latch Relay Module 1 Way Bistable Self-locking Relay Switch For Smart Home LED Car Low Pulse Trigger Board
القسم: غير مصنف
حالة التوفر: متوفر في المخزون
9979 متبقي
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- معلومات المنتج
- مواصفات المنتج
- Brand Name: diymore
- Origin: Mainland China
- High-concerned chemical: None
- Condition: New
- Type: Relay
- Supply Voltage: 6-24V
- Quantity: 1
- Package: TQFP
- Wholesale discounts: Complete variety, welcome to contact us for consul

Features:
1. Exquisite and compact appearance
2. Application scenarios: automotive electronic equipment, industrial equipment, engine, light-emitting diode, smart home, emergency lighting, MCU development board, toy car, etc.
3. Using high-quality materials, the quality is guaranteed
4. Simple and easy to use
5. This is a bistable (self-locking) relay module
Product parameters:
Working voltage: DC 6-24V
Working current: 60-70MA
Standby current: 1UA

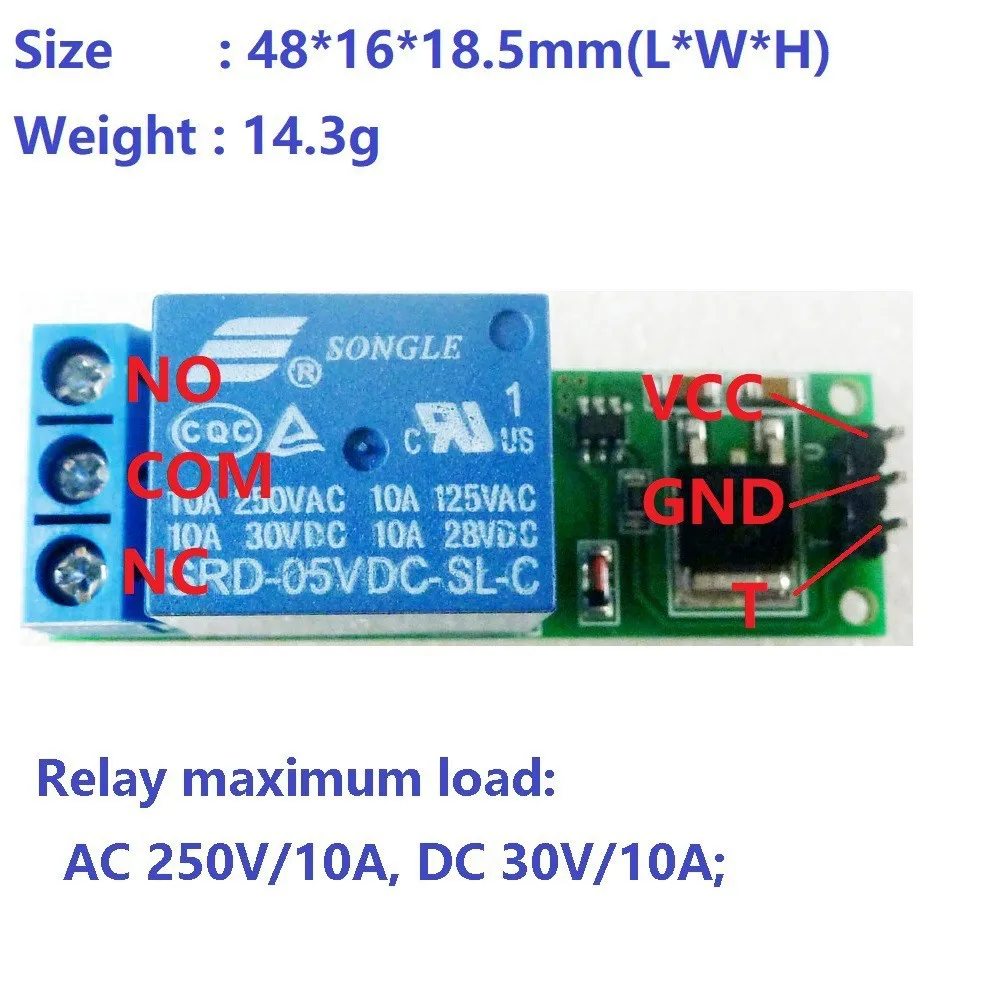

Load current: AC 250V/10A, DC 30V/10A
Trigger Mode: Low Pulse Trigger
VCC: positive power supply (VCC)
GND: Negative power supply (GND)
T: low pulse trigger

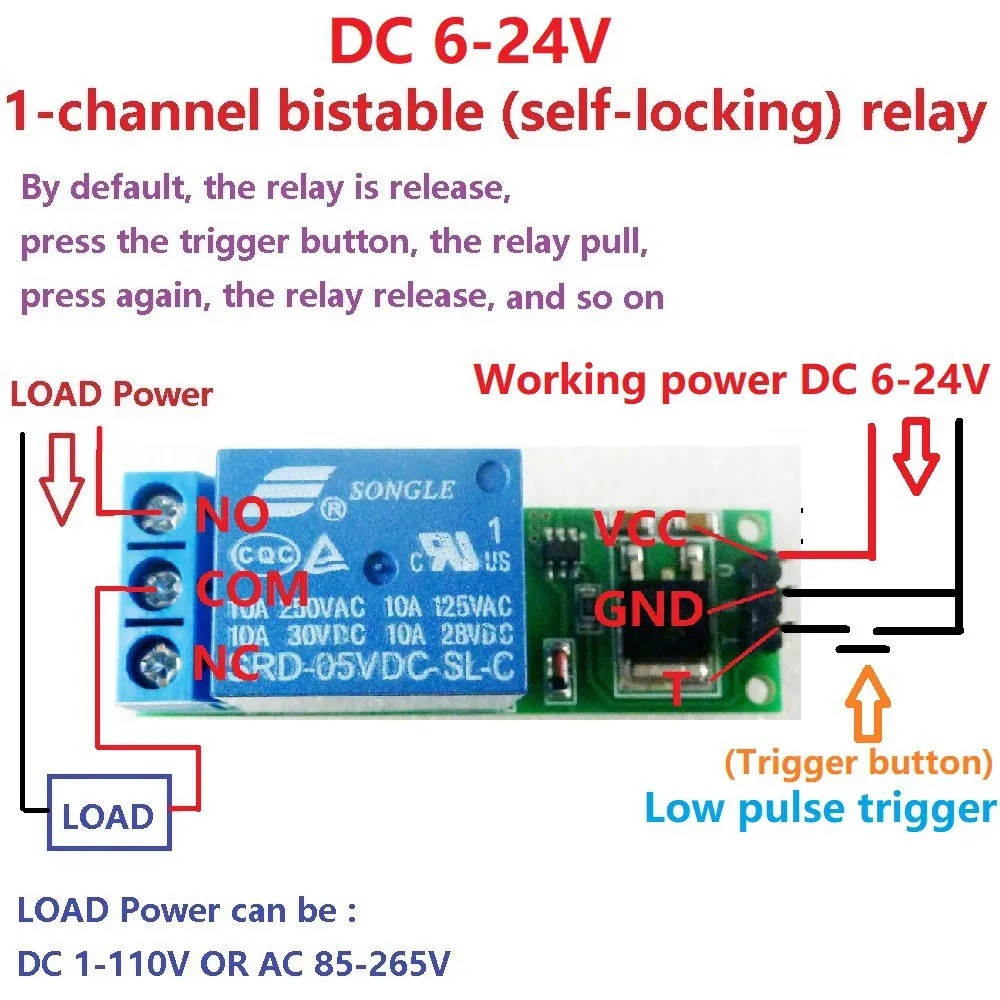

Module interface:
VCC: positive power supply (VCC)
GND: Negative power supply (GND)
T: low pulse trigger
Relay output:
No: normally open relay interface
COM: Common Interface Relay
NC: normally closed relay interface
Package includes:
Latching Relay Module X1
