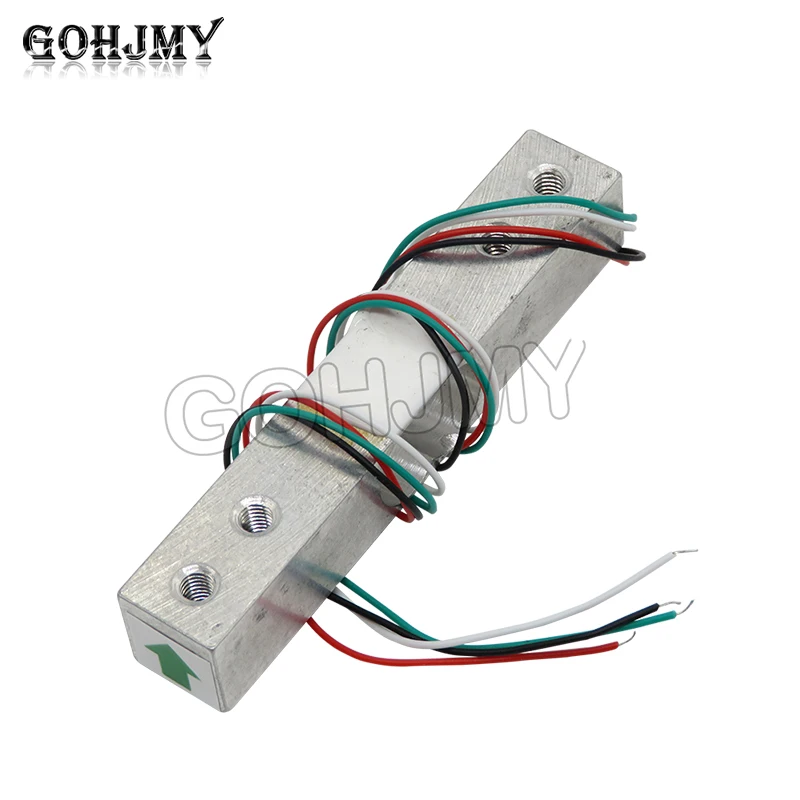

1 / 5 / 10 / 20 KG Load Cell

PRODUCT DETAILS

Technical Parameters
Range: 1-10kg
Output sensitivity: 1.0 ± 0.1mV / V
Zero output: ± 0.1mV / V
Nonlinear: 0.05% F . S
Lag: 0.05% F . S
Repeatability: 0.05% F . S
Creep: 0.05% F . S / 3min
Output impedance: 1000 ± 5% ohms
Zero temperature drift: 0.05% F . S / 10℃
Temperature sensitivity drift: 0.05% F . S / 10℃

Features
Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 3264 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Simple digital control and serial interface: pin-driven controlsno programming needed Selectable 10SPS or 80SPS output data rate
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA; power down < 1uA
Operation supply voltage range: 2.6 ~ 5.5V
Operating Temperature Range: -20℃ ~ + 85℃

Lead Cable
Motivation is positive: red
Incentive negative: green
Signal is positive: black
Signal Negative: white
