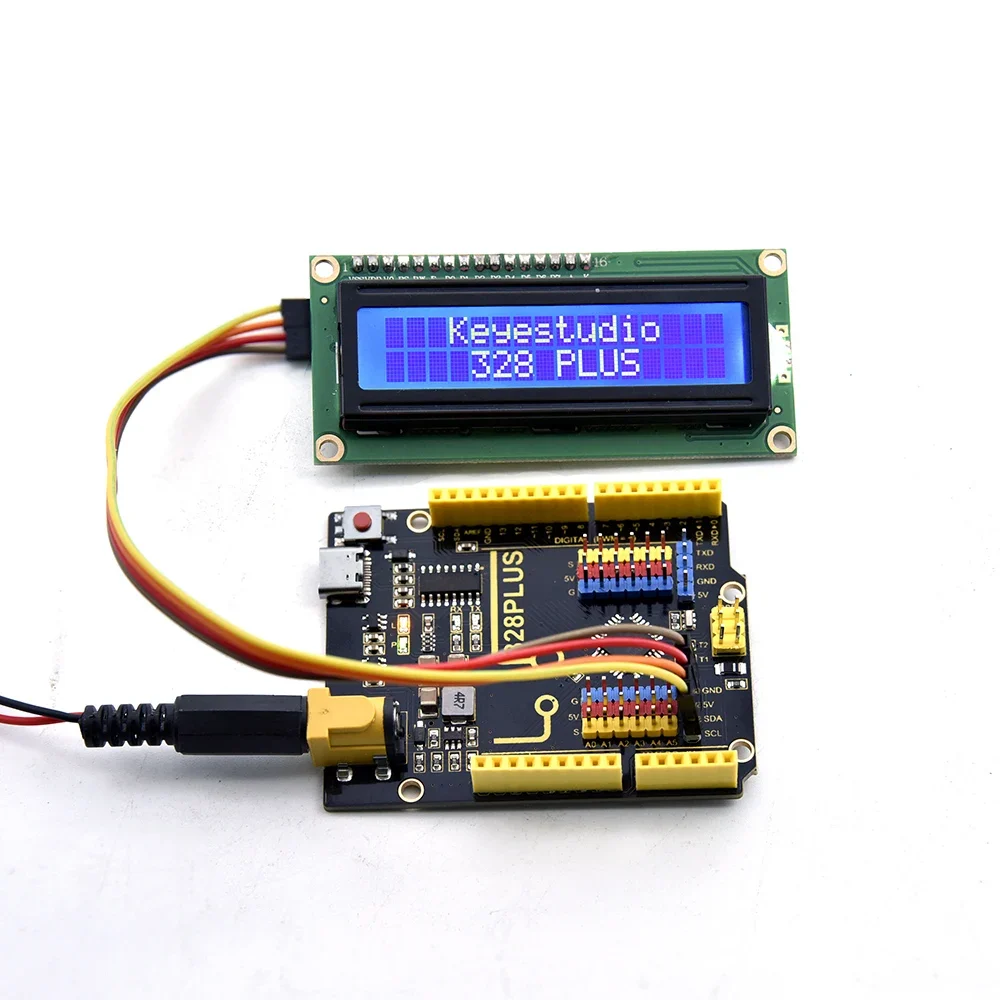

Keyestudio 328 PLUSUNO Control Board ATMEGA328PB Microcontroller + Type-C Cable Compatible with Arduino UNO R3 Board
القسم: ألعاب أطفال, روبوتات الأطفال
حالة التوفر: متوفر في المخزون
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- High-concerned chemical: None
- Package: TQFP
- is_customized: Yes
- Supply Voltage: 5V
- Application: For Arduino R3 board
- Type: Logic ICs
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Product number: KS0546
- Microcontroller: ATMEGA328PB or ATMEGA328P-AU
- USB to serial chip:: CH340C
- Working voltage: 5V
- External power: DC 6-15V (recommend 9V)

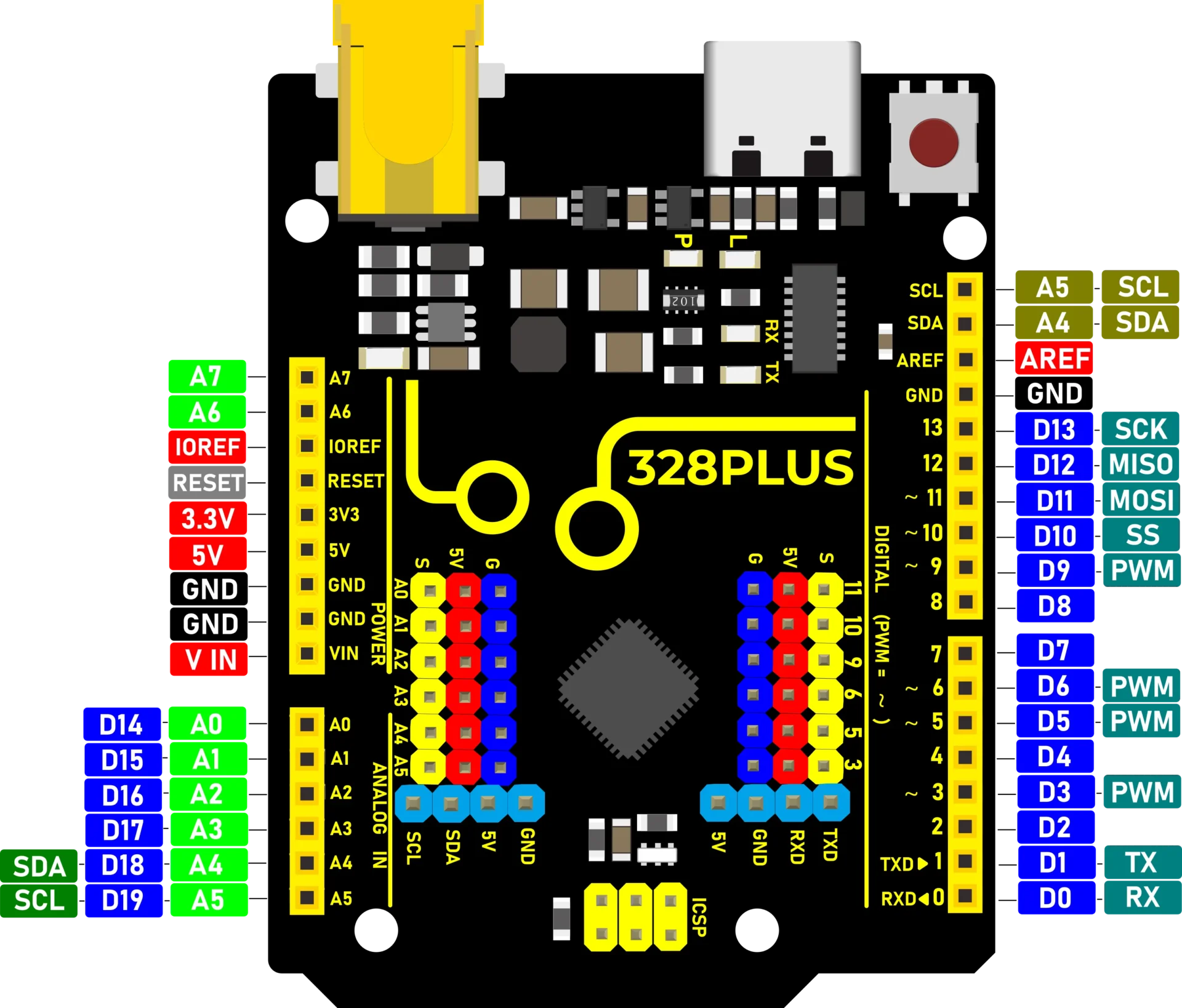

- Digital I / O pins: 14 (D0-D13)
- PWM channel: 6 (D3 D5 D6 D9 D10 D11)
- Analog input channel (ADC): 8 (A0-A7)
- Each I / O Port of DC output capability: 10 mA
- Output capability of 3.3V port: MAX150 mA
- Flash Memory: 32 KB (of which 0.5 KB is used by the bootloader)
- SRAM: 2 KB (ATMEGA328PB)
- EEPROM:: 1 KB (ATMEGA328PB)
- Clock speed:: 16MHz
- On-board LED pin:: D13
Description
Doing experiments with electronic products, we often program on the Arduino IDE development environment with Arduino series microcontrollers.

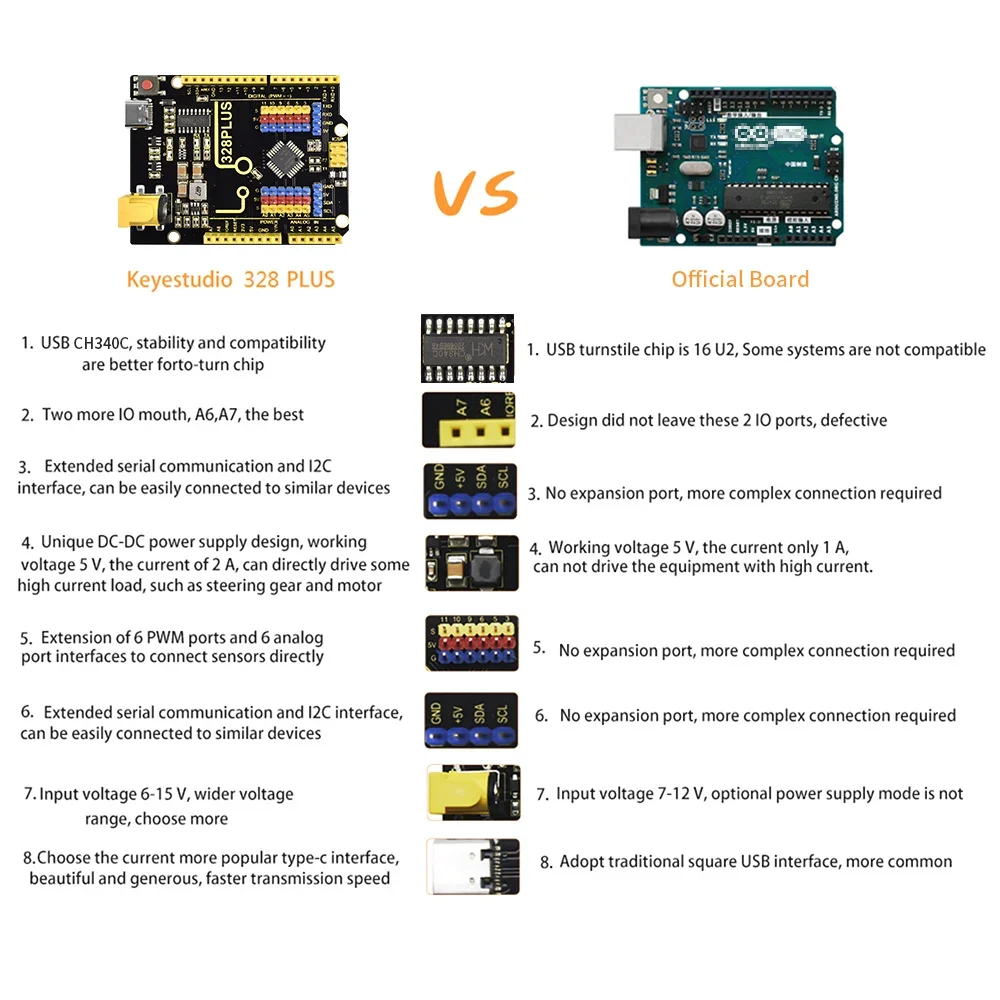

Keyestudio PLUS control board is fully compatible with Arduino IDE development environment. It is as same as the Arduino UNO R3 board. Moreover, some improvements we made highly strengthen its function(as shown below). In order to wire efficiently, we equip it with a 1m USB cable with type-c interface for you.

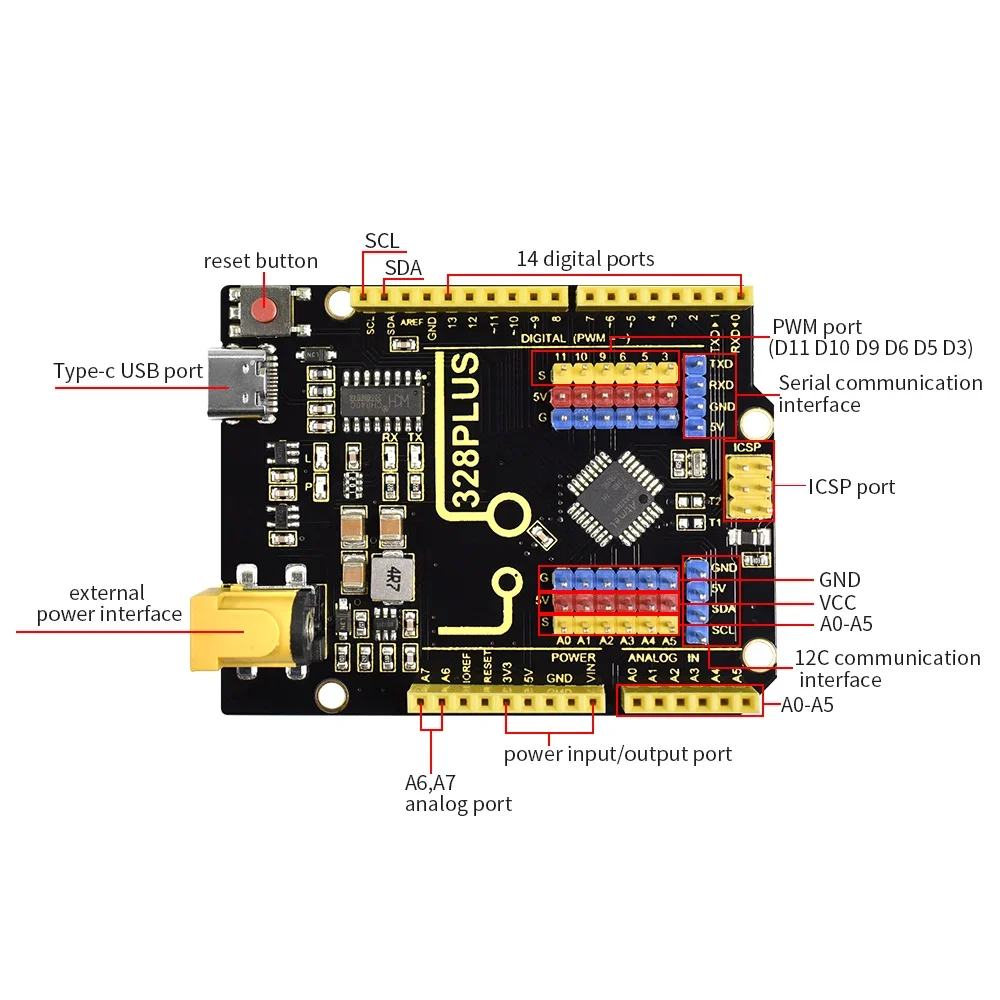

Specification
Microcontroller：ATMEGA328PB OR ATMEGA328P-AU(same function)
USB to serial chip: CH340C
Working voltage: 5V
External power: DC 6-15V (recommend 9V)
Digital I / O pins: 14 (D0-D13)
PWM channel: 6 (D3 D5 D6 D9 D10 D11)
Analog input channel (ADC): 8 (A0-A7)
Each I / O Port of DC output capability : 10 mA
Output capability of 3.3V port: MAX150 mA
Flash Memory: 32 KB (of which 0.5 KB is used by the bootloader)
SRAM: 2 KB (ATMEGA328PB)
EEPROM: 1 KB (ATMEGA328PB)
Clock speed: 16MHz
On-board LED pin: D13
Note:the chip ATMEGA328PB and ATMEGA328P-AU,they are same function.ATMEGA328PB and ATMEGA328P-AU Random shipment.
