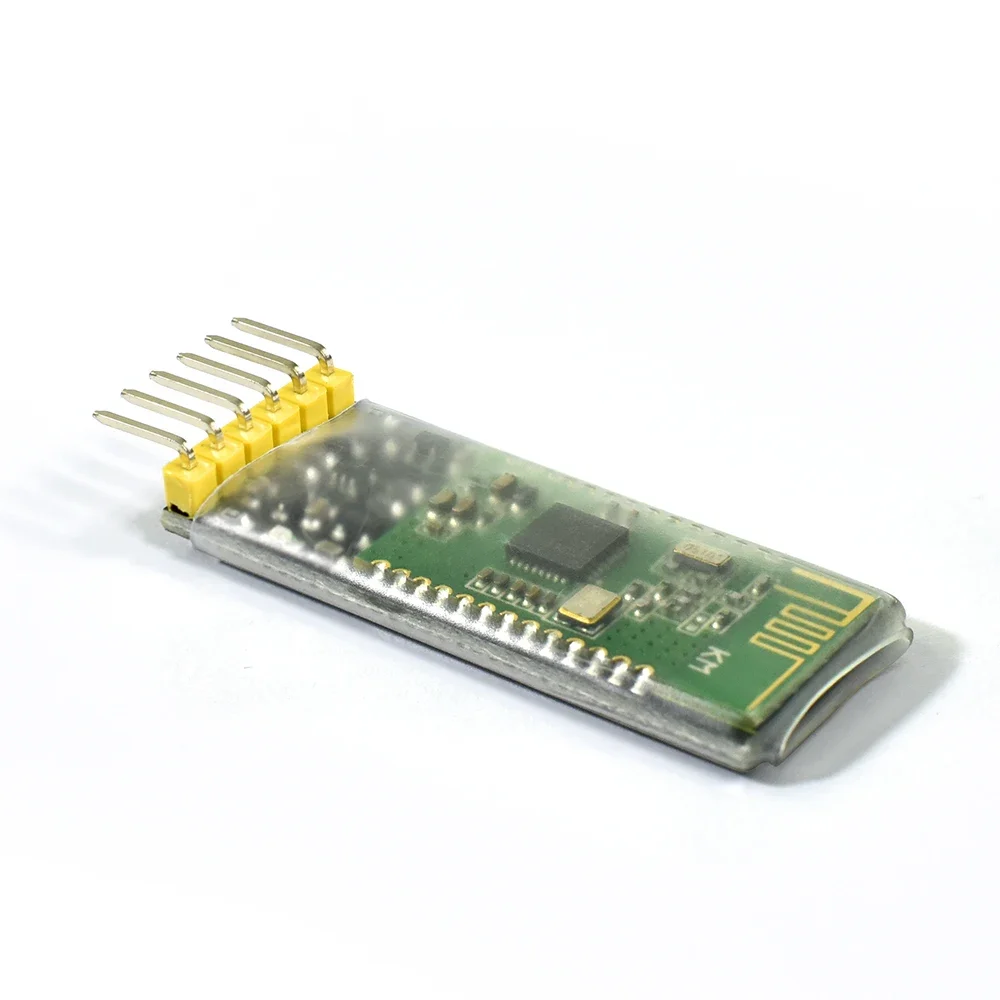

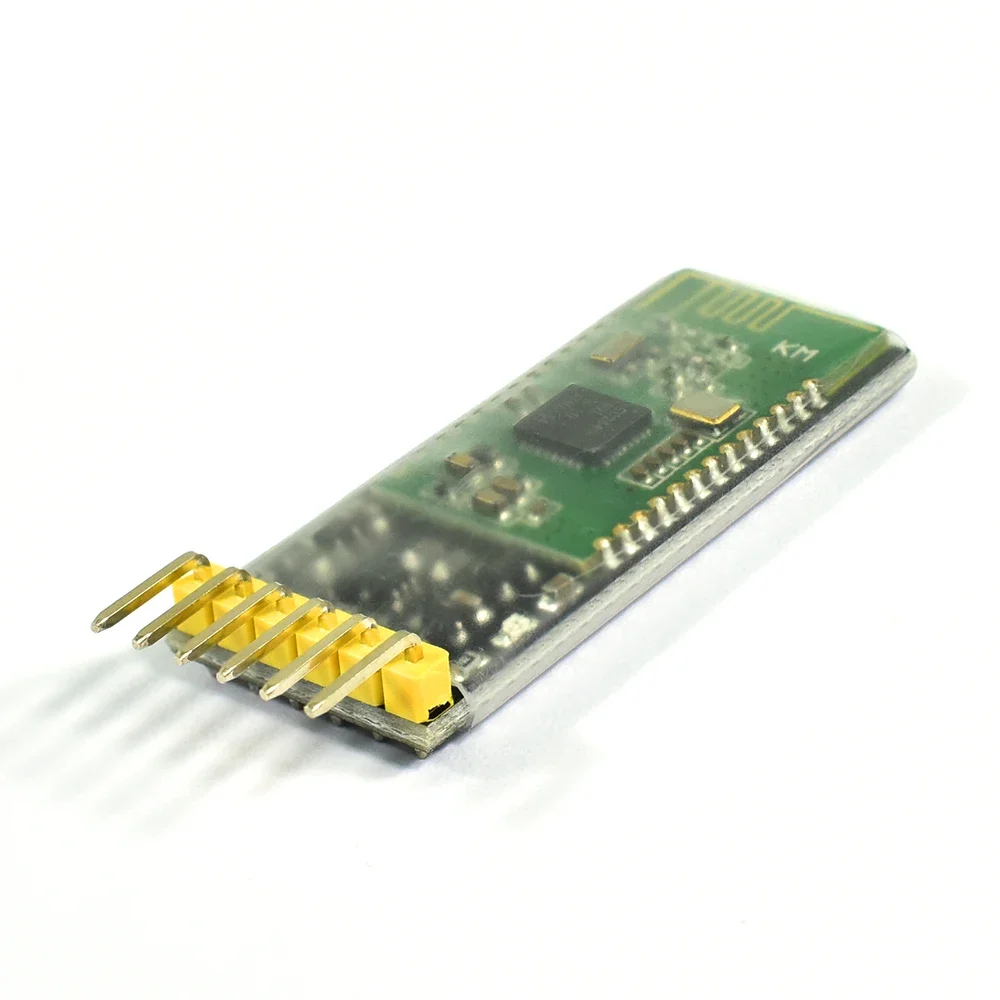

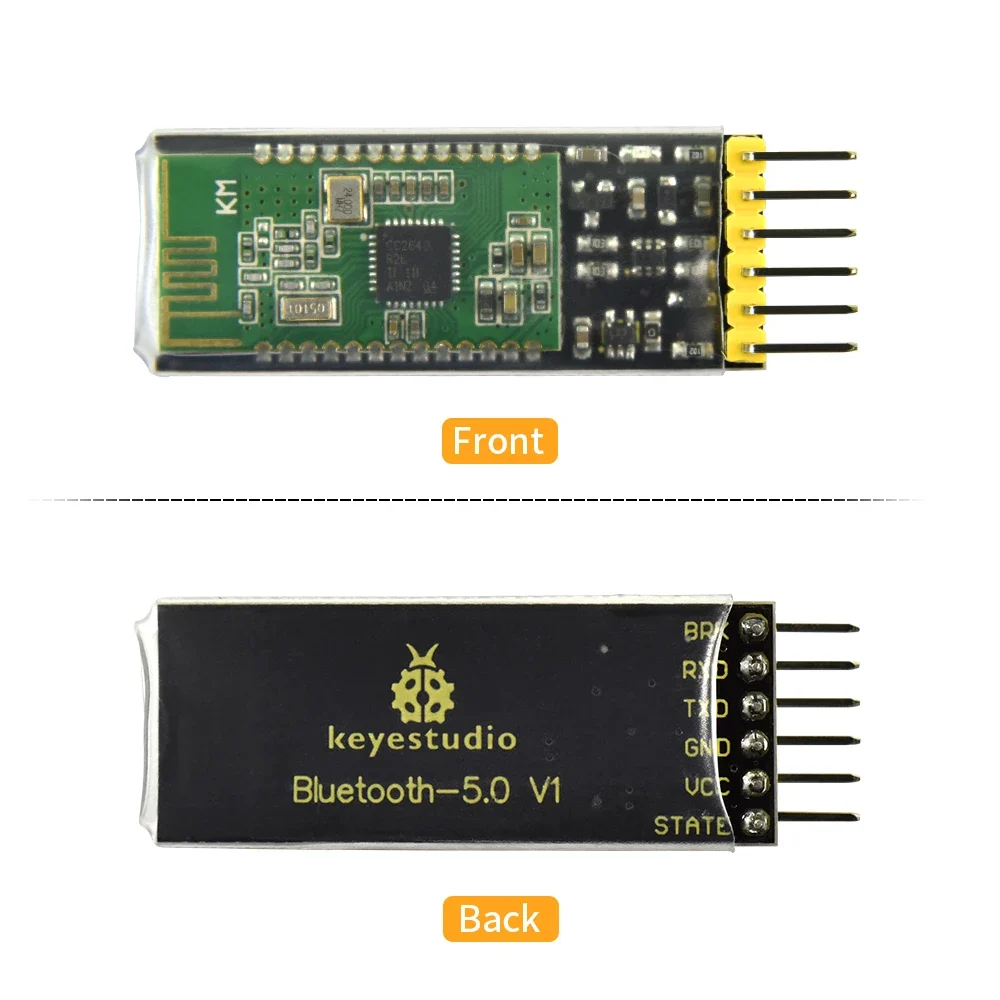

Keyestudio LY51M02 Bluetooth-compatible 5.0 Module CC2640R2L Chip for Arduino Compatible With iOS and Android DIY Electronic Kit
القسم: ألعاب أطفال, روبوتات الأطفال
حالة التوفر: متوفر في المخزون
مشاركة المنتج
- High-concerned chemical: None
- Package: SOP
- is_customized: Yes
- Supply Voltage: 3.3V
- Application: for Arduino
- Type: Voltage Regulator
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: 0℃~+85℃
- Working frequency band: 2.4G
- Communication interface: UART (3.3V TTL)
- Working current: 4mA
- Transmit power: 5dBm (maximum)
- Antenna connection method: PCB on-board antenna
- Working voltage: 3.3V~5V
The LY51M02 Bluetooth module is a data transmission module based on Bluetooth Specification V5.1 BLE Bluetooth protocol. The wireless working frequency band is 2.4GHz ISM, and the modulation method is GFSK (Gaussian Frequency Shift Keying).
The module transmit power is adjustable, -21dbm ~ +5dbm, a total of 13 power levels. It adopts a TI’s CC2640R2L chip and supports Bluetooth 5.1BLE, applied to industrial remote control, gamepad, data acquisition equipment, intelligent lighting equipment, Bluetooth remote control toys, wireless LED displays, Bluetooth printer, smart home, industrial control and other fields.
Specification
Module model: LY51M02
Working frequency band: 2.4G
Chip model: TICC2640R2L
Communication interface: UART (3.3V TTL)
Working voltage: 3.3V~5V
Working current: 4mA
Transmit power: 5dBm (maximum)
Communication rate: 5-10K/s
Antenna connection method: PCB on-board antenna
Working temperature: 0℃~+85℃
Module size: 80*17*7mm
Tutorial:https://wiki.keyestudio.com/KS0542_Keyestudio_LY51M02_Bluetooth_5.0_Module
