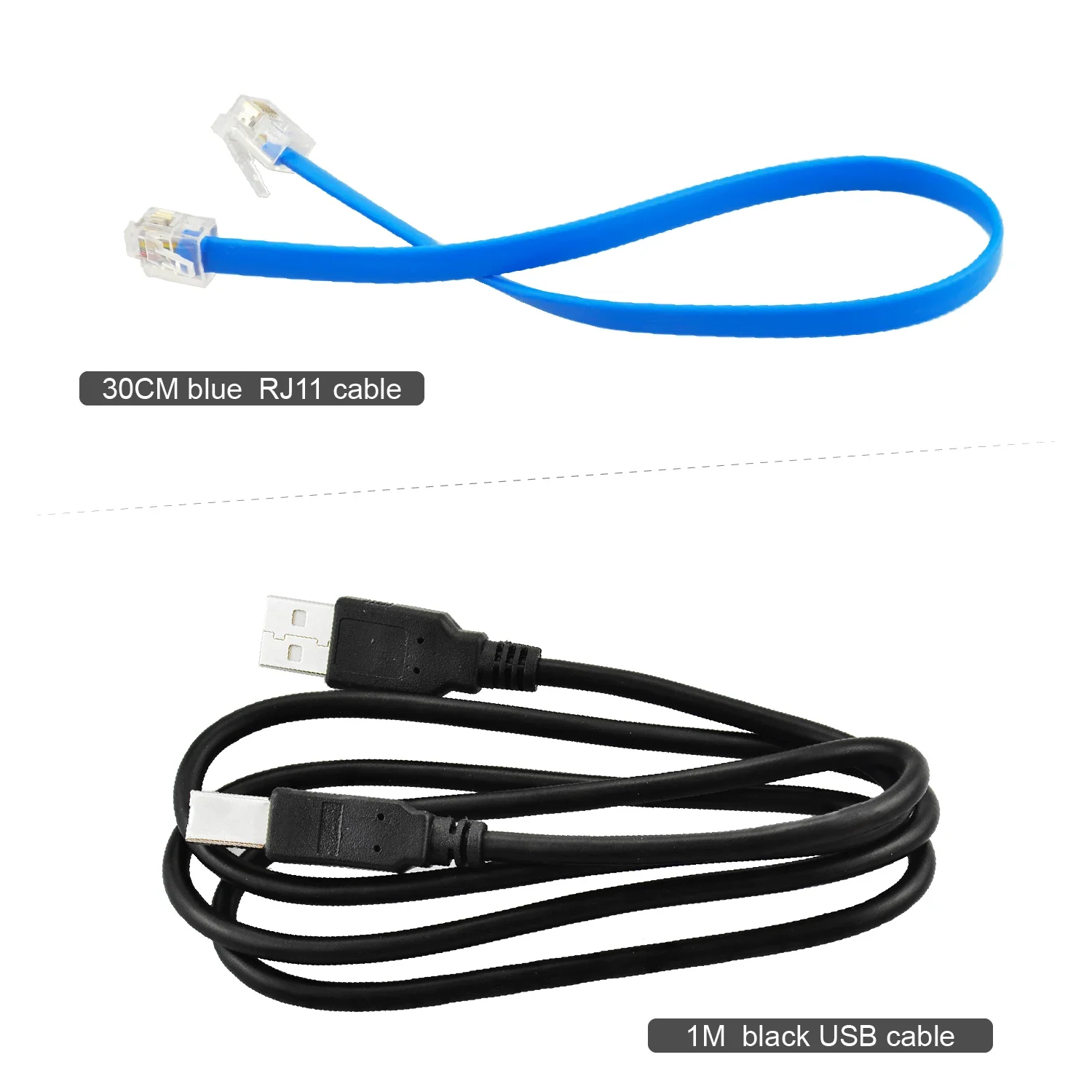

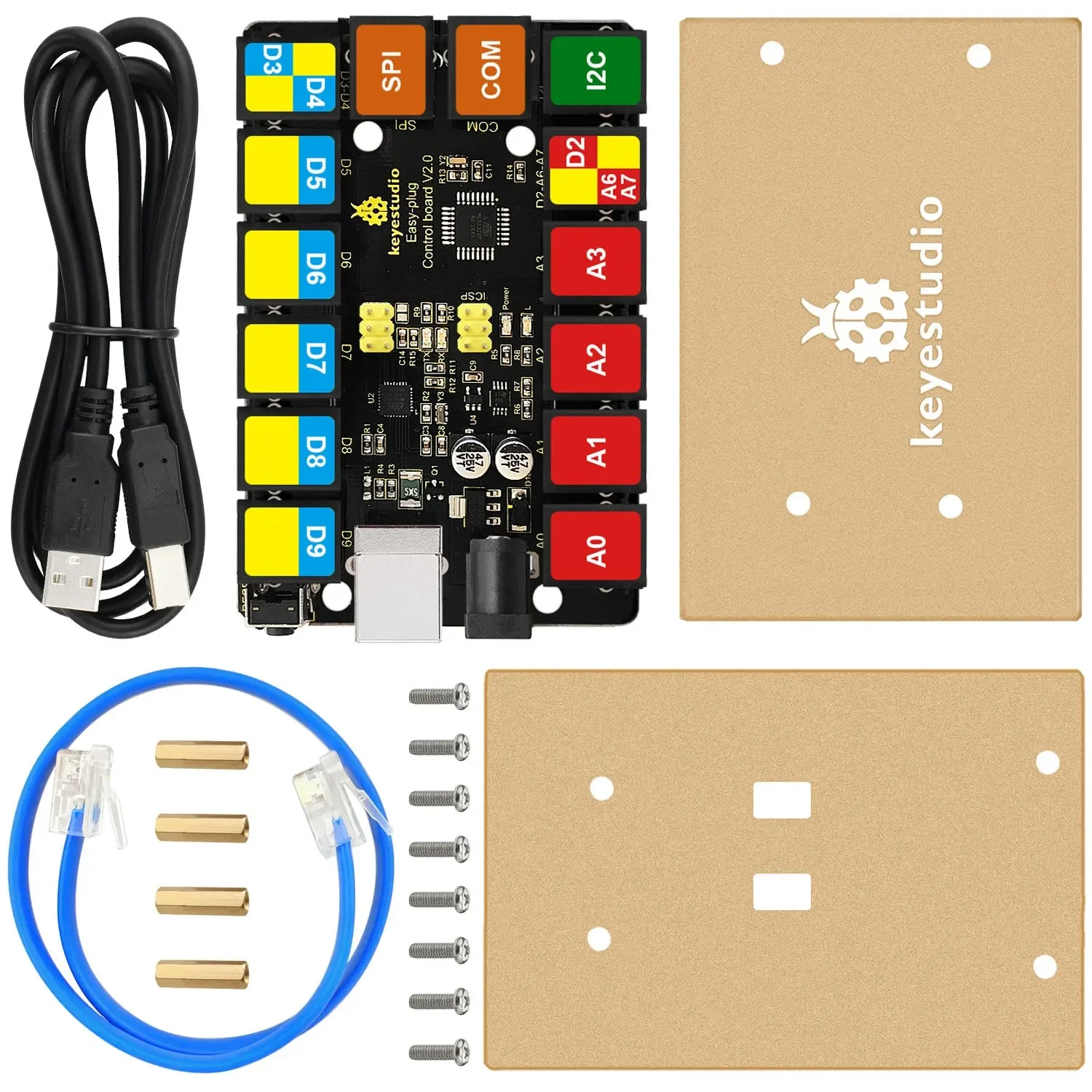

Keyestudio RJ11 EASY Plug V2.0 Control Board For Arduino Chip ATmega328AU+USB Cable+RJ11 Cable For Arduino STEM Accessories
القسم: ألعاب أطفال, روبوتات الأطفال
حالة التوفر: متوفر في المخزون
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- Quantity: 1
- High-concerned chemical: None
- Package: SMD
- Application: Electric Toy
- Type: Logic ICs
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: -10-40℃

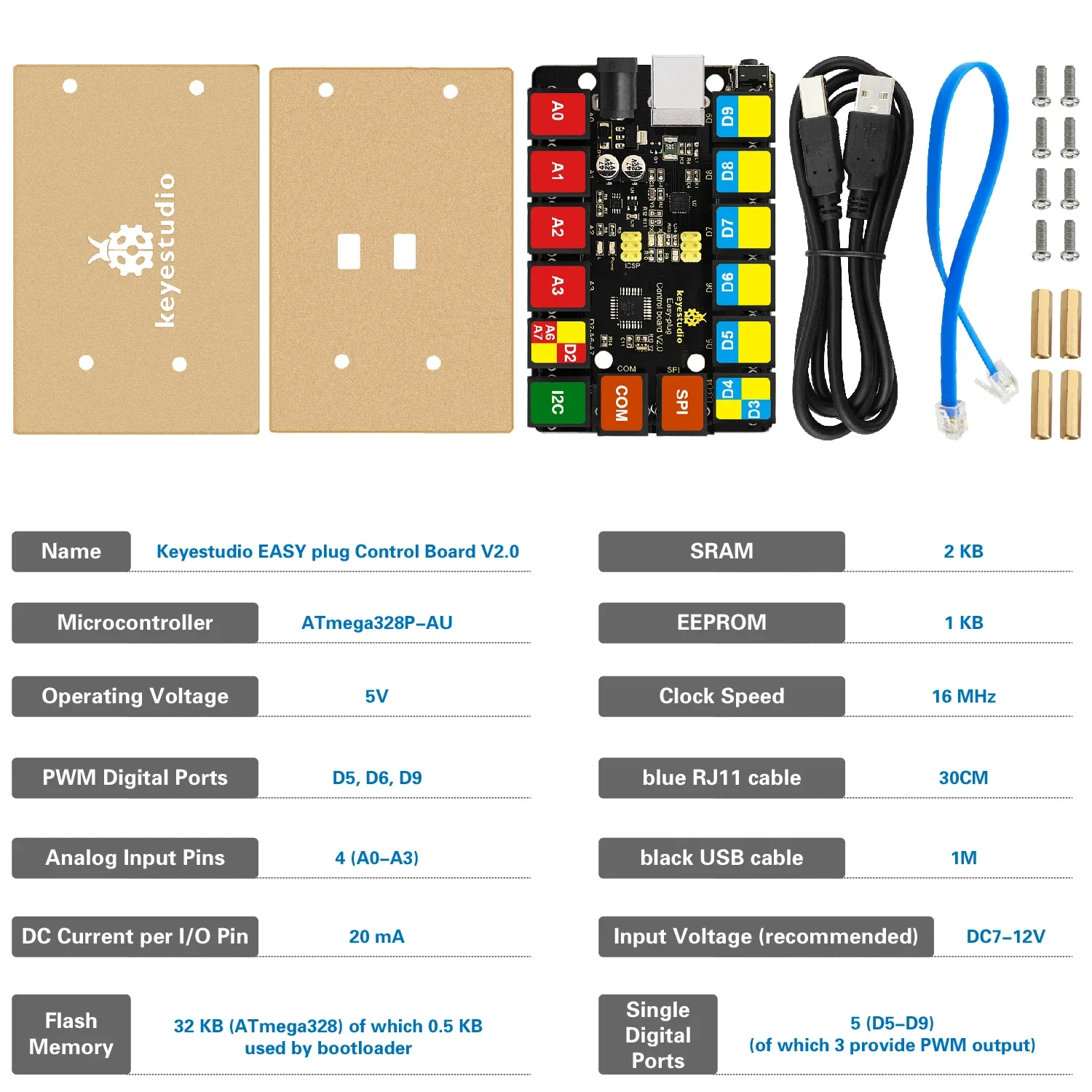

The processor used in keyestudio EASY plug control board V2.0 is ATmega328.

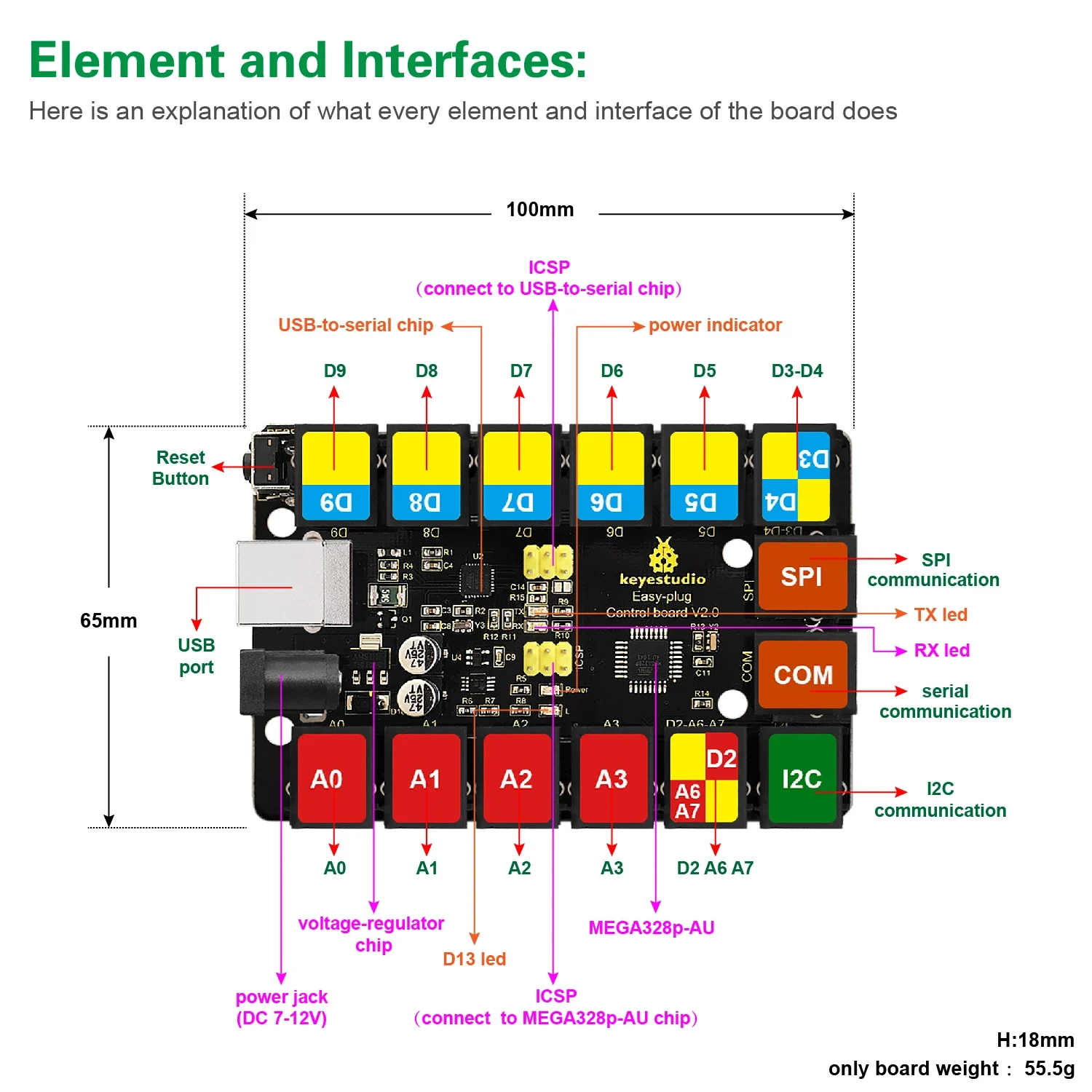

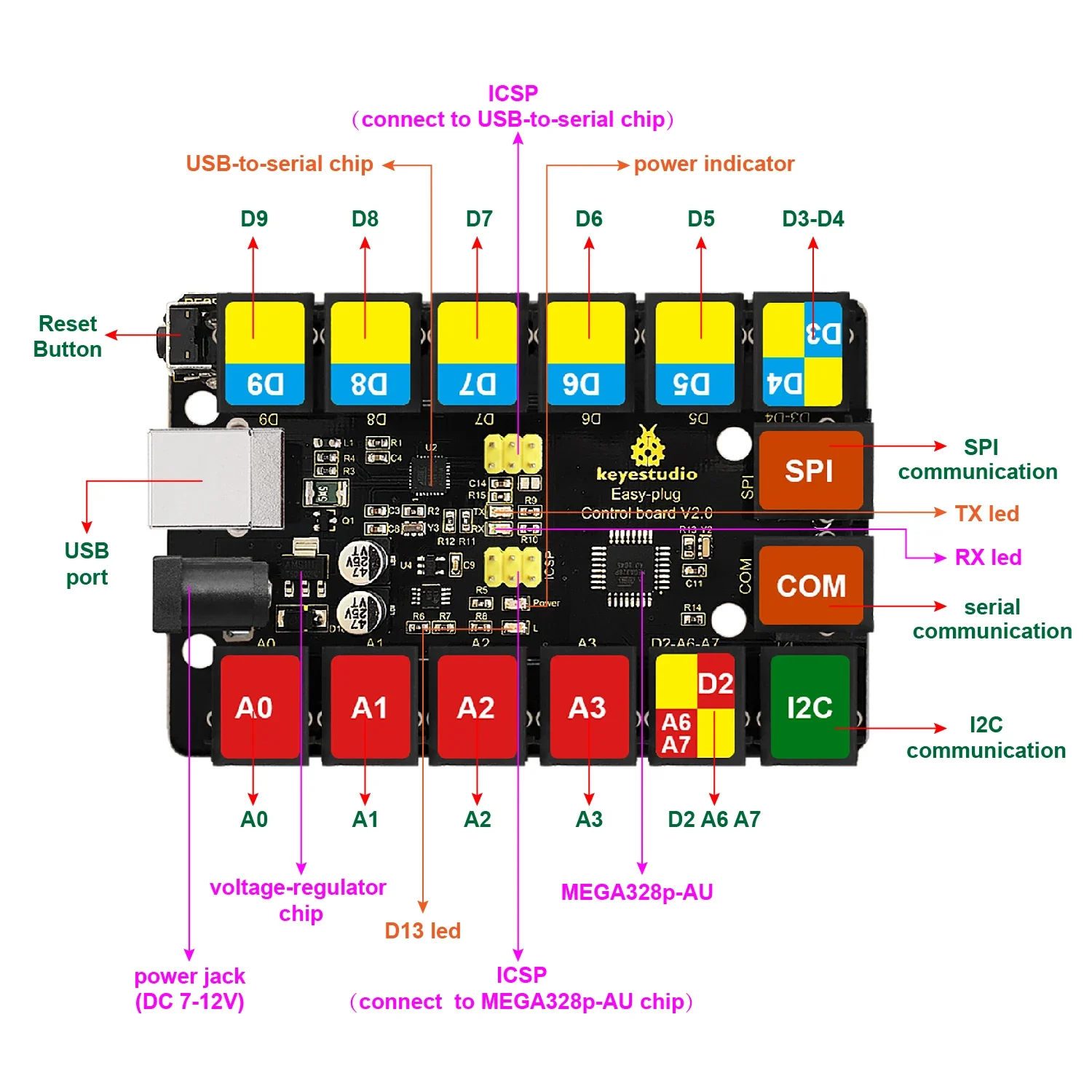

It has 5 single Digital ports labeled D5 to D9 (of which 3 can be used as PWM outputs), 1 dual-digital interface (D3-D4), 4 analog inputs (A0-A3), a Joystick interface (D2-A6-A7), a SPI communication, a serial port communication and an IIC communication interface. Also with a USB connection, a power jack, two ICSP headers and a reset button. It breaks out the IO ports with RJ11 6P6C plug.

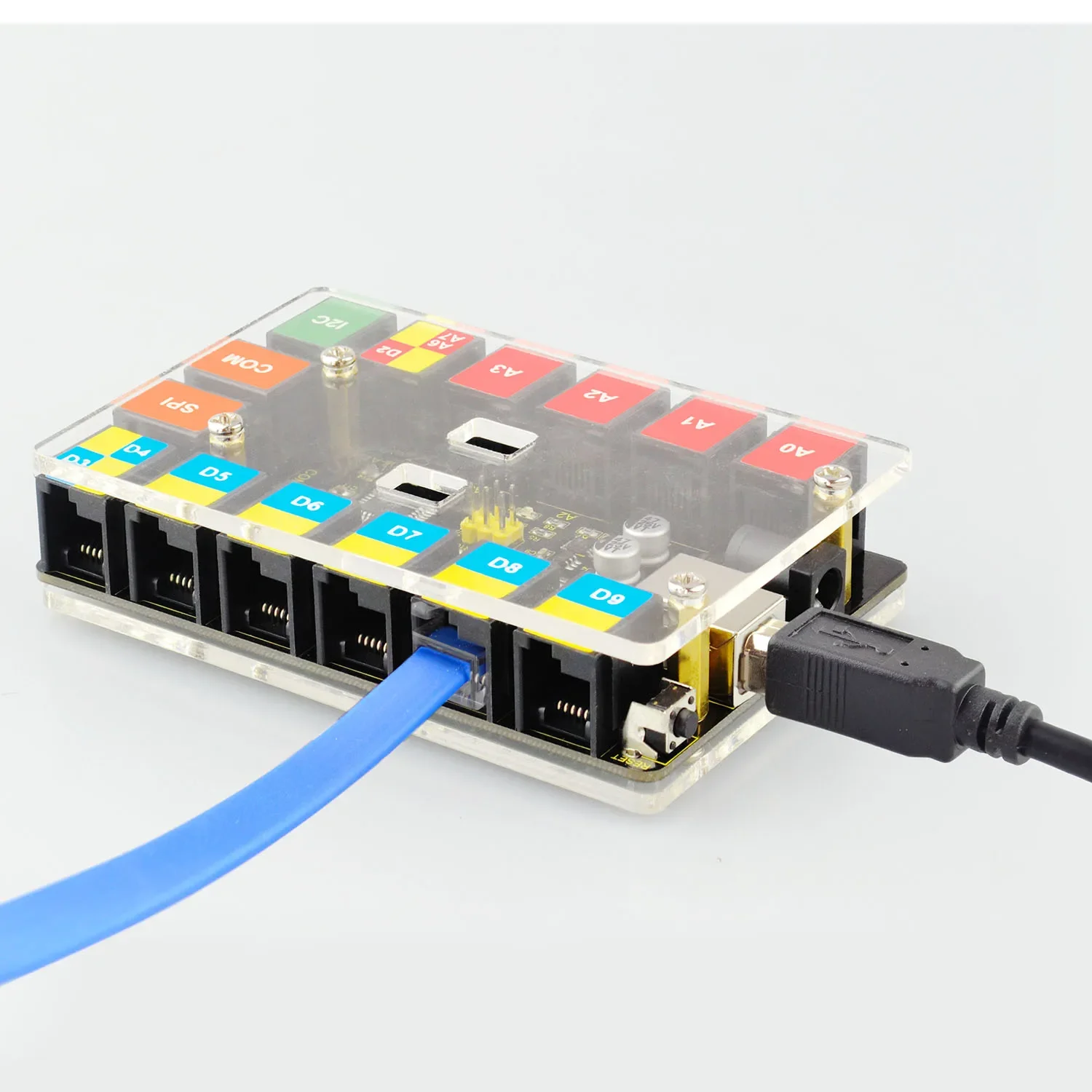

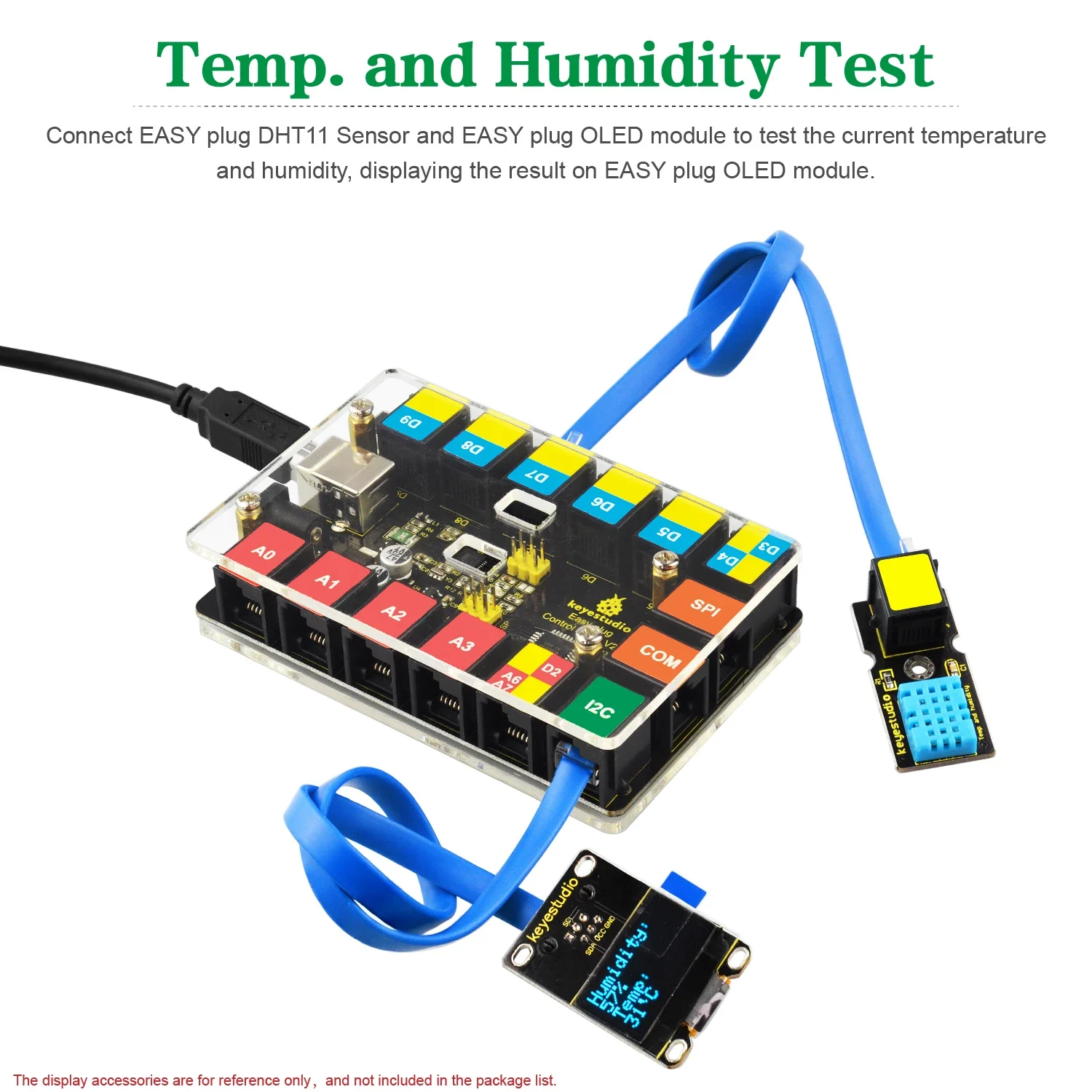

Simply connect it to a computer with a USB cable or power it via a DC jack to get started. For convenience of wire connection, we simplify the pins GND and VCC into each plug, so you only need one RJ11 6P6C connector wire to connect an external sensor or module, no need to separately connect the VCC and GND. So don’t worry that the wrong wiring will damage the external products.
