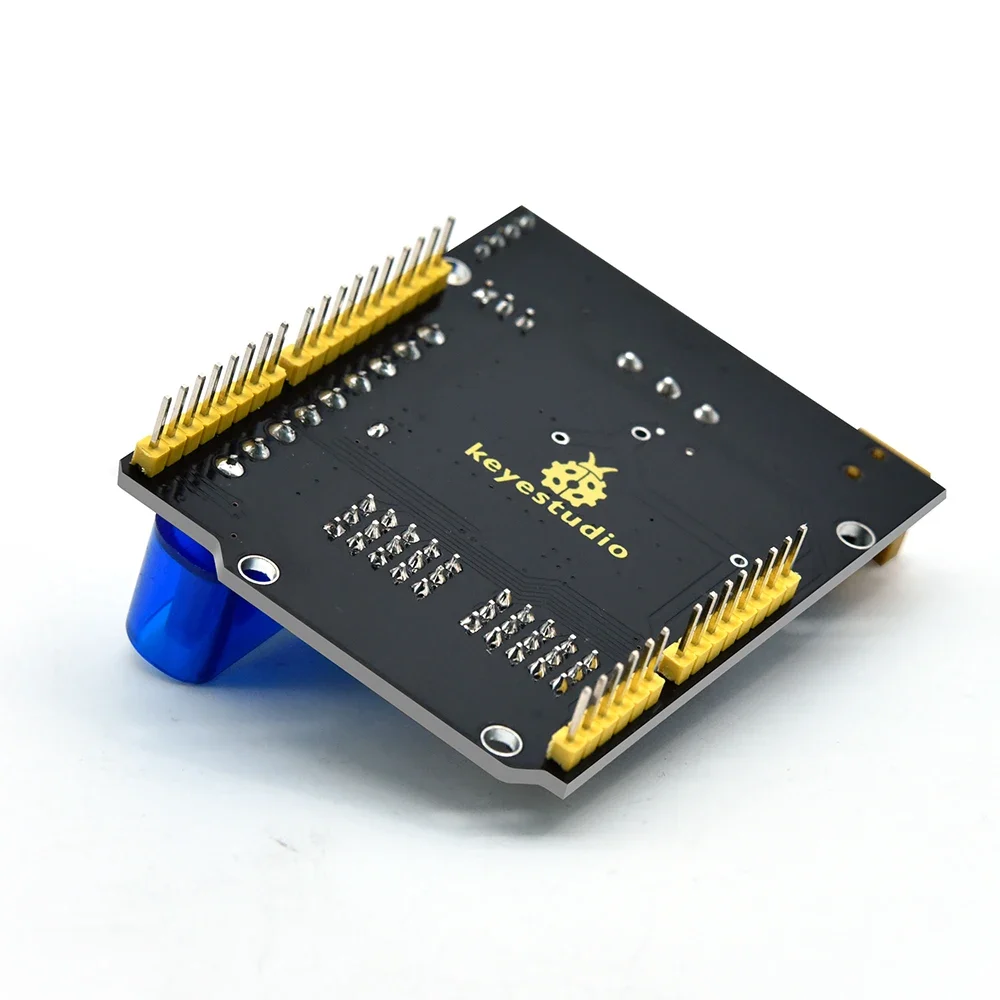

Keyestudio Servo Driver Expansion Board With PS2 Port For Arduino Robot Car Arduino Shield 5V Output Voltage
القسم: ألعاب أطفال, روبوتات الأطفال
حالة التوفر: متوفر في المخزون
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- Package: Other
- is_customized: Yes
- Model Number: KS0550
- Supply Voltage: 5v
- Application: Electric Toy
- Type: Drive IC
- Brand Name: keyestudio
- Origin: Mainland China
- Condition: New
- Operating Temperature: 0-50
- Product number: KS0550
- Input voltage VIN: DC 7-9V
- Input current VIN: maximum 5A
- Output voltage: 5V
- Output current: max 3A
- Voltage regulator IC: LM2596S
- Frequency: 150kHz
- PS2 interface: PS2 female 9P socket

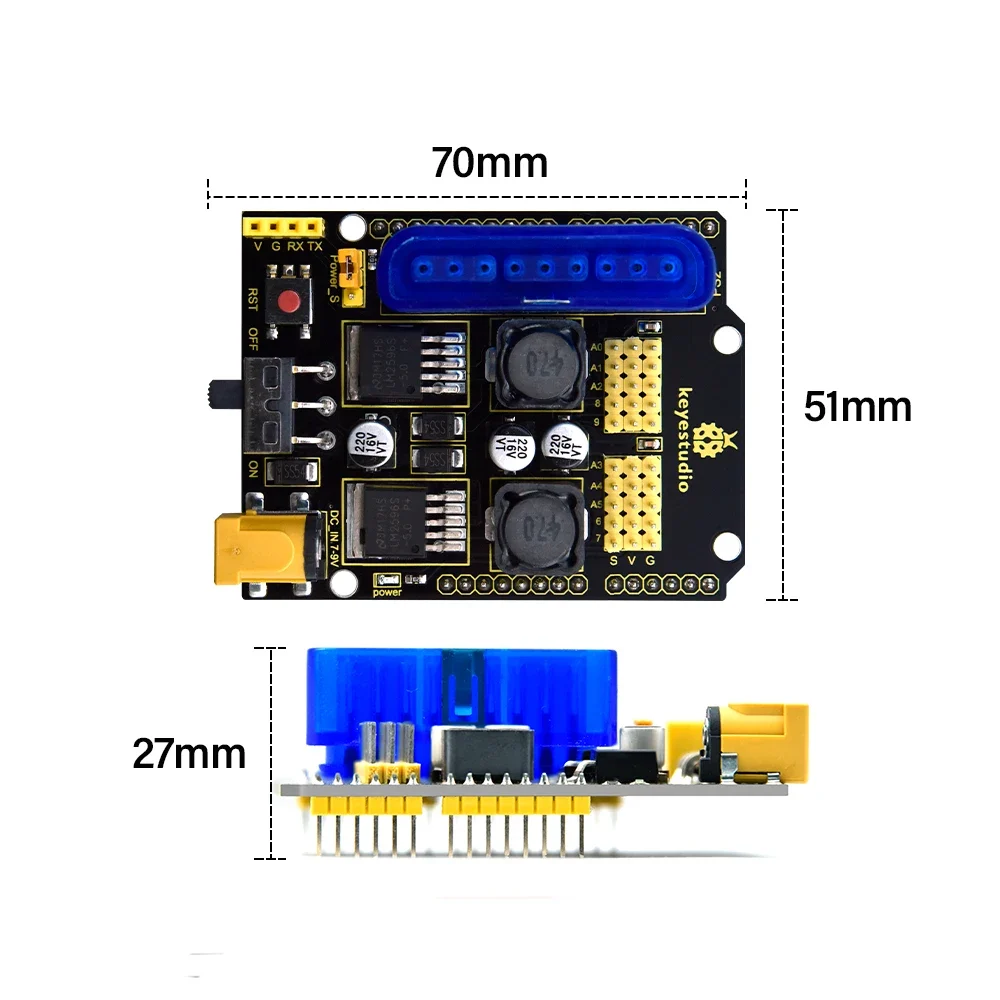

- Size: 73*53.34mm
1. Description

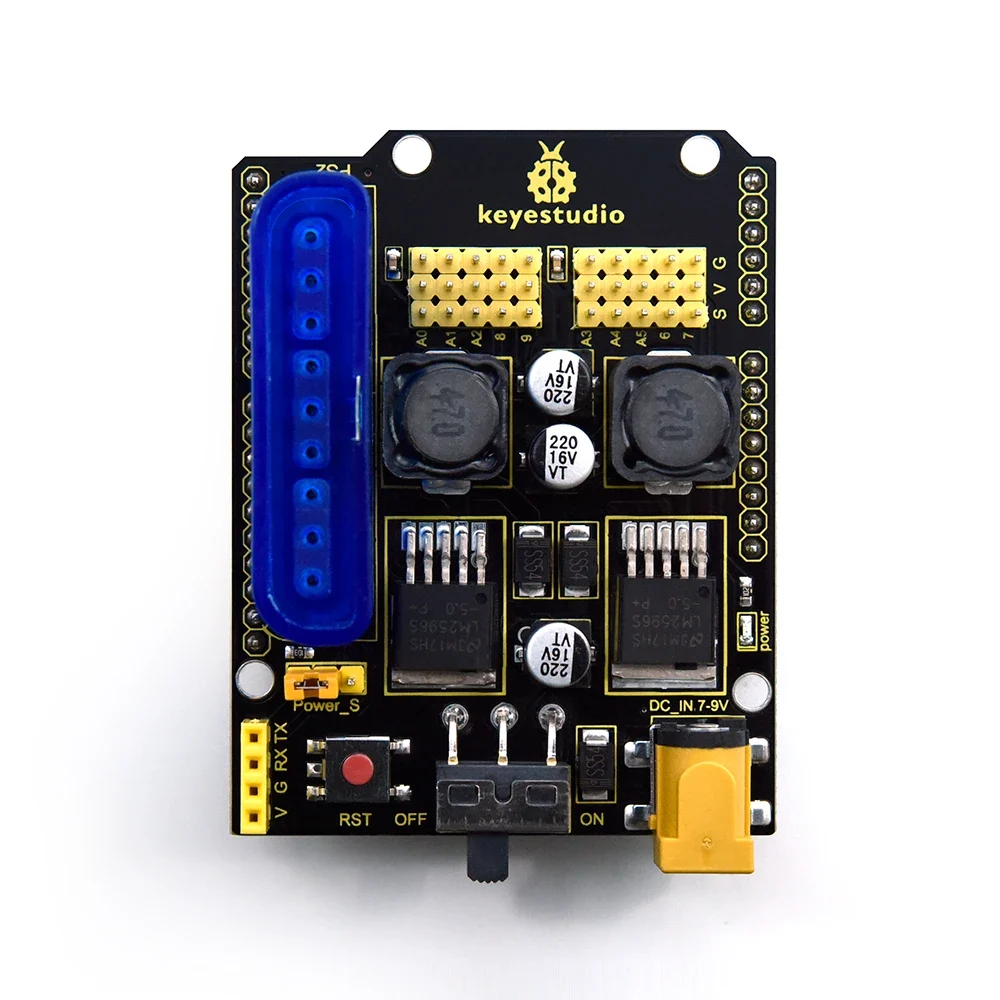

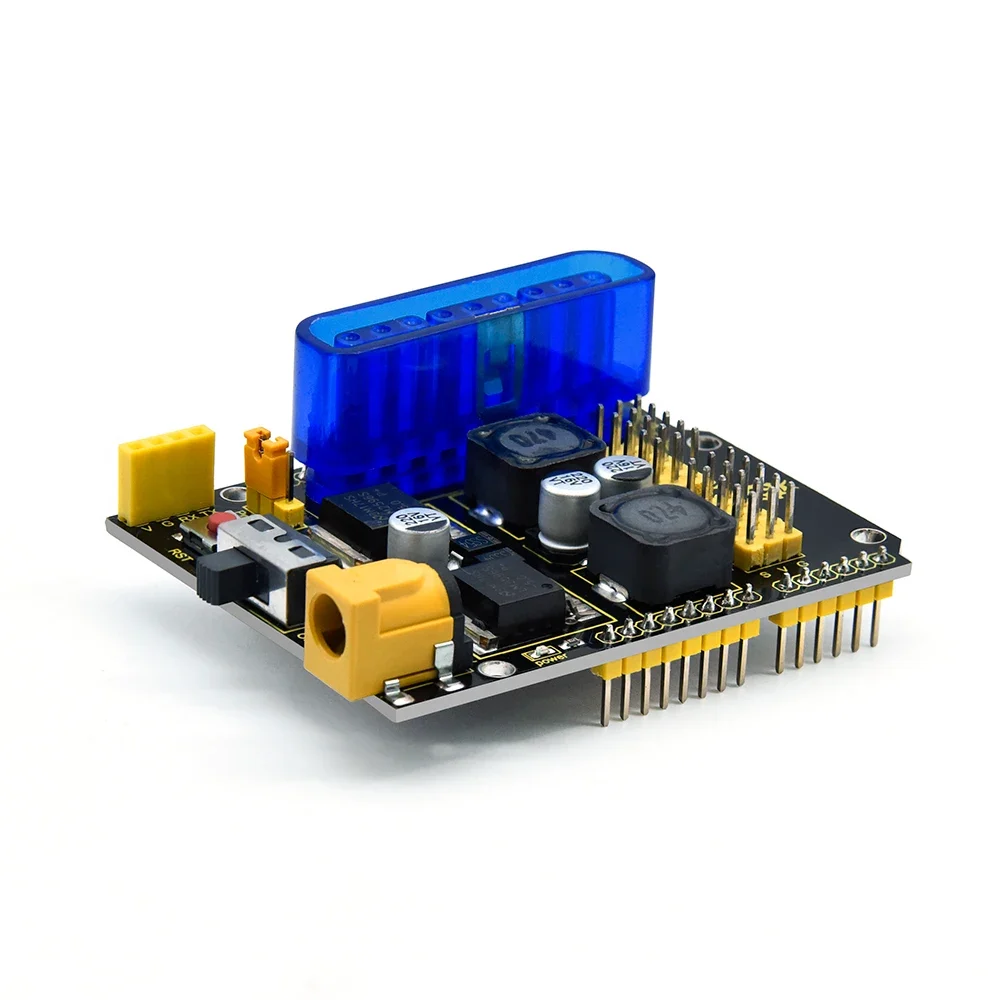

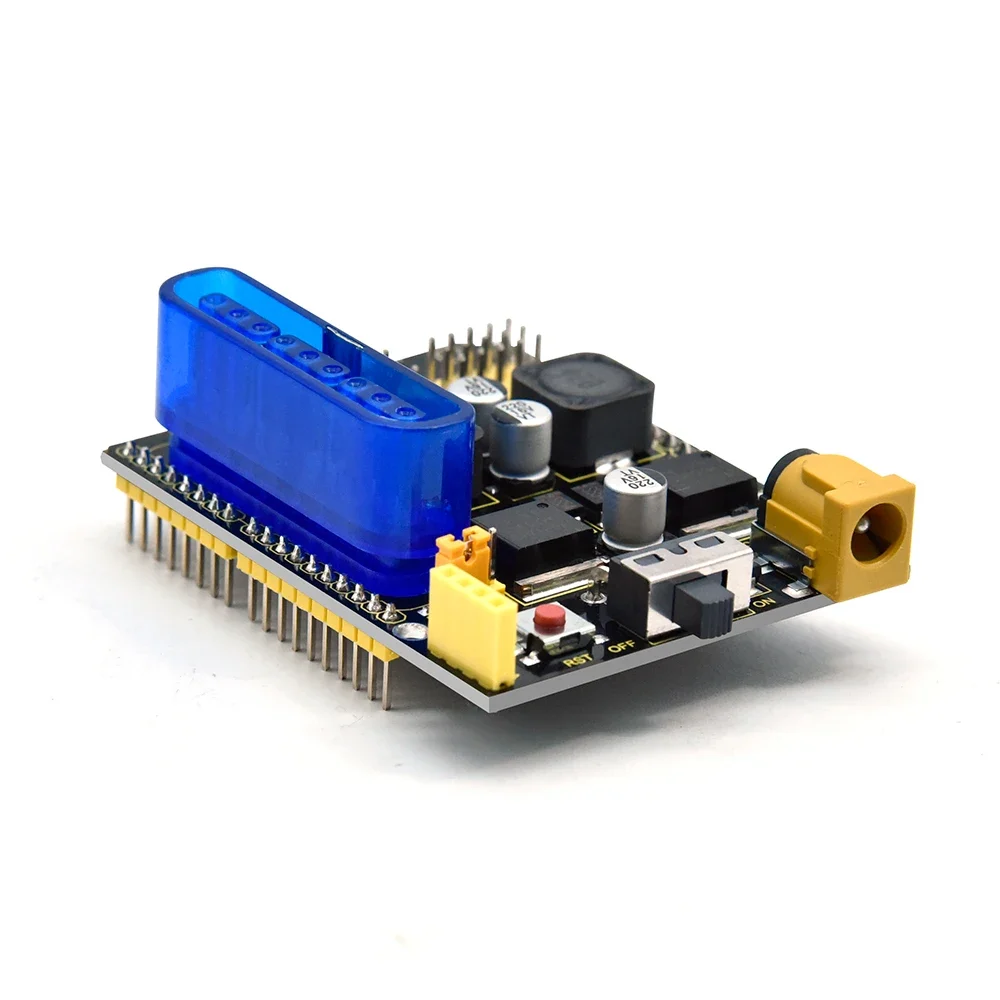

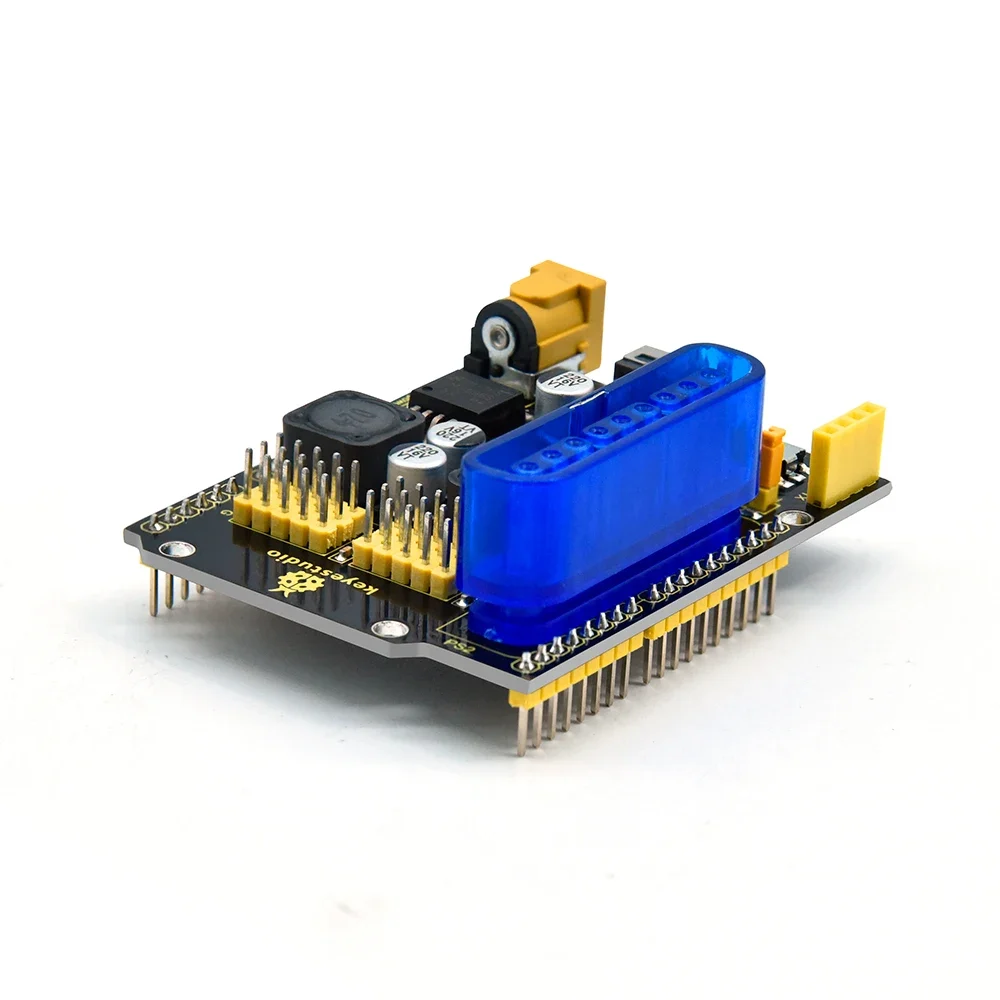

This is an Arduino servo driver shield.

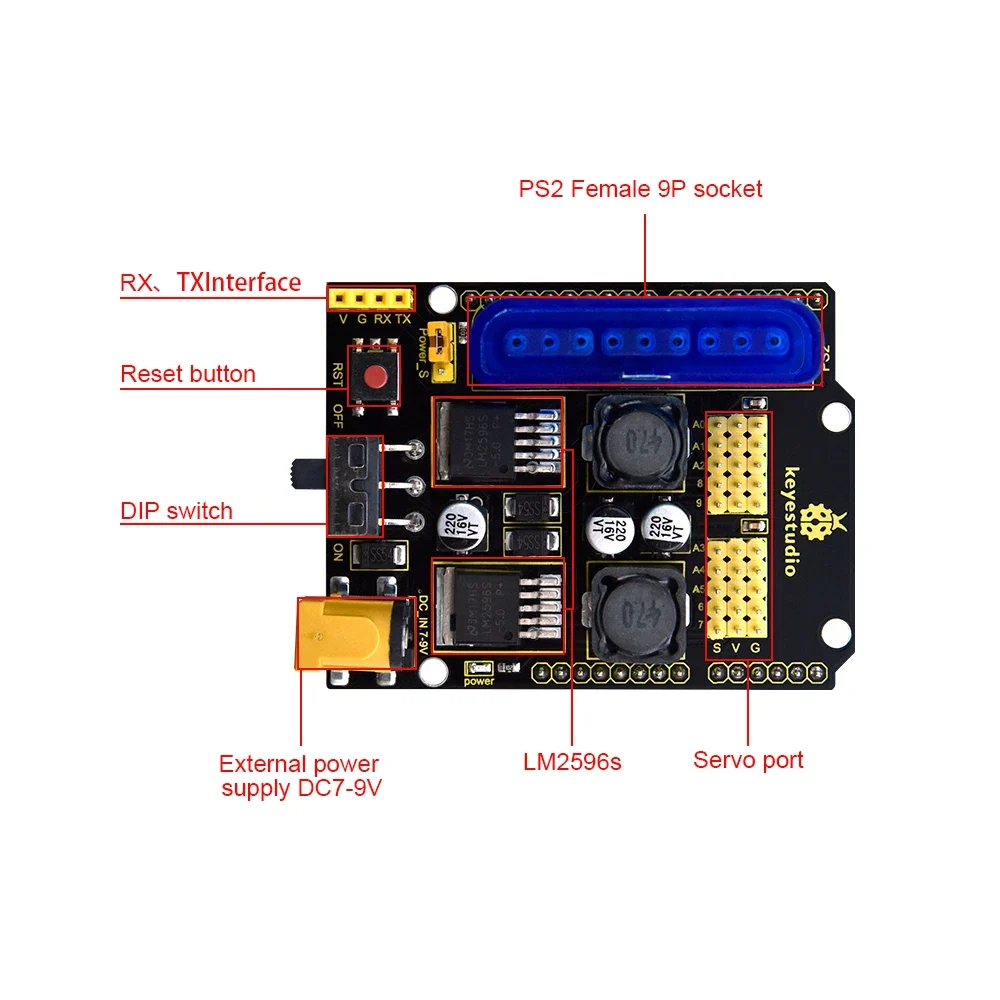

It has a PS2 interfaceforusinga PS2 handle control.
It contains 10 IO interfaces used to connect servos or other sensors.in addition, we have also extended RX/TX interfacesto interface withserial communication modules likeBT modules.
There are two LM2596 voltage regulator ICs onboard, which can provide a stable 600mA current for each servo.
It is alsoapplied to mechanical structures such as robotic arms.
2.Specification
Input voltage VIN: DC 7-9V
Input current VIN: maximum 5A
Output voltage: 5V
Output current: max 3A
Voltage regulator IC: LM2596S
Frequency: 150kHz
PS2 interface: PS2 female 9P socket
Working temperature: 0~50
Size: 73*53.34mm
3.Test Result

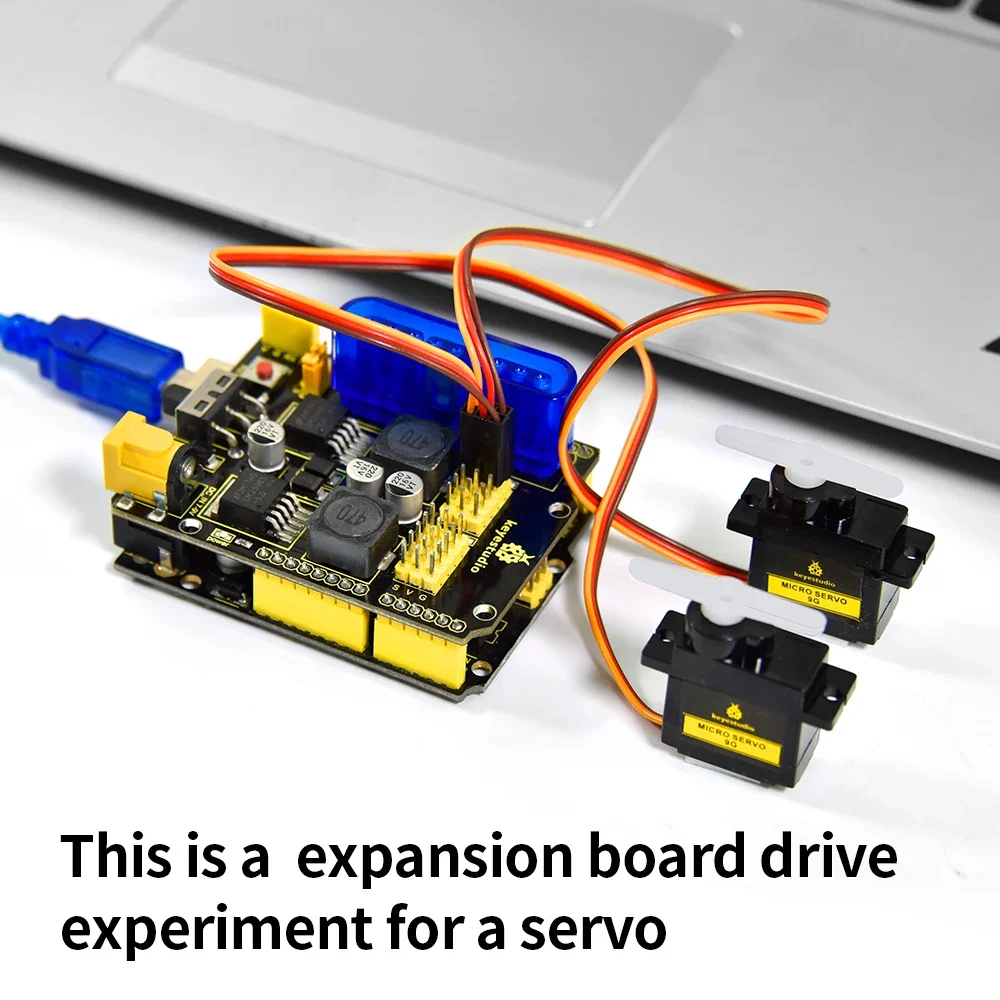

Stack the driver board onto the control board, wire up and upload the code. Four servos rotate from 0° to 180°, then from 180° to 0°
