Frequency Band:

Version-1
4G LTE FDD:B1/B3(2100/1800MHZ)
3G WCDMA:B1(2100MHZ)
2G GSM:B1(2100MHZ)
Applicable to some countries in Asia, such as Thailand, Singapore, Indonesia, Cambodia, Myanmar, Philippines, etc.

Version-2
4G LTE FDD:B1/B3/B8(2100/1800/900MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Applicable to most countries in Asia, such as Israel, South Korea, India, Kazakhstan, Sri Lanka, Thailand, Japan, Singapore, Indonesia, etc.

Version-3
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.

4G LTE FDD:B2/B4/B5/B12/B17

3G WCDMA:B5

Applicable to North and South America countries,
such as USA, Canada, Mexico, Chile, Colombia, etc.

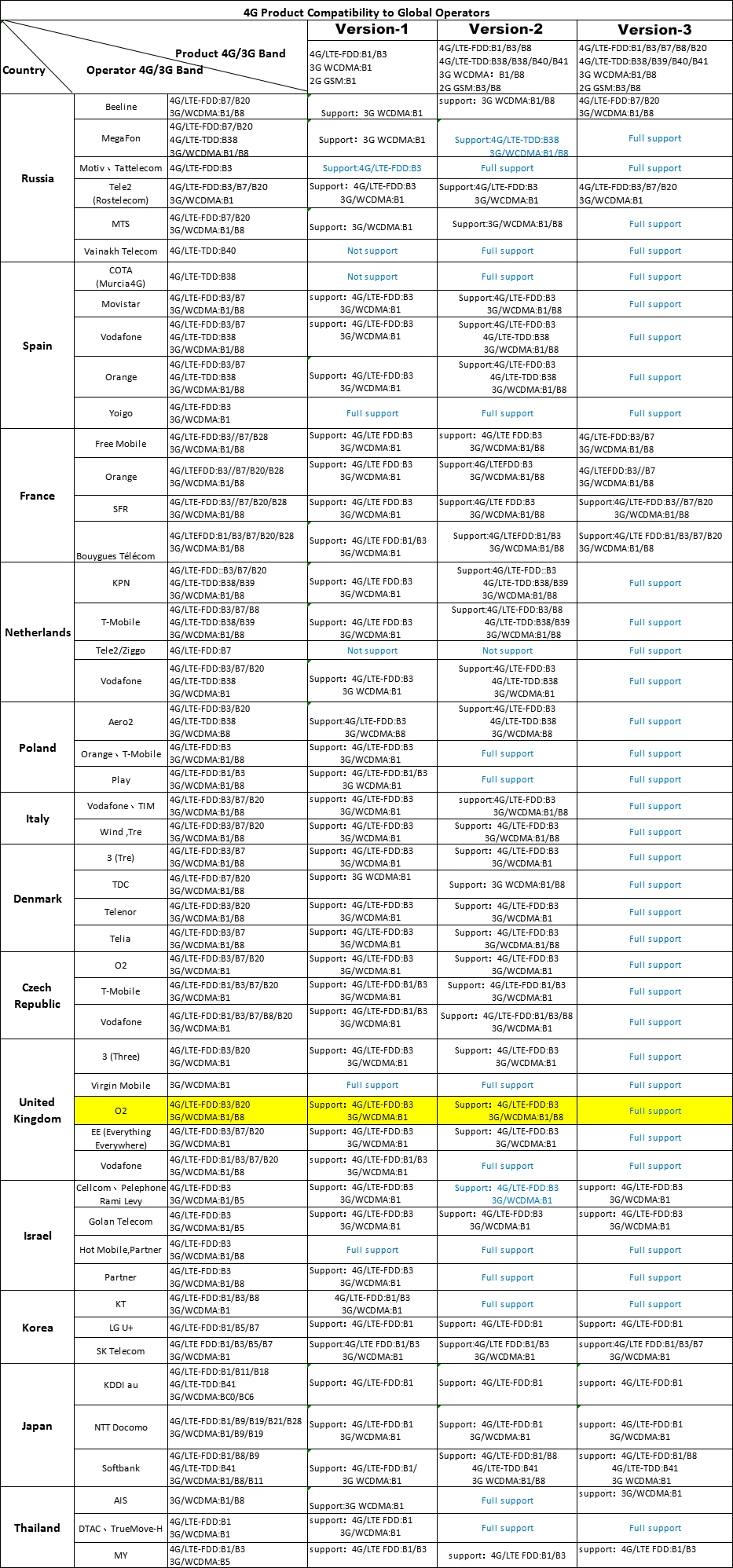

This router is unlcoked. But different operators have different frequency bands in different countries.

If you don’t know the 4G frequency band used in your country/region, please check on the following website:

https://en.wikipedia.org/wiki/List_of_LTE_networks

Overview:

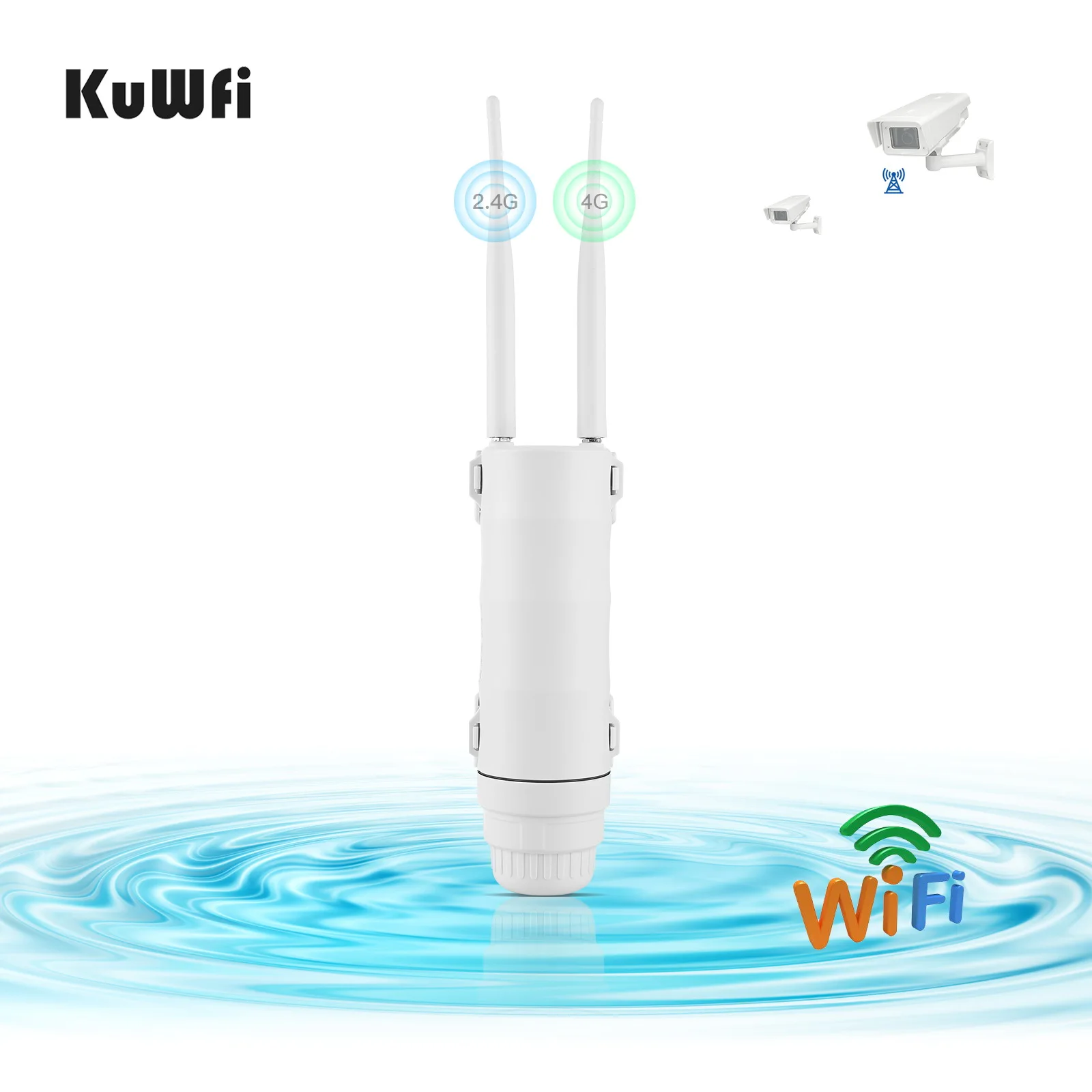

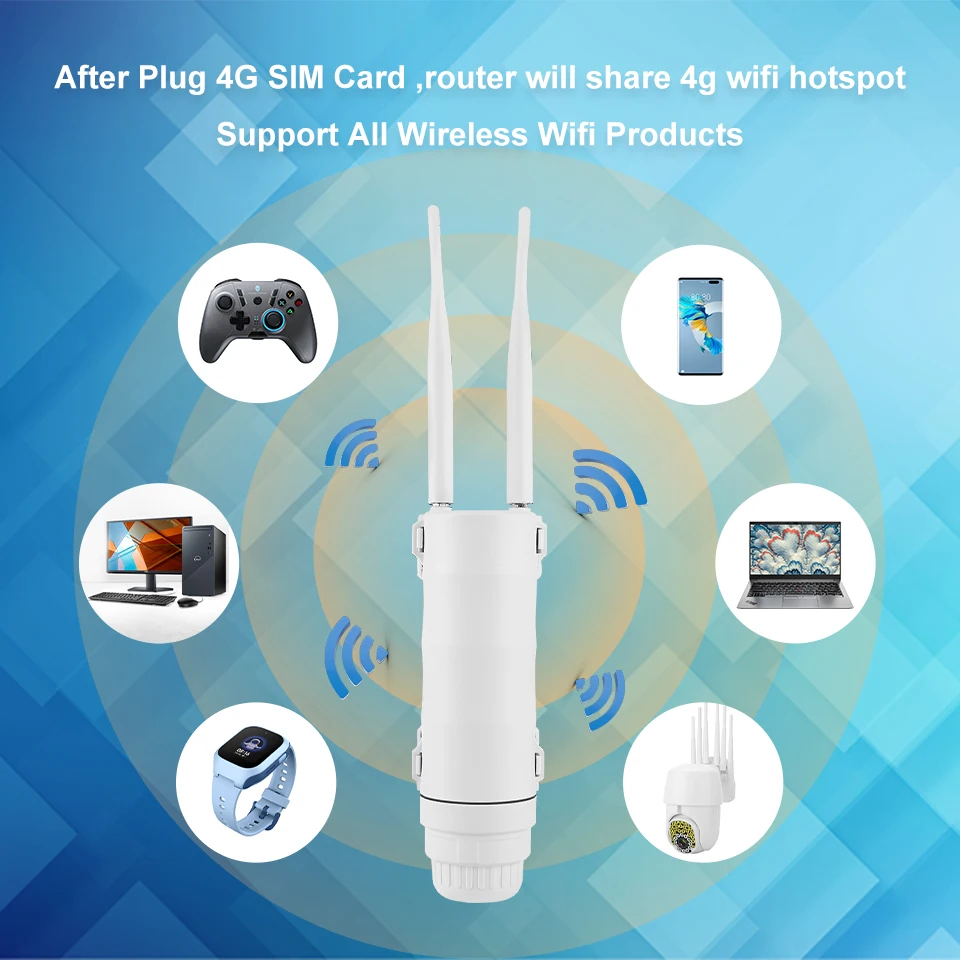

Outdoor 4G router designed for WIFI users to get access to internet via 3g/4g sim card. It is used to supply internet access to indoor &outdoor WiFi coverage and monitor camera project

Features:

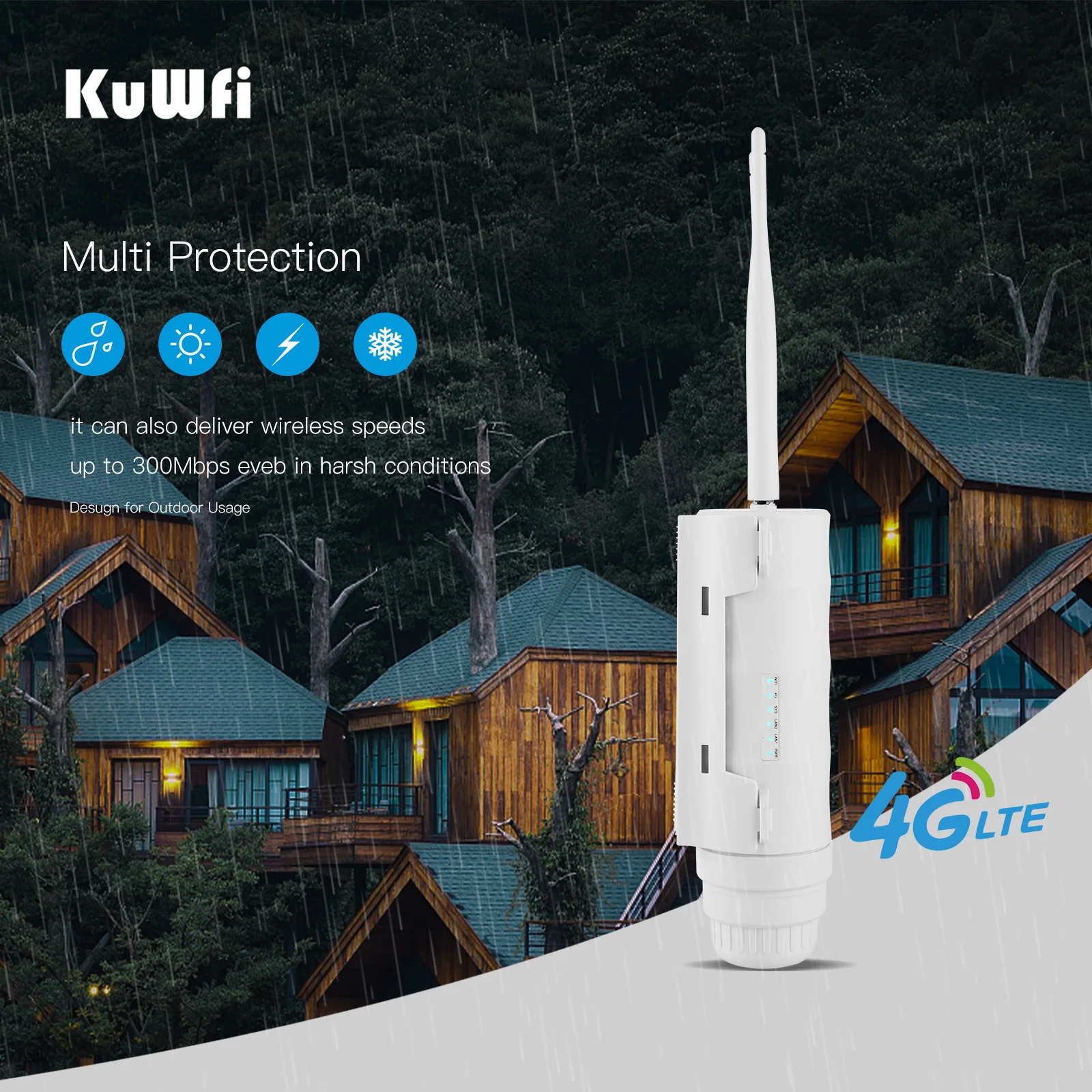

IP67 grade three-proof design:

It adopts three-proof design, and has good heat dissipation function, which can adapt to various thunderstorms, snow and other harsh weather.

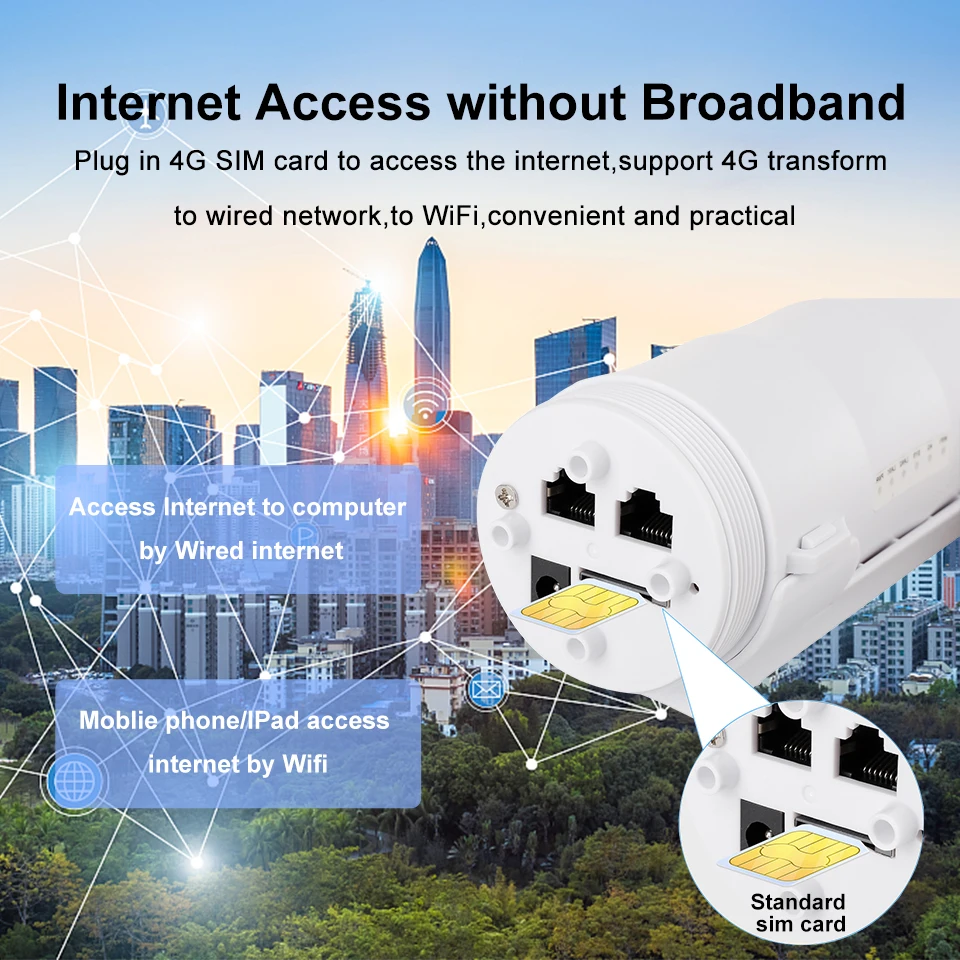

Wired network, 4G wifi optional:

Whether it is 4G network or wired broadband, the router can connect to the network as needed, so that you can surf the Internet without worry and enjoy broadband life anytime, anywhere.

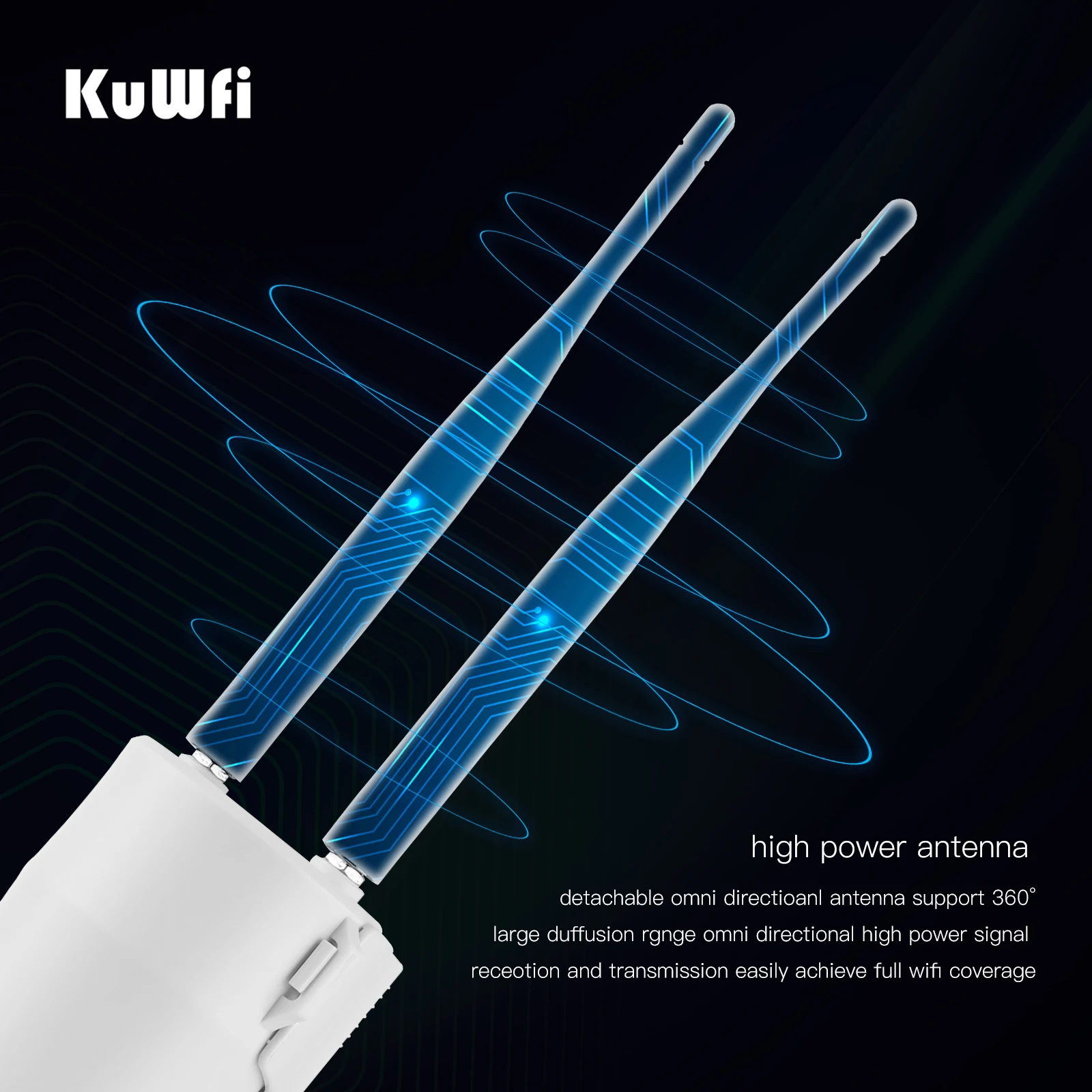

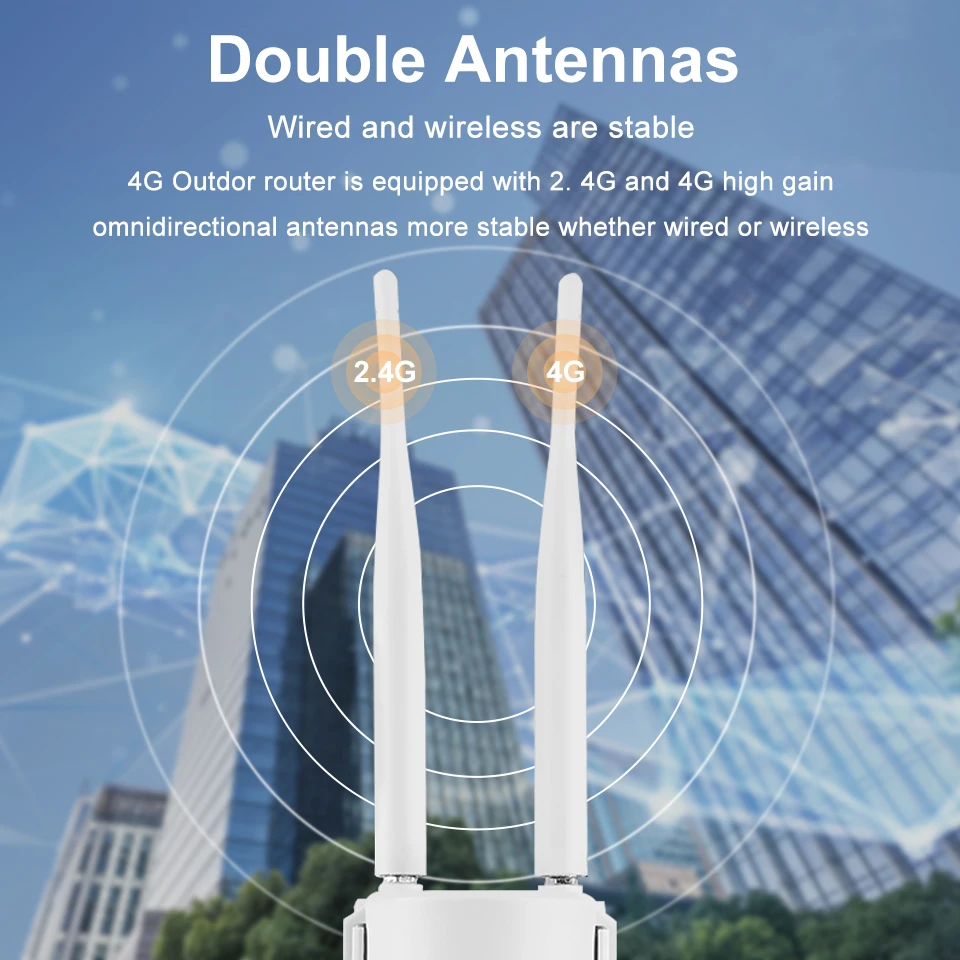

Dual antenna high speed:

2.4G Internal 5dBi x 2PCS,4G external 5dBi x 2PCS, Internal LTE diversity antenna. Wi-Fi Transfer rate：UP to 150Mbps. Support LED indicator.

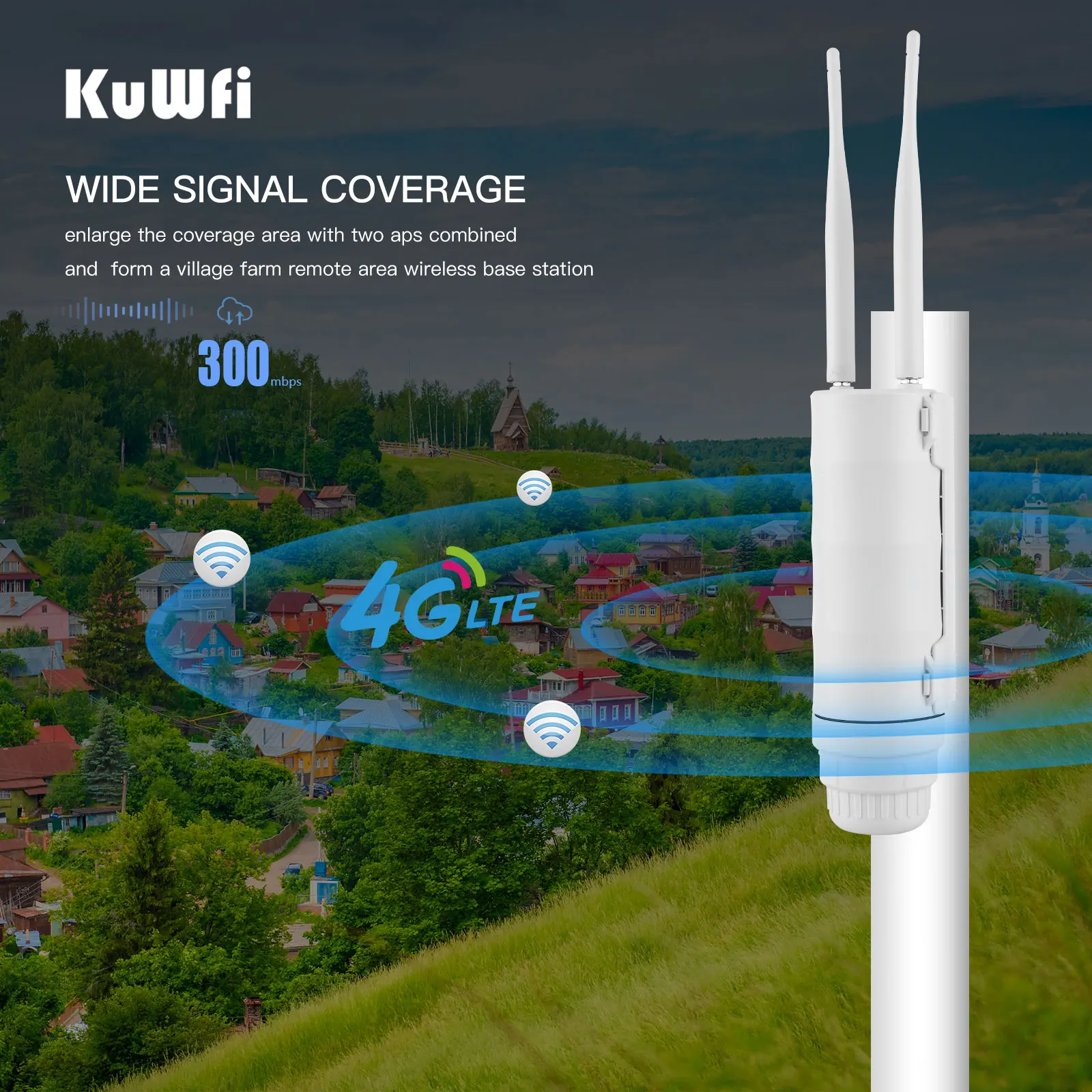

Outdoor wifi distance :

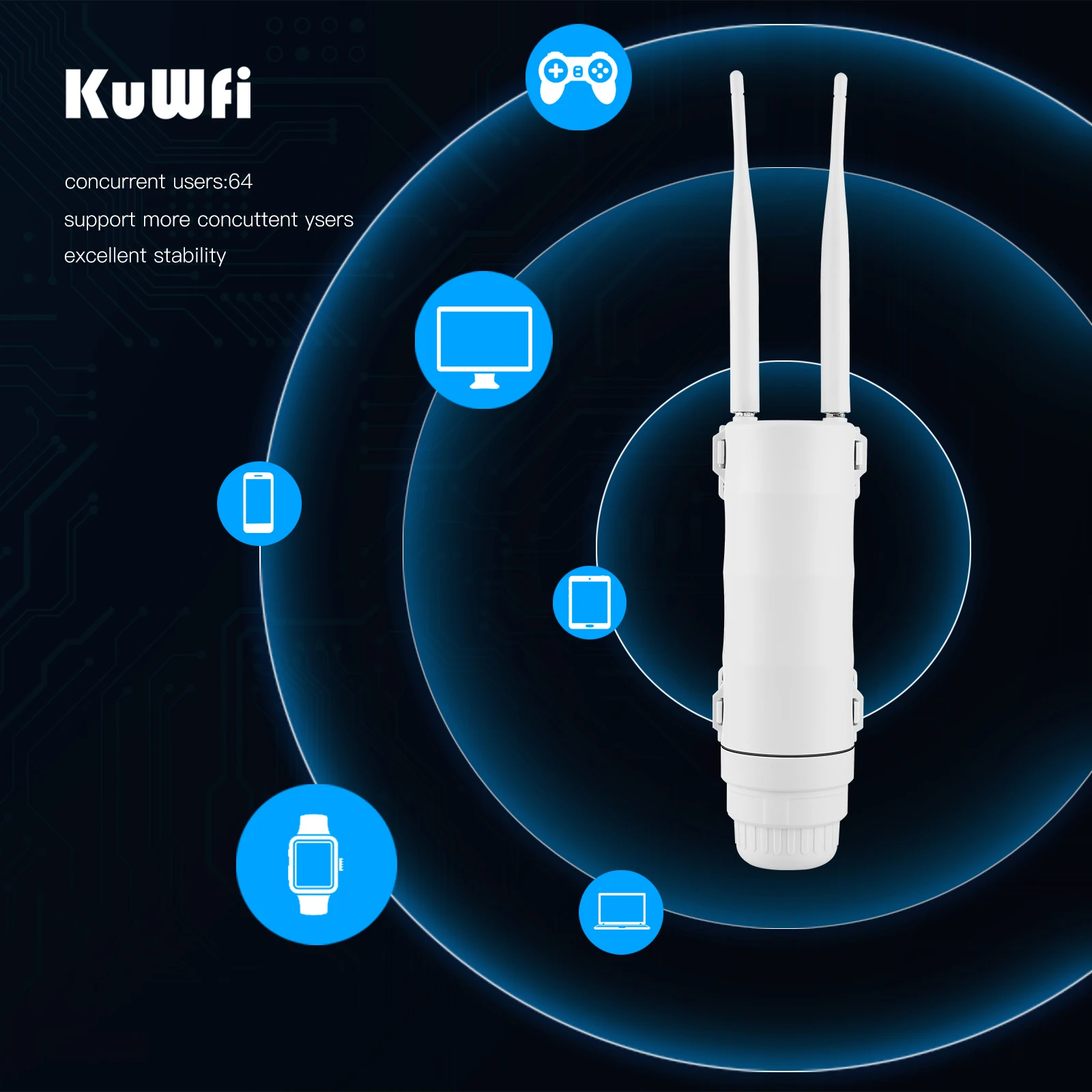

10-100M （Outdoor accessibility）,support max 64 wifi user at the same time.

Specification:

– Flash/RAM/:8/64M
– Wi-Fi：IEEE 802.11b/g/n
– Wi-Fi Transfer rate：UP to 150Mbps
– Encryption：Wi-Fi Protected Access (WPA/WPA2)2
– Customization：Smart system,high-level；Customization possibility
– LED：LED indicator

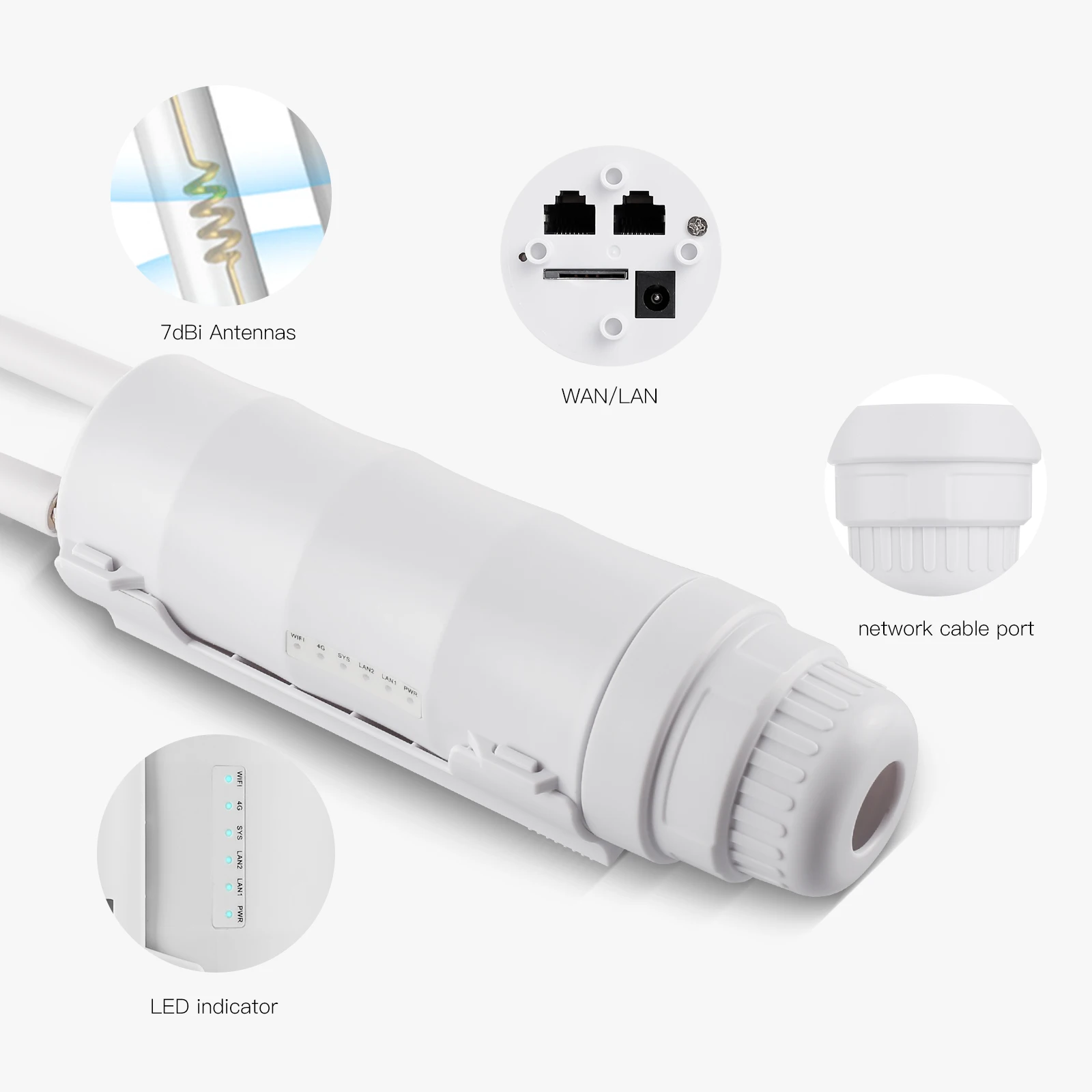

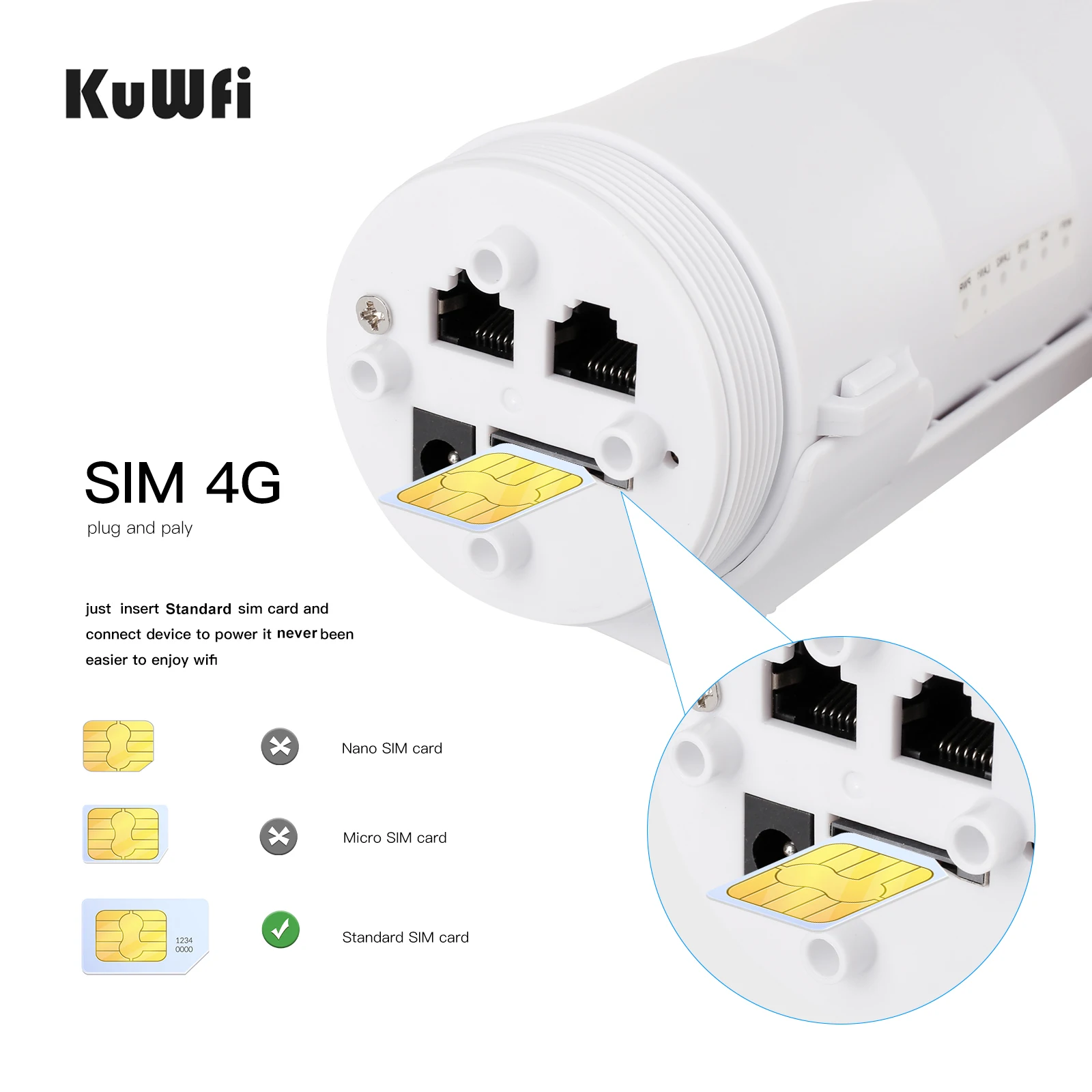

Interface type
Wan: 1 x 10/100 Mbps wan port(RJ45)
Lan: 1 x 10/100 Mbps Ethernet port(RJ45)
Antenna: 1*wifi antenna ,1*4G antenna

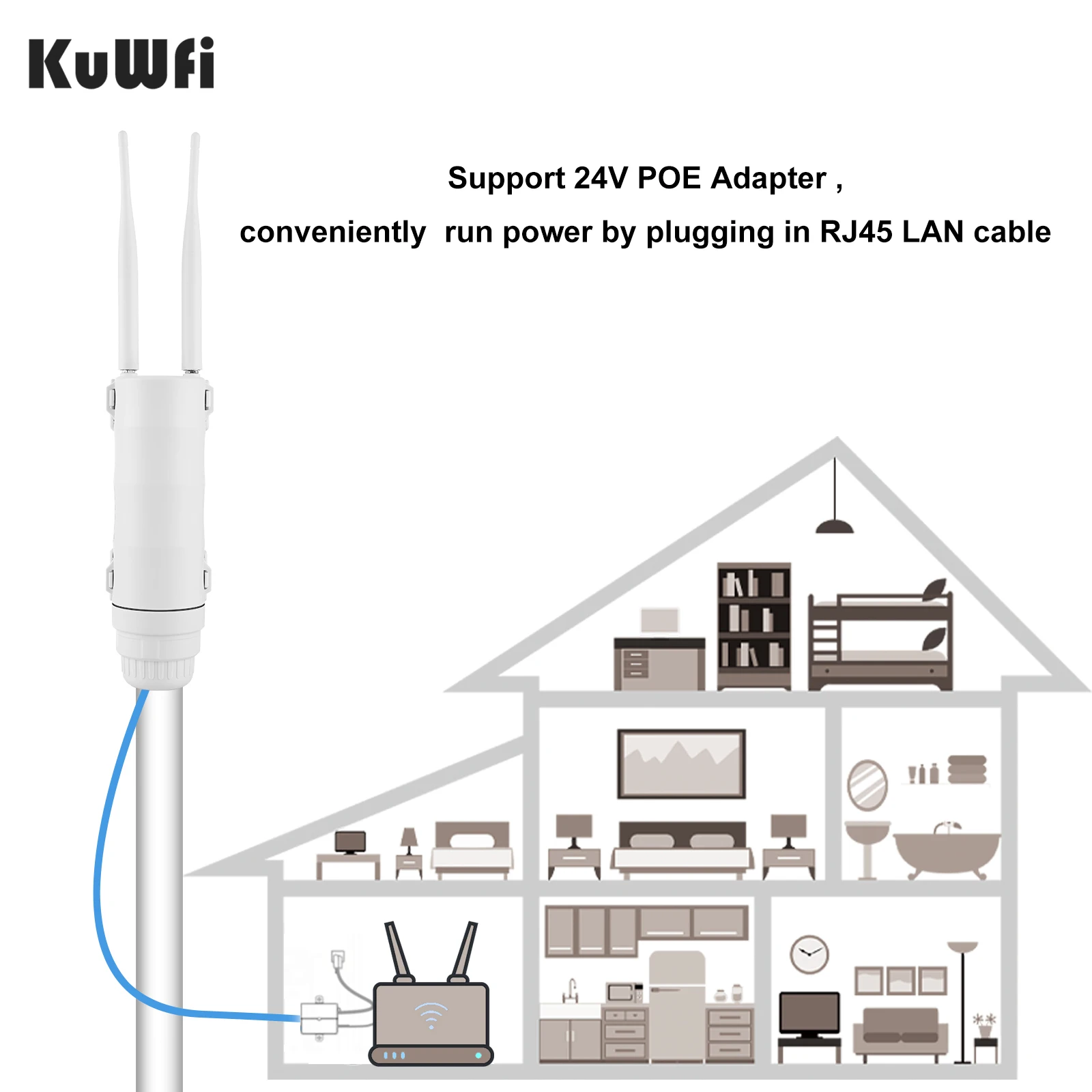

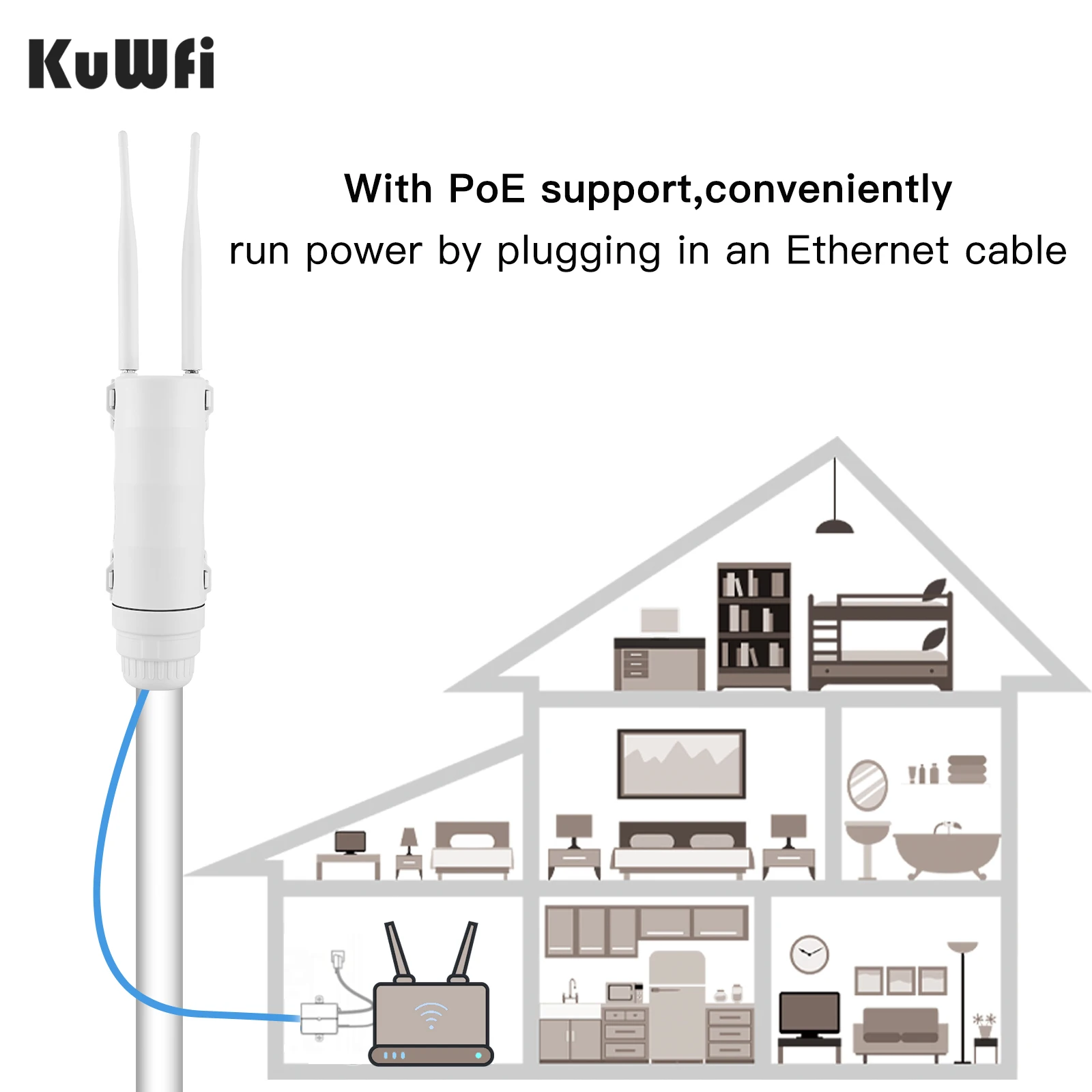

Power: POE, through RJ45 port
Reset: Restore the router to its original factory default setting

Speed(CAT4)
FDD – LTE Downlink：150Mbps， Uplink：50Mbps
TDD-LTE: Downlink：150Mbps， Uplink：50Mbps
HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed)
HSUPA: 5.76Mbps (upload speed)/ HSDPA: 7.2Mbps(download speed)
UMTS:384Kbps (download speed/upload speed)

Package Included:

1x Outdoor 4G LTE Router
2x Antenna
1x 24V/0.5A POE Power Adapter
1x RJ45 Cable
1x User Manual
