Main Function
1.433MHz RF wireless relay remote control switch.

2.You can remotely turn ON/OFF Light or other machine

3.Stable and reliable performance with high reception sensitivity (> – 97dBm). Radio frequency signal transmission.
4.Strong signal can pass walls, floors, doors,board and so on.

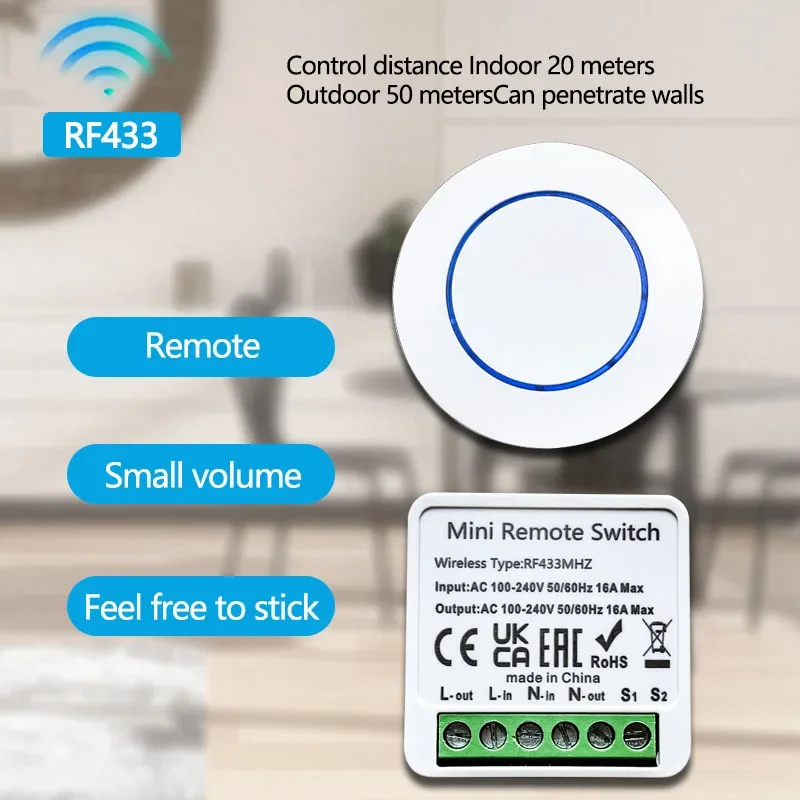

5.It can be controlled within 60 meters distance in open area.

6.This receiver adopts 10A high-quality relay that can be used over 100,000 times. The receiver is suitable for AC 85V~250V voltage, so AC 240V/220V/ 230V/110V voltage can working well.

7.The remote control transmitter can be clicked over 500,000 times.
8.The mini size of receiver is 47*42*20 mm. It installs between power supply and device. The receiver is packaged in a box, which is safer to use.

9.Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.You can remotely operate every device connect with the receiver through the wireless switch. such as lamp, lighting, ventilation device, food waste disposer, DIY wireless plug, signal transmission and so on.

Product parameters
1.Relay Receiver Board Parameter
Working voltage : AC 85V~250V
Quiescent Current : <5MA
Max current : 10A
Max load: 2200W
RF frequency : 433MHz
Receiver size : 47*42*23mm
Working temperature : -30~+80 Celsius
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 20 pieces
Support encoding : 1527 Learning code /2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Remote operating mode : Momentary Mode / Toggle Mode / Latched Mode

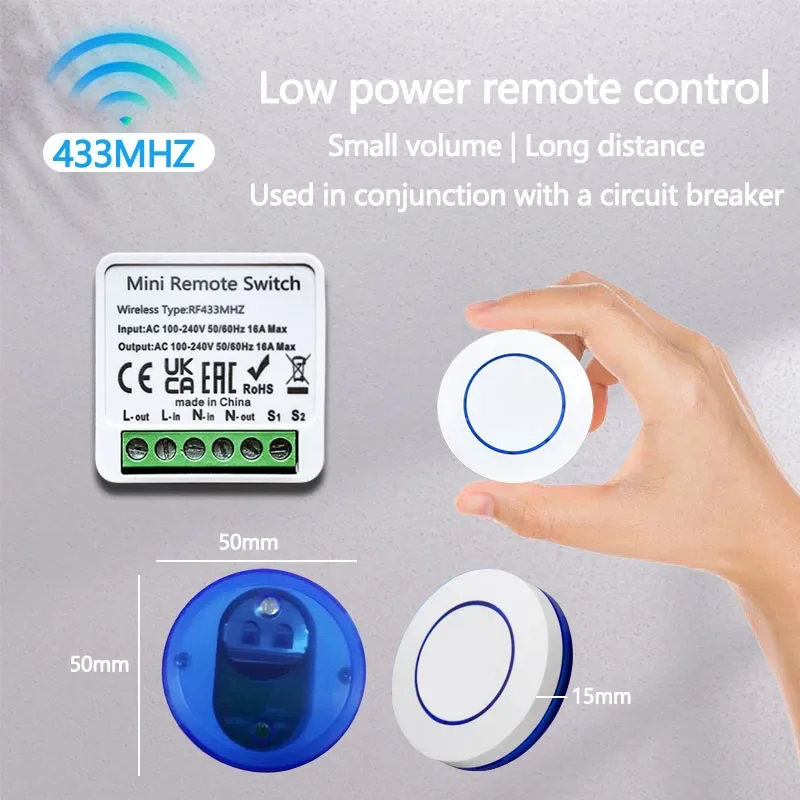

2.Wall panel transmitter parameters
Size: 50*50*13mm
Battery: CR2016( not include)
Receiving Range: Up to 60 meters(theoretical distance)
Code: 1527 leanring
Material: PVC
