Description:

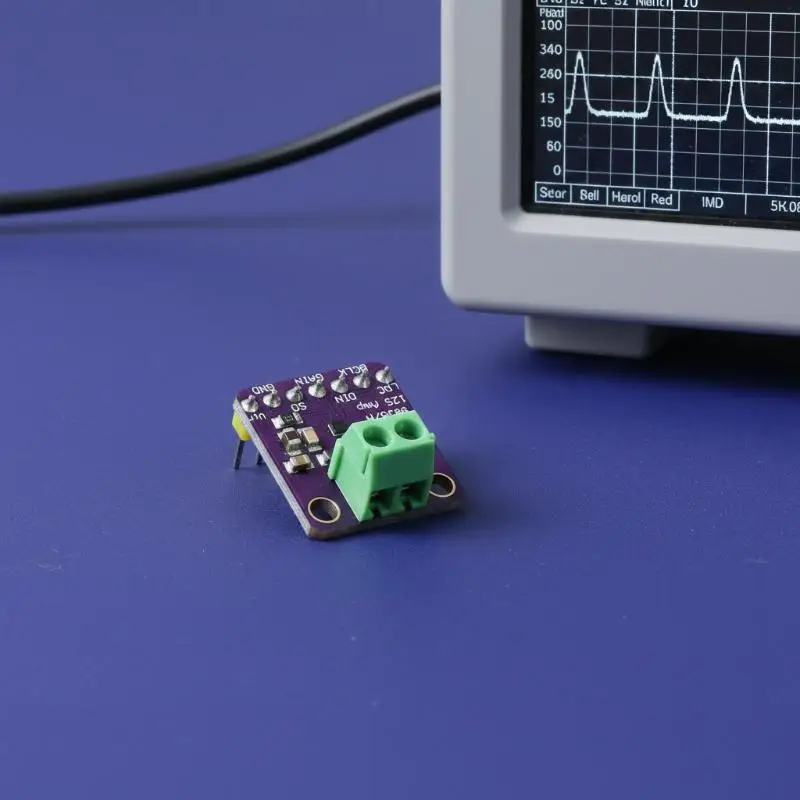

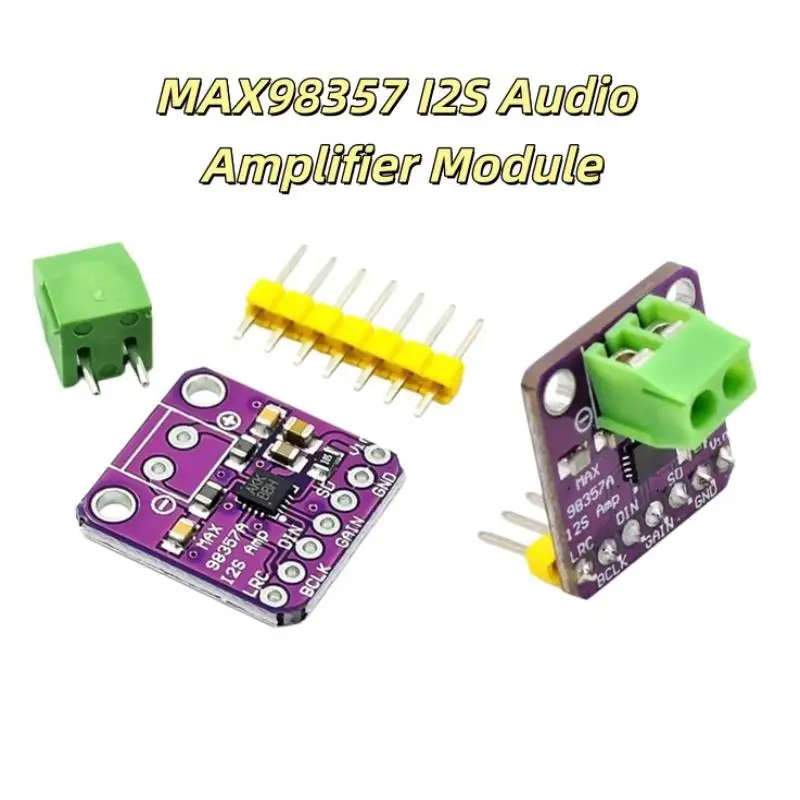

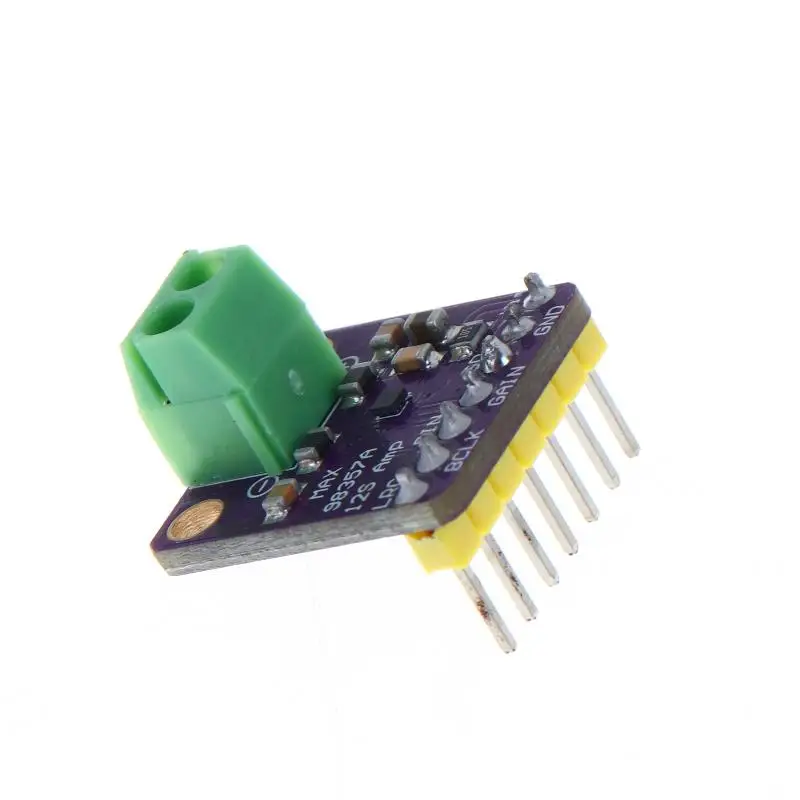

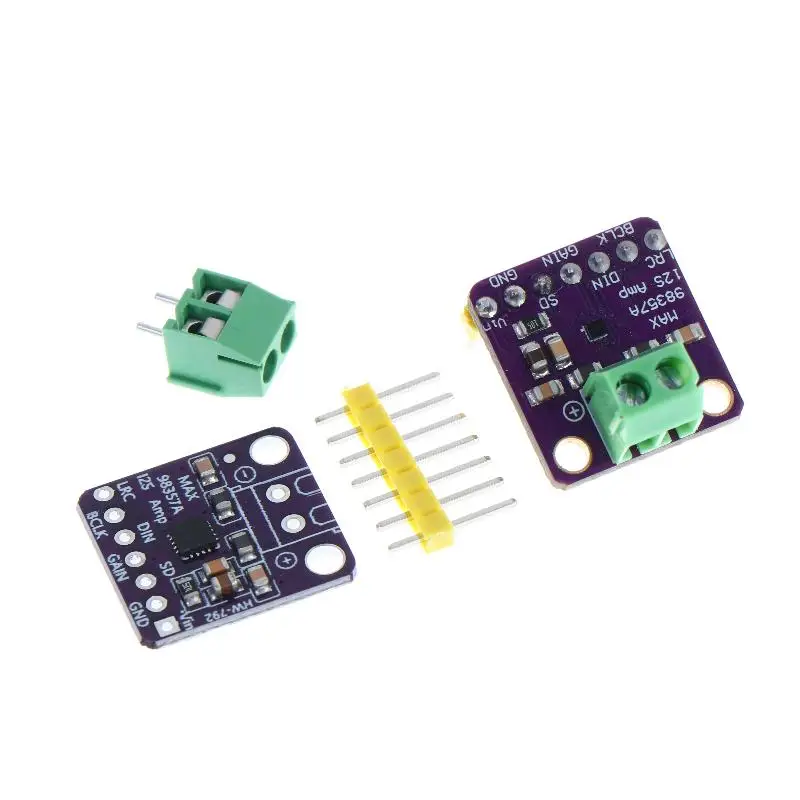

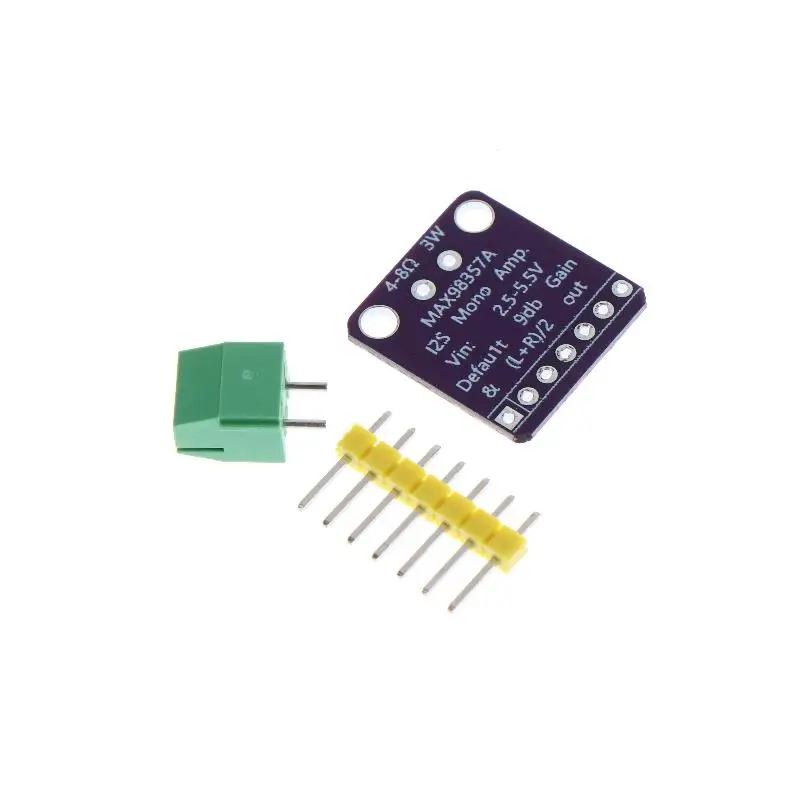

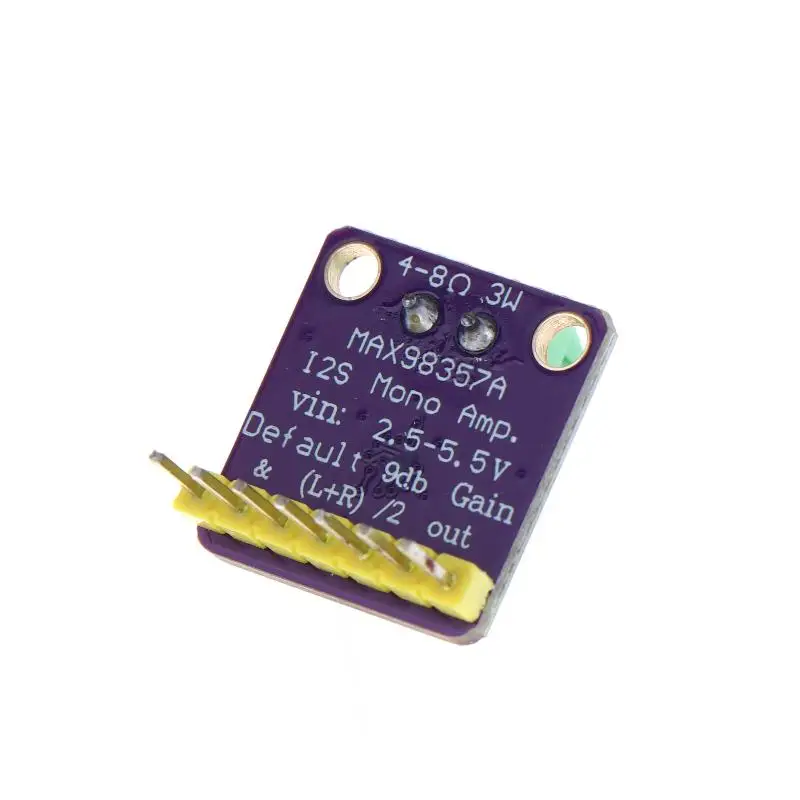

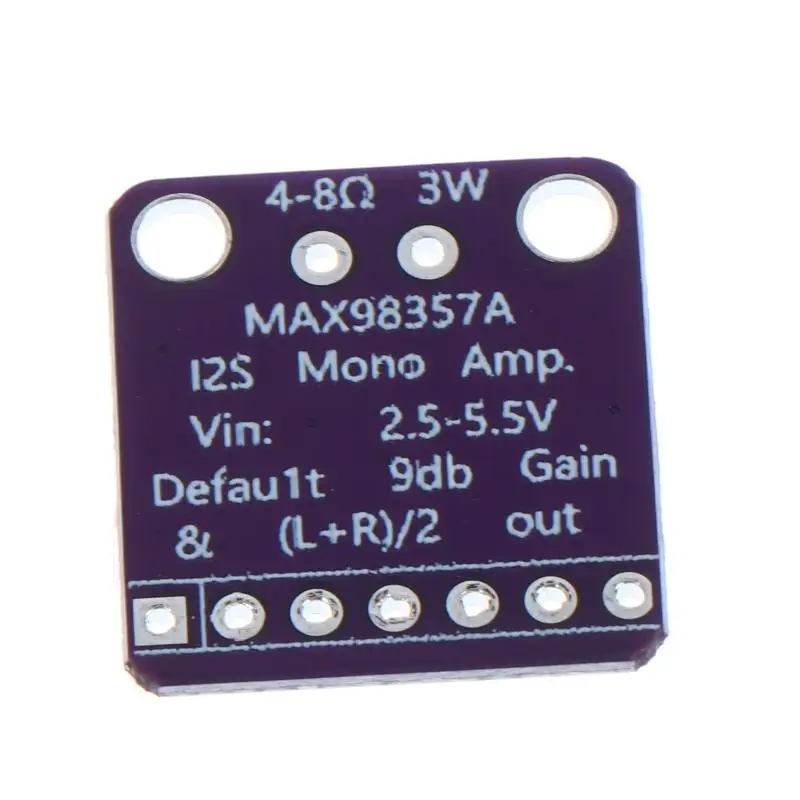

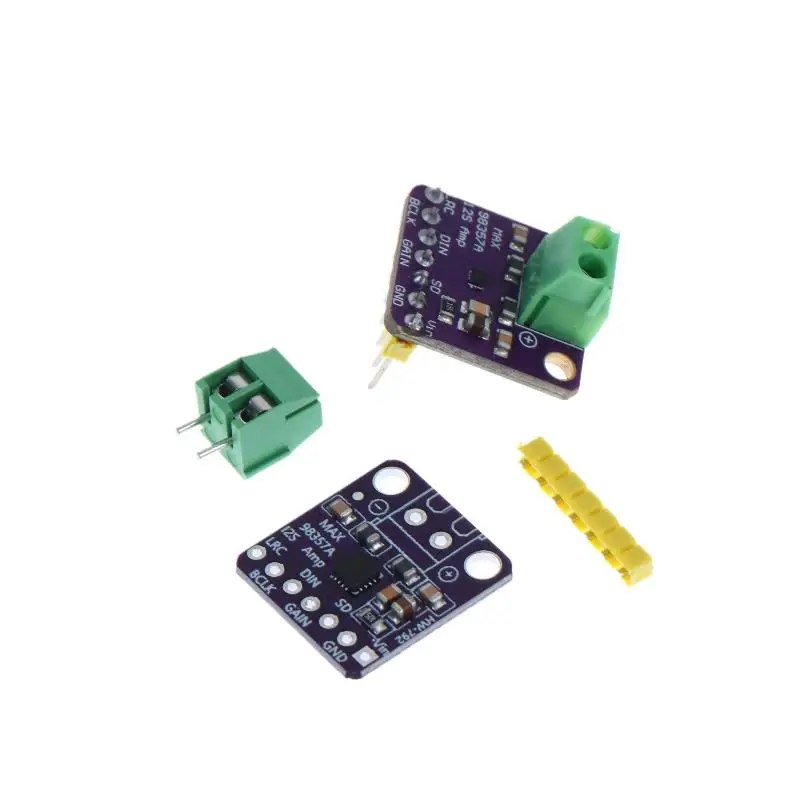

High Quality MAX98357 MAX98357A I2S 3W Class D Amplifier Breakout Interface I2S DAC Decoder For Audio

Product characteristics:

Output power: 3.2W at 4Ω, THD is 10%

At 8Ω, it is 1.8W and THD is 10%

I2S sampling rate: 8Khz~ 96Khz

Class D amplifier gain optional: 3dB/6dB/9dB/12dB/15dB, no master clock (MCLK) required

Plug and play: With a single power supply, 35 different clocks and 128 digital audio formats can be automatically configured

Suitable for Raspberry Pi, ESP32 and tools, with 12S audio output of the microcontroller or development board system

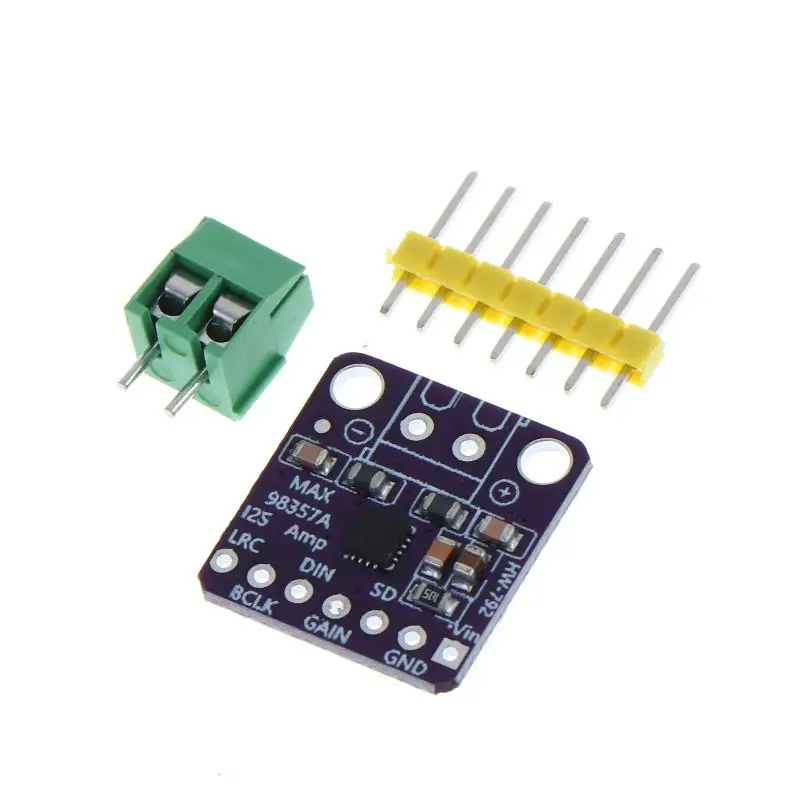

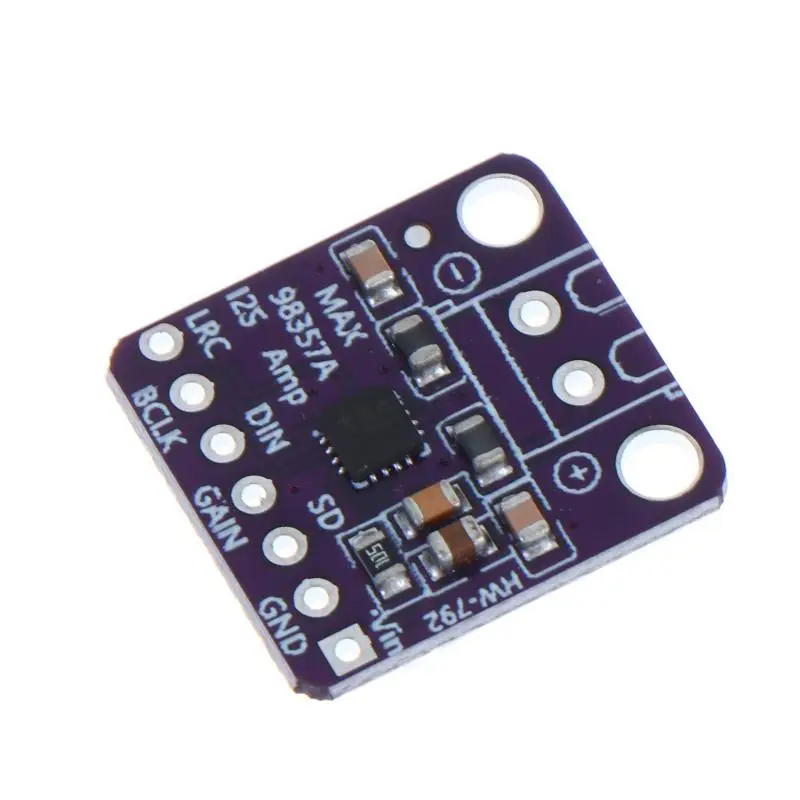

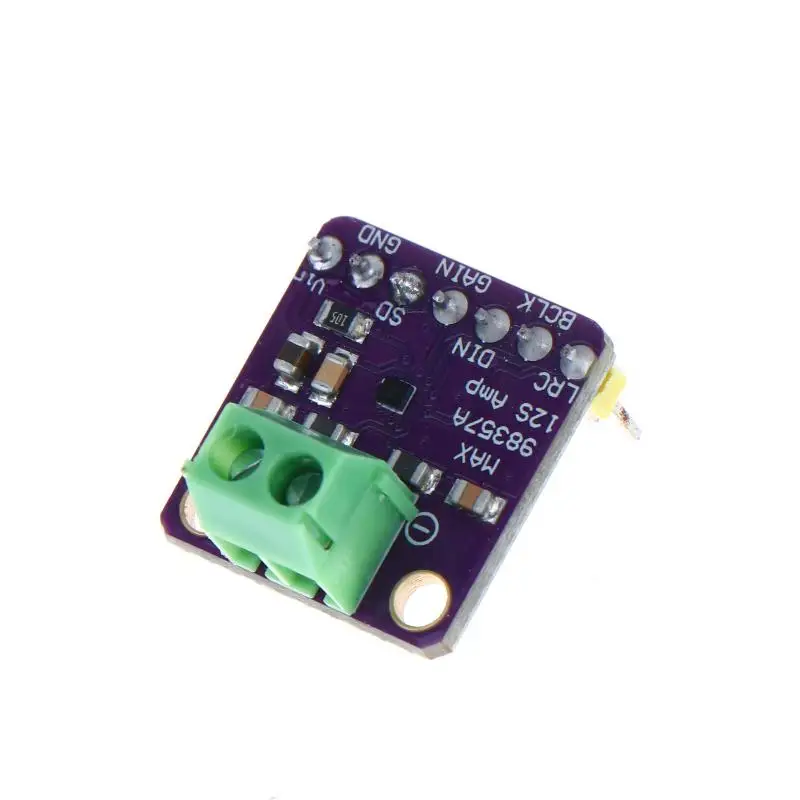

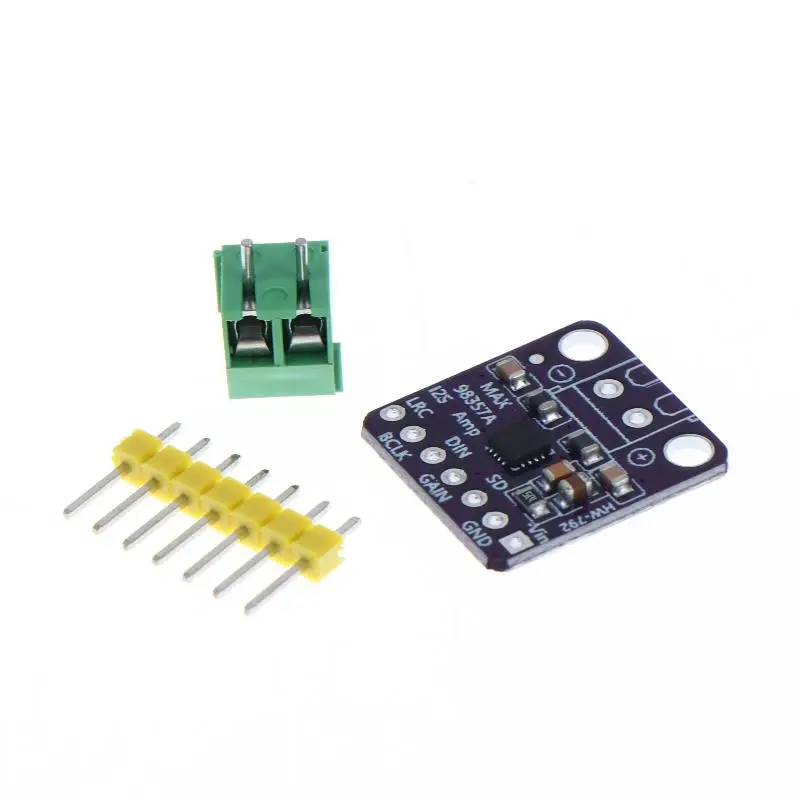

Pin specification:

LRC: I2S and LJ mode left/right clock synchronization clocks are used in TDM mode

BCLK: bit clock input

DIN: digital input signal

GAIN: indicates the gain and channel selection. In TDM mode, the gain is fixed at 12DB

GND: Power source

VCC: positive power supply, DC 2.5V-5.5V

Material: Plastic+Metal

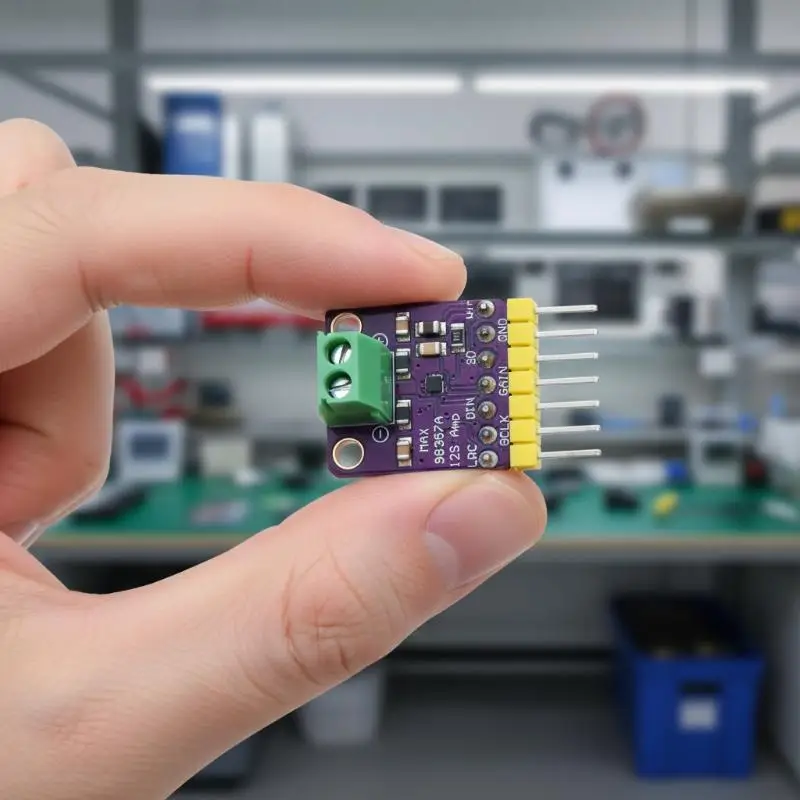

Size: 19.1 * 17.7mm

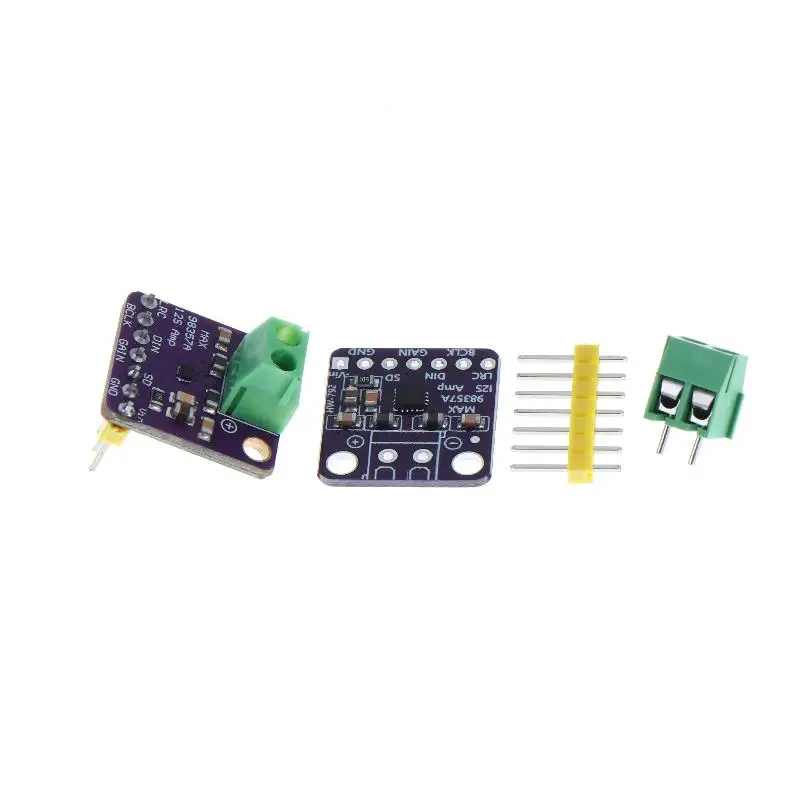

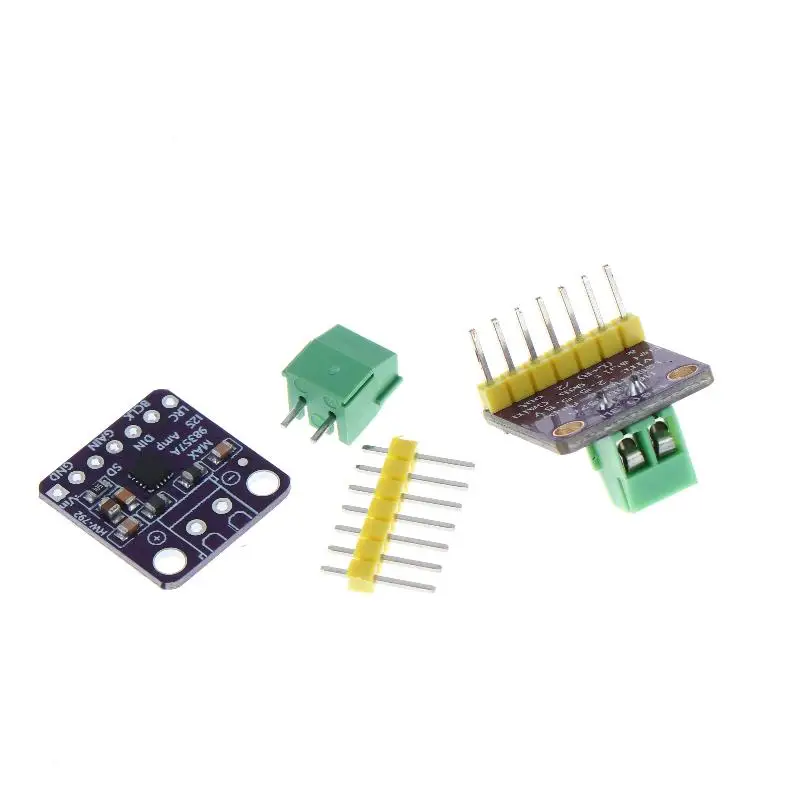

Packing: 1 set

Note:

1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.
