Micro 10mm/12mm M10/N20 Planetary Gearbox Gear Motor DC 1.5V-6V 3V 3.7V Mini Reducer Motor Cross Shaft DIY Robot Smart Car Toy
القسم: غير مصنف
18 ر.ق
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- Brand Name: NONE
- Does it include wireless functionality?: No
- Does it include a Battery?: No
- High-concerned chemical: None
- Output Power: ＜18.65
- Certification: CCC, ce
- Origin: Mainland China
- Continuous Current(A): Not clear
- Commutation: Brush
- Type: Gear Motor
- Protect Feature: Explosion-proof
- Construction: Permanent Magnet
- Efficiency: Other
- Output Voltage: Not clear
- Model Number: N20 gear motor
- Use: Home Appliance, Other
- Torque: No clear
Specification:

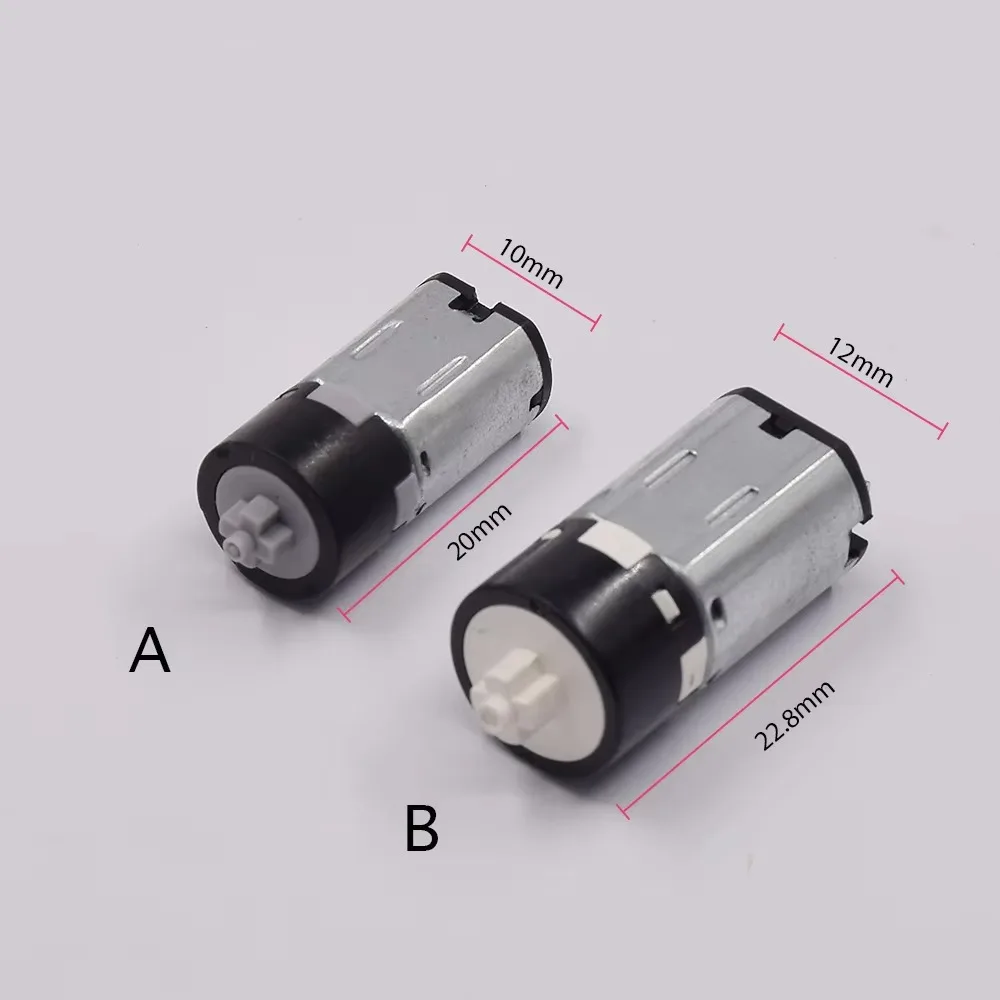

There are two version motor.
A motor is M10 gear motor
B motor is M20 gear motor
Two motor size have speed has difference.

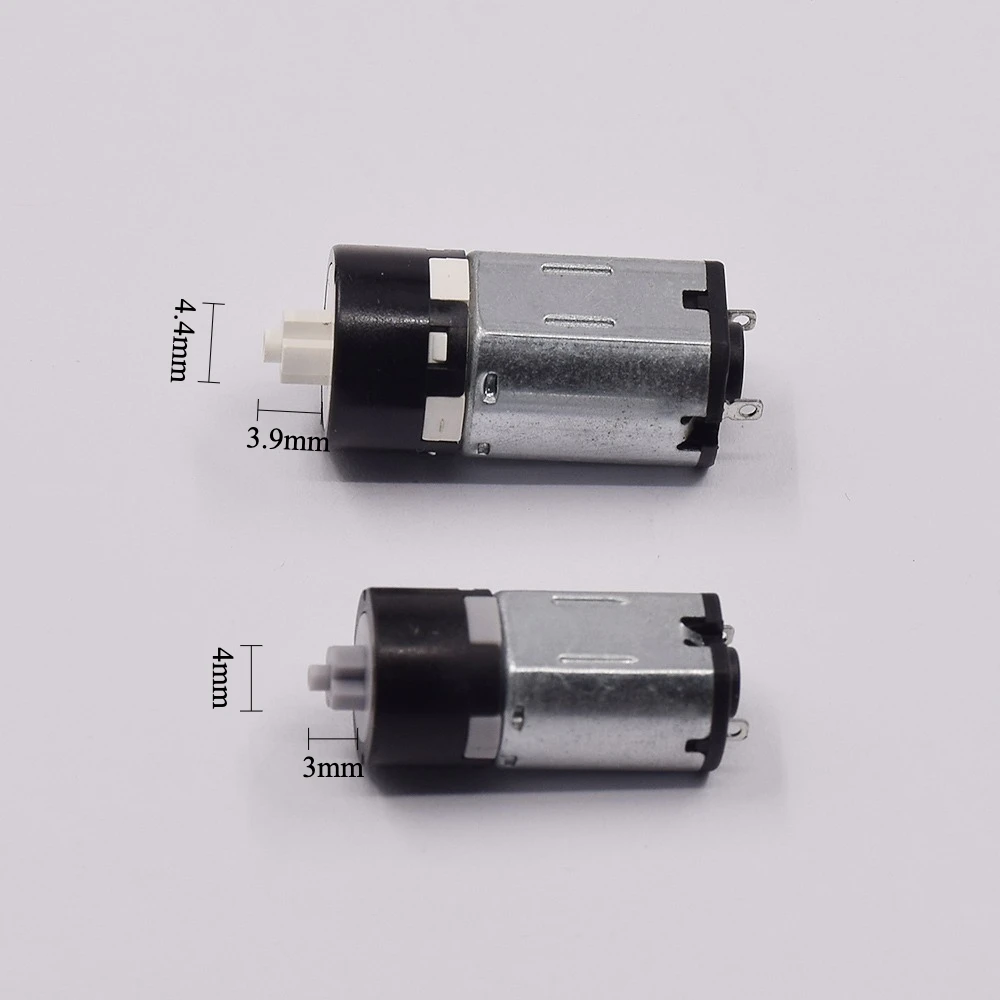

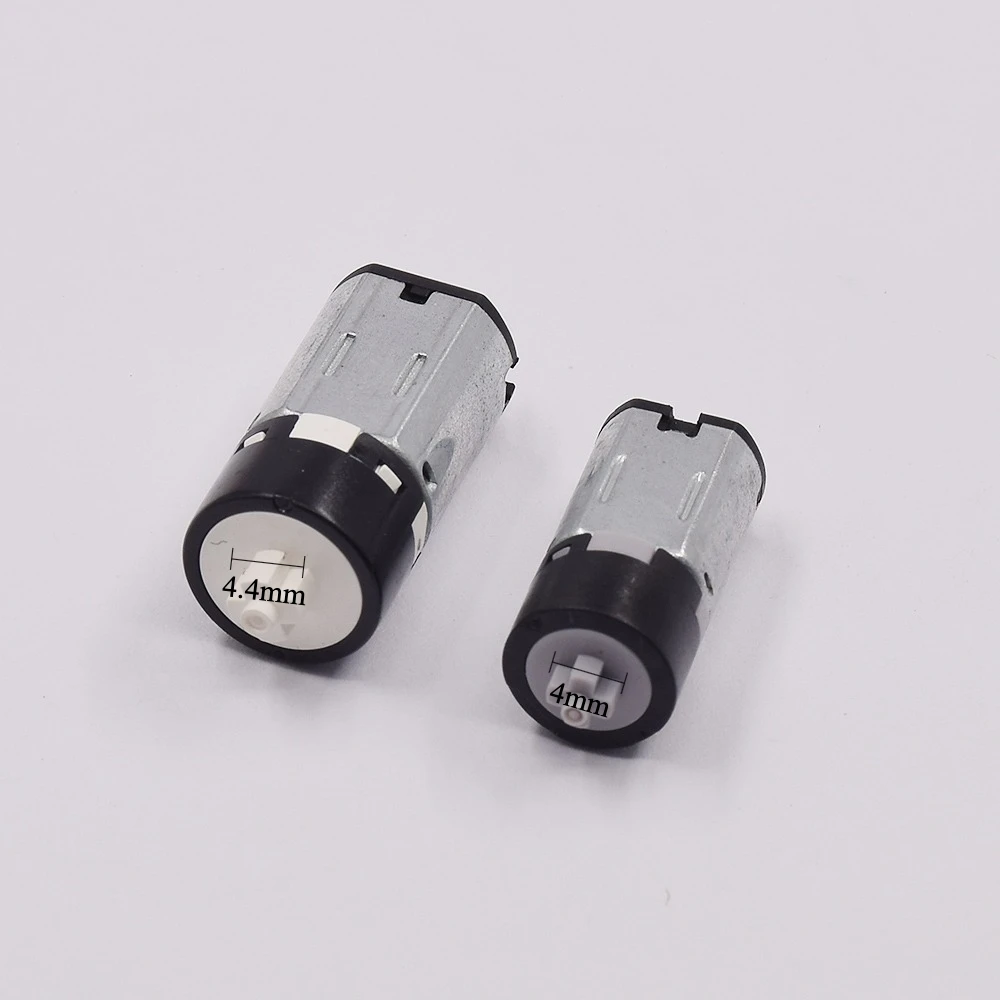

These planetary gearbox motor Adopting a cross shaped output shaft
design Precision plastic gears Powerful operation Low noise,
Suitable for toy models Beauty equipment and supplies Smart furniture Intelligent focusing system, etc
A motor is M10 gear motor data:
1.Rated voltage:DC 5V
2.No-load current:50mA
3.No-load speed:100RPM
4.Applicable voltage:DC 1.5V-6V
5. Speed:33RPM-133RPM
5.Weight:4g
B motor is N20 gear motor data:
1.Rated voltage:DC 3V
2.No-load current:70mA
3.No-load speed:180RPM
4.Applicable voltage:DC 1.5V-3.7V
5. Speed:90RPM-220RPM
5.Weight:7g
| Speed(RPM) | A 10mm Motor, B 12mm Motor |
|---|---|
| Brand Name | NONE |
| Does it include wireless functionality? | No |
| Does it include a Battery? | No |
| High-concerned chemical | None |
| Output Power | ＜18.65 |
| Certification | CCC, ce |
| Origin | Mainland China |
| Continuous Current(A) | Not clear |
| Commutation | Brush |
| Type | Gear Motor |
| Protect Feature | Explosion-proof |
| Construction | Permanent Magnet |
| Efficiency | Other |
| Output Voltage | Not clear |
| Model Number | N20 gear motor |
| Use | Home Appliance, Other |
| Torque | No clear |
| Gear Count | Other |
