Mini Wireless Smart Light Switch with Remote Control 1000M Distance 433 Mhz RF Relay Receiver 220V Switch for Home Led Lamp Fan
القسم: غير مصنف
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- Brand Name: kebidu
- Use: Universal, Lighting, Electric Door, Automated curtains, Switch
- Origin: Mainland China
- High-concerned chemical: None
- Wireless Communication: RF
- Support APP: No
- Frequency: 433 MHz
- Channel: 1
- Model Number: 433MHz AC 110V 220V Wireless RF Remote Control Switch
- Working Voltage: AC 85V~240V
- Max: 10A
- Max load: 2200W
- RF frequency: 433MHz
- Working temperature: -10~+70 Celsius
- Receiving Sensitivity: 97dbm
- Amount of storage remote controls: 20 pieces
- Support encoding: 1527 Leaning code/2262 fixed code
- RF Operating mode: ASK superheterodyne wireless reception
- Receiving range: Open space is more than 50 meters
- Application scenario: Family, Farm, Factory, Office, Supermarket
- Application2: Light, LED, Lamps, Fan and so on
- Features 1: 433mhz Rf Remote Control Switch
- Features 2: 10A 220V Relay Controller
- Features 3: For Led Light Lamp Fan ON OFF
- Features 4: 433mhz switch wireless remote control
- Features 5: wireless controller switch
- Features 6: Universal Gate Remote Control Switch
- Features 7: AC 110V 220V Relay Mini Receiver Remote ON OFF Transmitter
- Features 8: With remote control base
- Features 9: 23A 12V(Not include Battery)
Note:
The relay controller is RF Receivers ,the wall switch is RF only. Wall switch itself cannot control lights on off. It needs to work with rf receiver together.

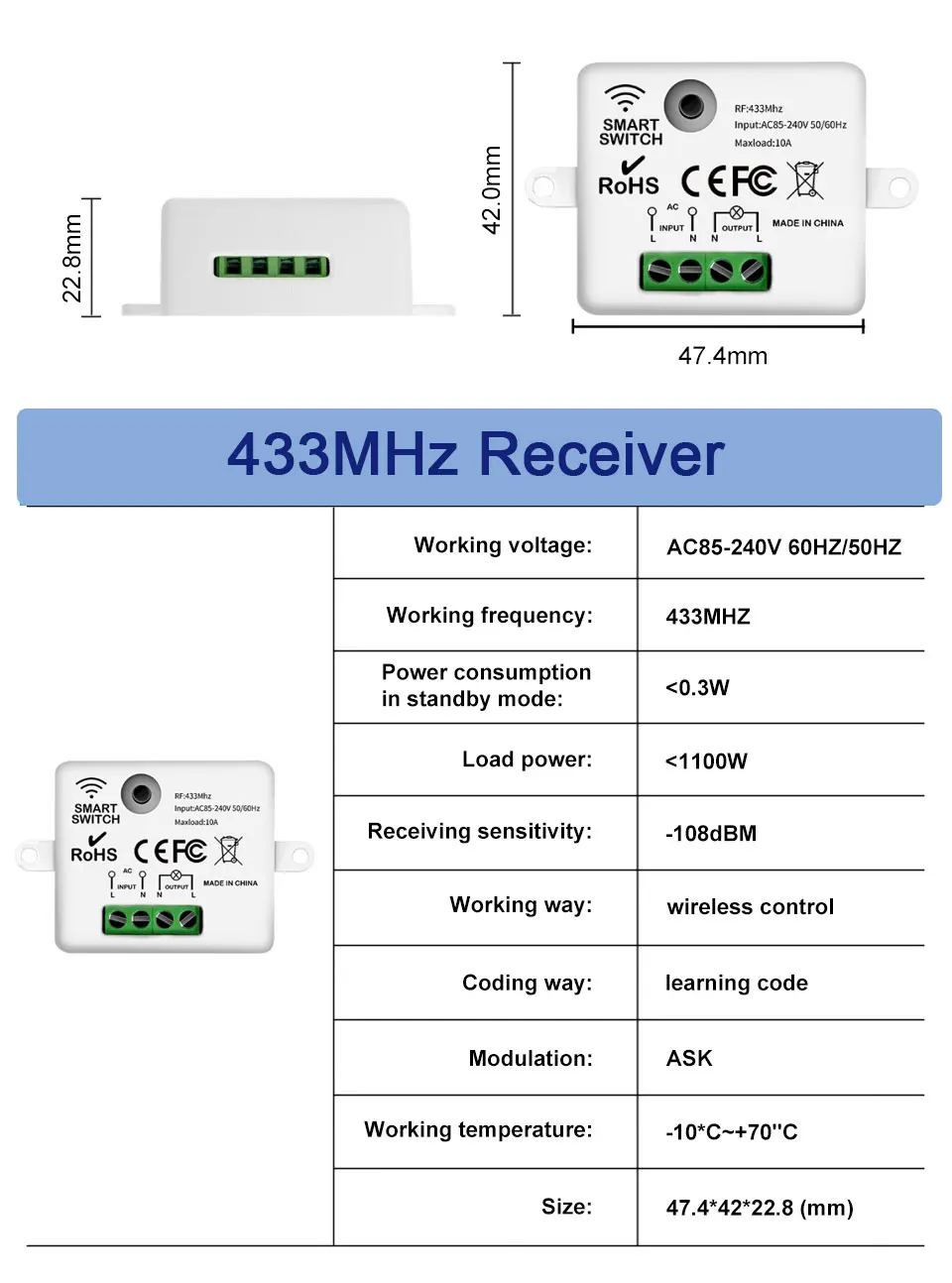

Relay Receiver Board Parameter
Working voltage : AC 85V~240V
Quiescent Current : <5MA
Max current : 10A
Max load: 2200W
Receiver Body Size : 47*42*27mm
Weight:35g
RF frequency : 433MHz
Pin : L / N
Working temperature : -10~+70 Celsius
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 20 pieces
Support encoding : EV1527 Leaning code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 100 meters
Remote operating mode : Toggle Mode / Latched Mode
Easy connect and multi control one

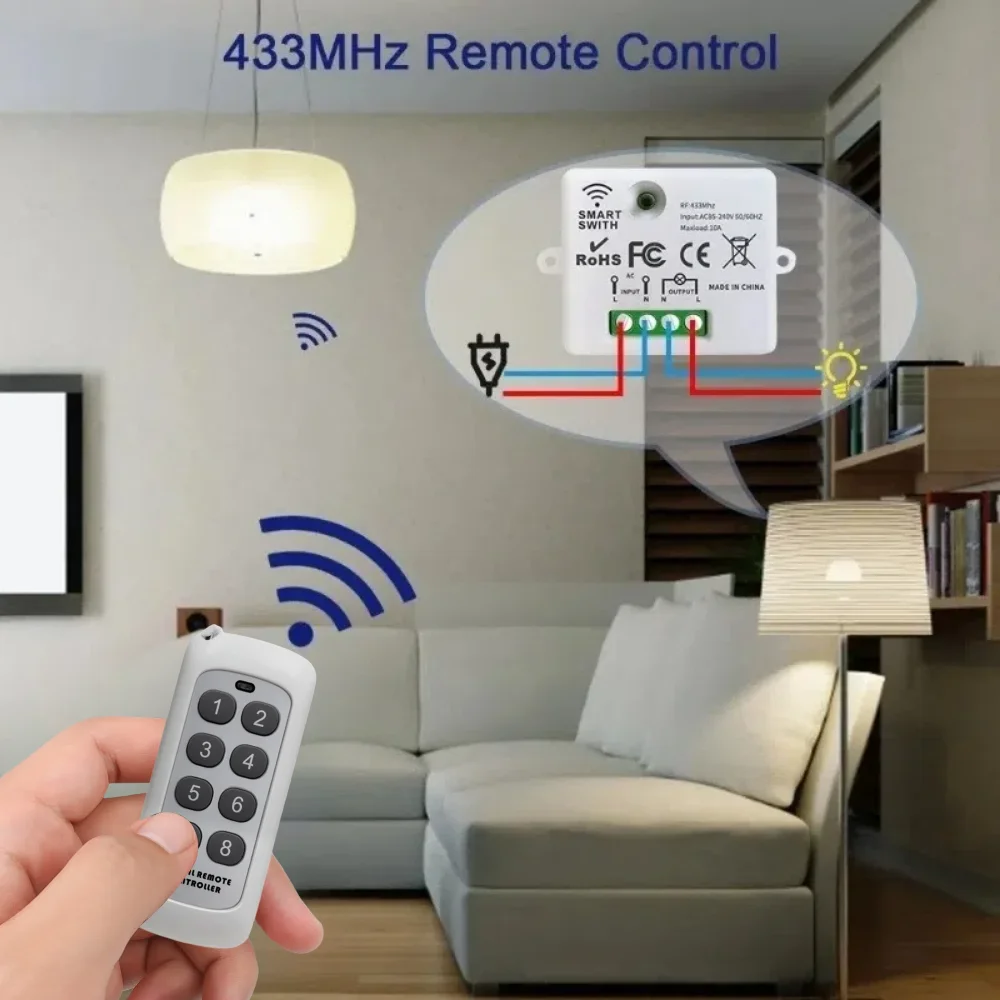

The receiver is easy to install, Multi switches can control different receivers or one receivers
strong signal and Long distance control
Control the light in the room, even outside the room, The receiver can be remotely controlled up to 1000 meters through a wireless switch and the signal can be controlled through the wall
Wide range of application
Products can be used in homes, farms, factories, offices, laboratories, supermarkets, and so on
Remote control Water pump / Fan / Lamp / LED light / bulb / ventilation device/ Exhaust system, Kettle, water heaters / Signal transmission / Electrical equipment
/Factory Home Office Ventilation Pump LED Light
Smart Home, Feel free to use it together
| Color | |
|---|---|
| Brand Name | kebidu |
| Use | Universal, Lighting, Electric Door, Automated curtains, Switch |
| Origin | Mainland China |
| High-concerned chemical | None |
| Wireless Communication | RF |
| Support APP | No |
| Frequency | 433 MHz |
| Channel | 1 |
| Model Number | 433MHz AC 110V 220V Wireless RF Remote Control Switch |
| Working Voltage | AC 85V~240V |
| Max | 10A |
| Max load | 2200W |
| RF frequency | 433MHz |
| Working temperature | -10~+70 Celsius |
| Receiving Sensitivity | 97dbm |
| Amount of storage remote controls | 20 pieces |
| Support encoding | 1527 Leaning code/2262 fixed code |
| RF Operating mode | ASK superheterodyne wireless reception |
| Receiving range | Open space is more than 50 meters |
| Application scenario | Family, Farm, Factory, Office, Supermarket |
| Application2 | Light, LED, Lamps, Fan and so on |
| Features 1 | 433mhz Rf Remote Control Switch |
| Features 2 | 10A 220V Relay Controller |
| Features 3 | For Led Light Lamp Fan ON OFF |
| Features 4 | 433mhz switch wireless remote control |
| Features 5 | wireless controller switch |
| Features 6 | Universal Gate Remote Control Switch |
| Features 7 | AC 110V 220V Relay Mini Receiver Remote ON OFF Transmitter |
| Features 8 | With remote control base |
| Features 9 | 23A 12V(Not include Battery) |
