DESCRIPTION

The KM-2 microphone has been developed especially for those seeking precision and sound quality in audio measurement, research, development, and reverberation testing.

With the KM-2, you can expect excellent results that will meet even the most stringent demands. This microphone is known for its narrow tubular construction, which minimizes unwanted influences on sound, ensuring accurate measurements even at high frequencies.

Its linear frequency response from 20Hz to 20kHz provides natural and authentic sound reproduction. With an omni polar pattern, it captures sound from all directions, being versatile for various applications. With a sensitivity of -40dB, output impedance of 600 Ohms and low base noise of 28dBA, the KM-2 ensures quality and reliability.

Powered by 48V DC 2mA and equipped with XLR-M interface, the microphone is compatible with most audio equipment, being possible to measure sound reinforcement and system

The KM-2 microphone has been developed especially for those seeking precision and sound quality in audio measurement, research, development, and reverberation testing.

With the KM-2, you can expect excellent results that will meet even the most stringent demands. This microphone is known for its narrow tubular construction, which minimizes unwanted influences on sound, ensuring accurate measurements even at high frequencies.

Its linear frequency response from 20Hz to 20kHz provides natural and authentic sound reproduction. With an omni polar pattern, it captures sound from all directions, being versatile for various applications. With a sensitivity of -40dB, output impedance of 600 Ohms and low base noise of 28dBA, the KM-2 ensures quality and reliability.

Powered by 48V DC 2mA and equipped with XLR-M interface, the microphone is compatible with most audio equipment, being possible to measure sound reinforcement and system

TECHNICAL SPECIFICATIONS

Brand: HTDZ

Model KM-2

Type: Microphone for Frequency Measurement

Colour: Grey

Material: Metal

Element: Rear Electrode Capacitor

Resistant to interference

Extremely light

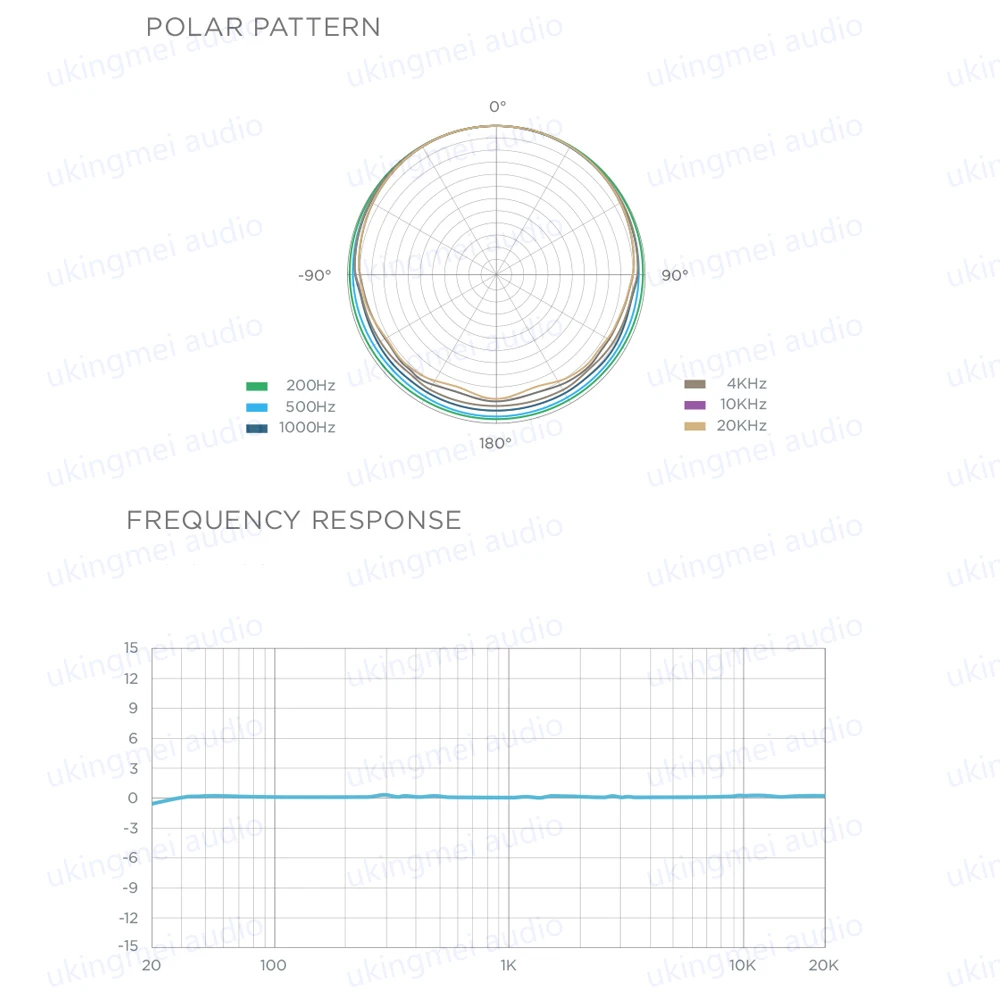

Frequency Response: 20Hz – 20KHz (+-1.5dB)

Polar Pattern: Omnidirectional

Sensitivity: -40dB +-3dB (1dB = 1V/Pa at 1kHz)

Output impedance: 600 Ohms +-20% (1kHz)

Max. SPL Input: 130dB (T.H.D less than 1% at 1kHz)

Equivalent Base Noise: 28dBA

Powerful requirements: 48V DC 2mA

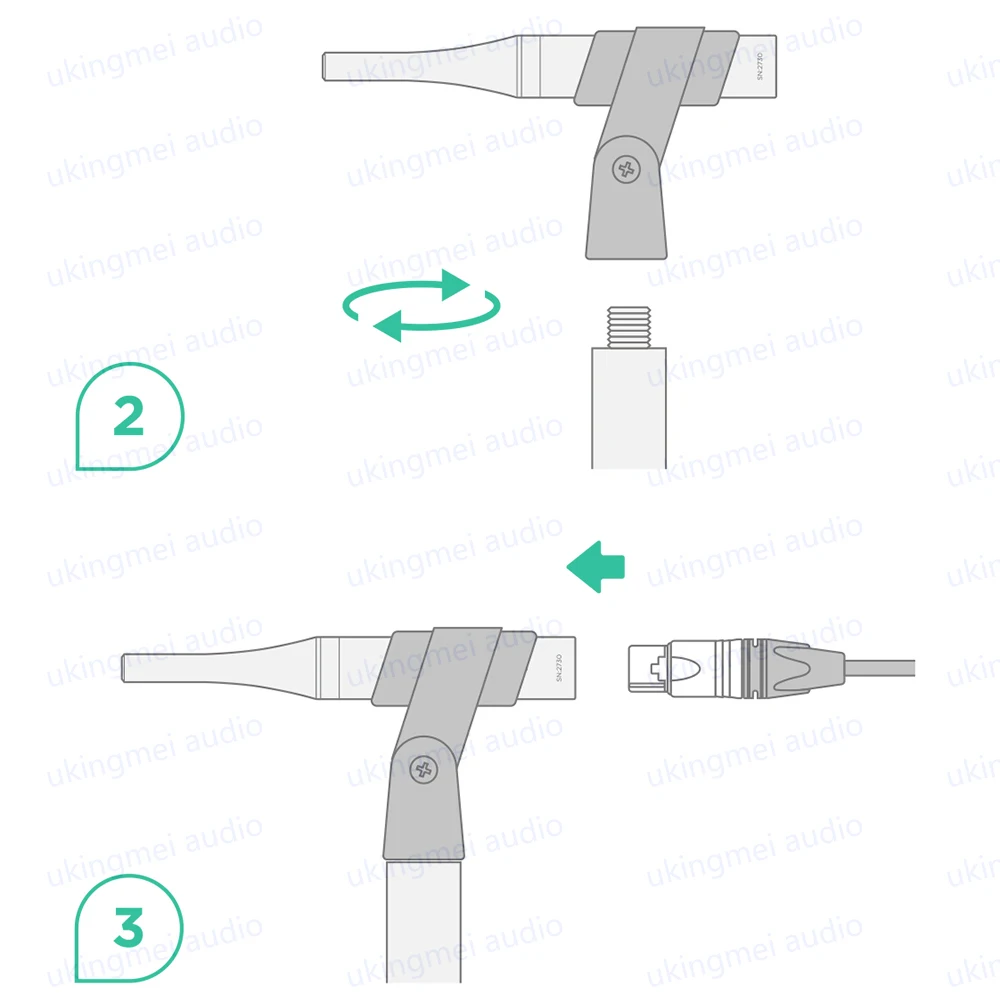

Output interface: XLR-M

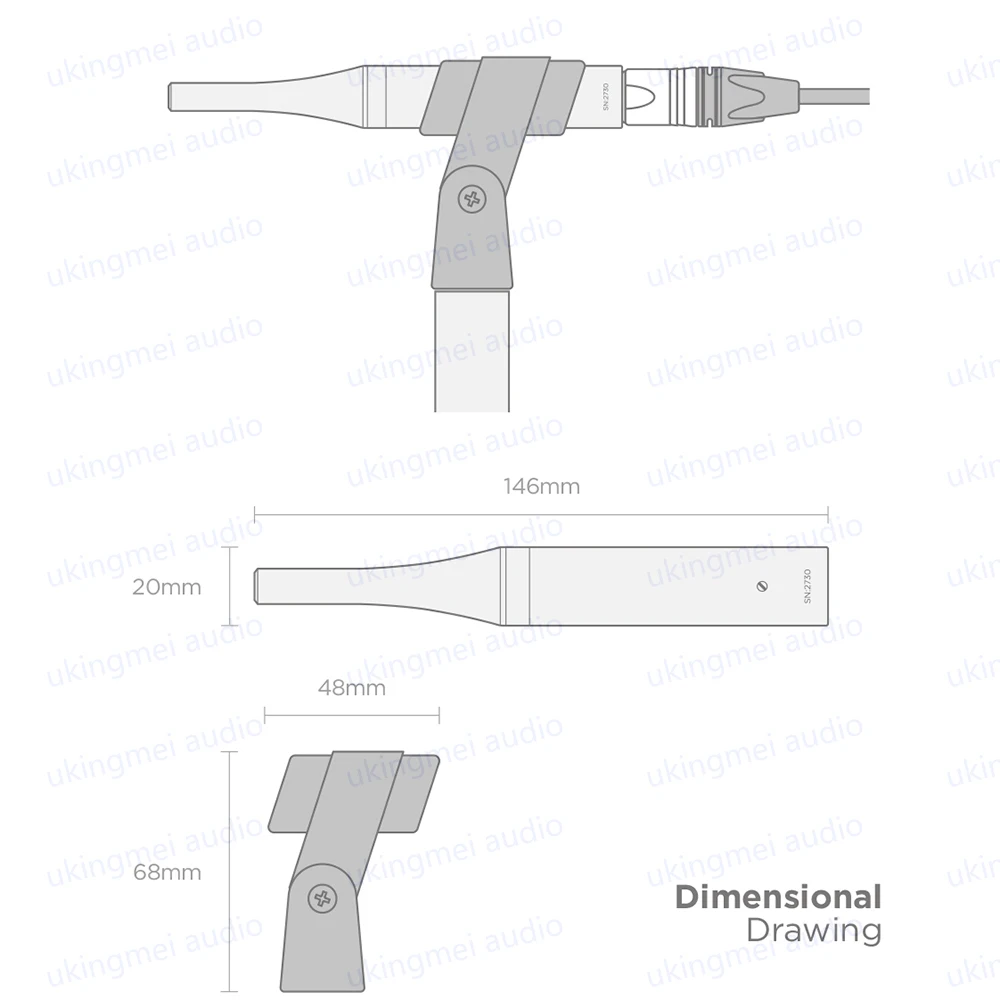

Microphone diameter: 20mm (2cm)

Microphone length: 146mm (14.6cm)

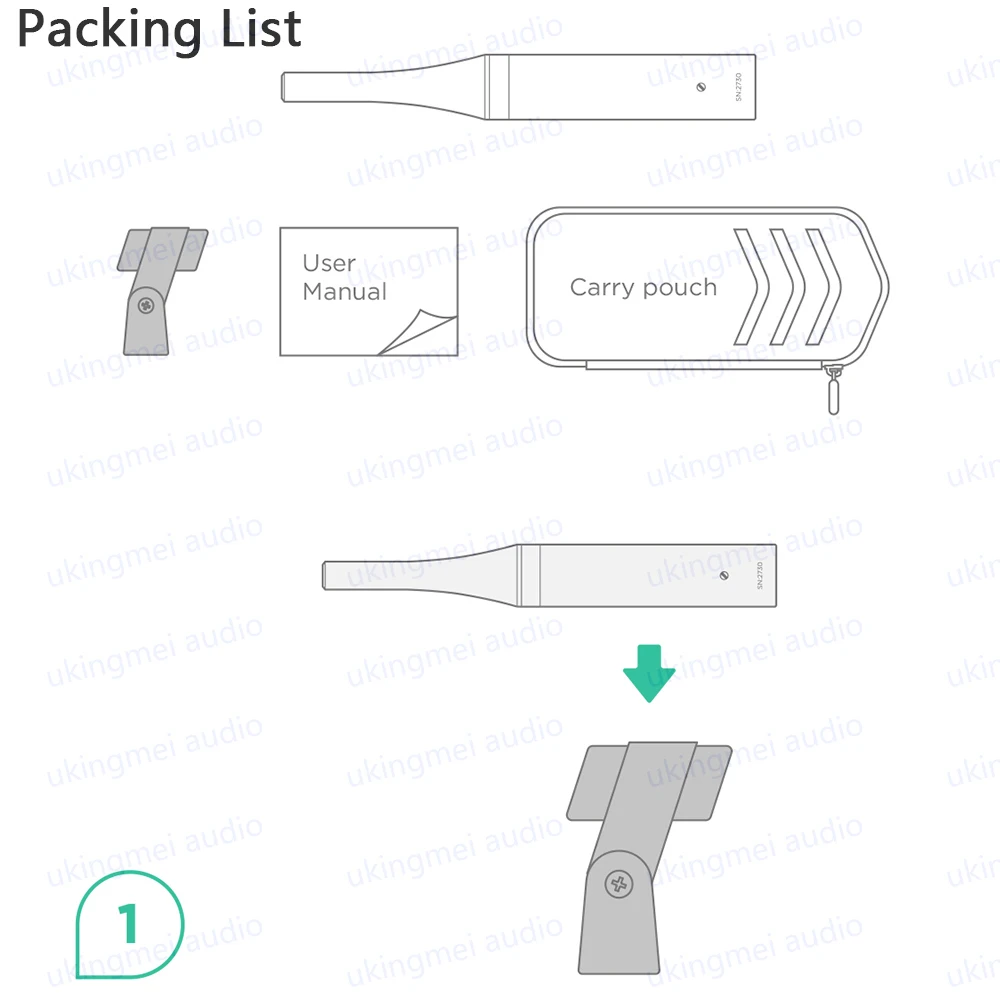

Accompanying Case and Pipe

Accompanying Invoice

Package dimensions: 18 cm x 9 cm x 5 cm

Weight: 0.215 kg
