characteristic:

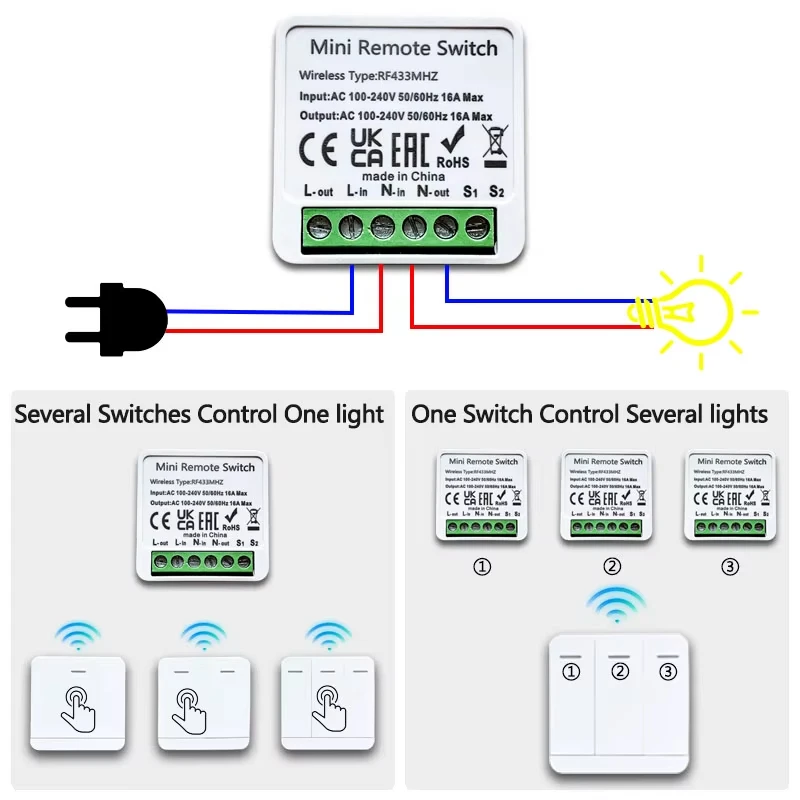

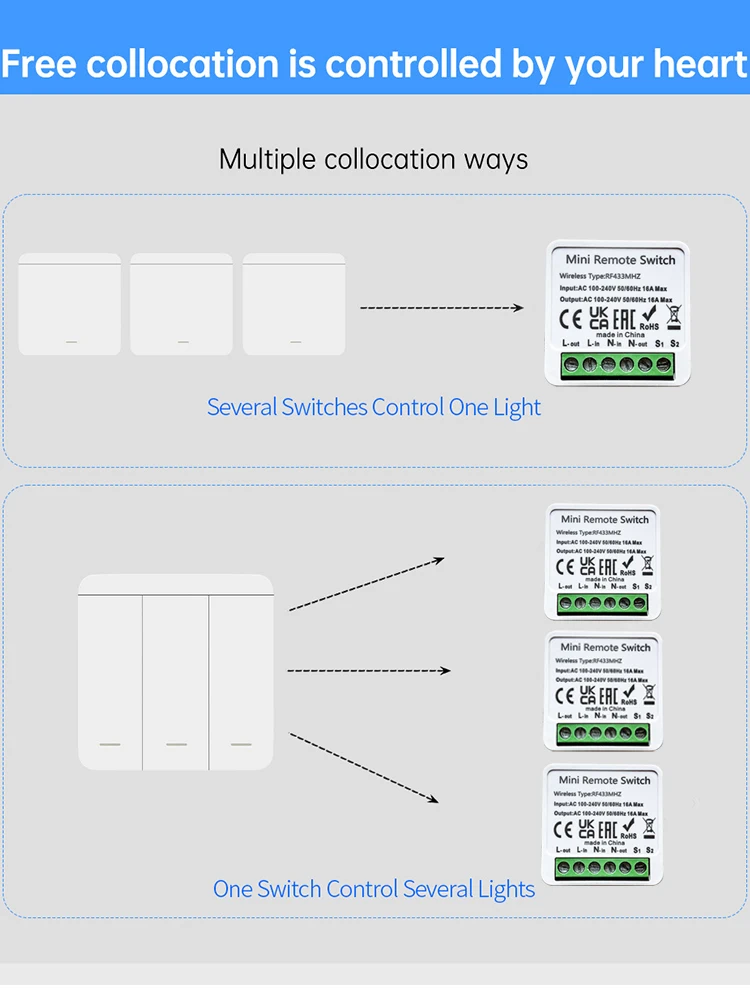

1.Multiple switches can control different receivers. Save energy and avoid darkness.

2. Suitable for various chandeliers and fans, ED, CFL, fluorescent lamps can be charged up to 300W, and others can be charged up

3.This is an 86 wall panel that can be glued anywhere. It is an EV1527 IC chip learning code transmitter. It can be learned in most learning code receivers.

Specifications:

Controller (receiver) operating voltage: AC85-240V 60Hz/50

HZ working frequency: 433MHz

Standby power consumption:<0.3

Charging power: ＜ 1100W

Receiver sensitivity: -108dBm

Working mode: wireless control

Encoding mode: Learning code

Modulation: Inquiry

Working temperature: -10 * C~+70 “C

Size: 47.4 * 42 * 22.8 (mm)

How to clear the signal

Step 1: Press the learning button (on the receiver) 8 times. Wait for 3 seconds;

How to obtain signals

Step 1: Double click the learning button (on the receiver). Wait for 3 seconds;

Step 2: Press the button on the remote control. Wait for 3 seconds. success.

Product Features

1. The appearance is compact and beautiful, with a full panel sliding cover design to avoid accidental triggering;

2. Using wireless radio frequency technology, the transmission distance is not directional, the transmission sensitivity is high, and there is no signal blocking;

3. The hull is made of high-quality imported ABS fireproof materials, with metal frames wrapped around the edges for safe and reliable use.

4. Equipped with LED working status indicator.

Product size: 92 * 40 * 15mm

Working chip: 1527

Scope of application: Home/shopping mall anti-theft alarms; Alarm systems for electric vehicles, automobiles, motorcycles, and various door and window controllers.
