Short Distance Scan Sensor Sweep Hand Sensor Switch Module 36W 3A Constant Voltage for Auto Smart Home Compatible XK-GK-4010A
القسم: غير مصنف
شحن دولي
يرجى معاينة تفاصيل المنتج لمعرفة بلد المنشأ والشحن
مشاركة المنتج
- Brand Name: Jessinie
- Origin: Mainland China
- High-concerned chemical: None
- Condition: New
- Type: Voltage Regulator
- Supply Voltage: 5V – 24V
- Dissipation Power: 72W 3A
- is_customized: Yes
- Quantity: 1
- Operating Temperature: -40-+85
- Application: Computer
- Package: TQFP
Product Parameters
Input Voltage: DC5V-24V (12V recommended)
Output Voltage: Equal to input voltage
Load Power: 72W (MAX)
Load Current: Resistive 3A (MAX)
Standby Current: 10-15mA
Standby Power Consumption: Approximately 0.01W
Operating Temperature: -25°C-85°C
Output Frequency: 32kHz

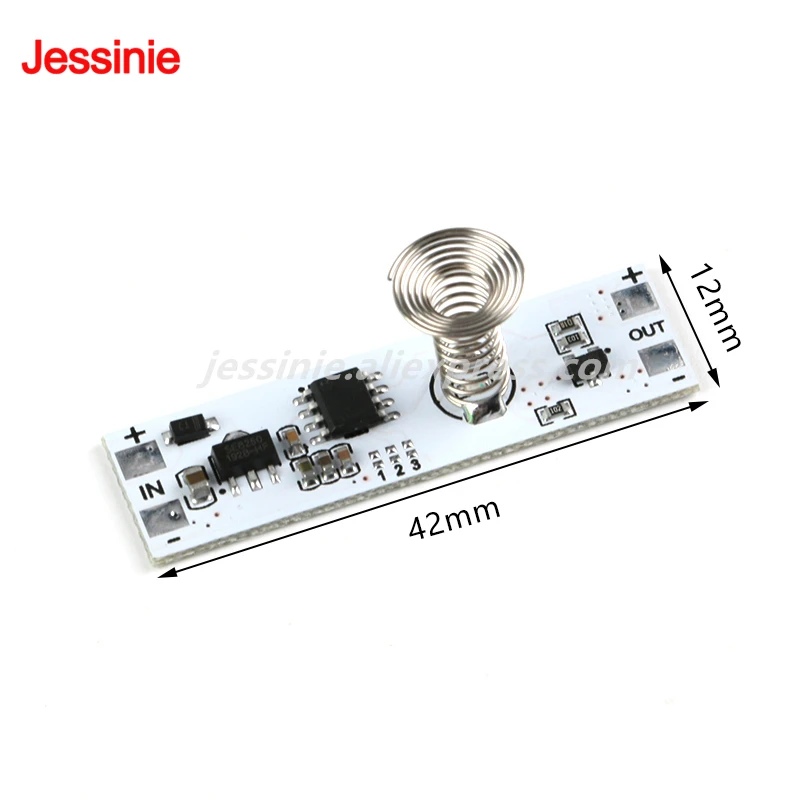

Dimensions: 42mm*12mm*14mm
Notes
1. The input voltage must not be lower than 5V or higher than 24V.
2. The load power must not exceed 72W, otherwise, there will be induction, but the load will not operate.
3. Do not connect the input and output in reverse. IN is input, OUT is output. Otherwise, the circuit will burn out.
4. Do not connect the positive and negative poles of the input and output in reverse. Otherwise, the circuit will burn out.
5. A floating solder pad defaults to a high level of 1, while a shorted solder pad defaults to a low level of 0.

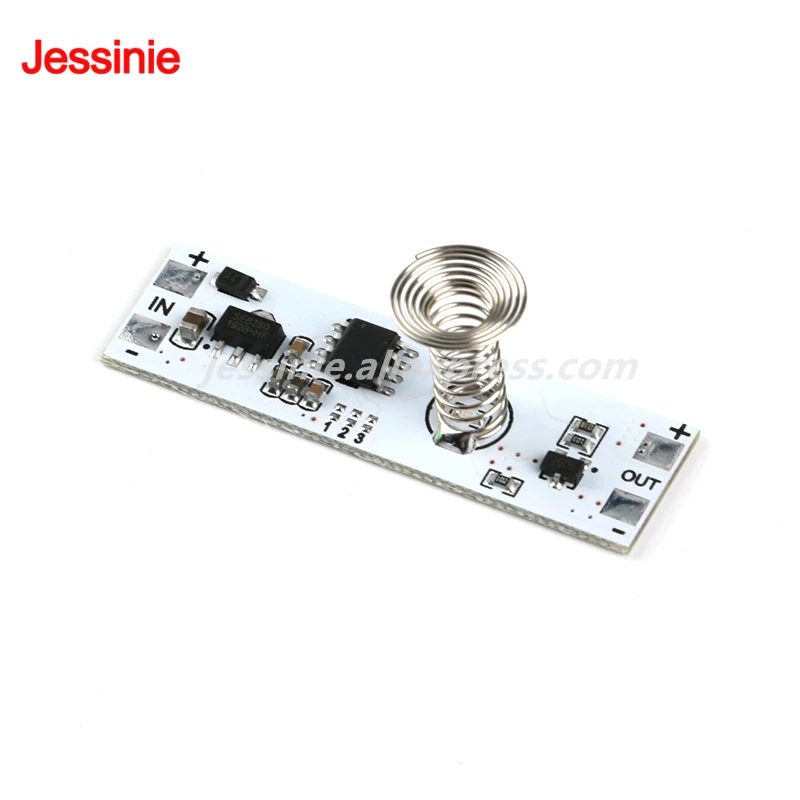

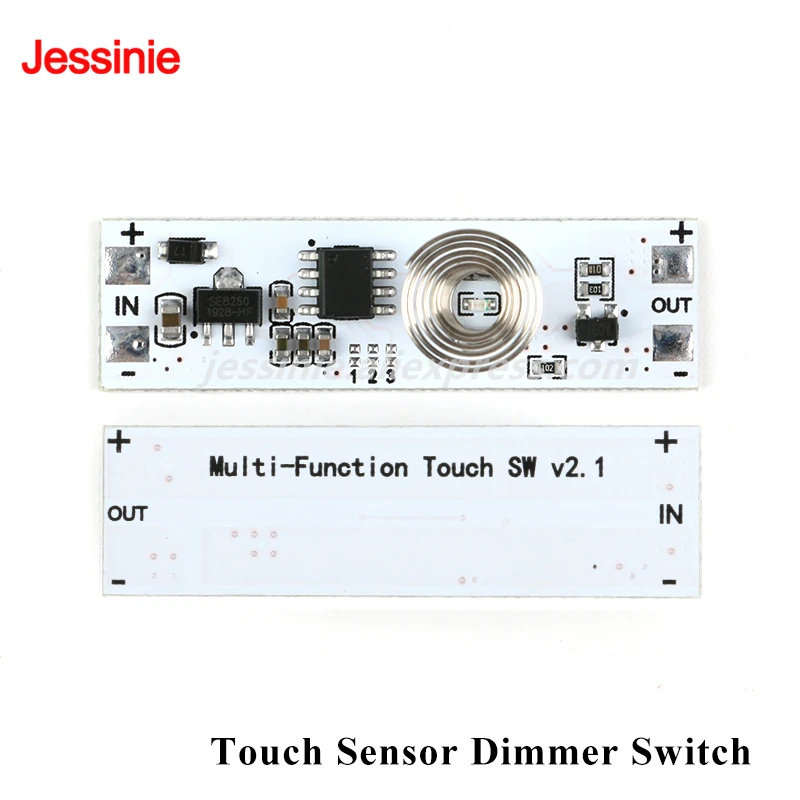

6. Brightness memory does not refer to power-off memory; it refers to the module. After powering on, the touch switch process has brightness memory; when the module is powered off, the brightness will return to the default state.
Input Voltage: DC5V-24V (12V recommended)
Output Voltage: Equal to input voltage
Load Power: 72W (MAX)
Load Current: Resistive 3A (MAX)
Standby Current: 10-15mA
Standby Power Consumption: Approximately 0.01W
Operating Temperature: -25°C-85°C
Output Frequency: 32kHz
Dimensions: 42mm*12mm*14mm
Notes
1. The input voltage must not be lower than 5V or higher than 24V.
2. The load power must not exceed 72W, otherwise, there will be induction, but the load will not operate.
3. Do not connect the input and output in reverse. IN is input, OUT is output. Otherwise, the circuit will burn out.
4. Do not connect the positive and negative poles of the input and output in reverse. Otherwise, the circuit will burn out.
5. A floating solder pad defaults to a high level of 1, while a shorted solder pad defaults to a low level of 0.
6. Brightness memory does not refer to power-off memory; it refers to the module. After powering on, the touch switch process has brightness memory; when the module is powered off, the brightness will return to the default state.
Module Description

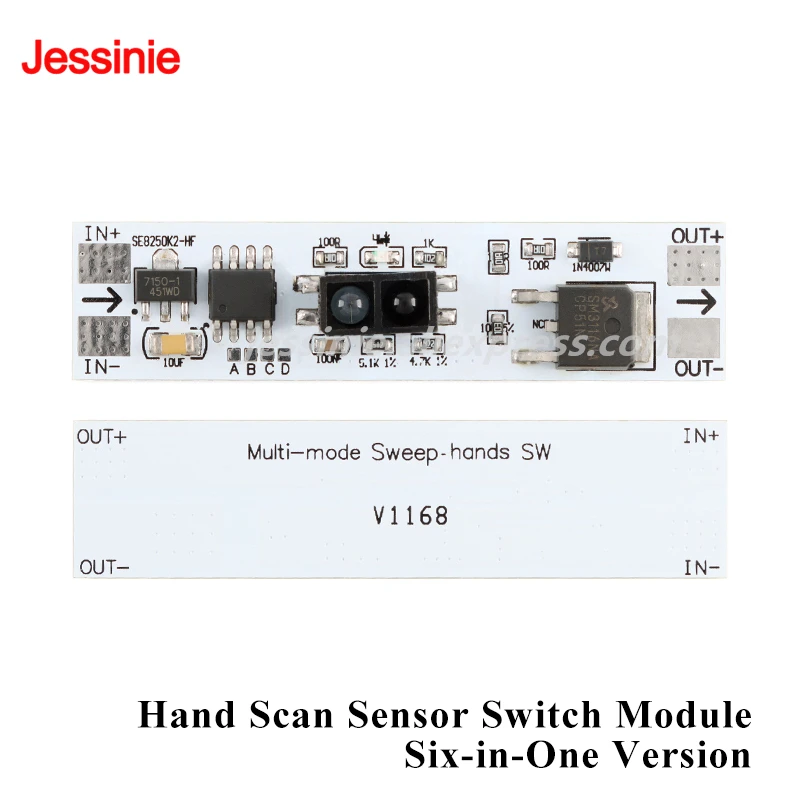

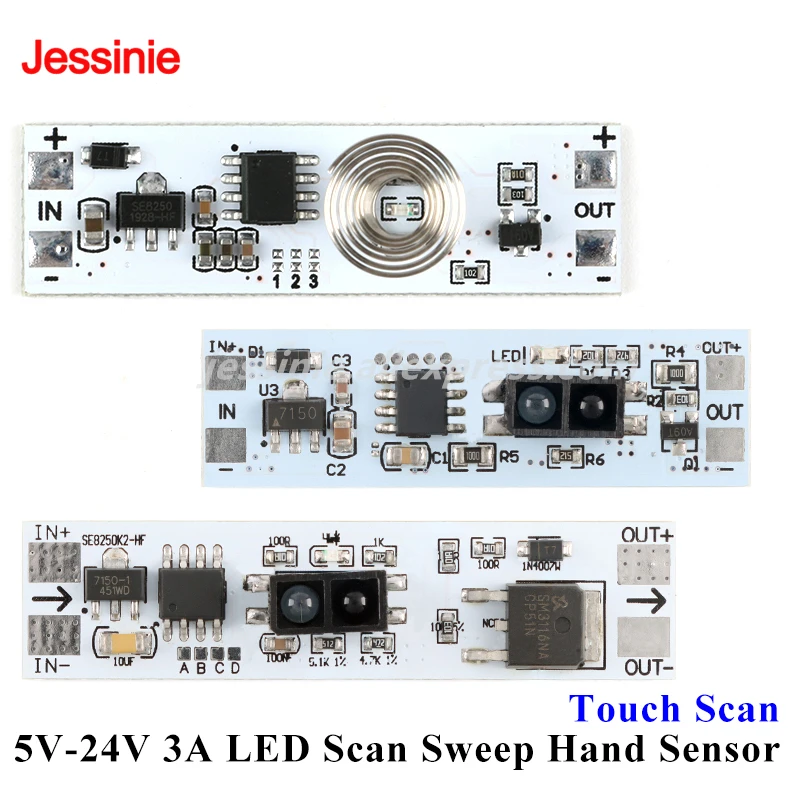

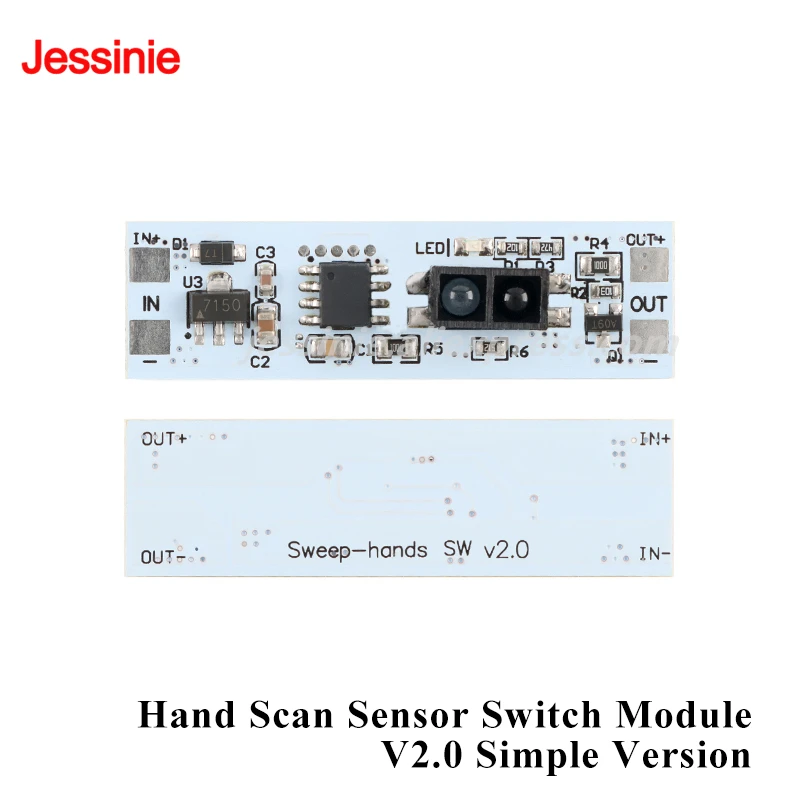

This infrared sensor switch module, with your hand within 3-8cm of the sensor head, lights up with a single swipe, and turns off with another swipe. Six functions are available (slow on/off, instant on/off, release/off, block on/release/block off, instant on/off, dimming, slow on/off + dimming).
Note: This sensor cannot be used directly with a 220V household power supply. A 12V/24V transformer should be selected based on the operating voltage of the LED light. This controller is only for LED light on/off control and should not be used with inductive loads (such as inductors, motors, relays, etc.).
Pin Description
IN+: Power input positive
IN-: Power input ground
OUT+: Output positive
OUT-: Output ground
This infrared sensor switch module, with your hand within 3-8cm of the sensor head, lights up with a single swipe, and turns off with another swipe. Six functions are available (slow on/off, instant on/off, release/off, block on/release/block off, instant on/off, dimming, slow on/off + dimming).
Note: This sensor cannot be used directly with a 220V household power supply. A 12V/24V transformer should be selected based on the operating voltage of the LED light. This controller is only for LED light on/off control and should not be used with inductive loads (such as inductors, motors, relays, etc.).
Pin Description
IN+: Power input positive
IN-: Power input ground
OUT+: Output positive
OUT-: Output ground
| Color | |
|---|---|
| Brand Name | Jessinie |
| Origin | Mainland China |
| High-concerned chemical | None |
| Condition | New |
| Type | Voltage Regulator |
| Supply Voltage | 5V – 24V |
| Dissipation Power | 72W 3A |
| is_customized | Yes |
| Quantity | 1 |
| Operating Temperature | -40-+85 |
| Application | Computer |
| Package | TQFP |
